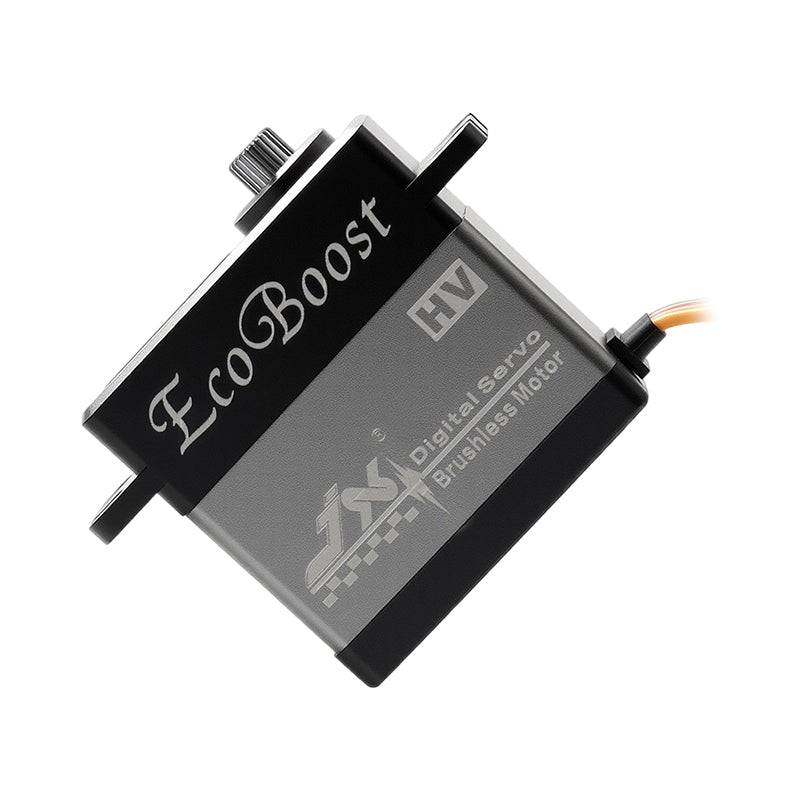

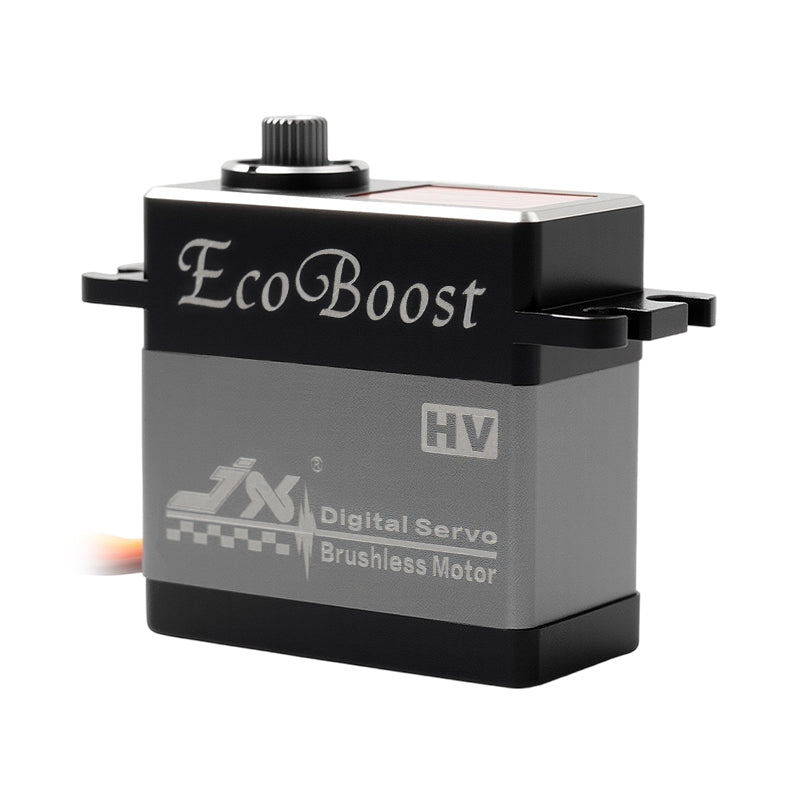

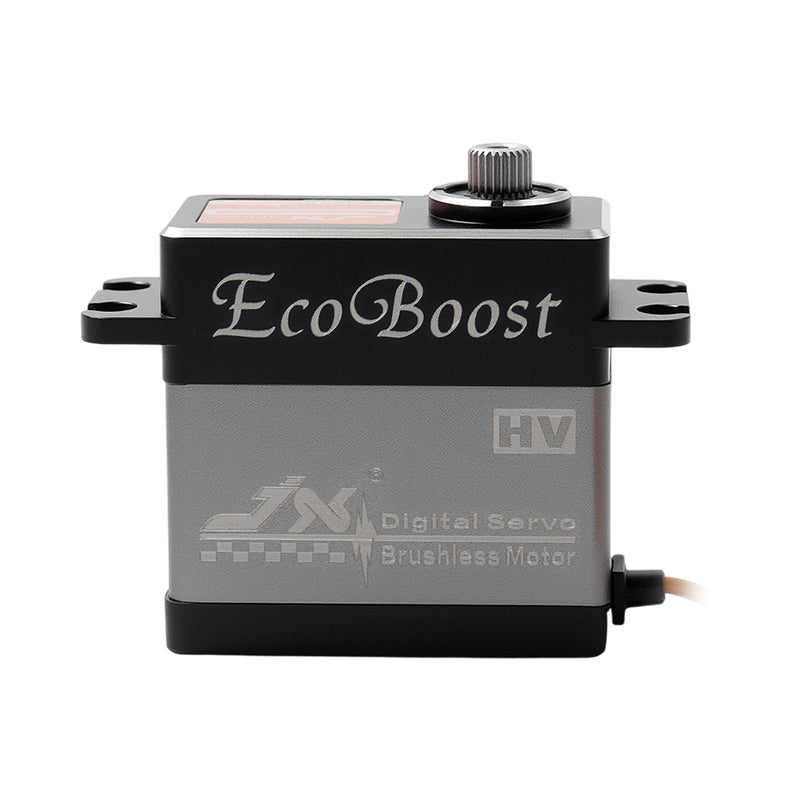

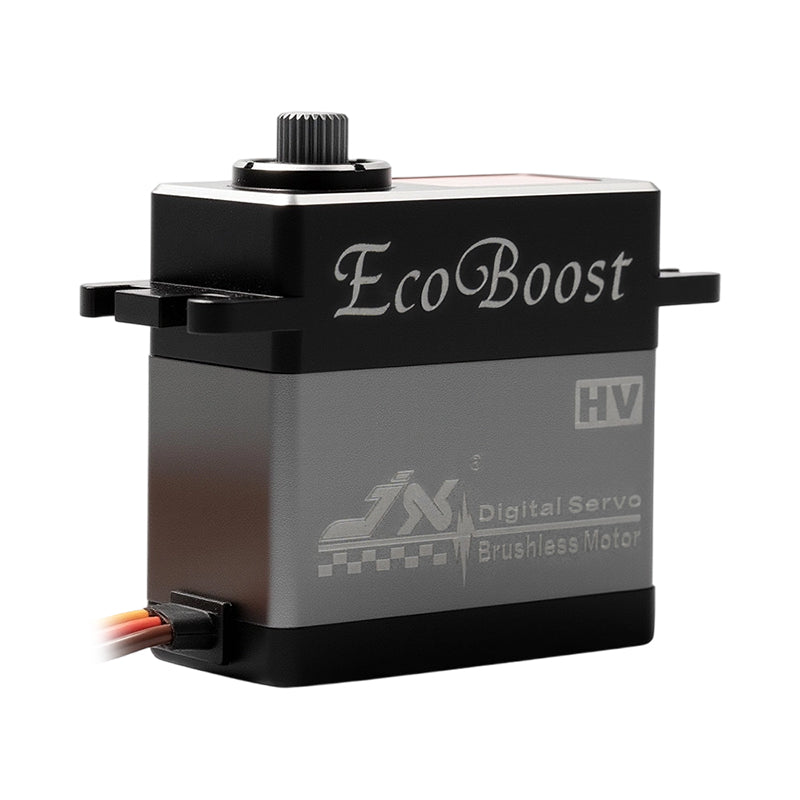

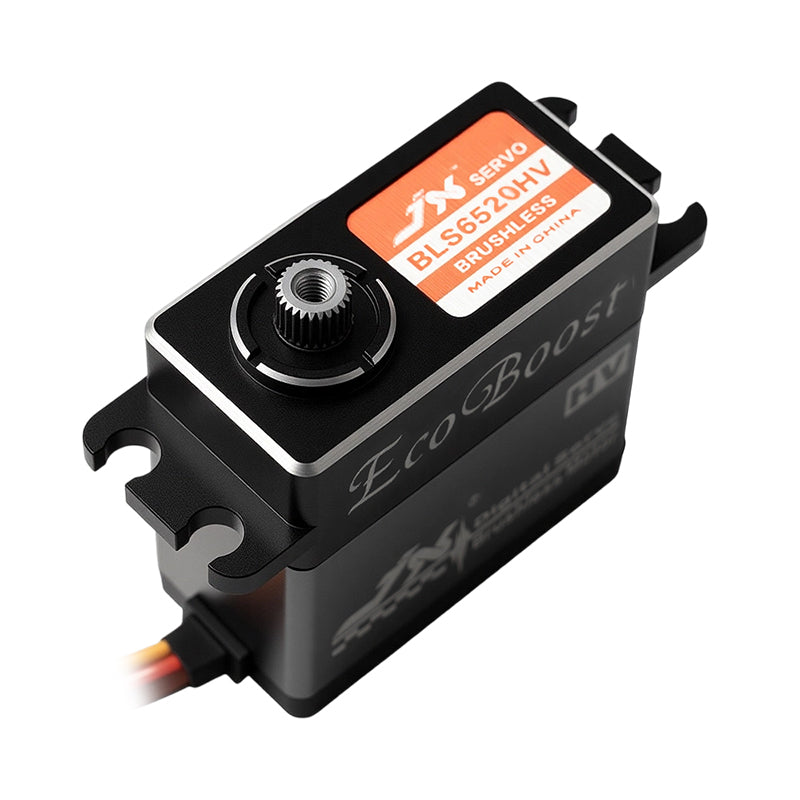

JX Ecoboost BLS6520HV 19.5KG Large Torque 180 Degree Metal Gear High Voltage Brushless Digital Servo
$30.58
Zu Produktinformationen springen
JX Ecoboost BLS6520HV 19.5KG Large Torque 180 Degree Metal Gear High Voltage Brushless Digital Servo
JX Ecoboost BLS6520HV 19.5KG Large Torque 180 Degree Metal Gear High Voltage Brushless Digital Servo
$30.58
Product Specifications
FEATURE
- CNC metal top cover and middle shell
- High-precision Taiwan-made aluminium gears with hard anodizing
- High voltage brushless digital servo
SPECIFICATIONS
| Dead band | 1μs |
| Working Frequency | 1520μs / 330hz |
| Motor | Brushless |
| Operating Speed (6.6V) | 0.08 sec/60° |
| Operating Speed (7.4V) | 0.065 sec/60° |
| Stall Torque (6.6V) | 15.28 kg.cm |
| Stall Torque (7.4V) | 19.5 kg.cm |

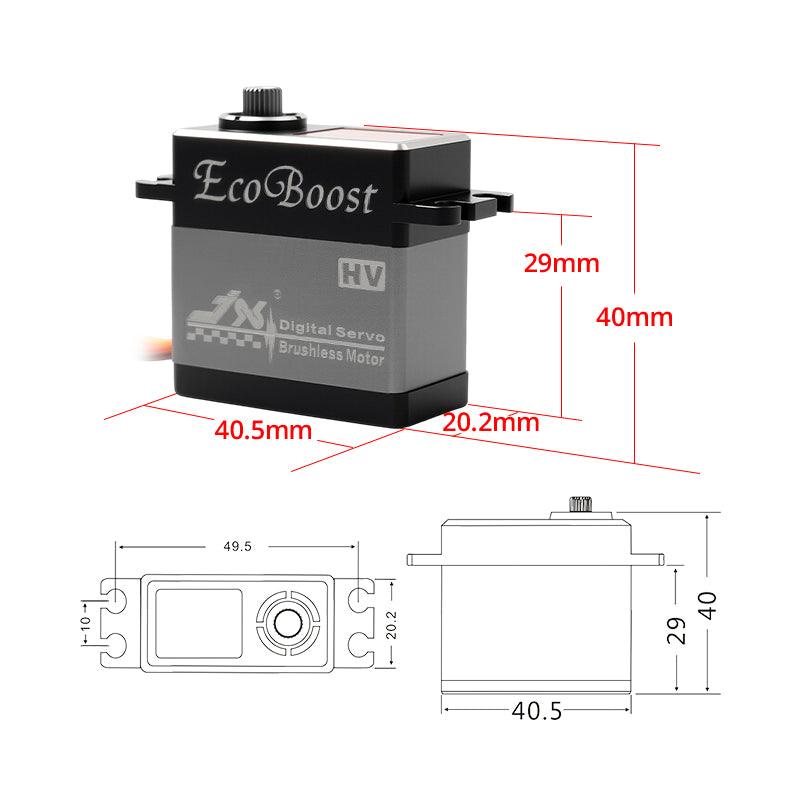

| Dimensions | 40.5x20.2x40mm |
| Weight | 65 g |
| Wire / Color | JR 265mm / Brown(-) Red(+) Orange(S) |
| Bearing | 2BB |
