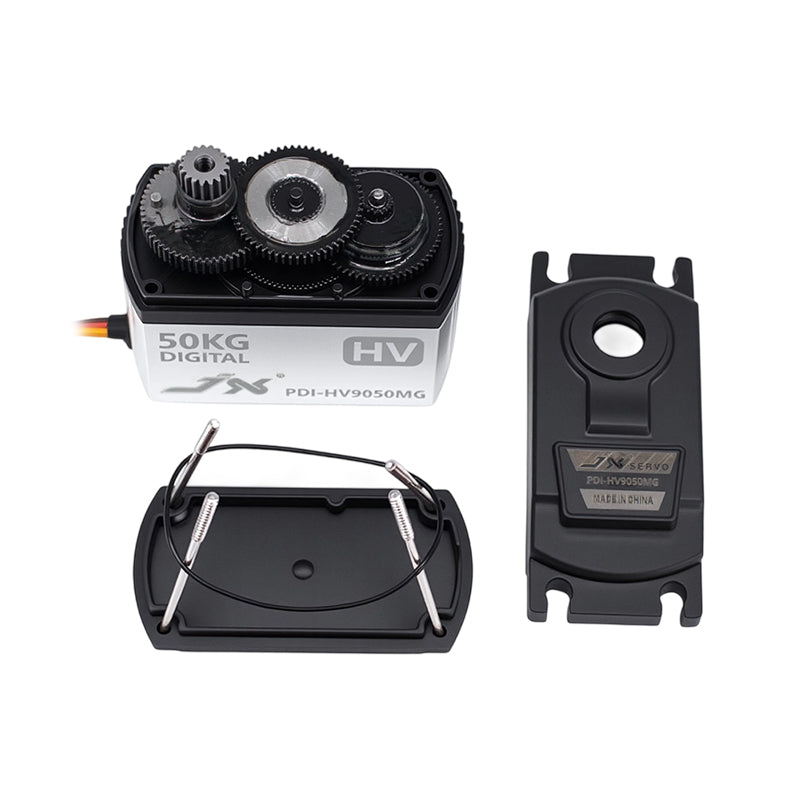

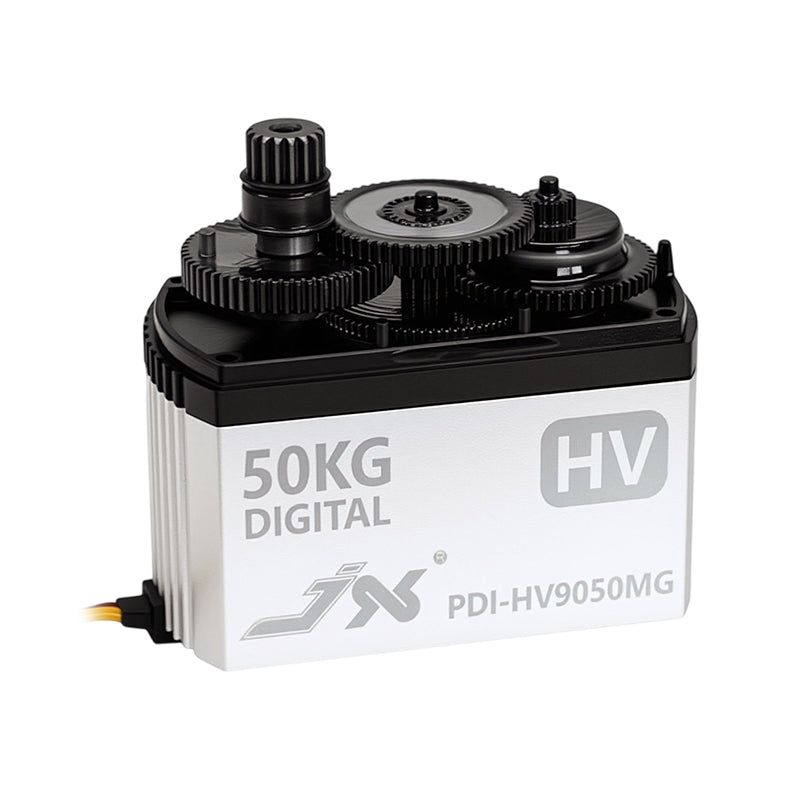

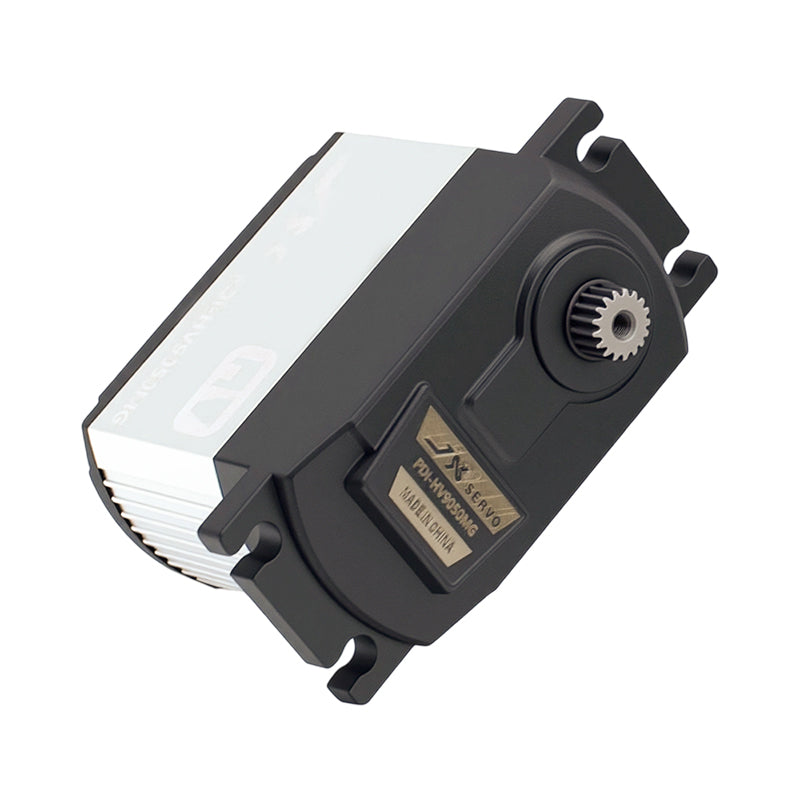

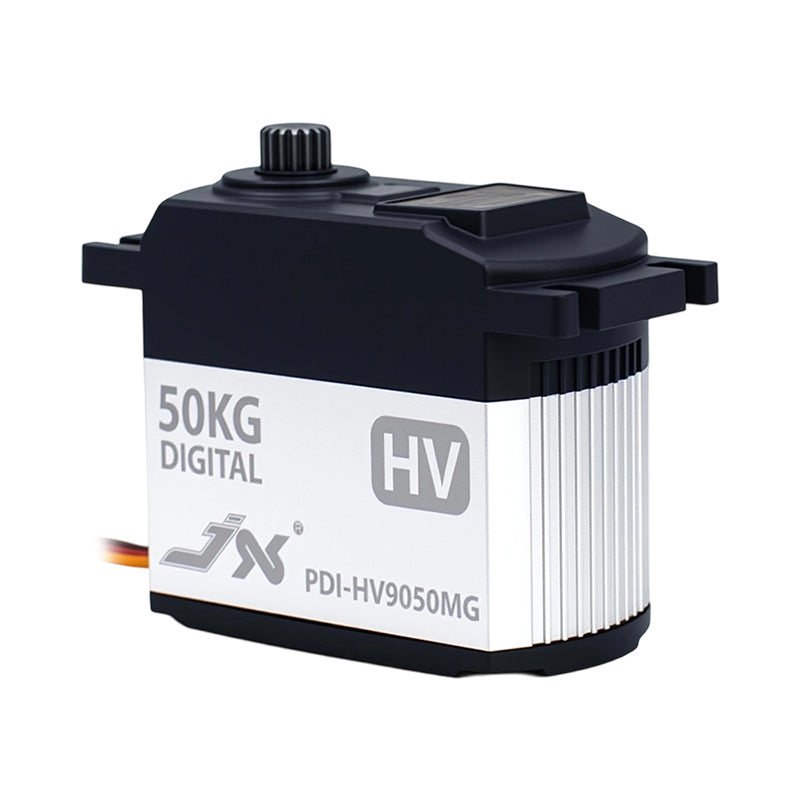

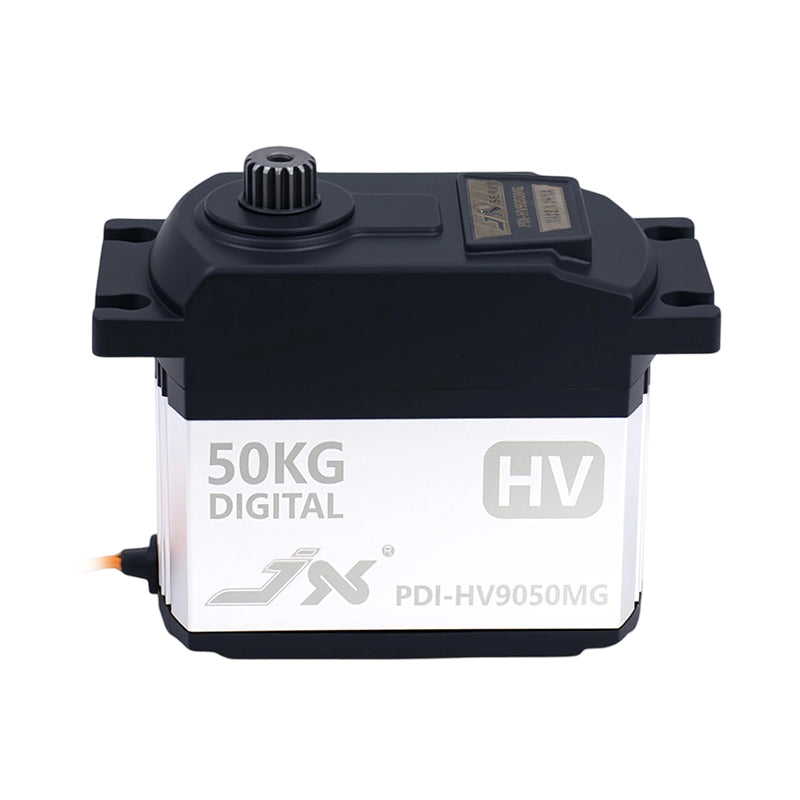

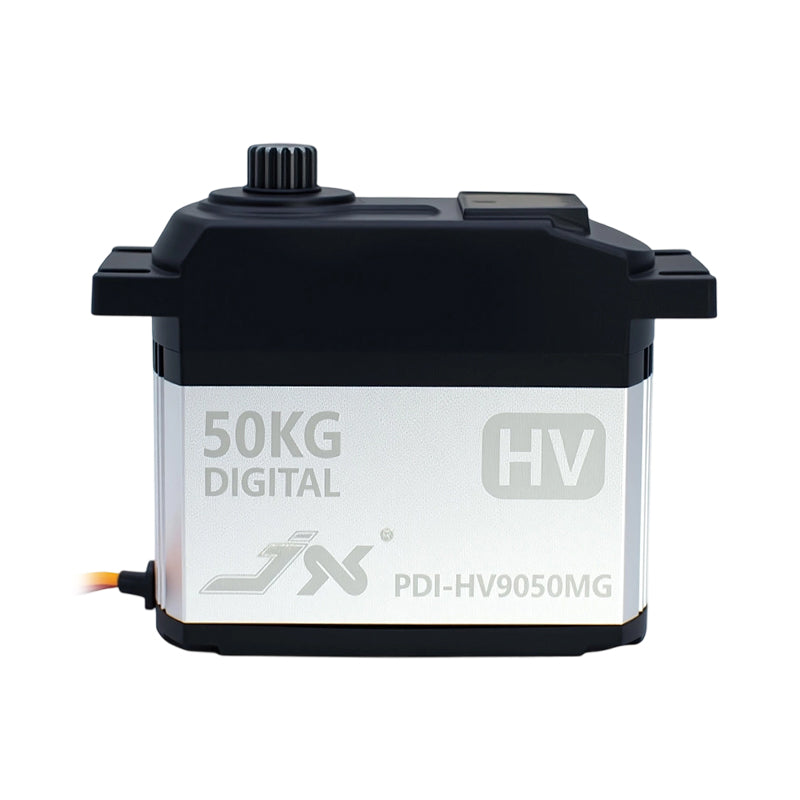

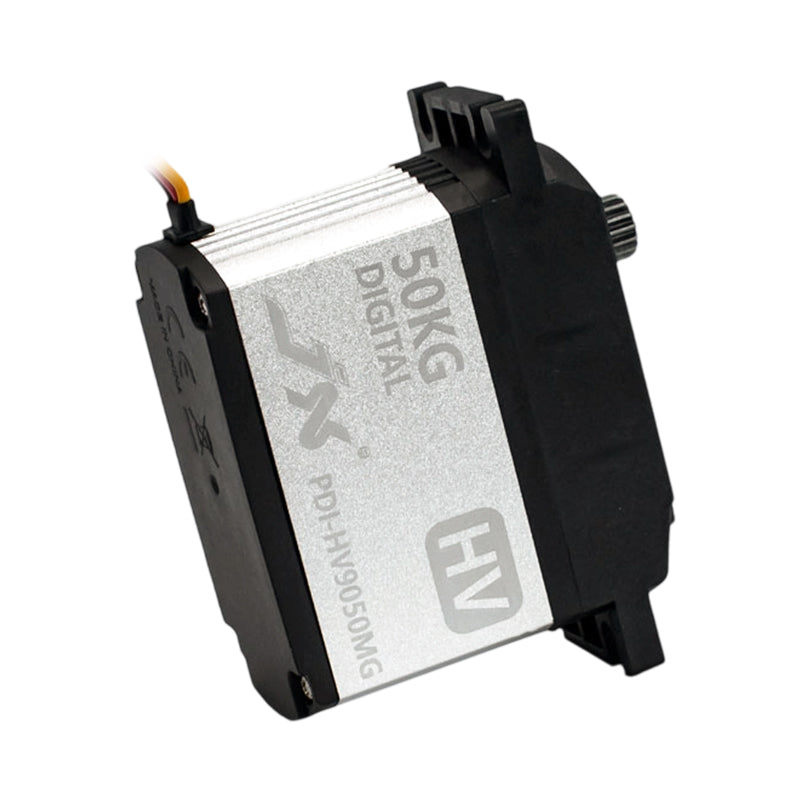

JX PDI-HV9050MG 50KG 180 degree Angle High Precision Metal Gear Digital Standard Servo for 1:5 Scale RC Cars, Baja and Robotics
$22.55
Zu Produktinformationen springen
JX PDI-HV9050MG 50KG 180 degree Angle High Precision Metal Gear Digital Standard Servo for 1:5 Scale RC Cars, Baja and Robotics
$22.55
Product Specifications
SPECIFICATIONS
| Max Angle | 180° |
| Pulse Width (90°) | 1000~2000μs |
| Pulse Width (180°) | 500~2500μs |
| Dead band | 6μs |
| Working Frequency | 1520μs / 330hz |
| Motor | Cored |
| Operating Speed (6.0V) | 0.18 sec/60° |
| Operating Speed (8.4V) | 0.16 sec/60° |
| Stall Torque (6.0V) | 39 kg.cm |
| Stall Torque (8.4V) | 52 kg.cm |

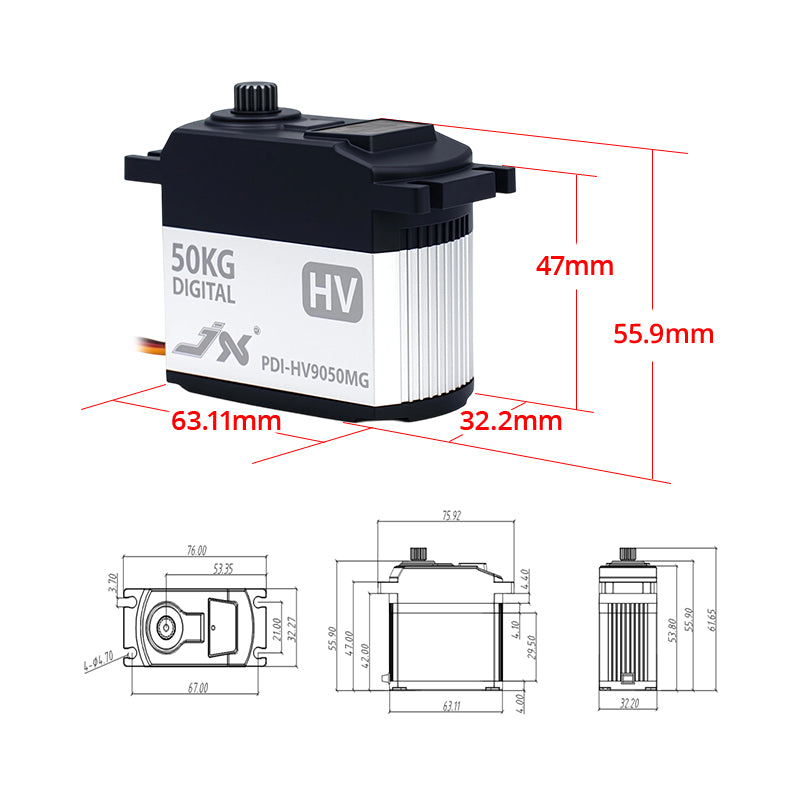

| Dimensions | 63.1x32.2x55.9mm |
| Weight | 163 g |
| Connector Wire Length | JR 265mm |
| Bearing | 2BB |
| Gear Teeth | 17T |

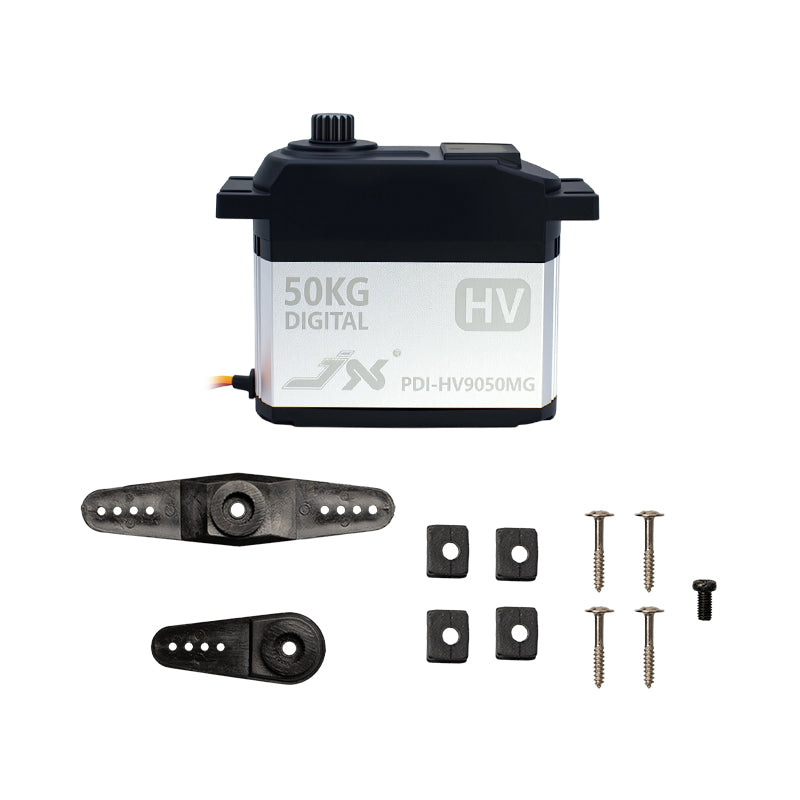

Package Included
1 x JX PDI-HV9050MG Digital Servo
