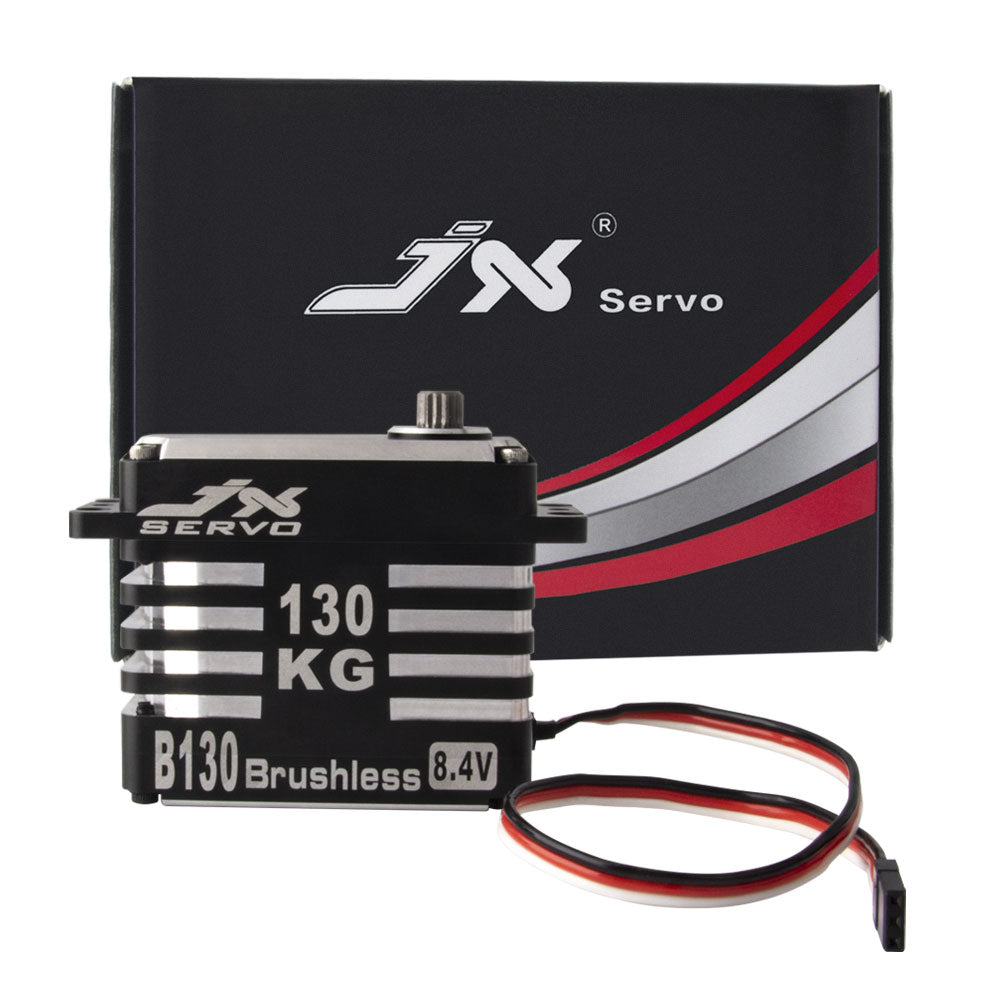

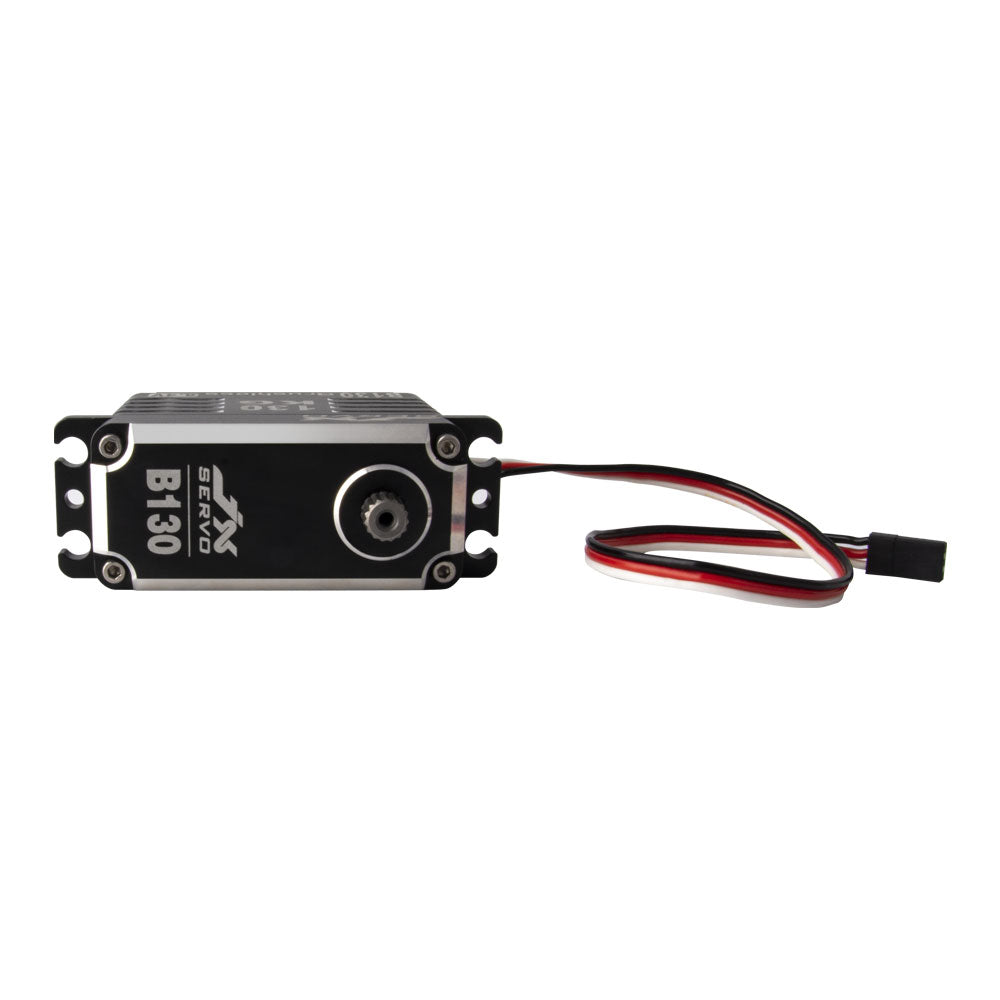

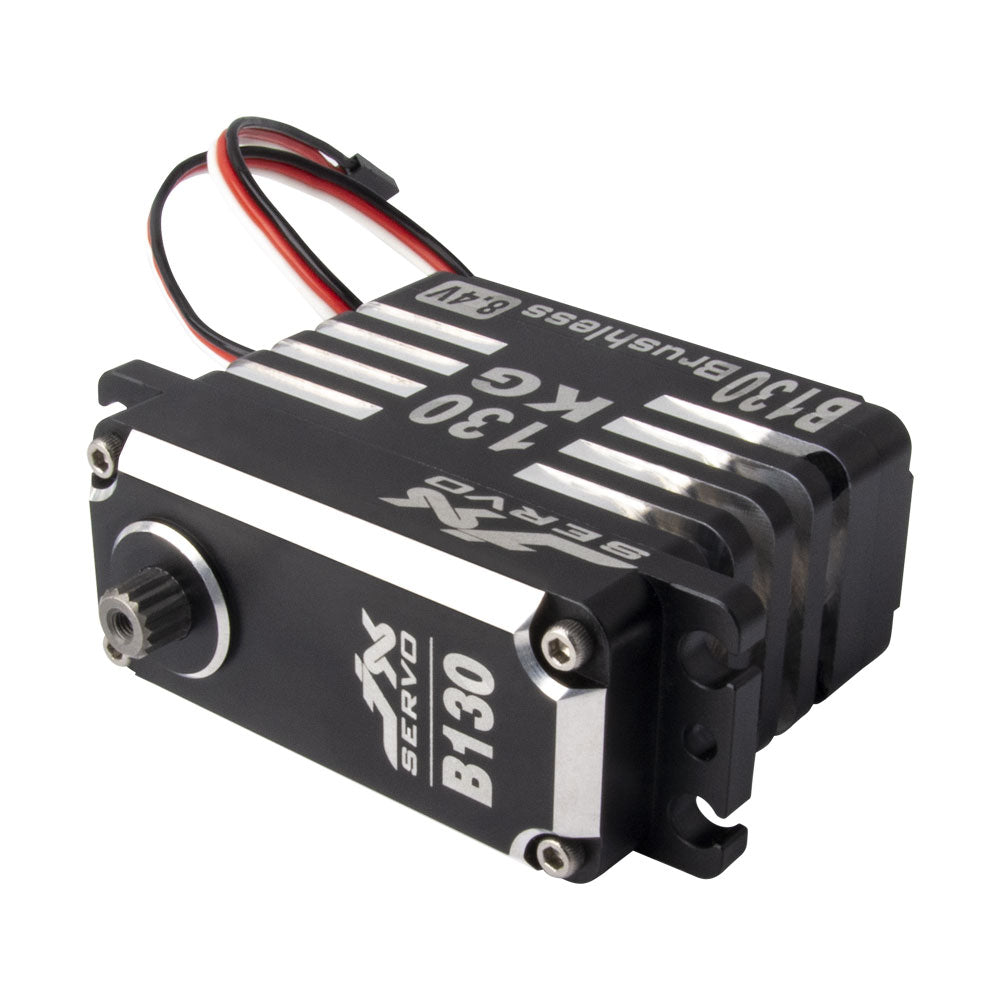

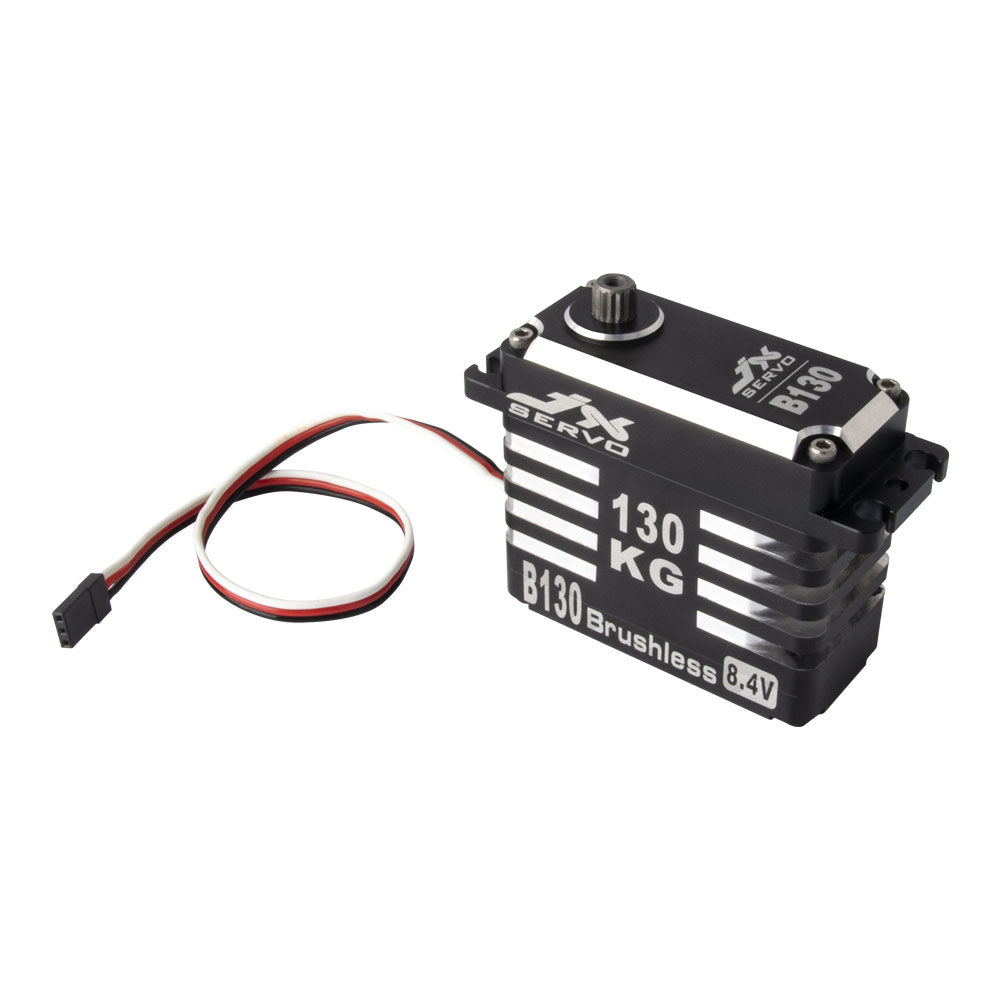

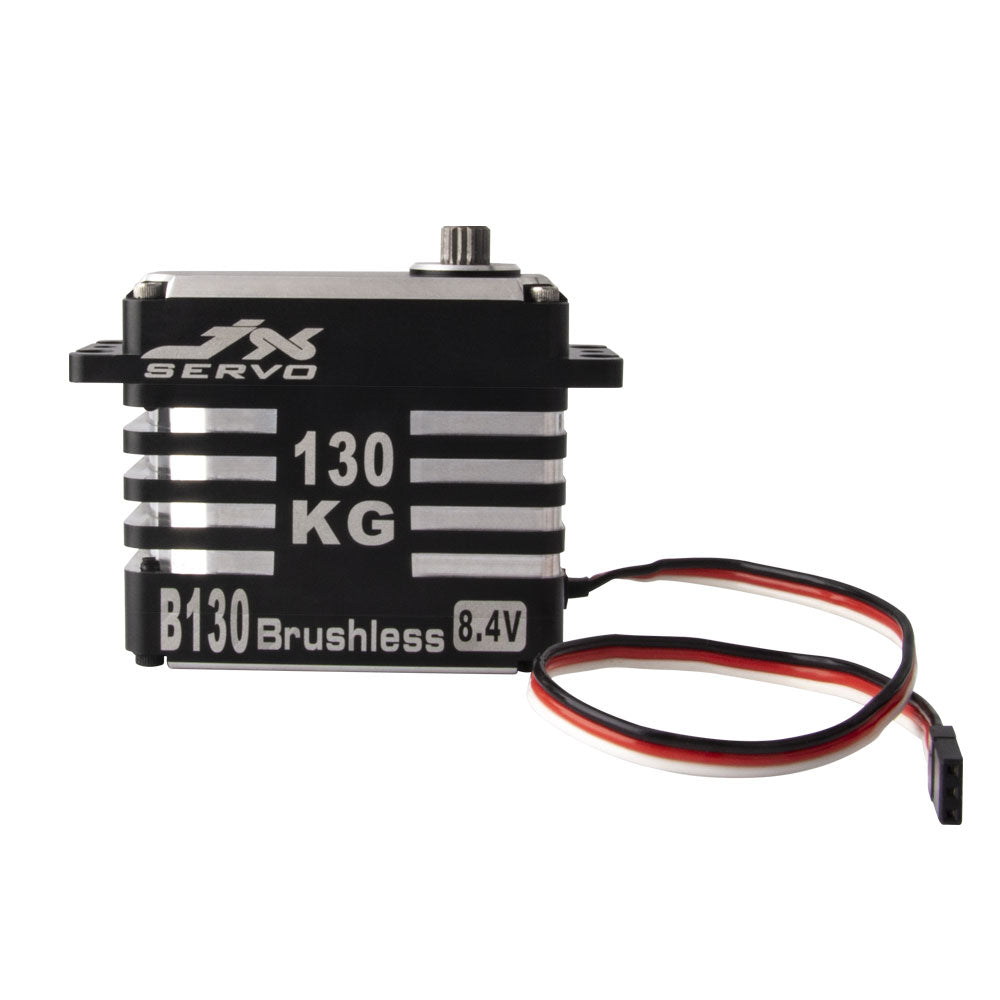

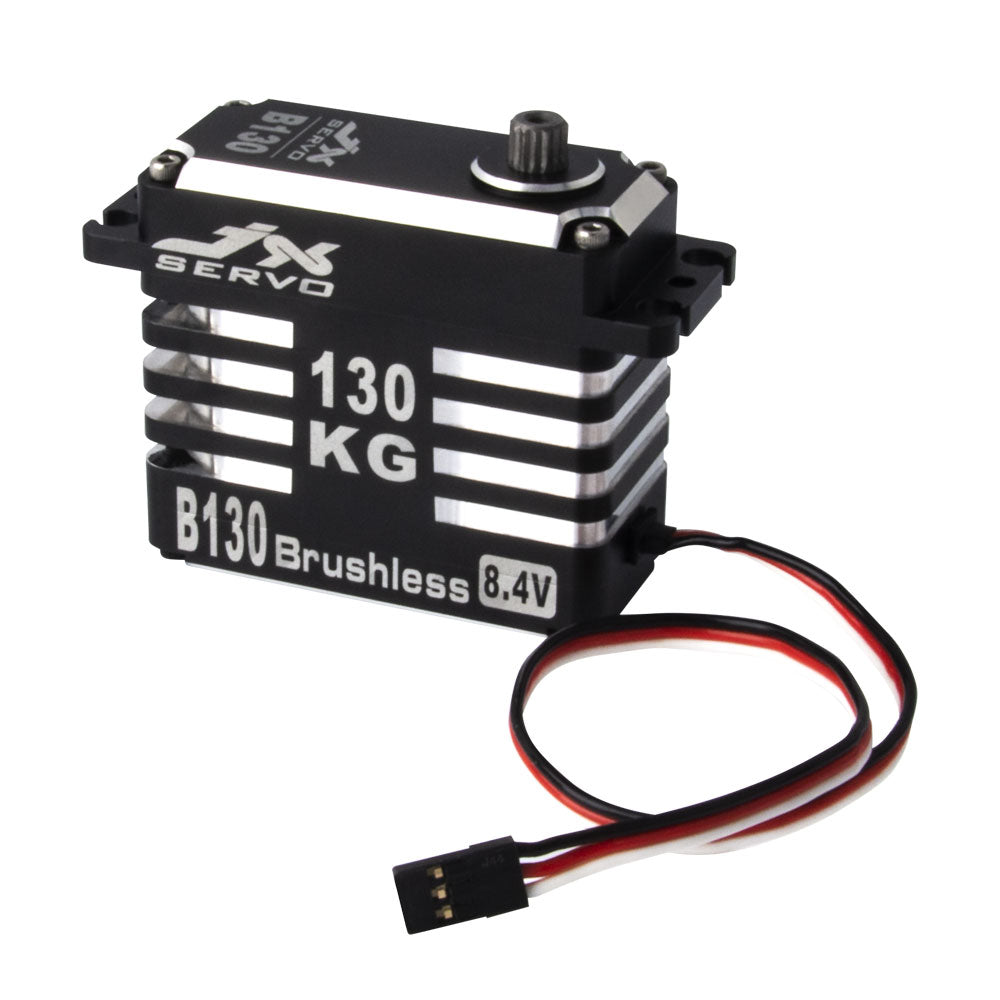

JX Servo - B130 130KG HV Full CNC Metal Gear Brushless Servo
$139.89
Product Specifications
FEATURE
- Full metal case
- Brushless motor
- 130 kg torque
- 8.4V high voltage
SPECIFICATIONS
| Max Angle | 180° |
| Pulse Width (90°) | 1000~2000μs |
| Pulse Width (180°) | 500~2500μs |
| Dead band | 4μs |
| Working Frequency | 1520μs / 330hz |
| Motor | Brushless |
| Operating Speed (6V) | 0.15 sec/60° |
| Operating Speed (8.4V) | 0.13 sec/60° |
| Stall Torque (6V) | 107 kg.cm |
| Stall Torque (8.4V) | 130 kg.cm |
| Dimensions | 65.8x30x58.8mm |
| Weight | 260 g |

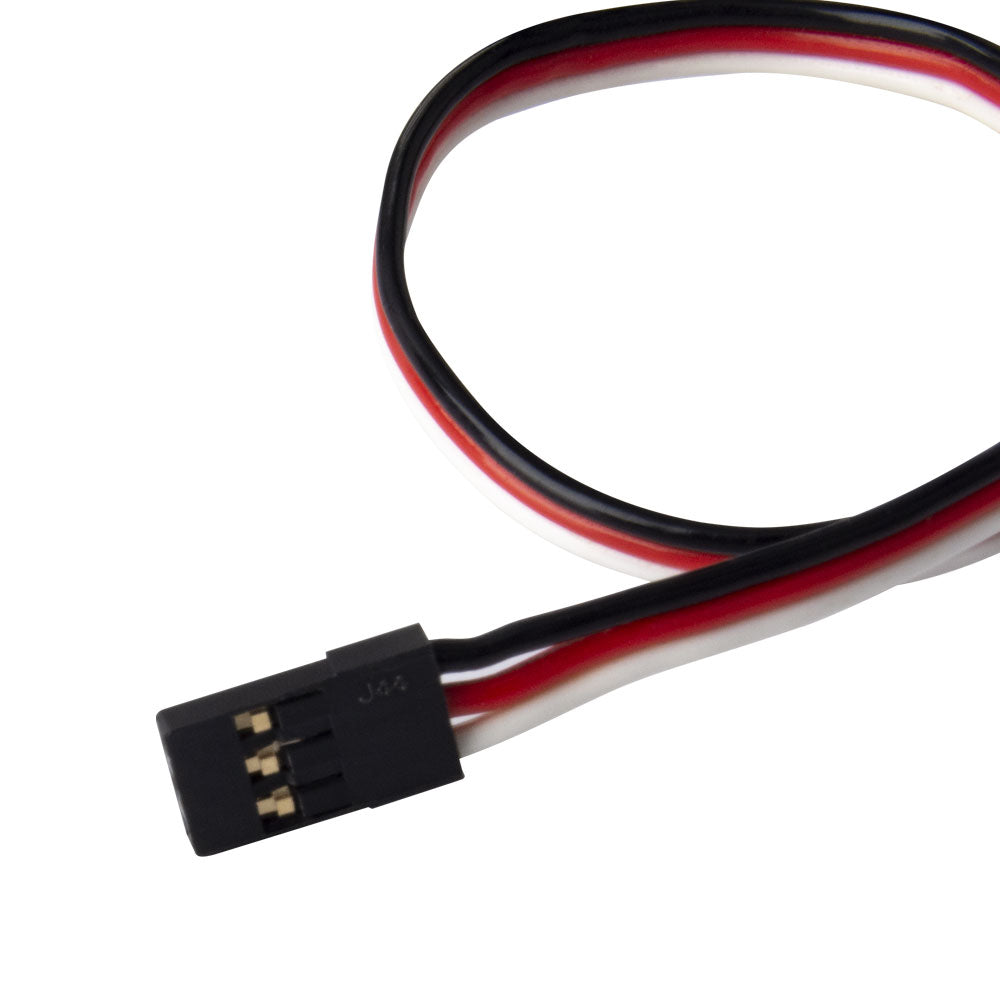

| Connector Wire Length | JR 265mm |
| Bearing | 2BB |
