JX Servo BLS-HV7025MG 25KG High Precision Metal Gear Full CNC Aluminium Shell Structure High Voltage Brushless Digital Standard Servo
$39.18
Zu Produktinformationen springen
JX Servo BLS-HV7025MG 25KG High Precision Metal Gear Full CNC Aluminium Shell Structure High Voltage Brushless Digital Standard Servo
$39.18
Product Specifications
FEATURE
- High performance digital high voltage brushless standard servo
- High-precision Taiwan-made aluminium gears with hard anodizing
- High quality brushless motor
- Full CNC aluminium shell structure
- Dual ball bearings
- Waterproof
SPECIFICATIONS
| Dead band | 1μs |
| Working Frequency | 1520μs / 330hz |
| Motor | Brushless |
| Operating Speed (6.0V) | 0.152 sec/60° |
| Operating Speed (8.4V) | 0.123 sec/60° |
| Stall Torque (6.0V) | 20.25 kg.cm |
| Stall Torque (8.4V) | 25.31 kg.cm |

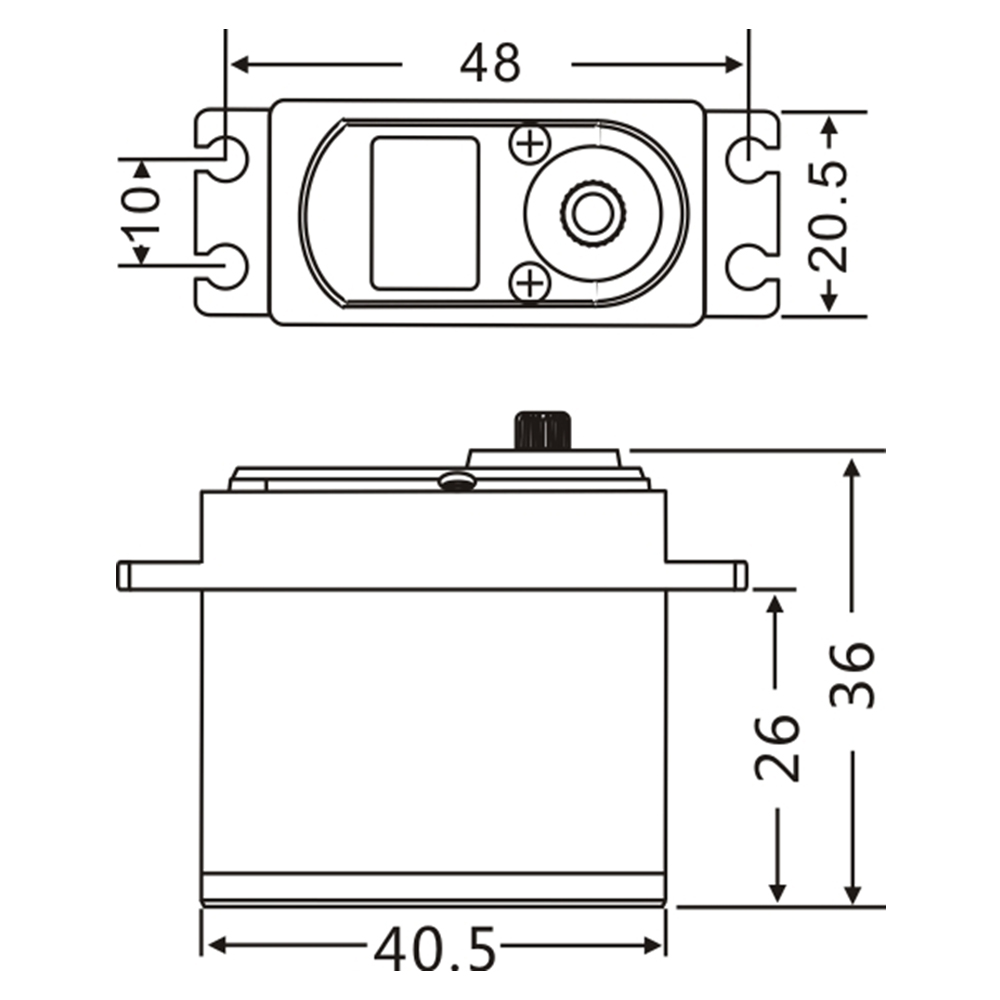

| Dimensions | 40.5x20.5x36mm |
| Weight | 70.1 g |
| Connector Wire Length | JR 265mm |
| Bearing | 2BB |
| Tooth Count | 25 |
