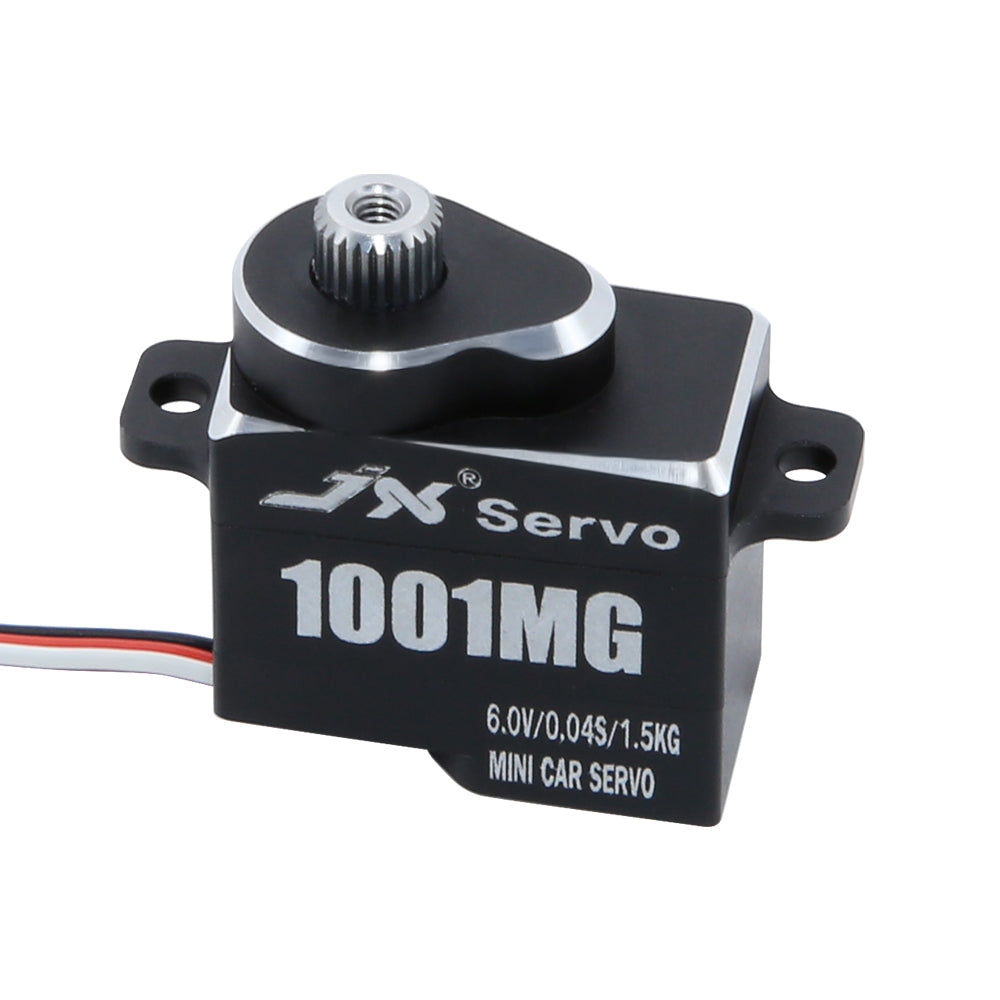

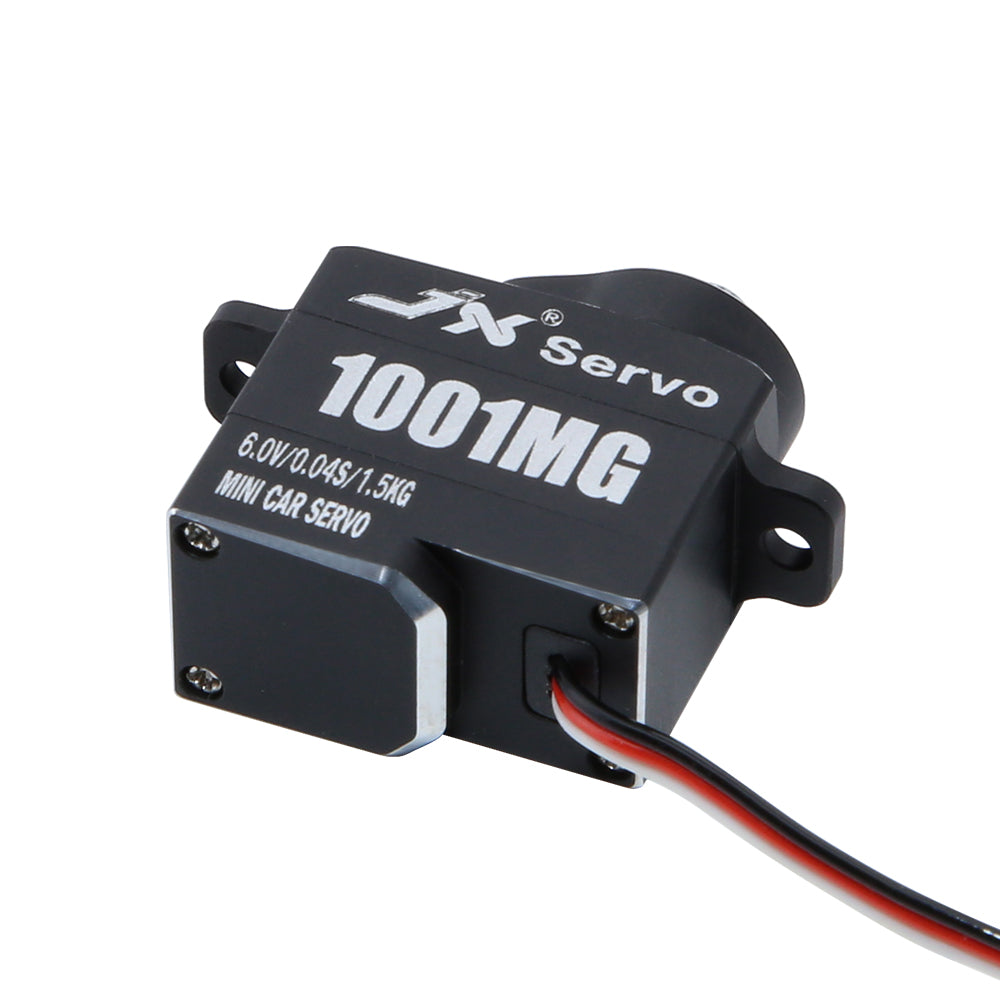

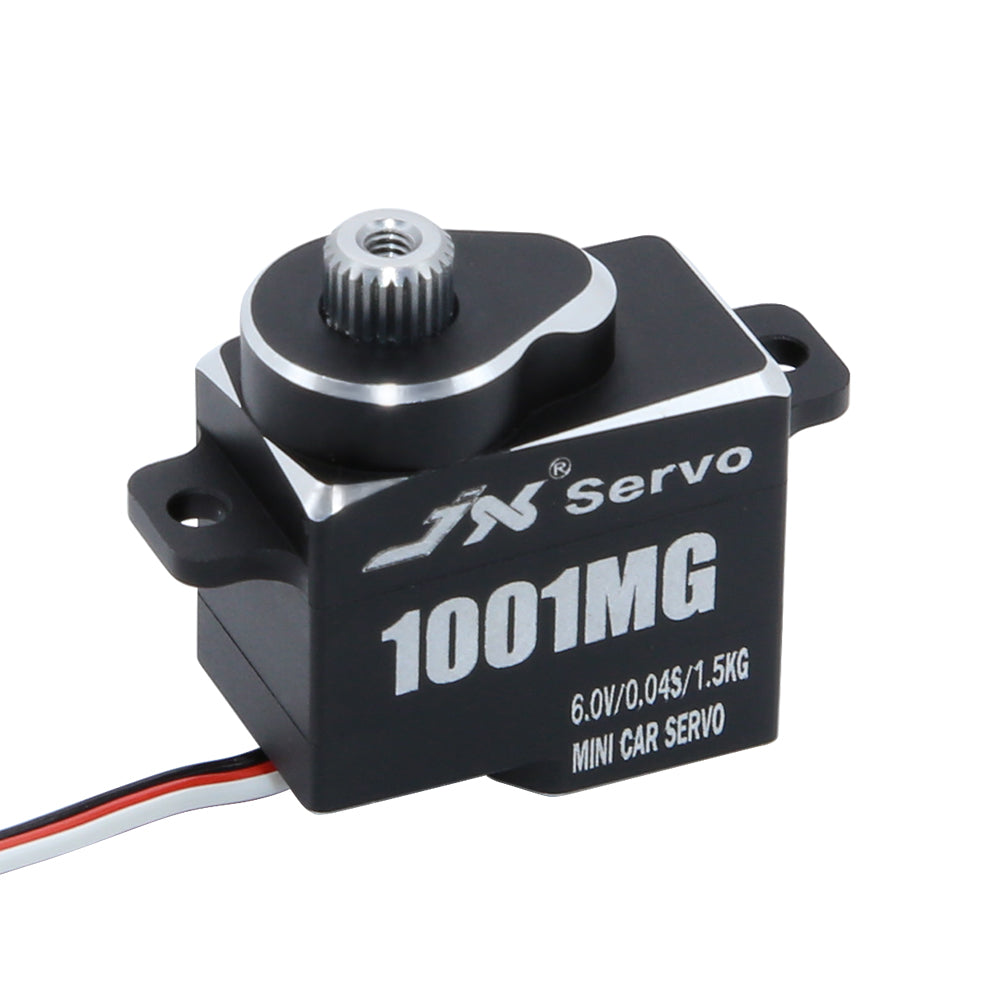

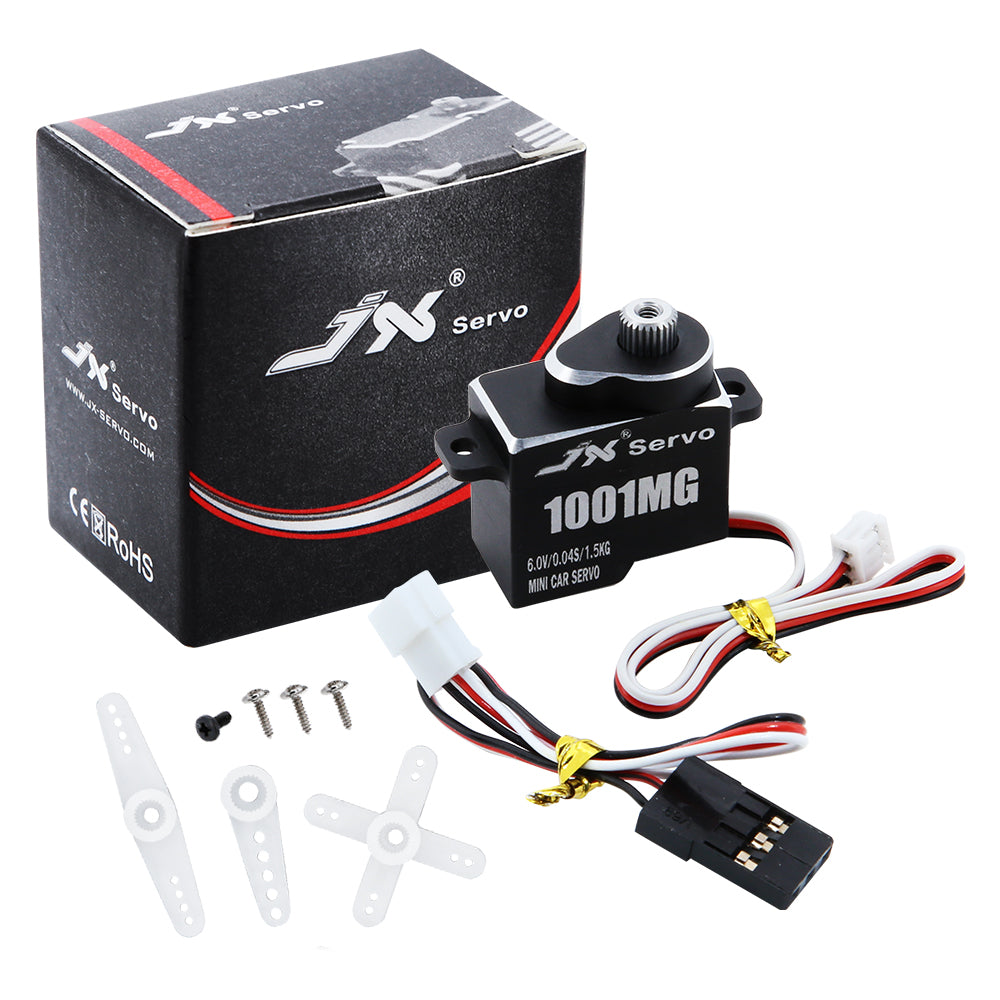

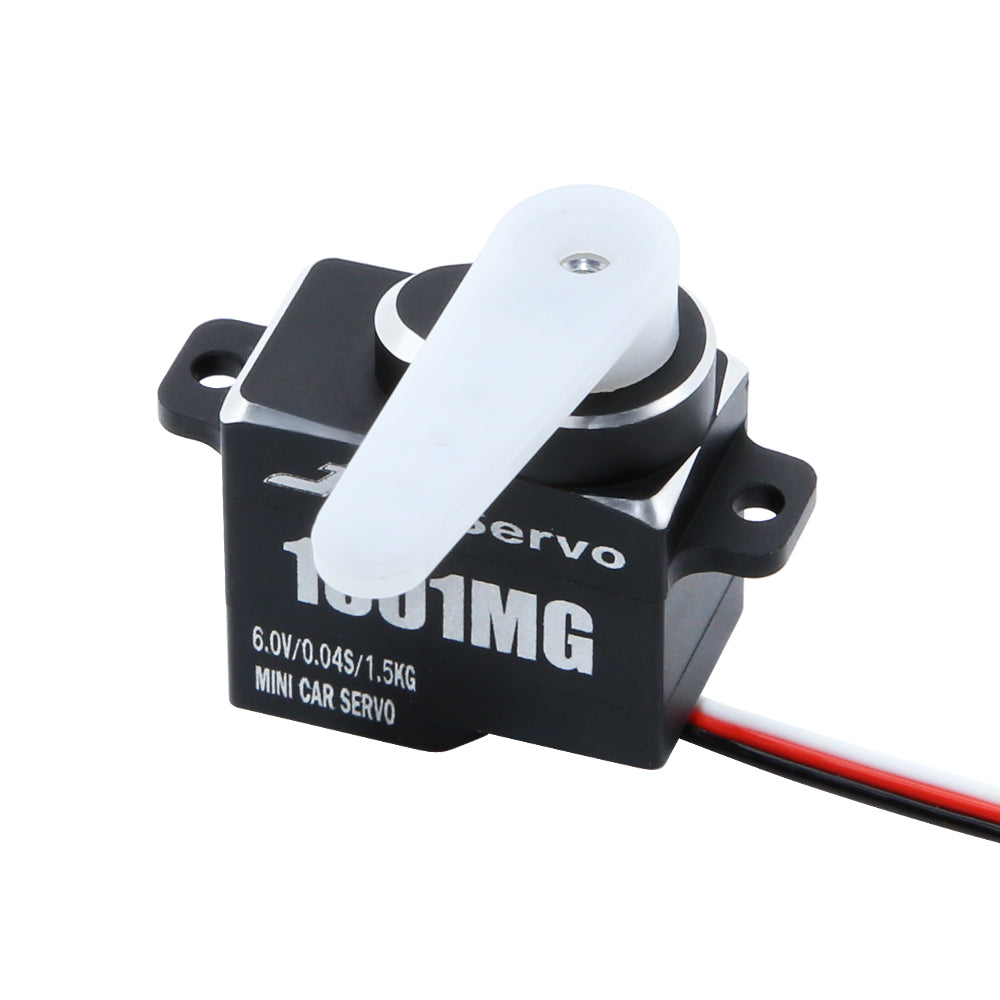

JX Servo PDI-1001MG 1.5KG 0.04 sec/60° Coreless Digital Mini Car Servo
$26.37
Zu Produktinformationen springen
JX Servo PDI-1001MG 1.5KG 0.04 sec/60° Coreless Digital Mini Car Servo
$26.37
Product Specifications
SPECIFICATIONS
| Dead band | 2μs |
| Working Frequency | 1520μs / 333hz |
| Motor | Coreless |
| Voltage Range | 4.8~6.0 V |
| Operating Speed (4.8V) | 0.05 sec/60° |
| Operating Speed (6.0V) | 0.04 sec/60° |
| Stall Torque (4.8V) | 1.3 kg.cm |
| Stall Torque (6.0V) | 1.5 kg.cm |
| Dimensions | 20x11.3x21.25mm |
| Weight | 10 g |
| Connector Wire Length | JST1.5 100mm + JR Wire |
| Bearing | 1BB |
| Output Gear Spline | 25T |
