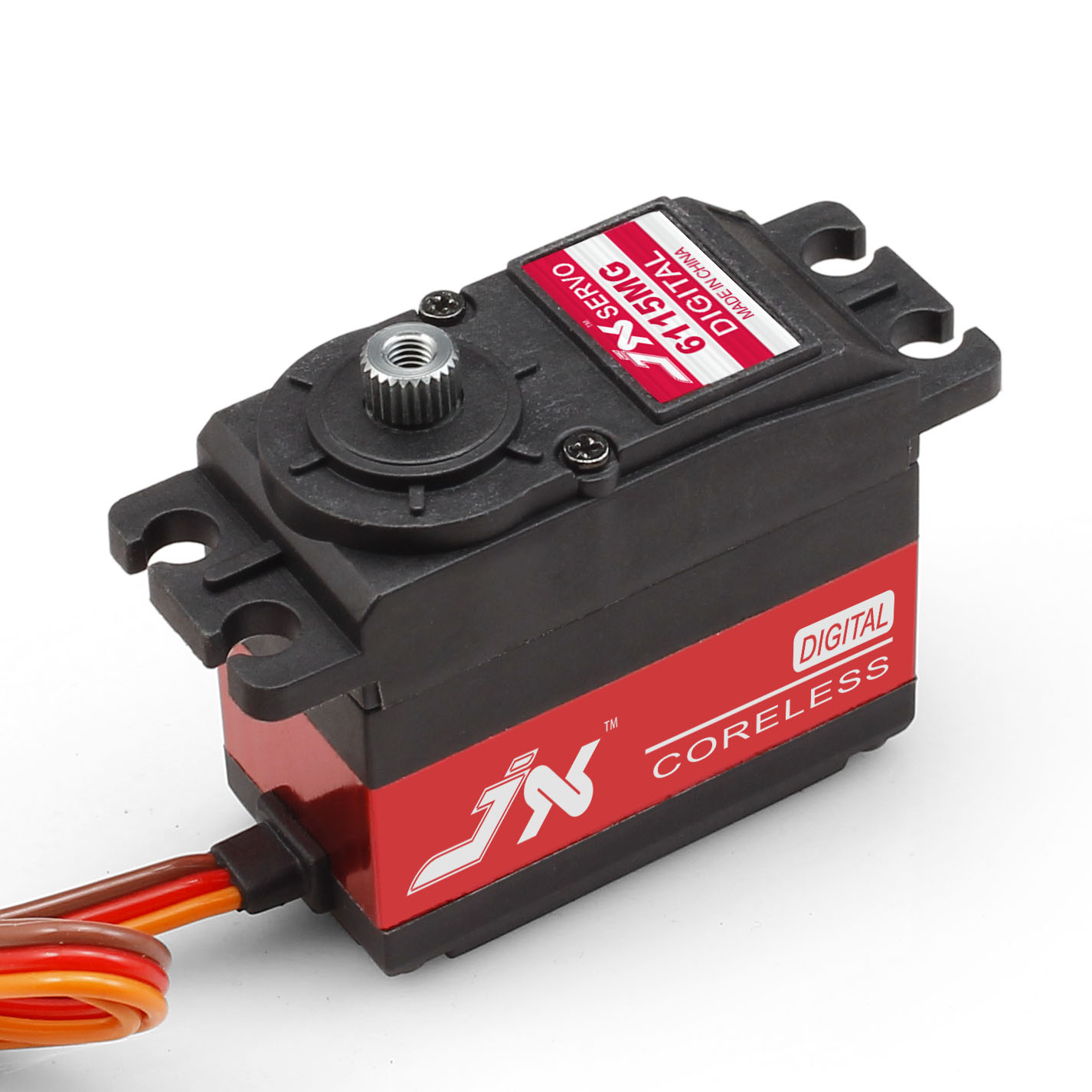

JX Servo PDI-6115MG 15KG 0.12dec High Precision Metal Gear Digital Coreless Standard Servo
$18.15
Zu Produktinformationen springen
JX Servo PDI-6115MG 15KG 0.12dec High Precision Metal Gear Digital Coreless Standard Servo
$18.15
Product Specifications
FEATURE
- High performance digital coreless standard servo
- High-precision Taiwan-made aluminium gears with hard anodizing
- CNC aluminium middle shell
- Dual ball bearings
SPECIFICATIONS
| Dead band | 1μs |
| Working Frequency | 1520μs / 330hz |
| Motor | Coreless |
| Operating Speed (4.8V) | 0.147 sec/60° |
| Operating Speed (6.0V) | 0.126 sec/60° |
| Stall Torque (4.8V) | 14.21 kg.cm |
| Stall Torque (6.0V) | 16.83 kg.cm |

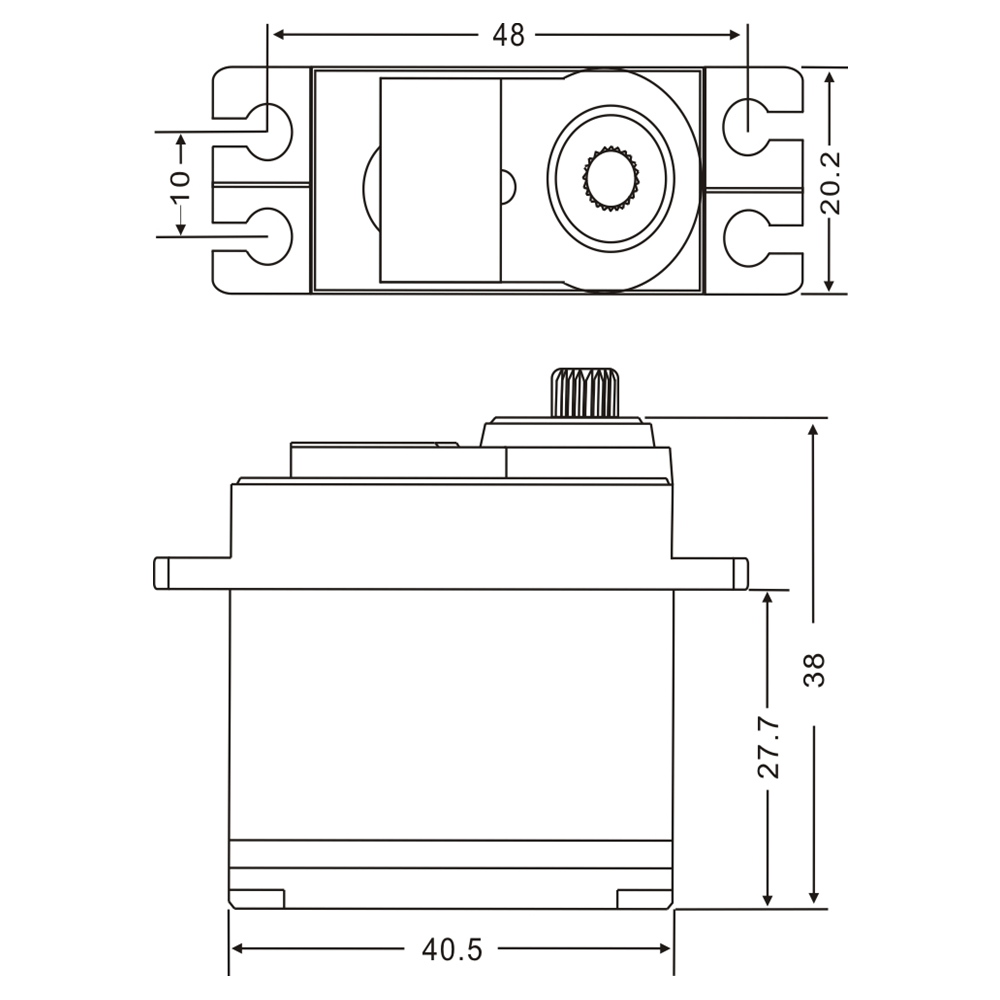

| Dimensions | 40.5x20.5x36.5mm |
| Weight | 61 g |
| Connector Wire Length | JR 265mm |
| Bearing | 2BB |
| Tooth Count | 25 |
