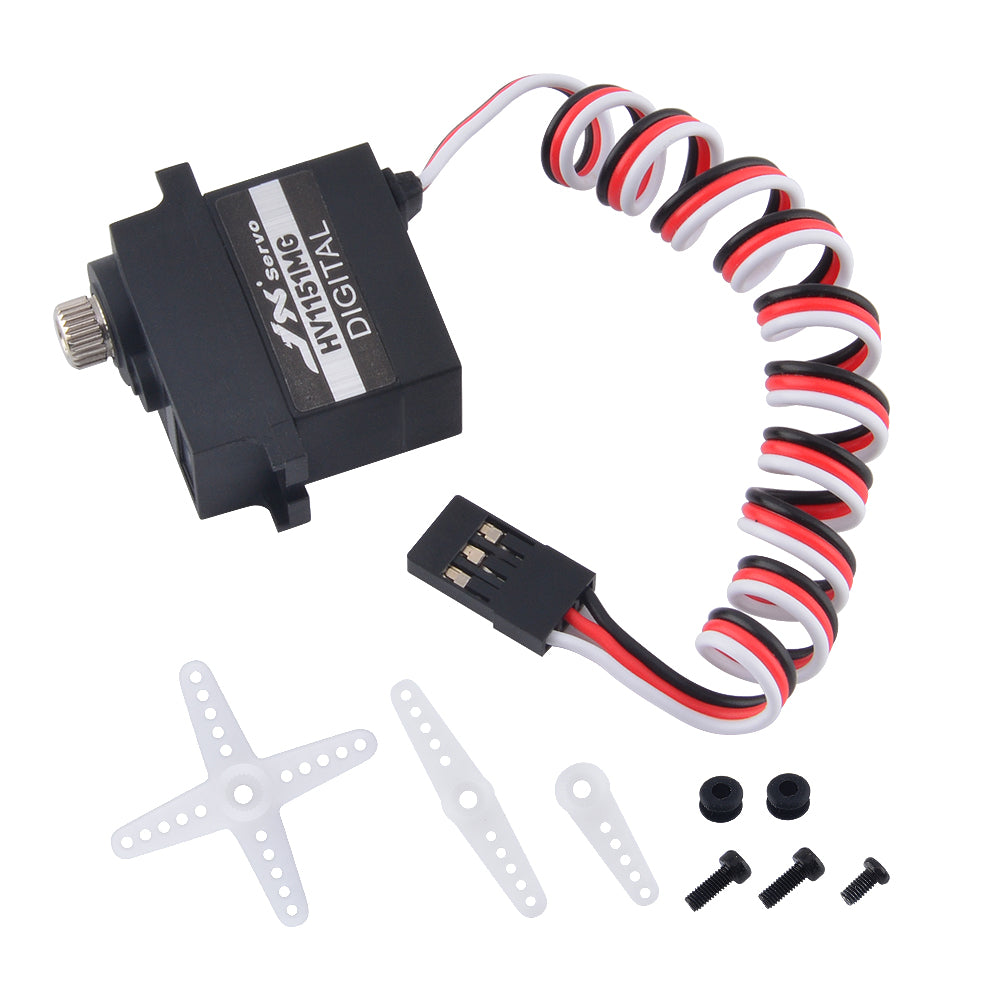

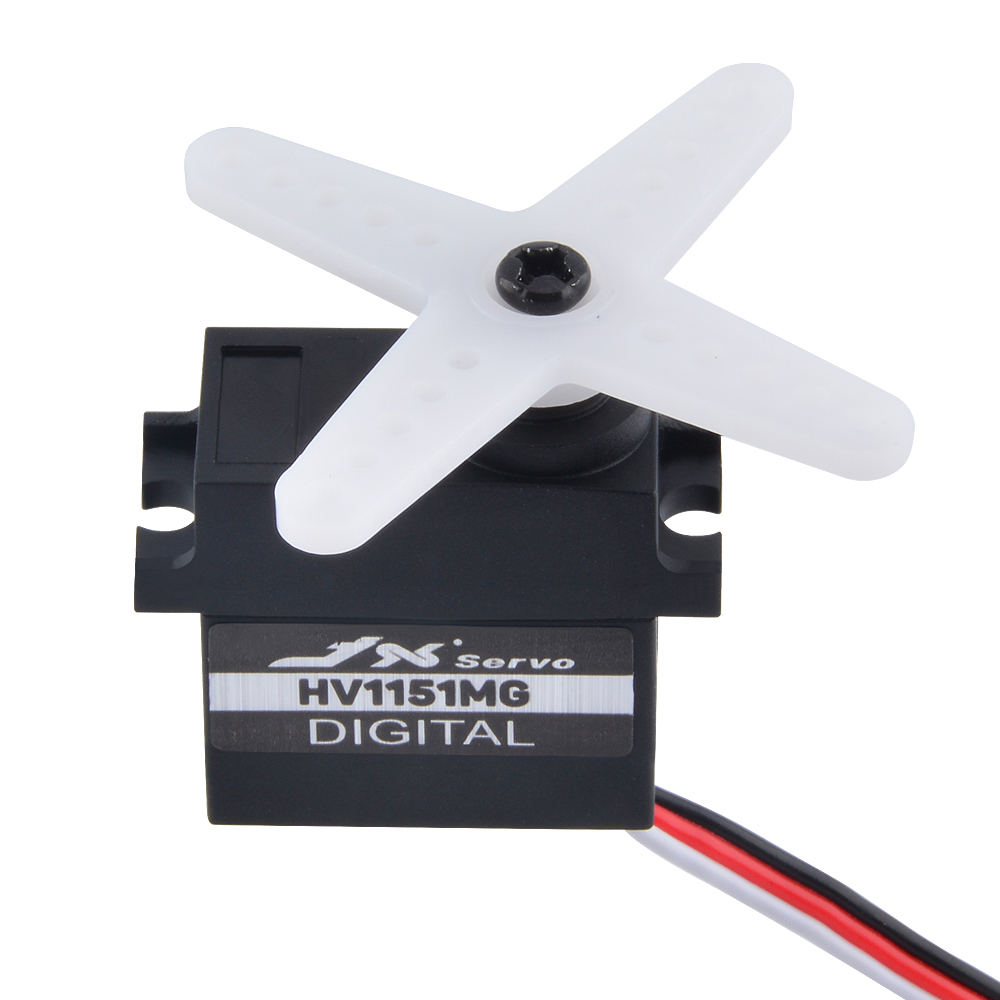

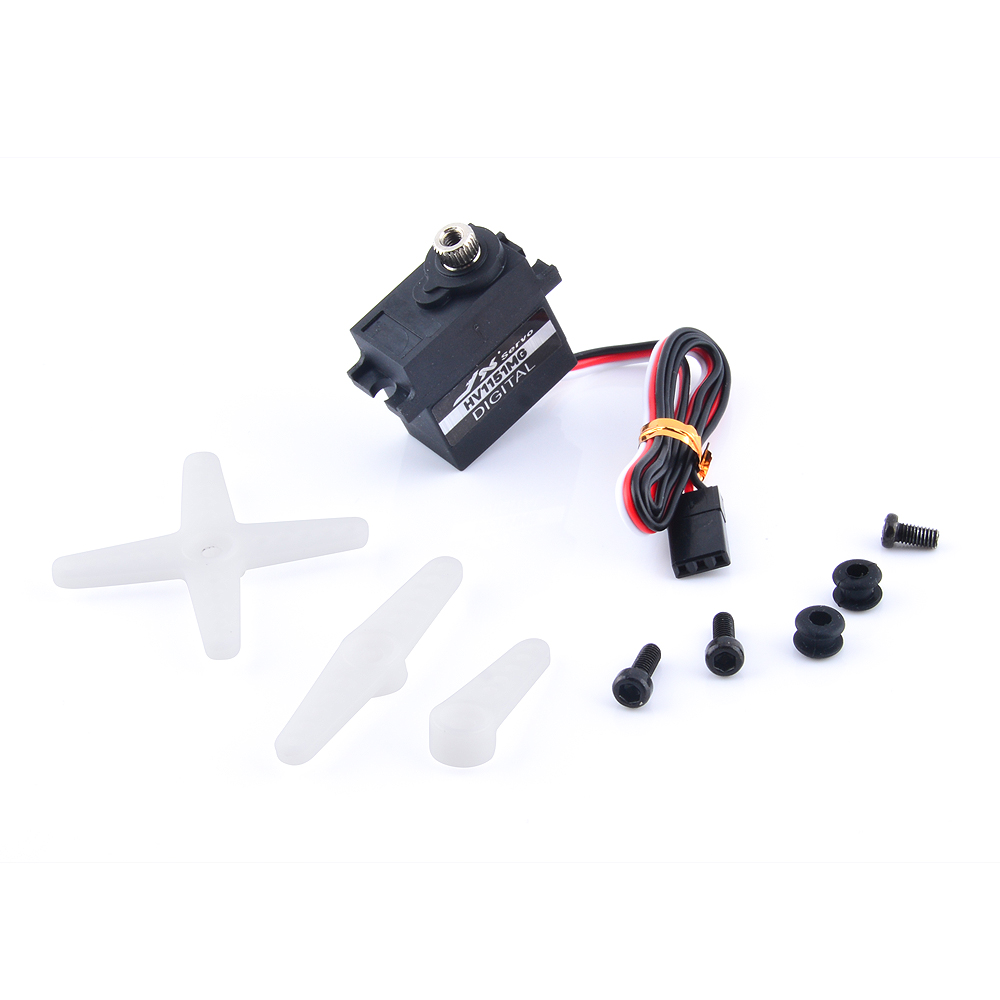

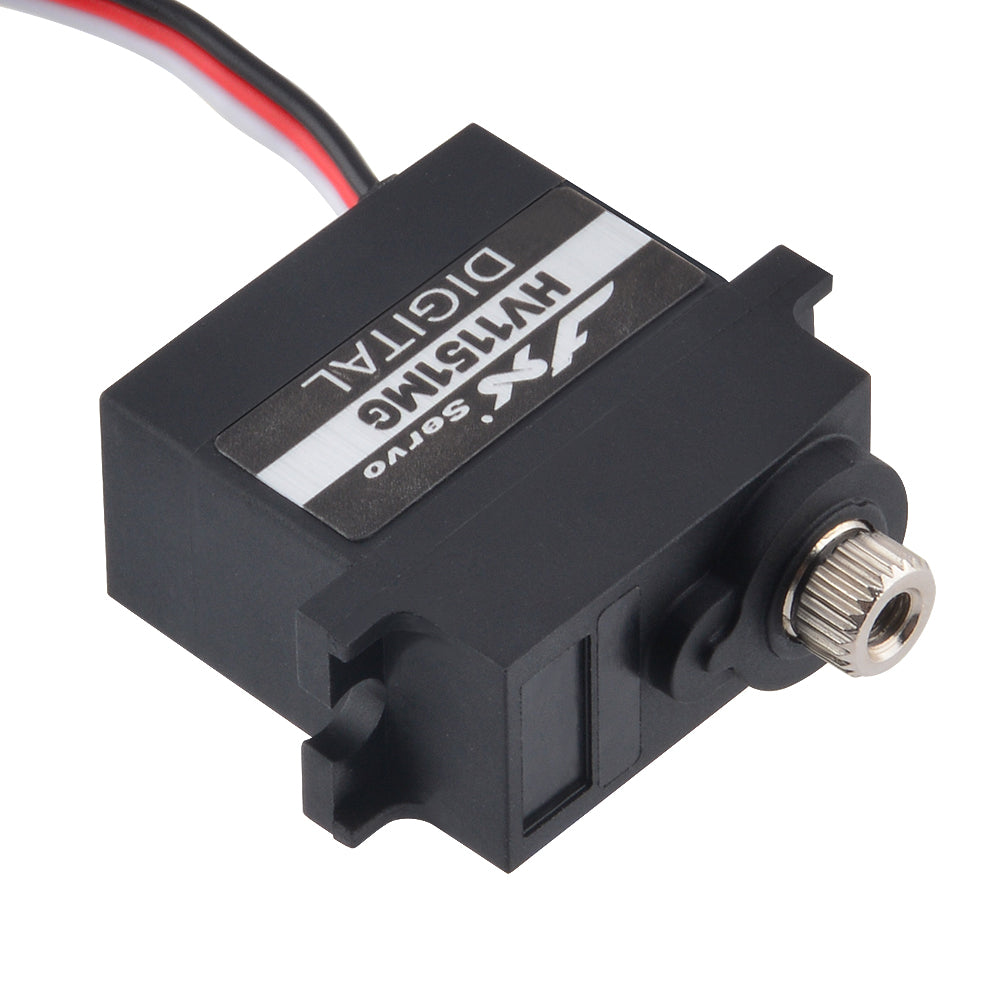

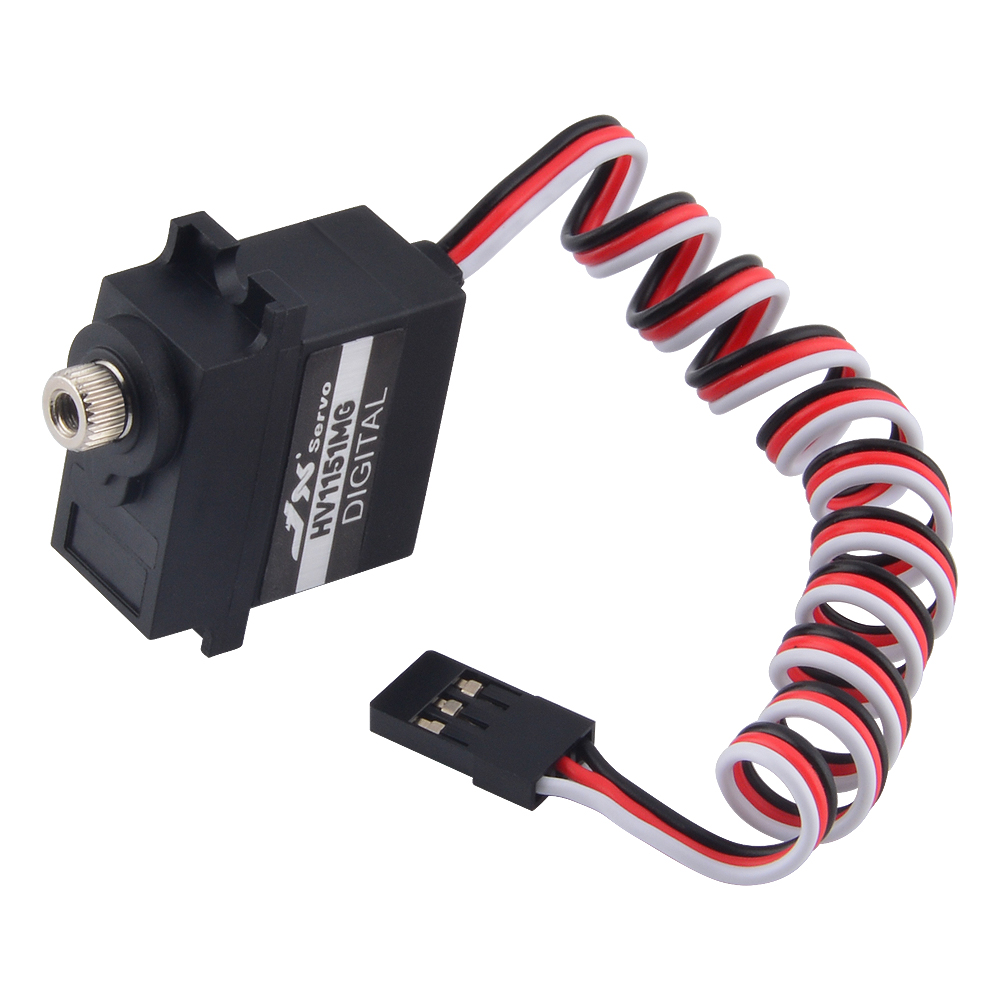

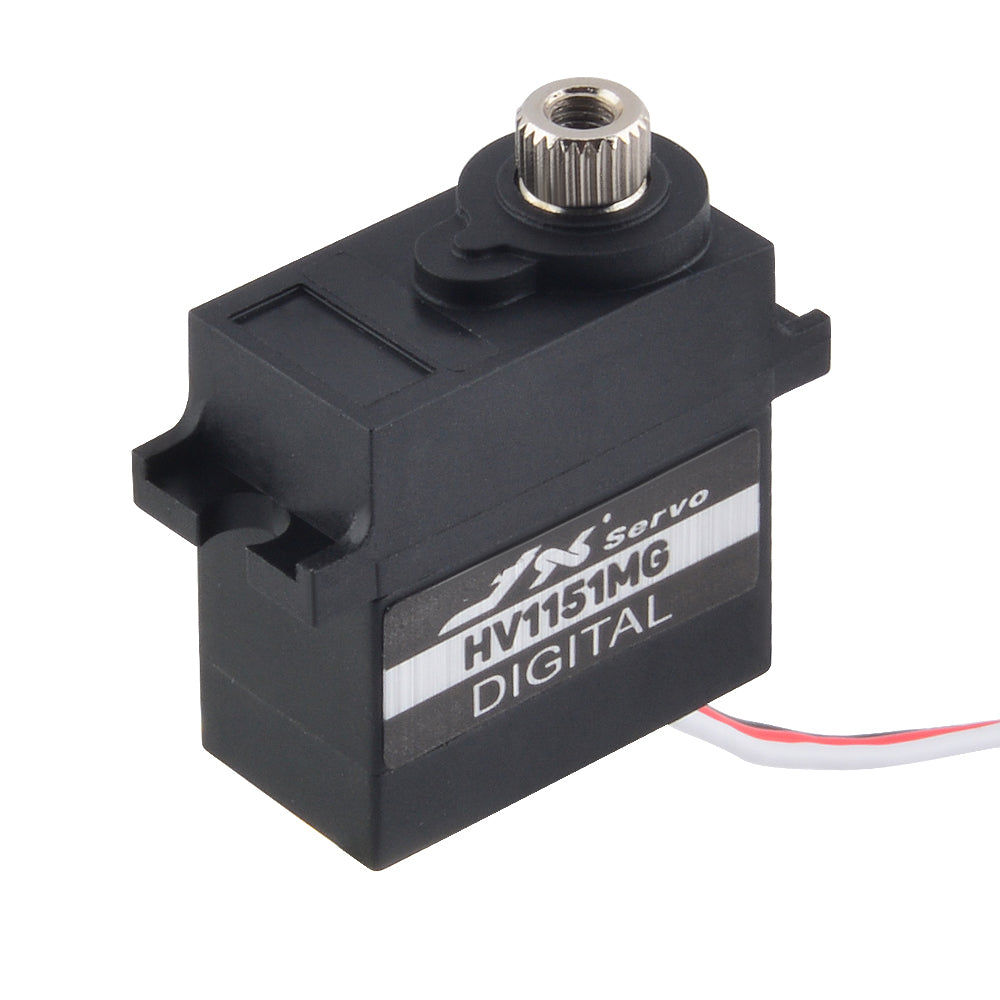

JX Servo - PDI-HV1151MG 4.5kg Digital Metal Gear HV Micro Servo
$9.94
Product Specifications
FEATURE
- High voltage (HV)
- Coreless motor
- Waterproof
- Metal gear
- Digital

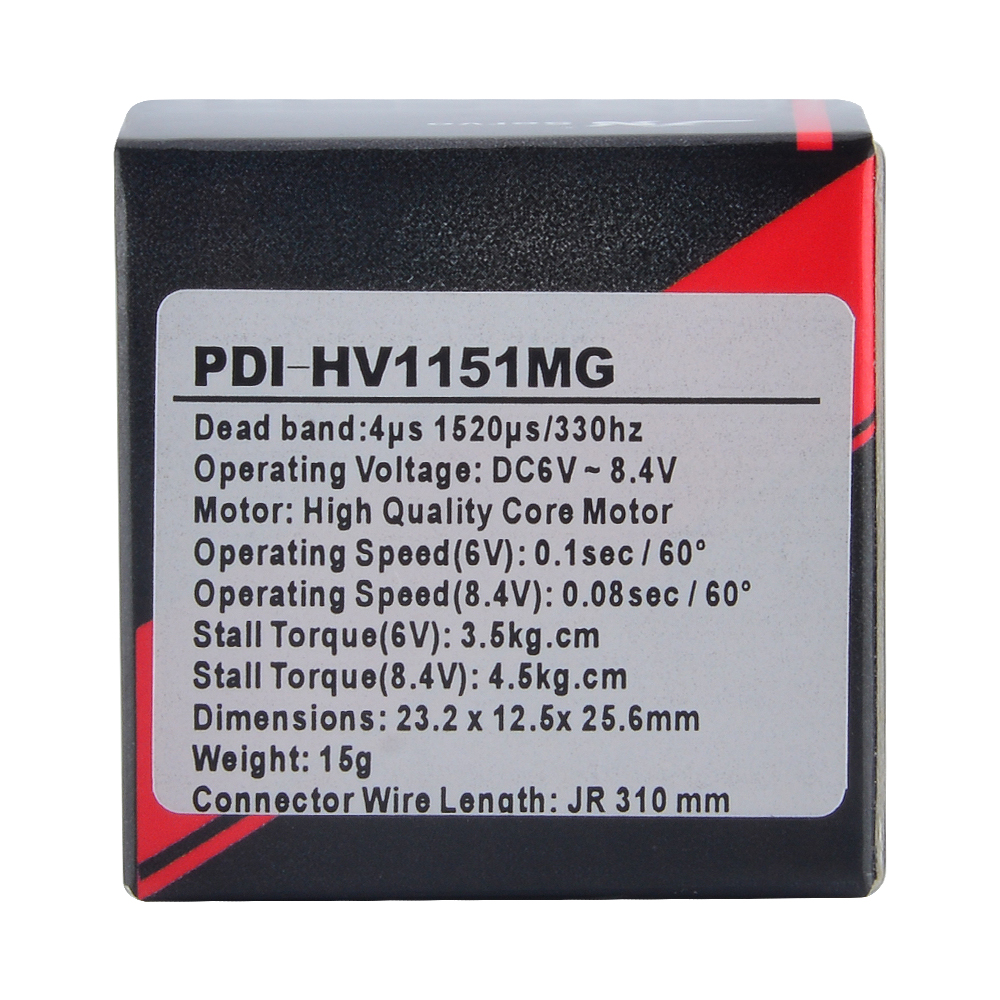

SPECIFICATIONS
| Pulse Width (90°) | 1000~2000μs |
| Pulse Width (180°) | 500~2500μs |
| Dead band | 2μs |
| Working Frequency | 1520μs / 330hz |
| Motor | Coreless |
| Operating Speed (6V) | 0.12 sec/60° |
| Operating Speed (8.4V) | 0.10 sec/60° |
| Stall Torque (6V) | 3.5 kg.cm |
| Stall Torque (8.4V) | 4.5 kg.cm |

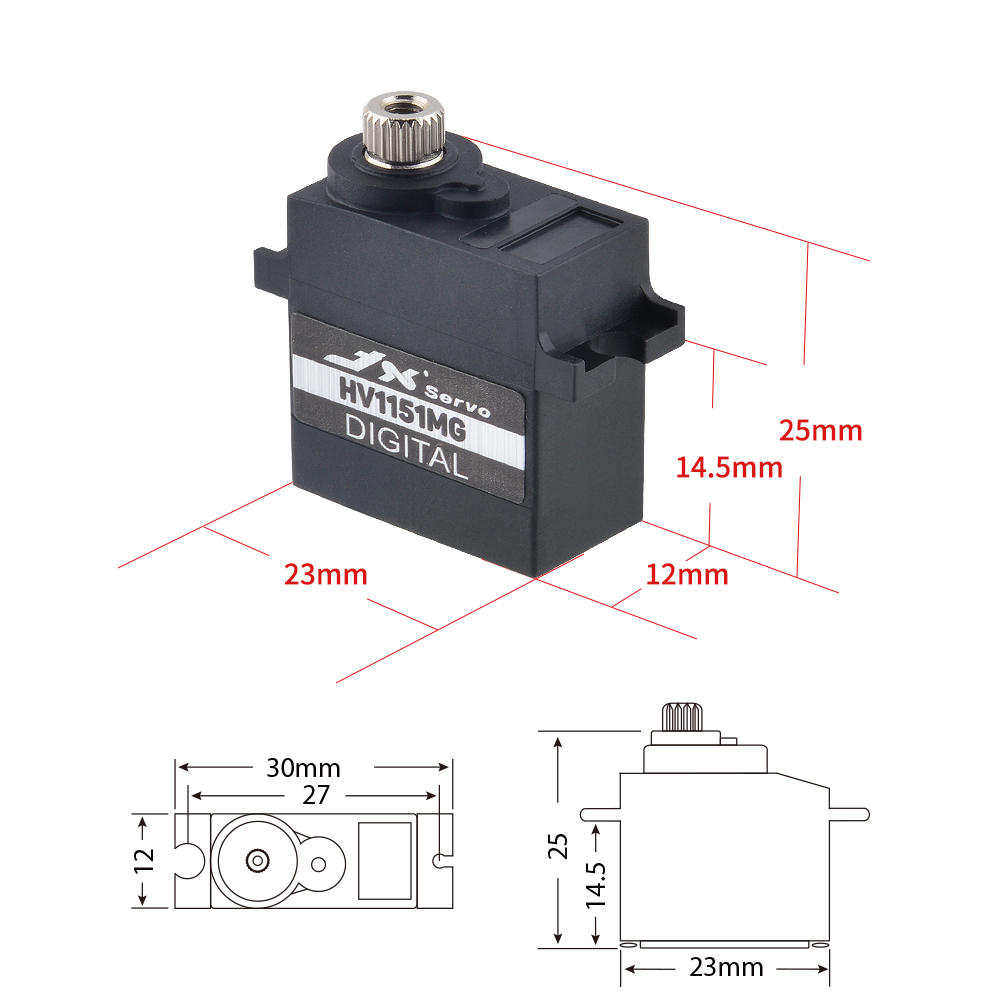

| Dimensions | 23.2x12.5x25.6mm |
| Weight | 15 g |

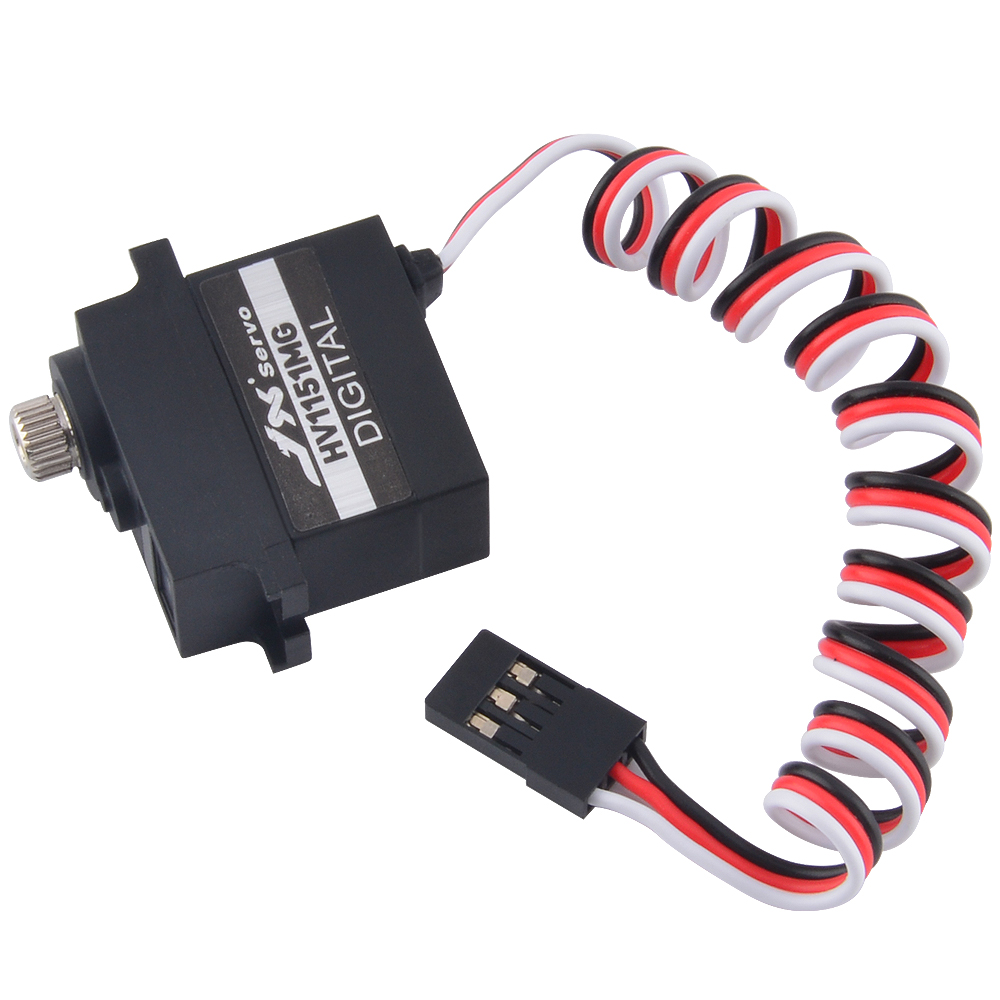

| Connector Wire Length | JR 265mm |
| Bearing | 2BB |
