KST X08 / X08N  V3.0 Clearance Sale – Same Performance as KST X08/ X08N  V6.0, 50% OFF!

The KST X08/ X08N  V3.0 has long been a trusted micro servo for DLG pilots, offering 1μs resolution, ultra-low deadband, and high-precision response. With just 8mm thickness, it’s perfect for tight installations in gliders and competition aircraft.

Although newer versions such as V6.0 are now available, V3.0 delivers identical performance and specifications. The only difference lies in a few components on the PCB, which were replaced due to chip discontinuation—no impact on real-world performance.

⚠️ Please note:

1. X08 / X08N V3.0 is not compatible with KST Tool Cards and cannot be programmed for endpoints, center, or direction.

2. This is a clearance product, discontinued, and sold as-is without after-sales support.

Features

• Compact and lightweight design
• Excellent torque and speed
• Designed for high-performance RC Gliders
• Excellent heat dissipation
• Programmable
• Support soft start

Specification

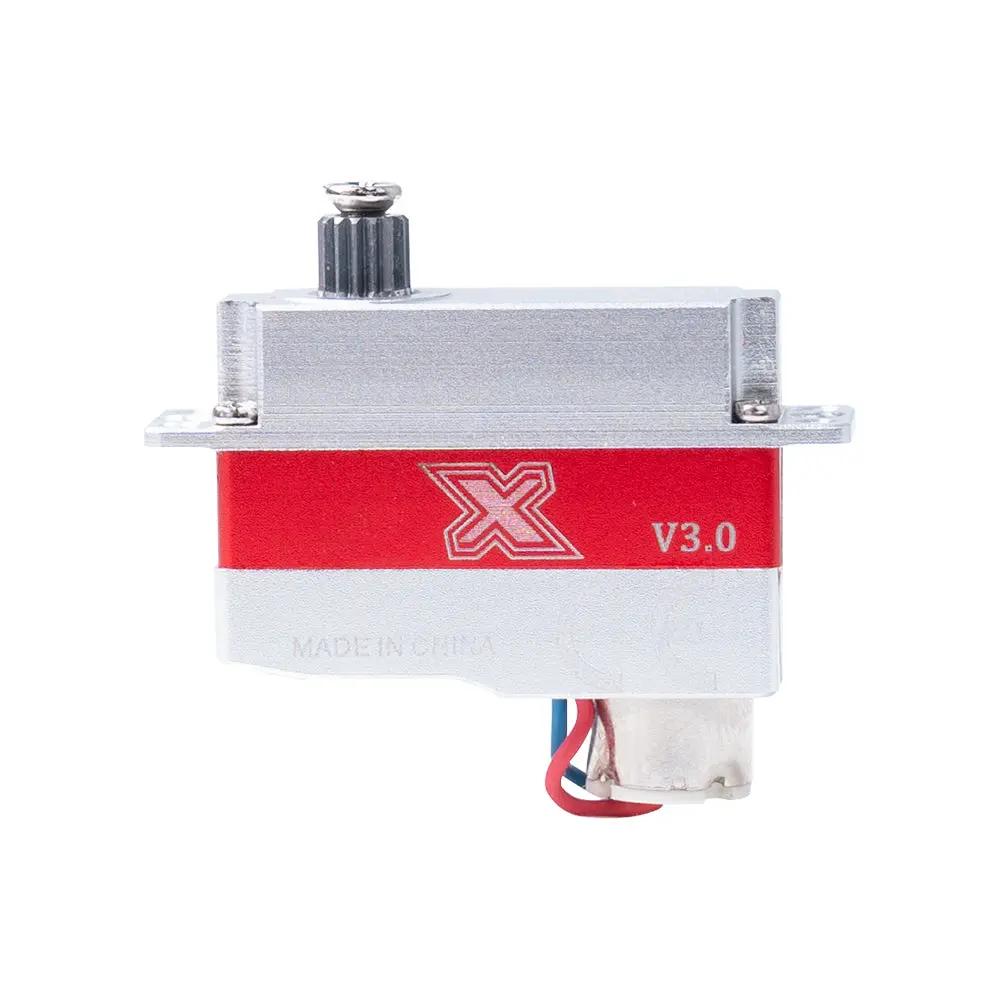

• Item: X08 / X08N V3.0 Micro Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC3.8V-8.4V
• Torque: 1.4kg.cm@3.8V, 2.2kg.cm@6.0V, 2.8kg.cm@8.4V
• Speed: 0.18sec/60°@3.8V, 0.15sec/60°@6.0V, 0.09sec/60°@8.4V
• Working Frequency: 1520μs/333Hz
• Default Travel Angle: ±60° = 120° Total
• Temperature Range: -10℃……+65℃
• Soft Start: Yes
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Case Dimensions: 23.5*8*16.8mm±0.2mm
• Weight: 8g±10%
