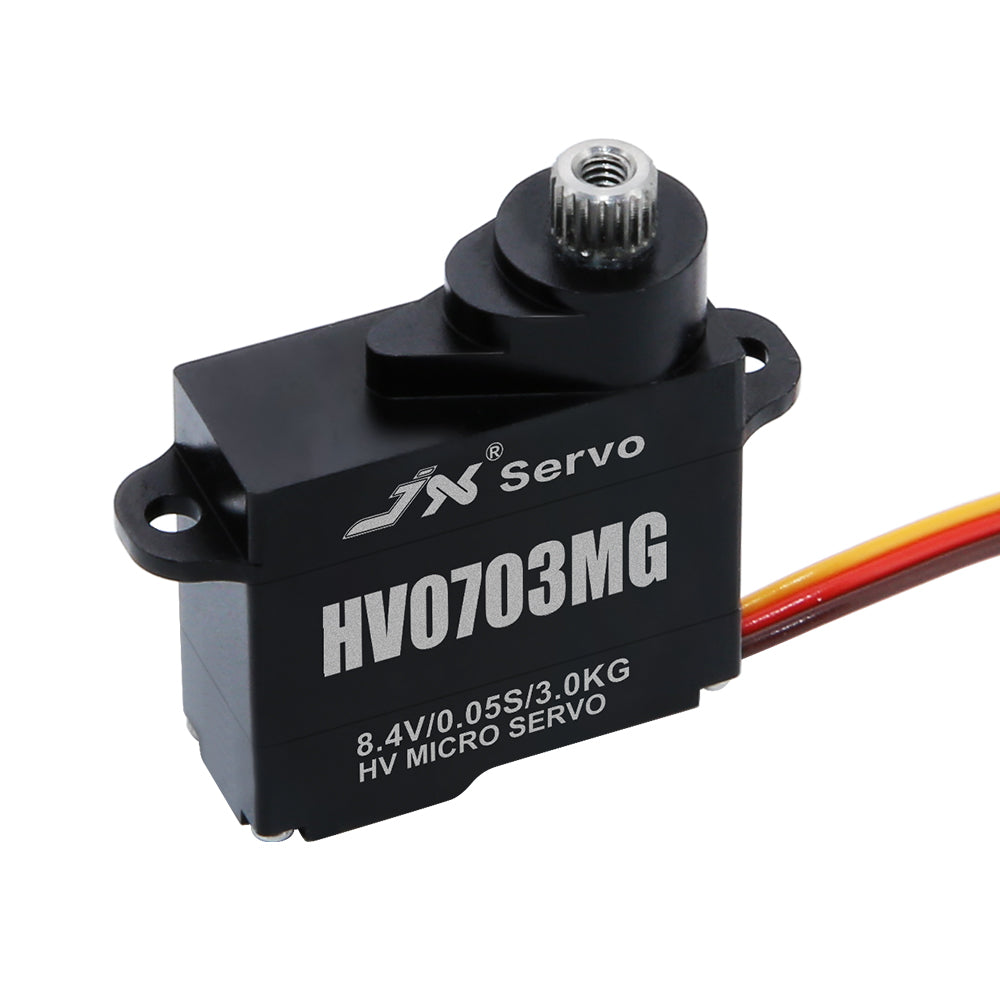

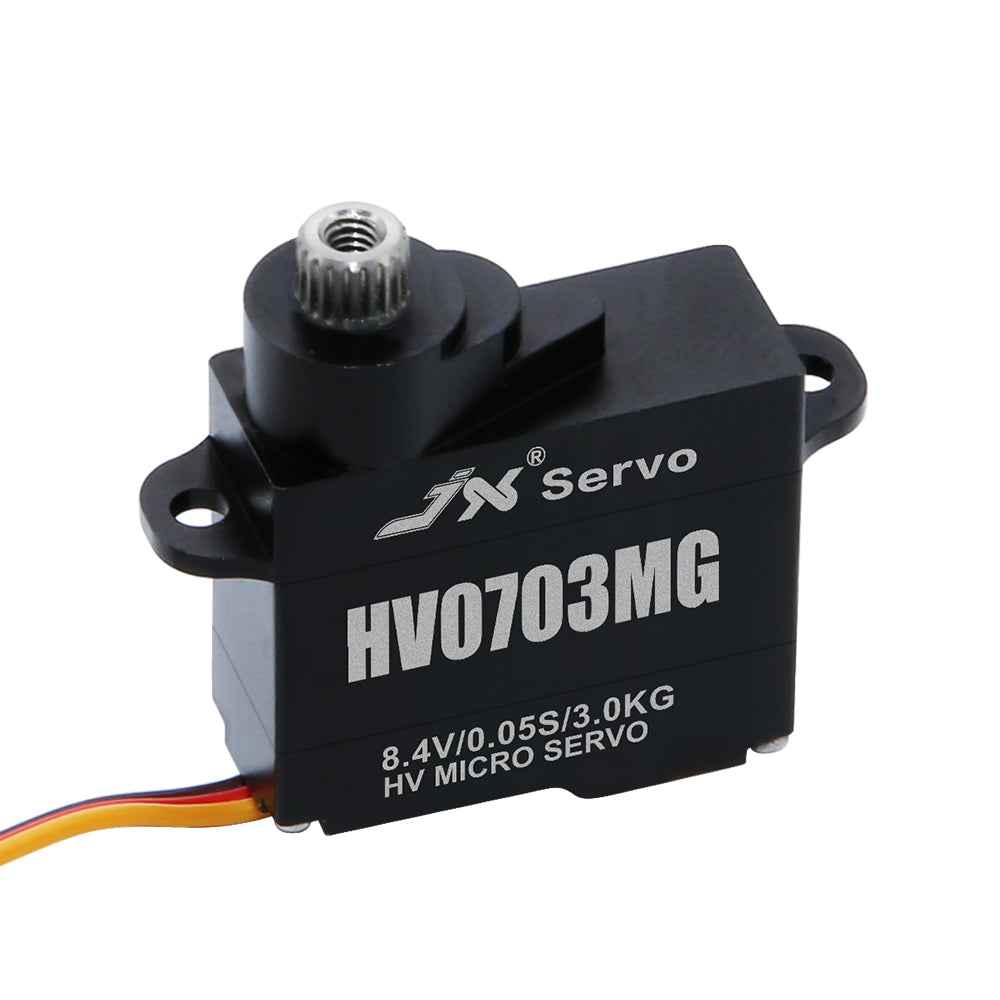

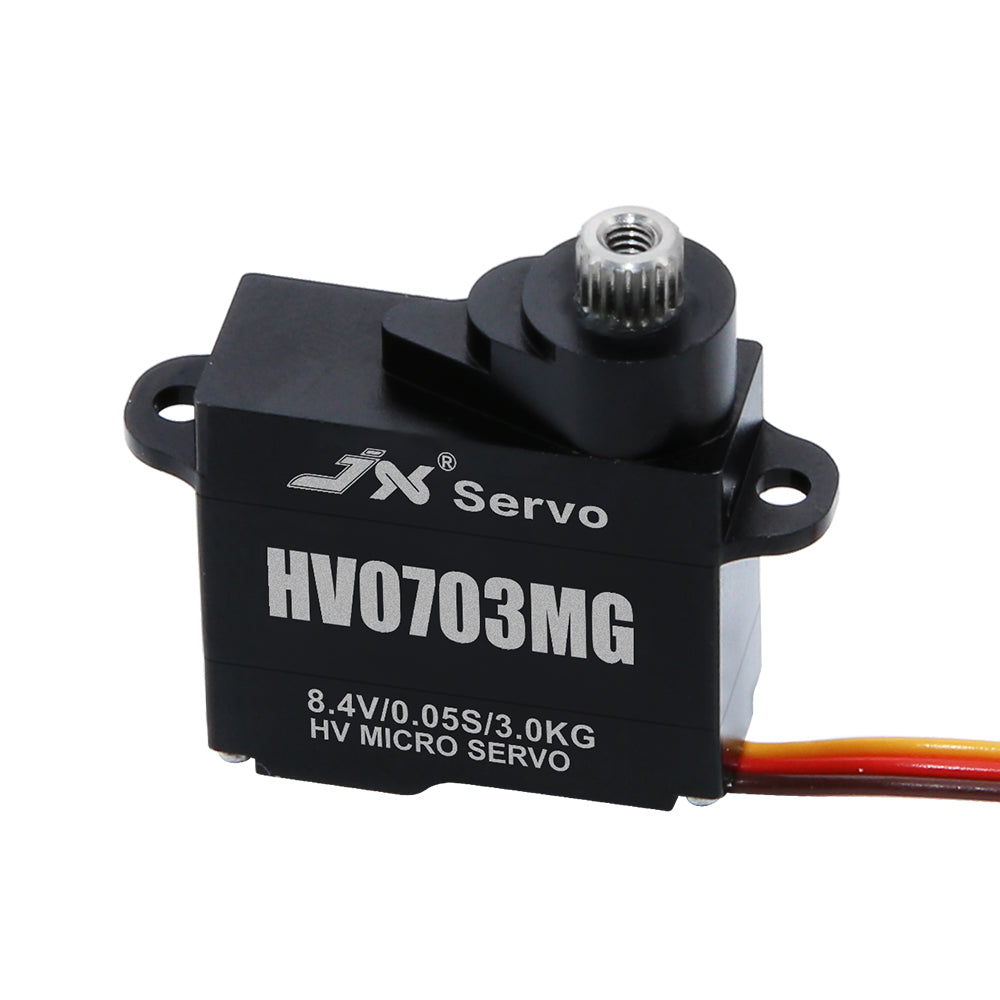

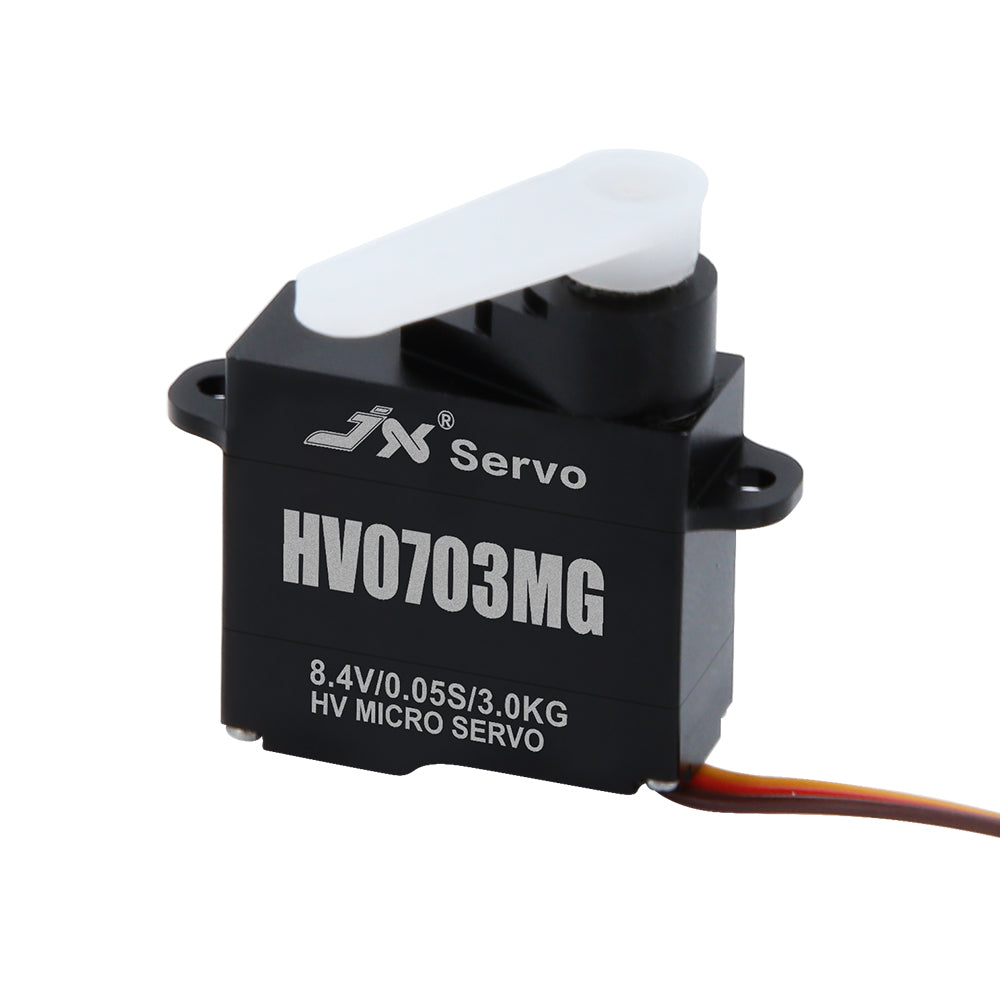

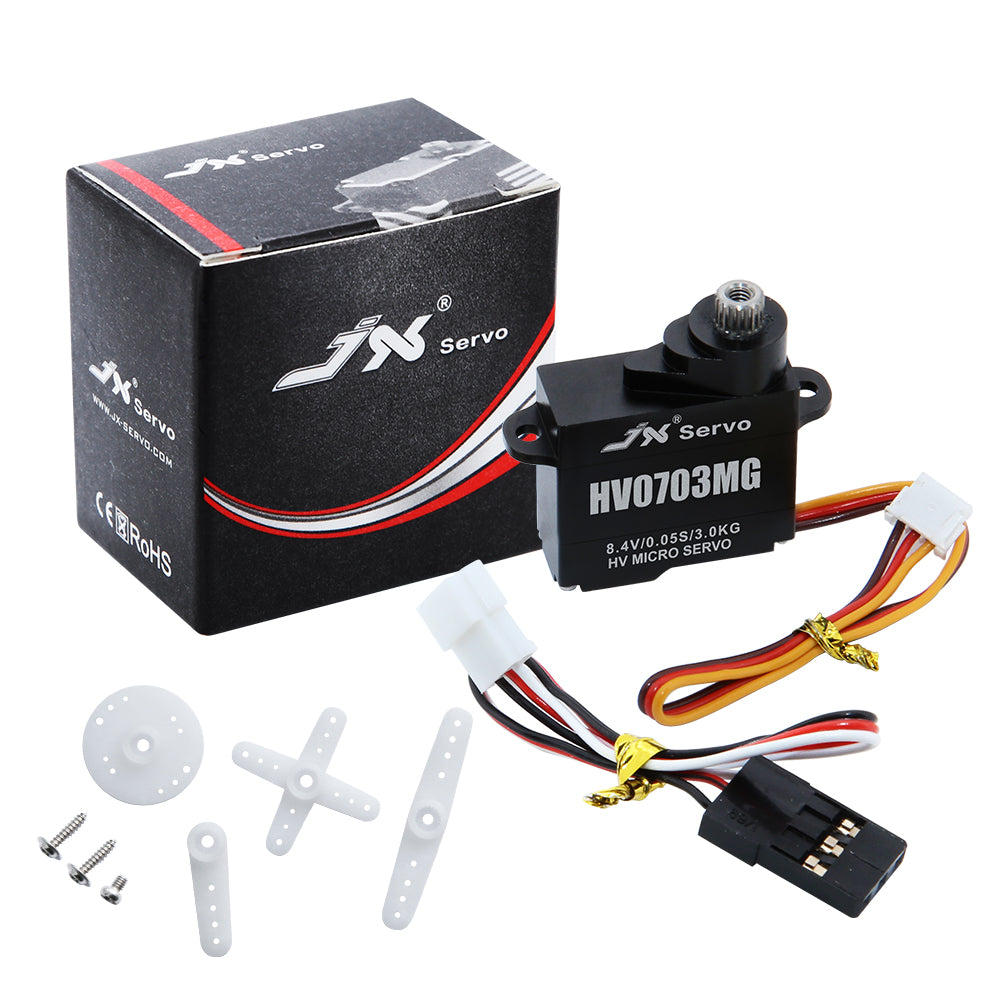

JX Servo PDI-HV0703MG 3KG 0.052sec/60° Coreless Digital HV Micro Servo
$25.80
Zu Produktinformationen springen
JX Servo PDI-HV0703MG 3KG 0.052sec/60° Coreless Digital HV Micro Servo
$25.80

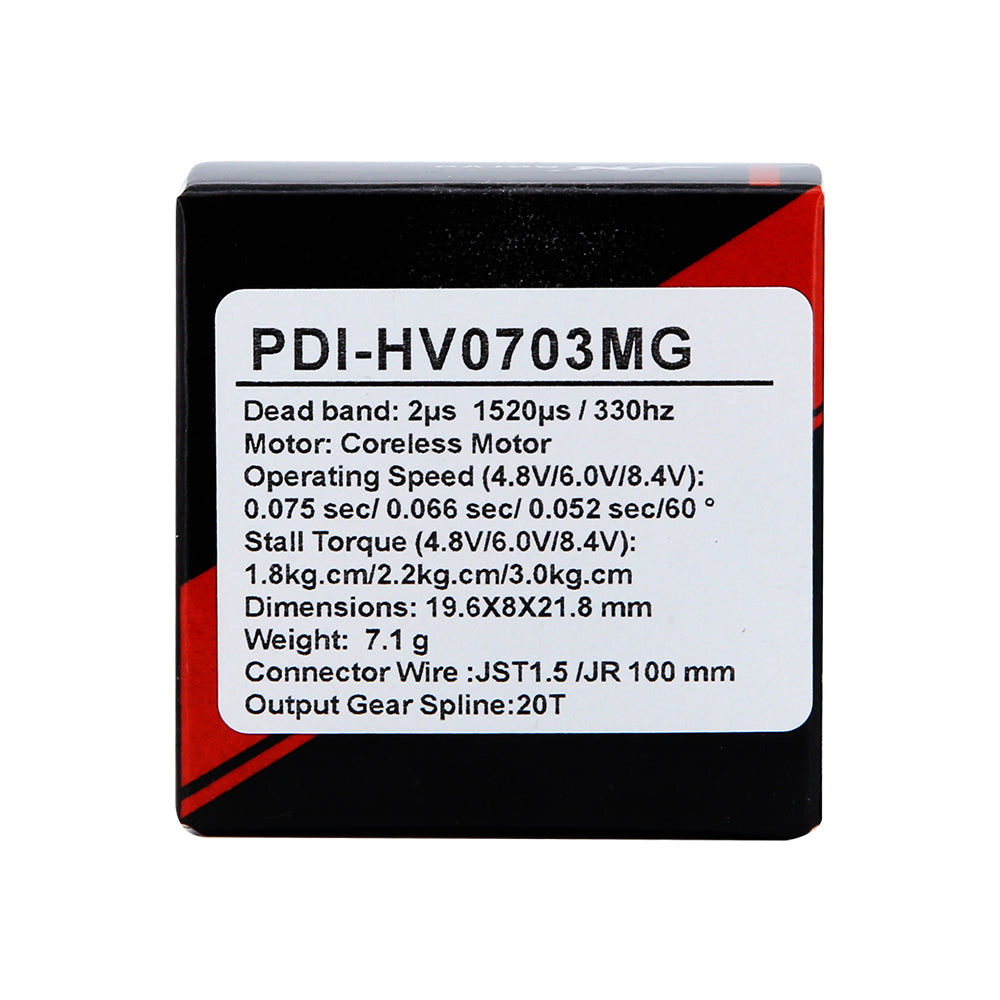

Product Specifications
SPECIFICATIONS
| Dead band | 2μs |
| Working Frequency | 1520μs / 330hz |
| Motor | Coreless |
| Voltage Range | 4.8~8.4 V |
| Operating Speed (4.8V) | 0.075 sec/60° |
| Operating Speed (6.0V) | 0.066 sec/60° |
| Operating Speed (8.4V) | 0.052 sec/60° |
| Stall Torque (4.8V) | 1.8 kg.cm |
| Stall Torque (6.0V) | 2.2 kg.cm |
| Stall Torque (8.4V) | 3.0 kg.cm |
| Dimensions | 19.6x8x21.8mm |
| Weight | 7.1 g |
| Connector Wire Length | JST1.5 100mm + JR Wire |
| Bearing | 2BB |
| Output Gear Spline | 20T |
