A12-S HV Mini Coreless Metal Gear Contactless Magnetic Sensors Servo 13.5Kgf.cm 0.08sec for Glider Wing
BR0023.0205
$74.99

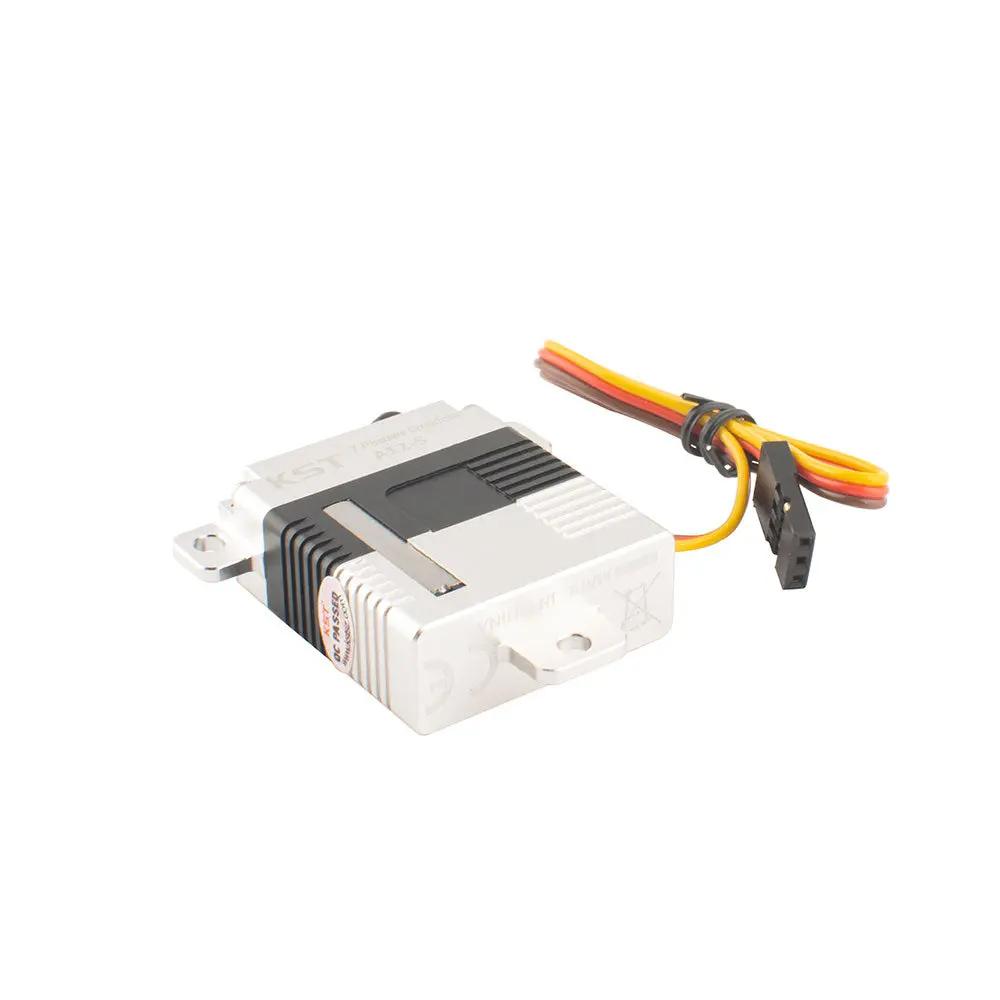

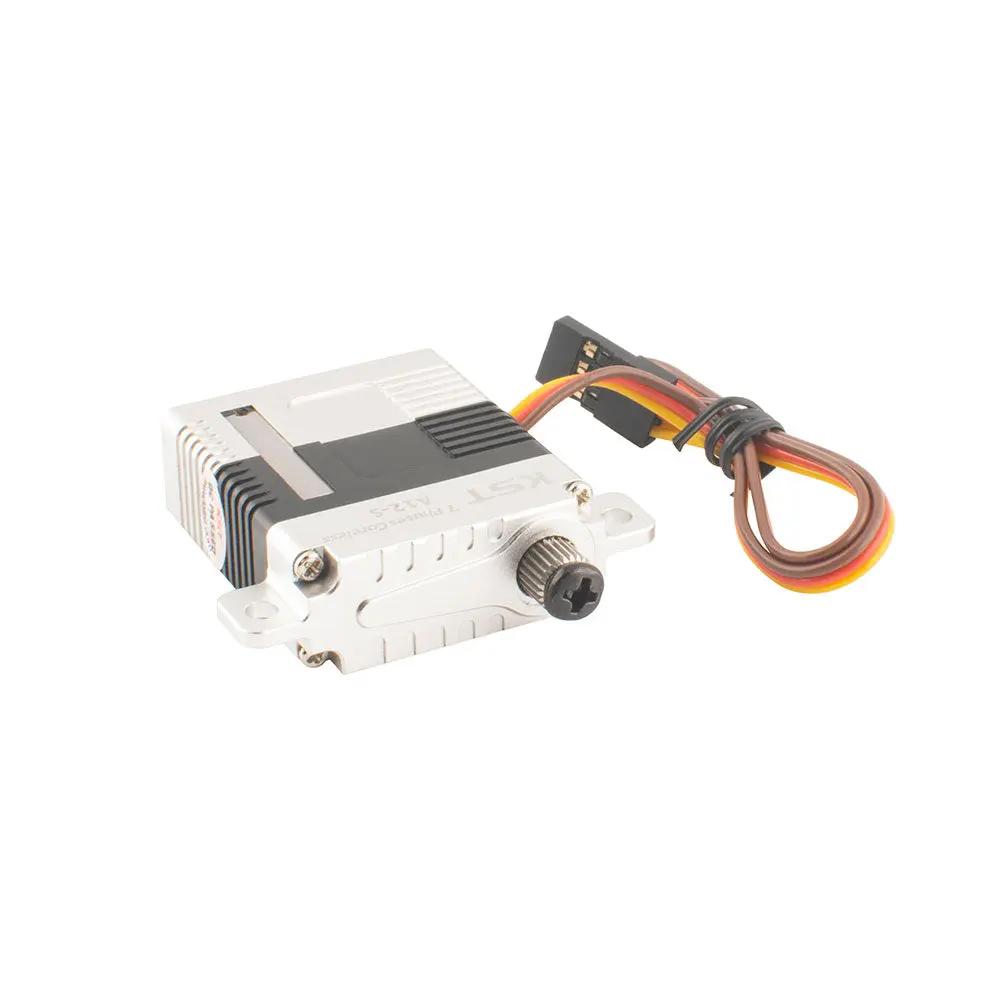

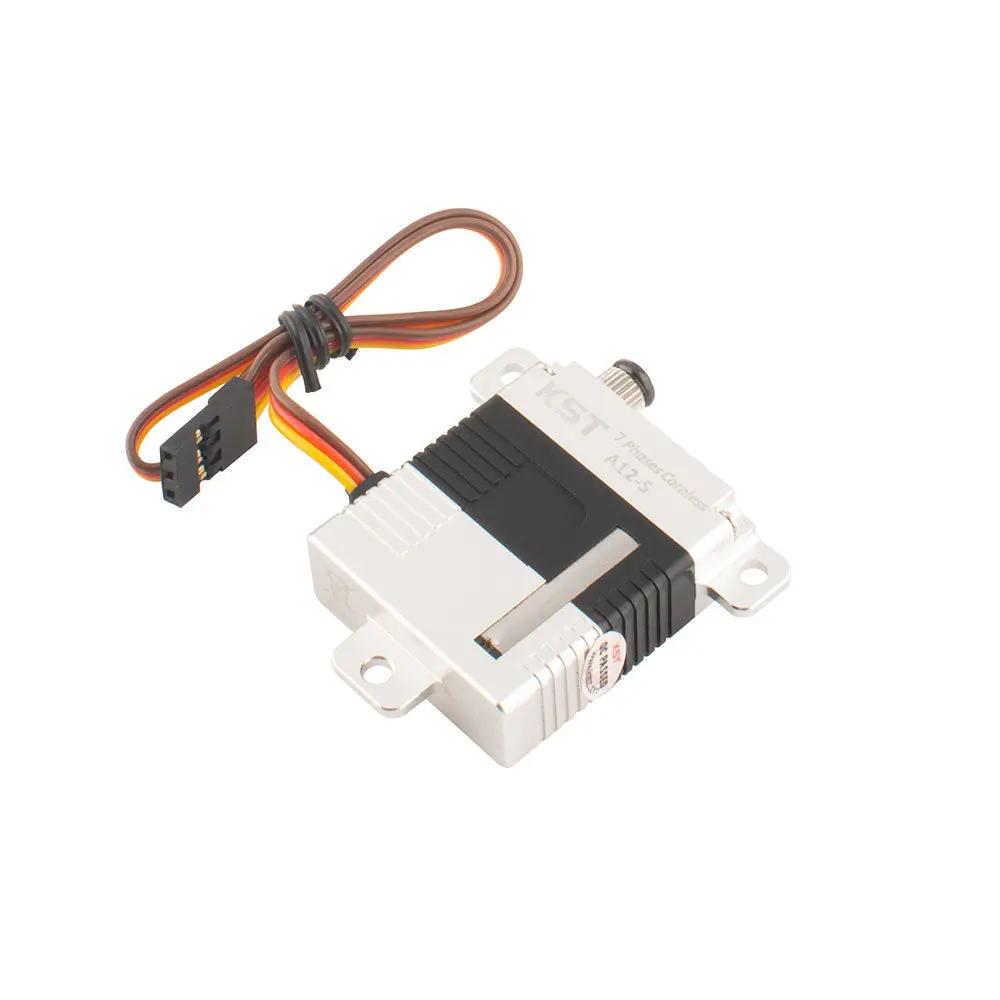

KST A12-S Magnetic Sensor Servo
The KST A12-S shares the same length and width as the popular X10, but features a slightly thicker 12mm profile for increased performance. Designed for large-scale and GPS gliders, aerobatic gliders, and turbine jets, it combines a 7-phase coreless motor with a wear-free magnetic sensor for fast, precise, and reliable control. The 25T-6 Futaba-standard output ensures compatibility with a wide range of setups.
Features
- 7 Phase Coreless DC Motor
- Contactless (Magnetic Sensor)
- Programmable
- Compact and Lightweight Design
- Excellent Torque and Speed
- Excellent Heat Dissipation
- Designed for High Performance RC Gliders
Specification
| Parameter | Value |
| Item | A12-S Servo |
| Rated Voltage | DC7.4V |
| Voltage Range | DC6.0V–8.4V |
| Torque (N.m) | 1.10N.m@6.0V / 1.28N.m@7.4V / 1.35N.m@8.4V |
| Torque (Kgf.cm) | 11.21Kgf.cm@6.0V / 13.05Kgf.cm@7.4V / 13.76Kgf.cm@8.4V |
| Speed | 0.11sec/60°@6.0V / 0.09sec/60°@7.4V / 0.08sec/60°@8.4V |
| Working Frequency | 1520μs/333Hz |
| Travel Angle | ±60° = 120° Total |
| Operating Temperature | -10℃ ~ +60℃ |
| Soft Start | Yes |
| Programmable | Yes |
| Case Material | Aluminium Alloy |
| Motor Type | 7 Phase Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Contactless (Magnetic Sensor) |
| Ball Bearing | 2BB |
| Case Dimensions | 30mm × 12mm × 35.5mm ±0.2mm |
| Weight | 32g ±10% |
Package Including
- 1 * A12-S HV Metal Servo
- 2 * Plastic Servo Horn
- 4 * Mounting Screw
- 2 * Servo Horn Screw
