A15-1810 HV Phosphor Bronze & Hardened Steel Gear Standard Servo 20Kgf.cm 0.10sec/60°
BR0023.0138
$79.99

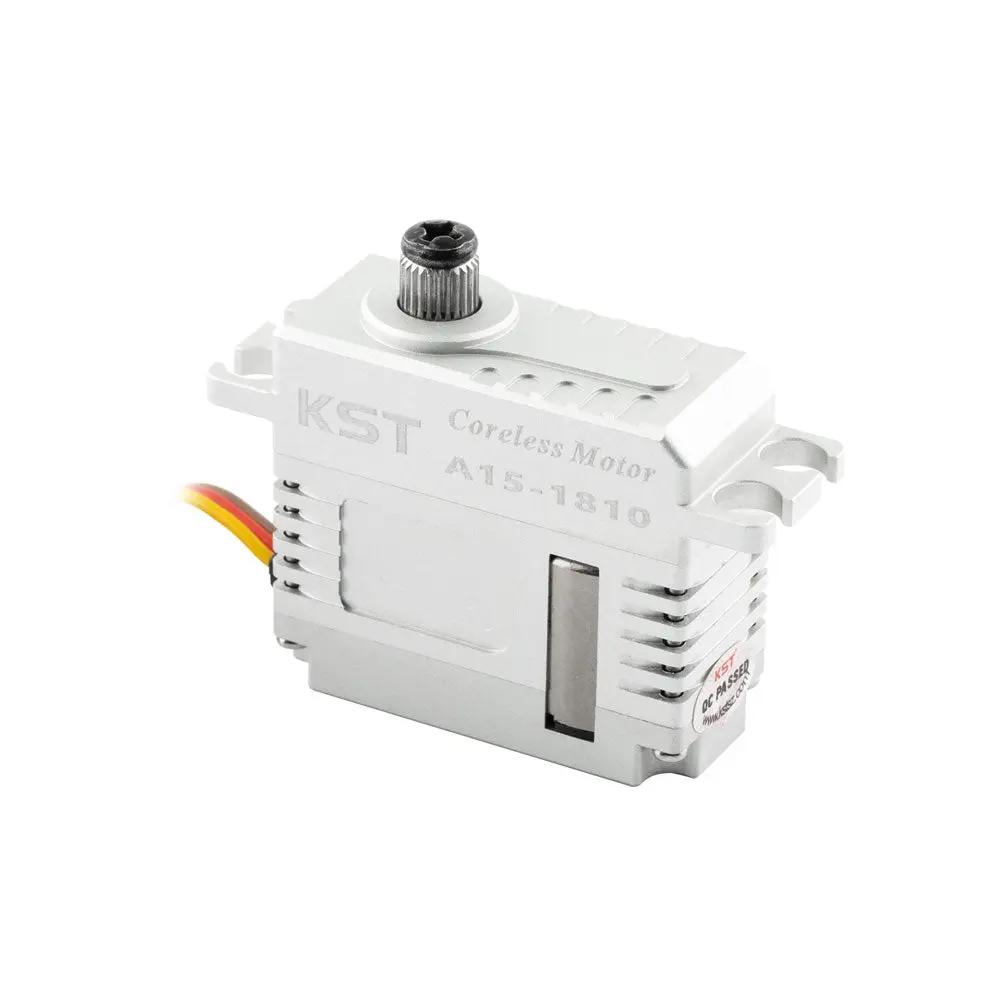

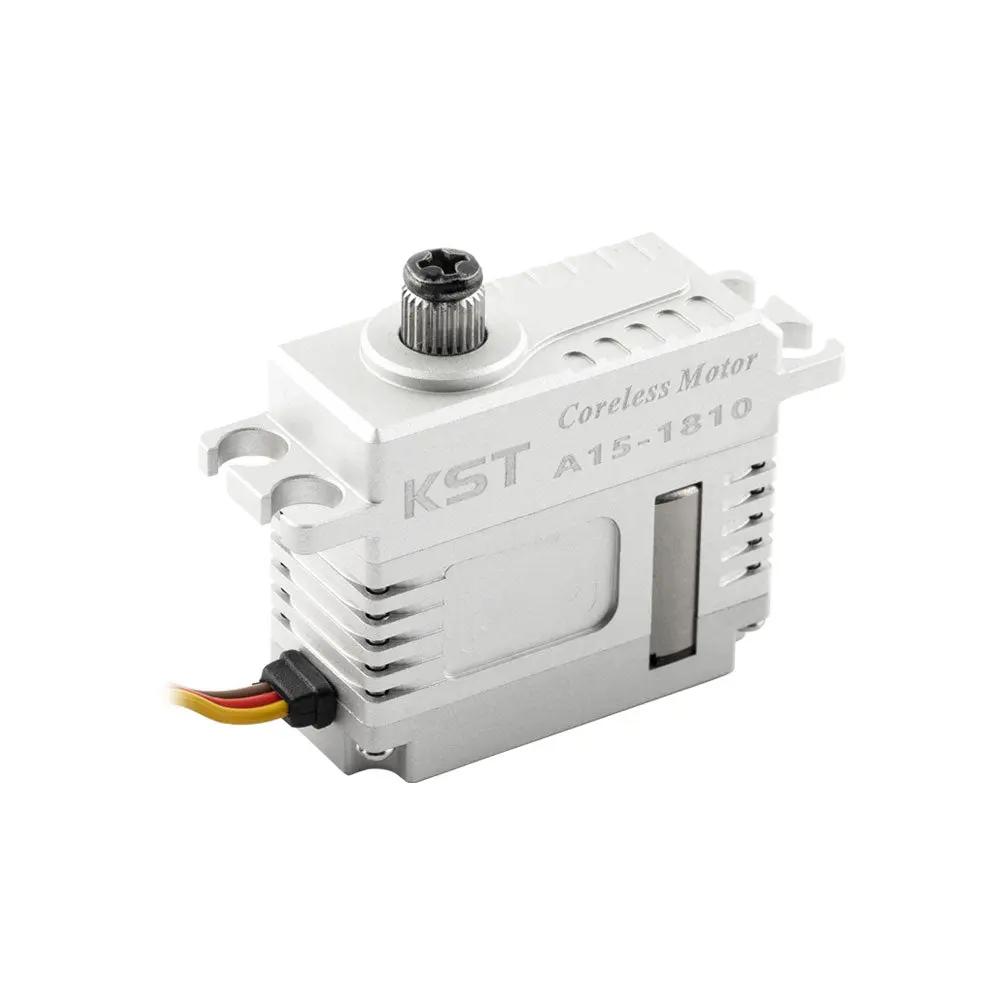

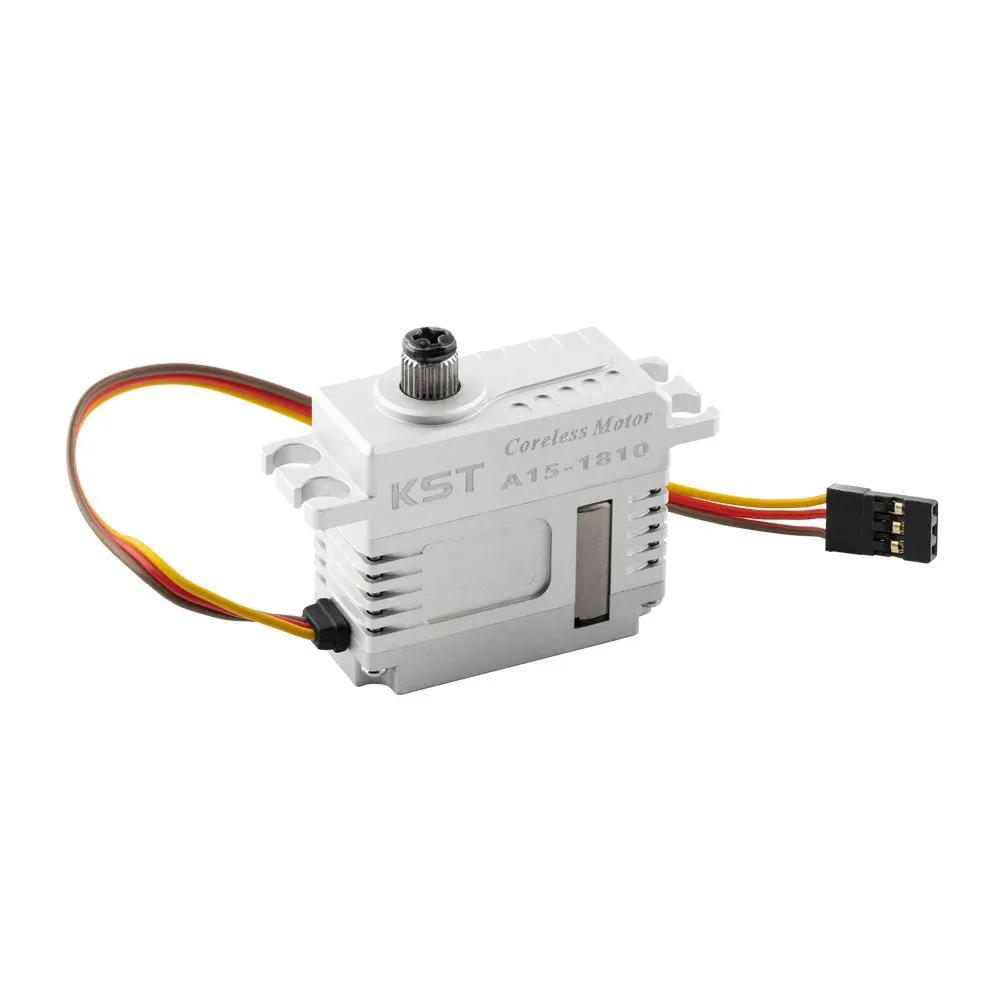

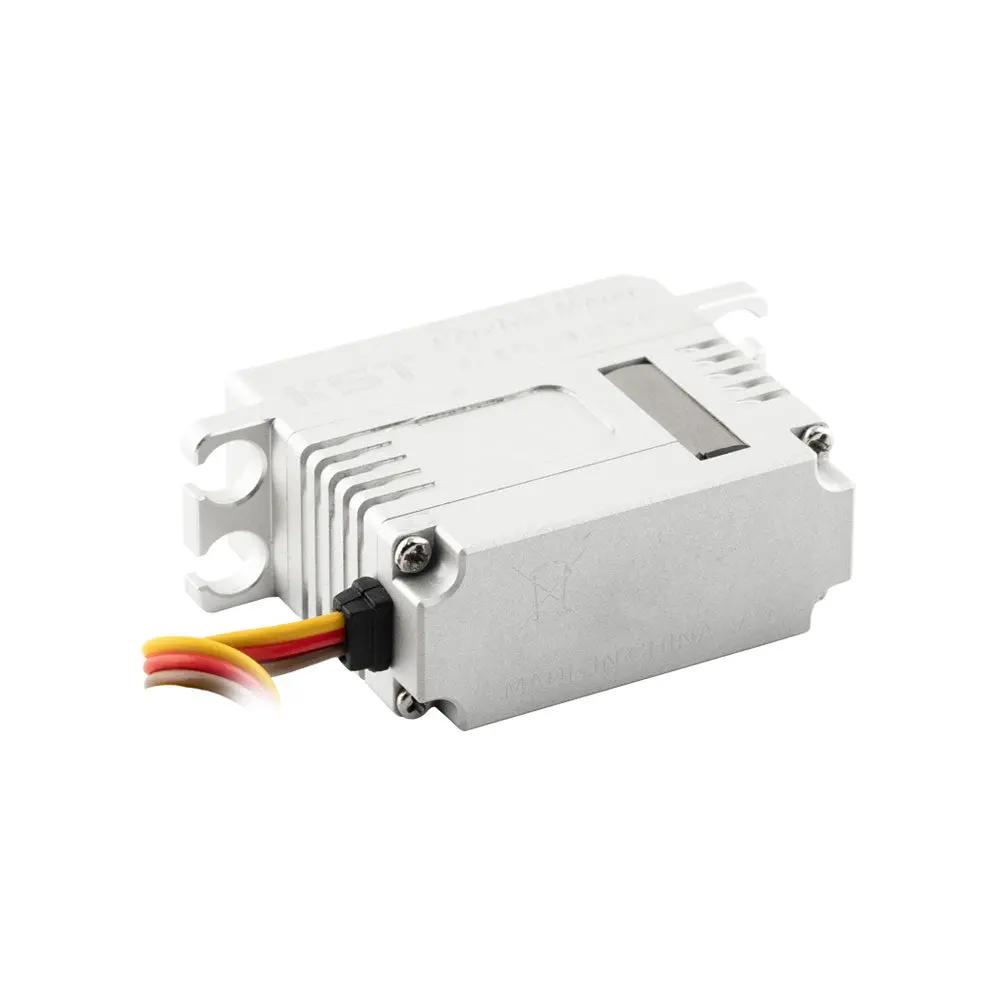

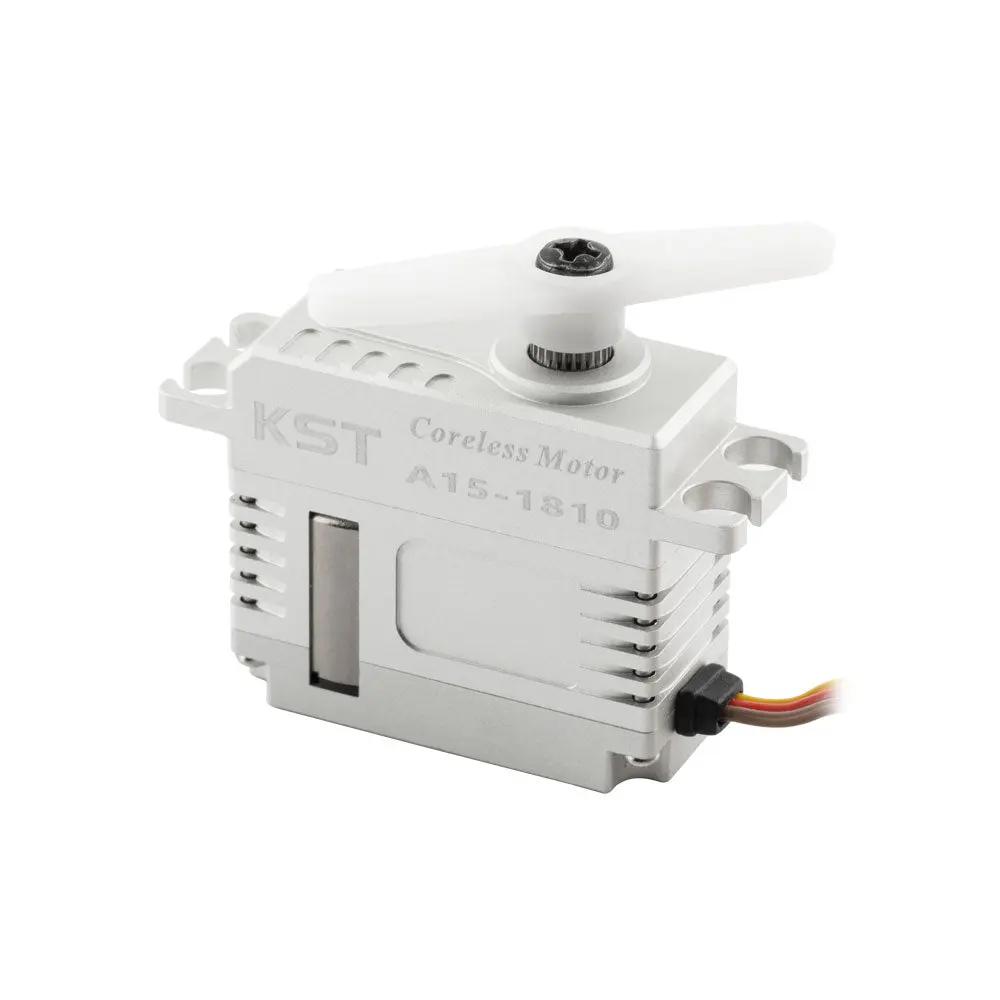

KST A15-1810 HV Digital Servo
The KST A15-1810 HV is a powerful, fast digital servo designed for fuselage and wing applications where high positioning force is required. With a slim 15mm profile and up to 20Kgf.cm torque, it delivers excellent power and response. Featuring phosphor bronze and hardened steel gears, high reset accuracy, and a full aluminum alloy case for precise mounting and efficient heat dissipation, the A15-1810 is built for demanding RC applications.
Features
- Torque up to 20Kgf.cm
- Speeds down to 0.10sec/60°
- CNC aluminum case
- Hardened steel gear
- Programmable
Specification
| Parameter | Value |
| Item | A15-1810 Coreless Mini Servo |
| Rated Voltage | DC7.4V |
| Voltage Range | DC6.0V–8.4V |
| Torque | 15Kgf.cm@6.0V / 18Kgf.cm@7.4V / 20Kgf.cm@8.4V |
| Speed | 0.14sec/60°@6.0V / 0.12sec/60°@7.4V / 0.10sec/60°@8.4V |
| Working Frequency | 1520μs/333Hz |
| Travel Angle | ±50° = 100° Total |
| Operating Temperature | -10℃ ~ +65℃ |
| Soft Start | Programmable |
| Programmable | Yes |
| Case Material | Aluminum Alloy |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |
| Ball Bearing | 2BB |

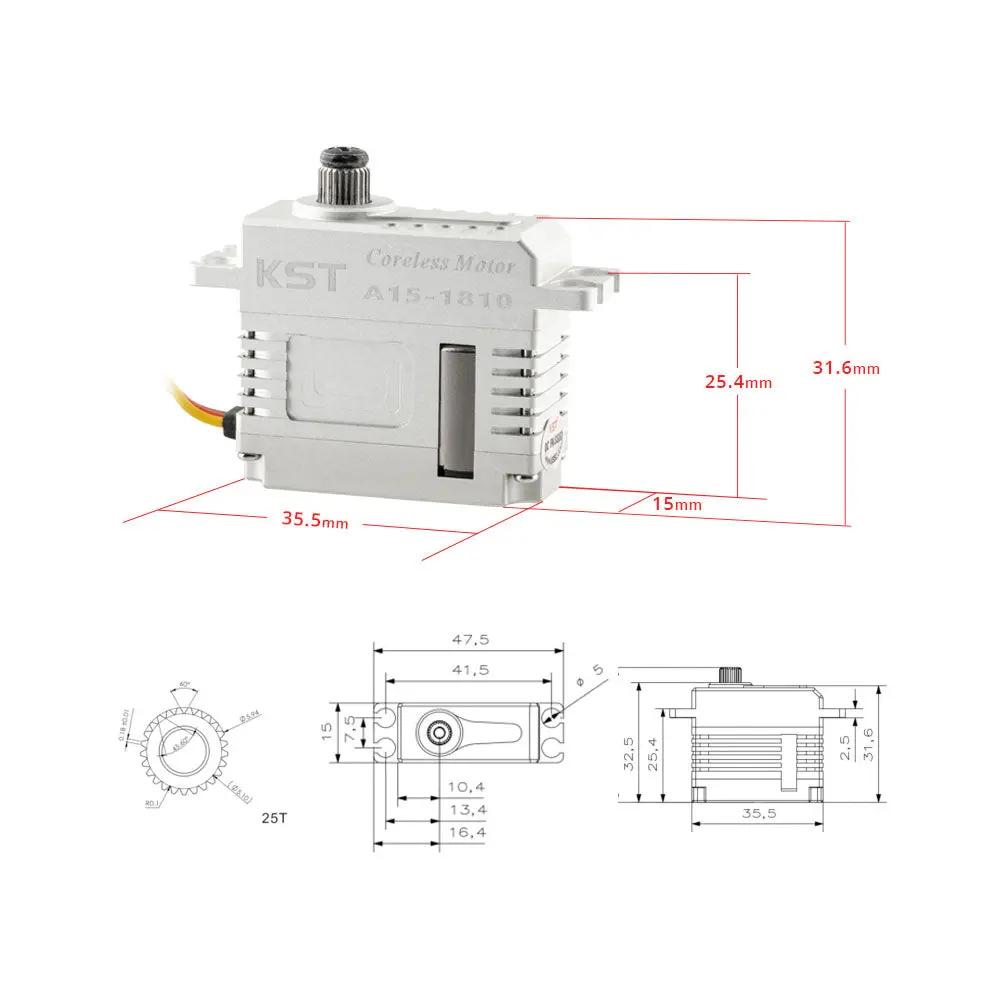

| Case Dimensions | 35.5mm × 15mm × 32.5mm ±0.2mm |
| Weight | 42g ±10% |

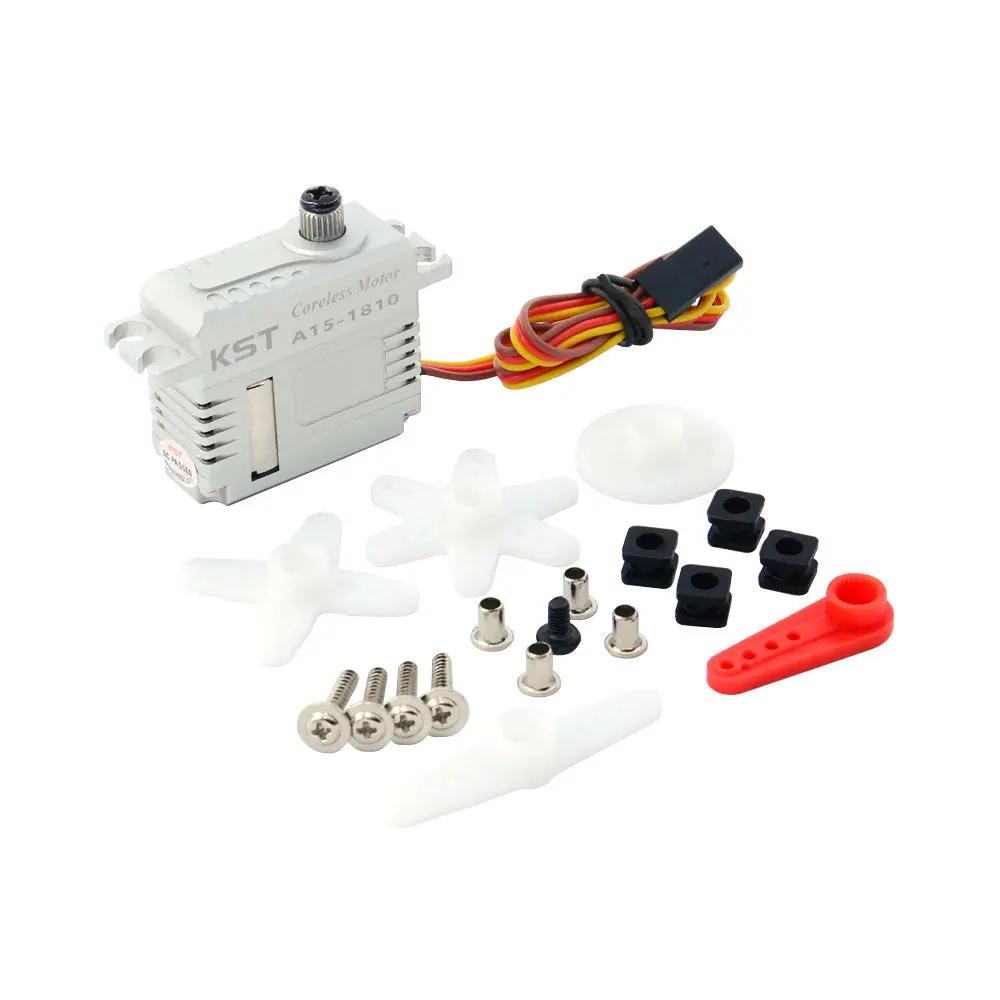

Package Includes
- 1 * A15-1810 Servo
- 5 * Plastic Servo Horn
- 1 * Servo Horn Screw
- 4 * Mounting Screw
- 4 * Rubber Grommet
- 4 * Eyelet
