Name: A15-2212 HV Phosphor Bronze & Hardened Steel Gear Servo 25Kgf.cm 0.11sec/60° for RC Airplanes
Brand: KST-Servo
SKU: BR0023.0139
Price: 84.99 USD
Availability: OutOfStock

A15-2212 HV Phosphor Bronze & Hardened Steel Gear Servo 25kg.cm 0.11sec/60° for RC Airplanes

A15-2212 HV Phosphor Bronze & Hardened Steel Gear Servo 25Kgf.cm 0.11sec/60° for RC Airplanes

BR0023.0139

$84.99

KST A15-2212 Digital High Torque Servo

The KST A15-2212 Digital Servo features a slim 15mm-thick design, making it an excellent choice for applications where installation space is limited while still requiring high positioning force and precision.

With up to 25Kgf.cm of torque, the A15-2212 delivers strong and responsive control. Its carbide and phosphor bronze gear train provides precise, backlash-free operation and excellent reset accuracy.

The full aluminum housing ensures secure and precise mounting while providing efficient heat dissipation, making the A15-2212 a reliable choice for demanding RC applications.

A15-2212 HV Phosphor Bronze & Hardened Steel Gear Servo

Features

Standard Servo
Phosphor Bronze & Hardened Steel Gear
Extreme Torque and Excellent Speed
CNC Aluminum Case
Programmable

Specification

Parameter	Value
Item	A15-2212 HV Digital Servo
Rated Voltage	DC7.4V
Voltage Range	DC3.8V–8.4V
Torque	18Kgf.cm@6.0V / 22Kgf.cm@7.4V / 25Kgf.cm@8.4V
Speed	0.15sec/60°@6.0V / 0.12sec/60°@7.4V / 0.11sec/60°@8.4V
Travel Angle	±50° = 100° Total
Operating Temperature	-10℃ ~ +65℃
Soft Start	Programmable
Programmable	Yes
Case Material	Aluminum Alloy
Motor Type	Coreless DC Motor
Gear Set Material	Phosphor Bronze & Hardened Steel
Position Sensor	Potentiometer
Ball Bearing	2BB
Connecting Cable	Shielded 22AWG

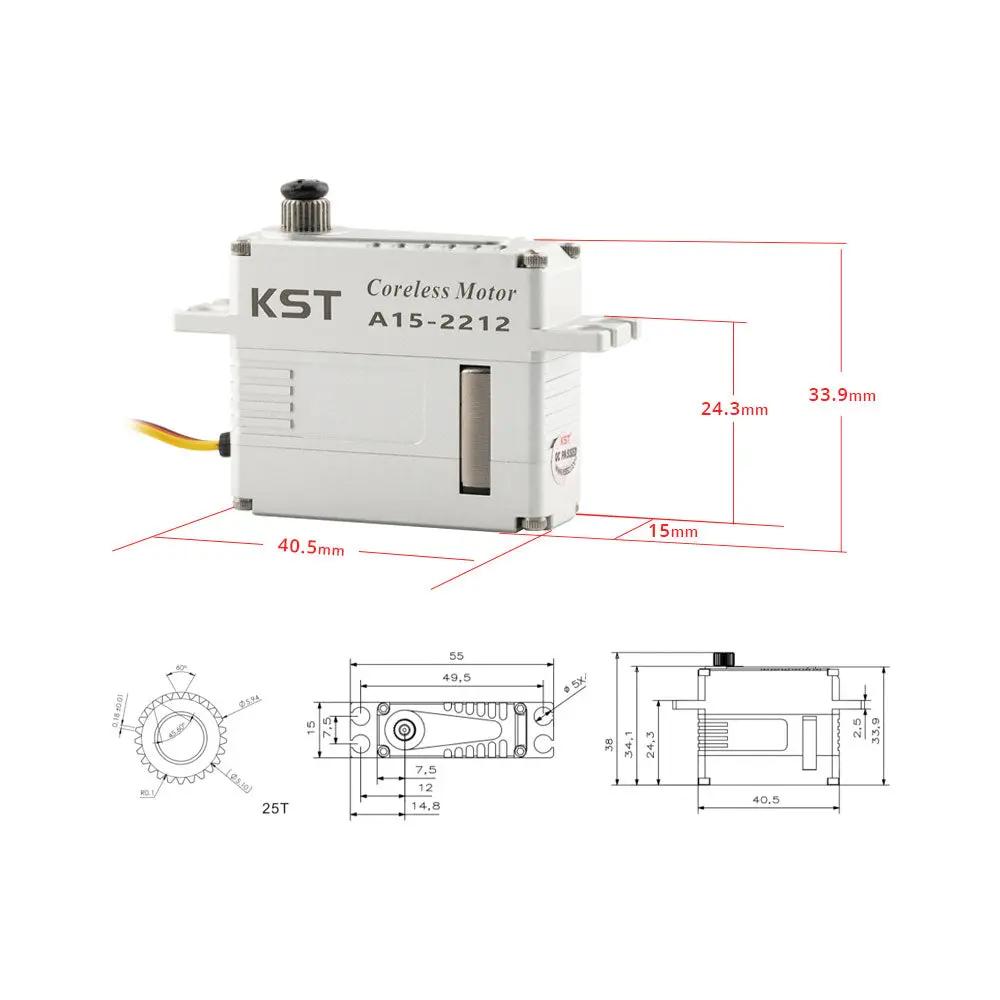

Case Dimensions	40.5mm × 15mm × 34.1mm ±0.2mm
Weight	50g ±10%
