Key Features

• CNC-machined aviation-grade aluminum construction

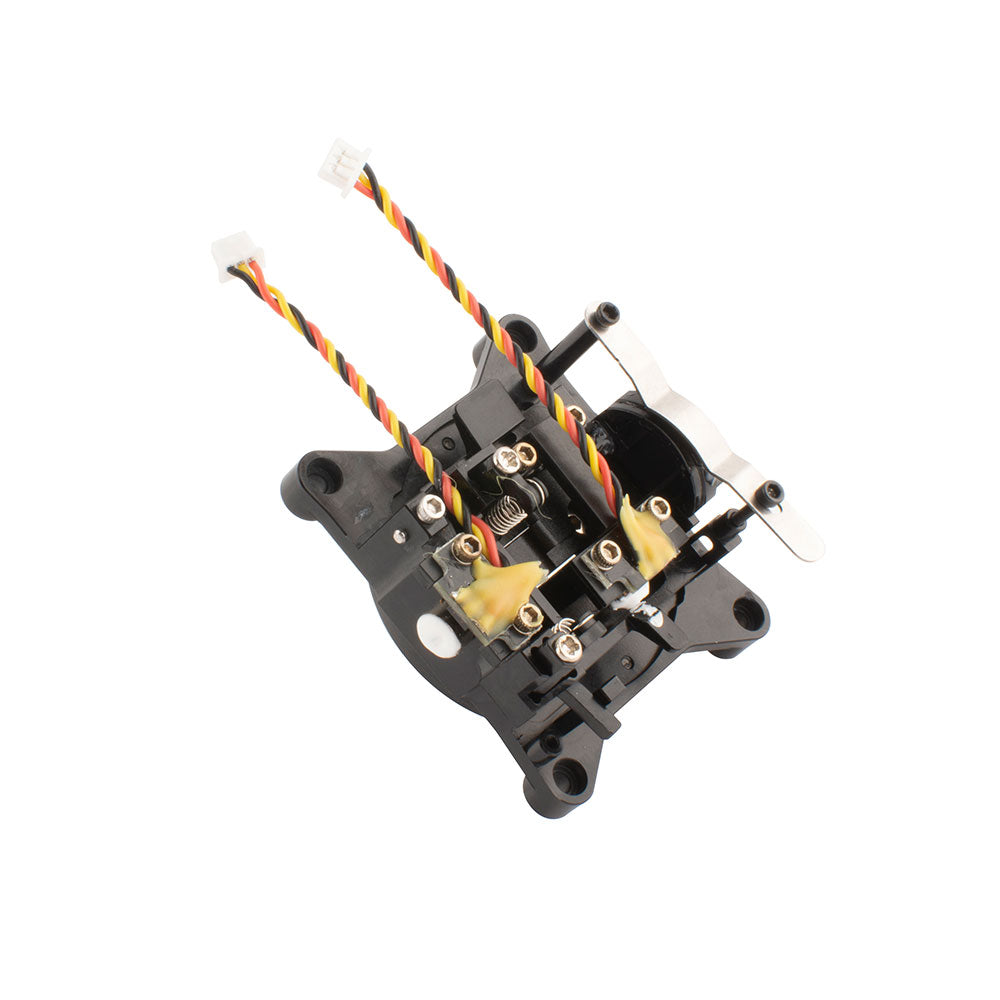

• Non-contact Hall sensors for accurate control inputs and precise centering
• Quad precision bearings for smooth and consistent stick movement
• Adjustable vertical travel angle from 38° to 54°
• Self-centering adjustment for precise stick setup
• Easy Mode adjustment for convenient configuration
• Adjustable stick tension for a customized control feel
• Custom-designed for compatible RadioMaster radios

Specifications

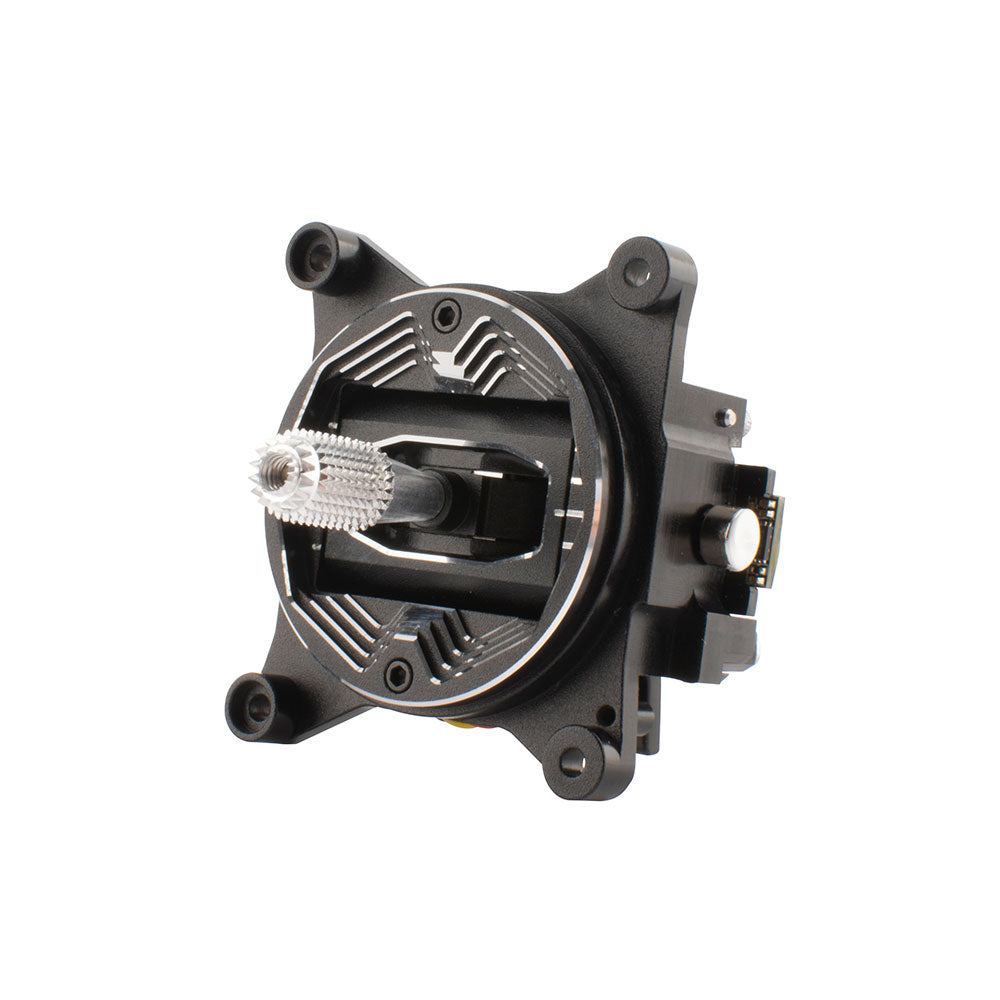

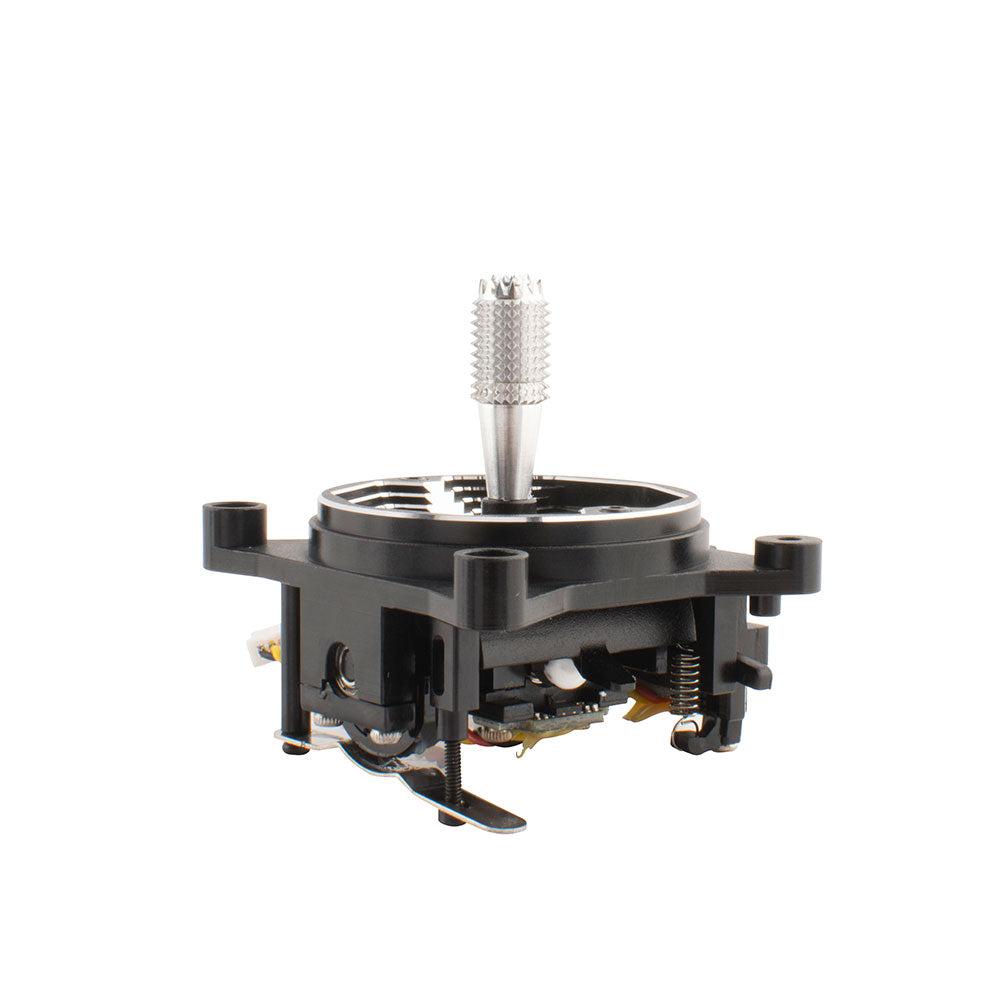

• Product: AG01 Mini CNC Hall Gimbal
• Sensor Type: Hall Sensor
• Working Voltage: DC 3.3V
• Linearity: Real-time, no delay
• Adjustable Vertical Travel: 38°–54°
• Self-Centering Adjustment: Yes
• Easy Mode Adjustment: Yes
• Adjustable Tension: Yes
• Precision Bearings: Quad Bearing
• Operating Temperature: -20°C to 85°C
• Dimensions: 49 × 42 × 48mm
• Weight: 42g ±0.3g

Installation for Zorro & TX12

The AG01 Mini Gimbals are shipped in self-centering configuration by default and are compatible with both the RadioMaster Zorro and TX12 radios.

For Zorro

• Install both gimbals in the default self-centering configuration.
• The Zorro can be configured for Mode 1 or Mode 2 using the adjustment screws located on the rear case.
• After reassembling the radio, the rear-case screws determine which gimbal functions as the throttle gimbal.

For TX12

One gimbal must be configured as the throttle gimbal, while the other remains self-centering before installation.

1. Use the included screw from the parts bag to secure the centering lever and configure the gimbal as a throttle gimbal.
2. Adjust the throttle tension bar to achieve the desired tension.
3. Install the configured gimbals into the TX12.

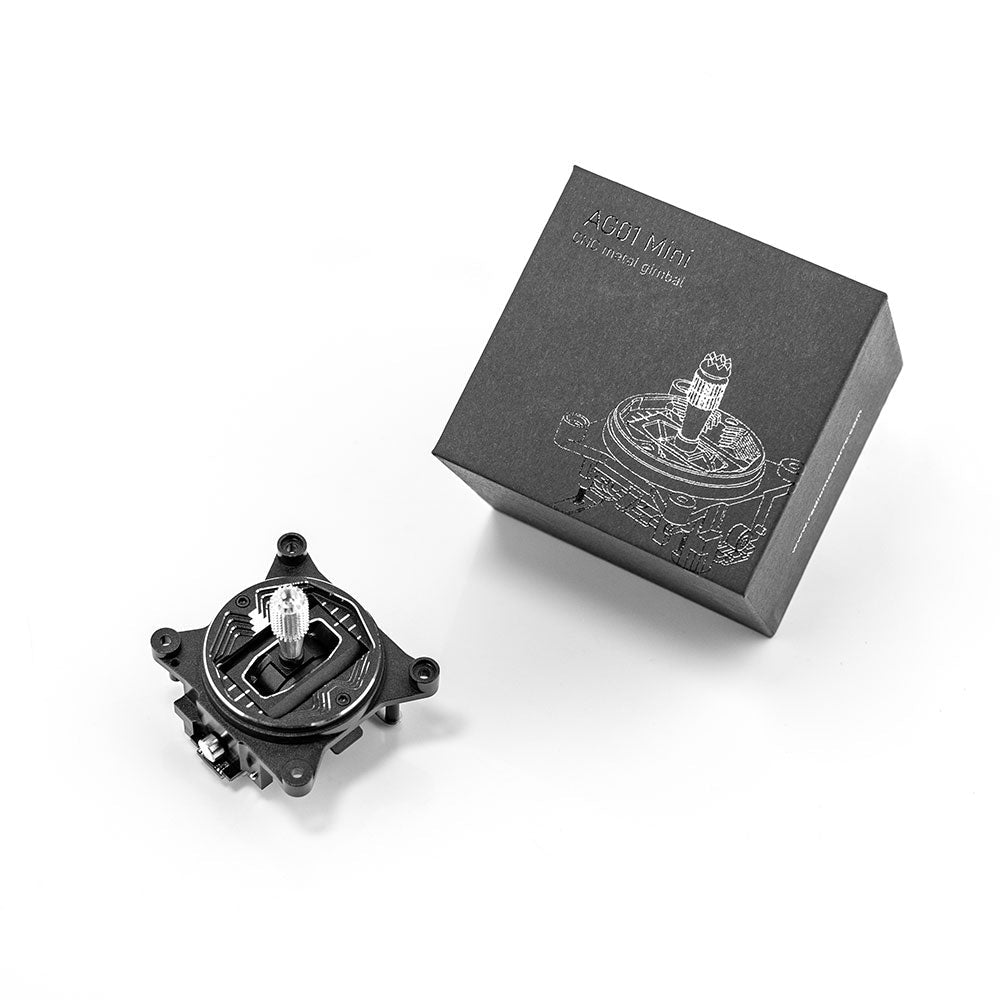

Package Includes

Single Gimbal

• 1 × AG01 Mini Hall CNC Gimbal
• 1 × Hex Tool
• 4 × Installation Screws
• 1 × Spare Tension Spring
• 1 × Throttle Tension Screw

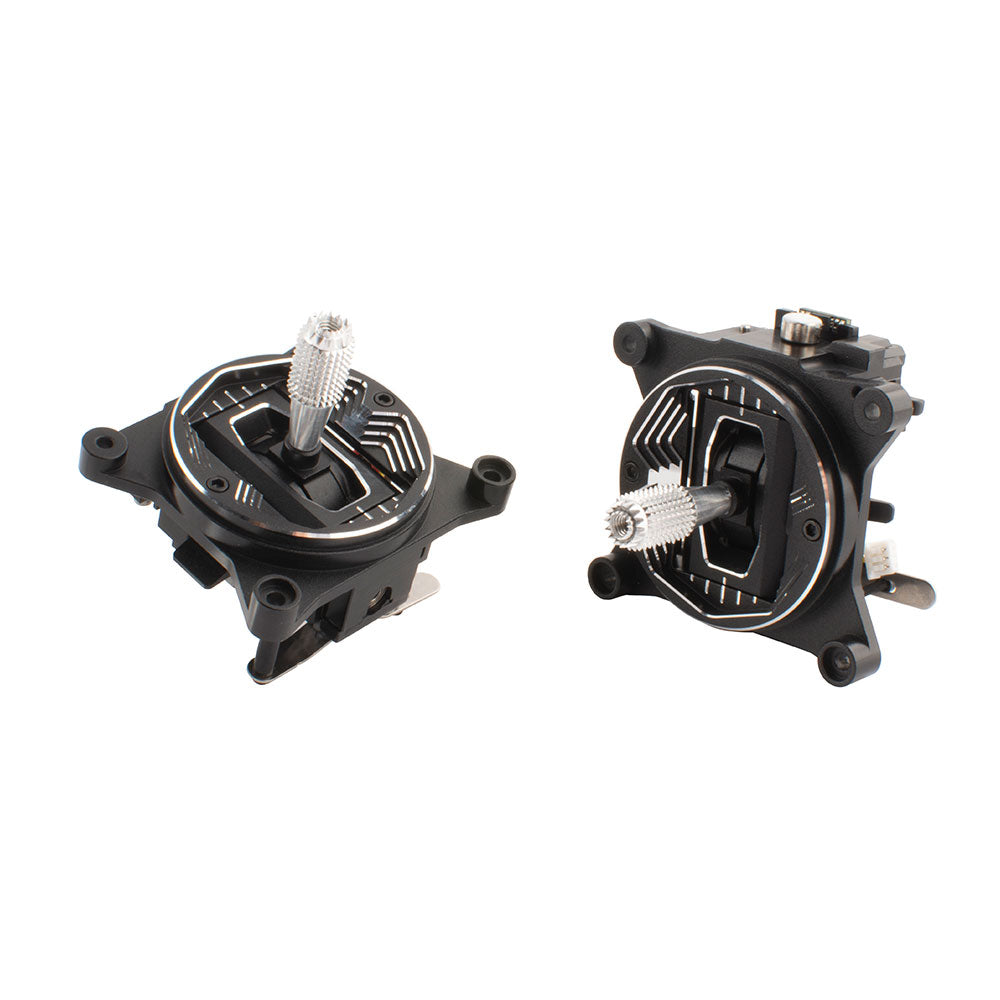

Gimbal Set

• 2 × AG01 Mini Hall CNC Gimbals
• 2 × Hex Tools
• 8 × Installation Screws
• 2 × Spare Tension Springs
• 2 × Throttle Tension Screws
