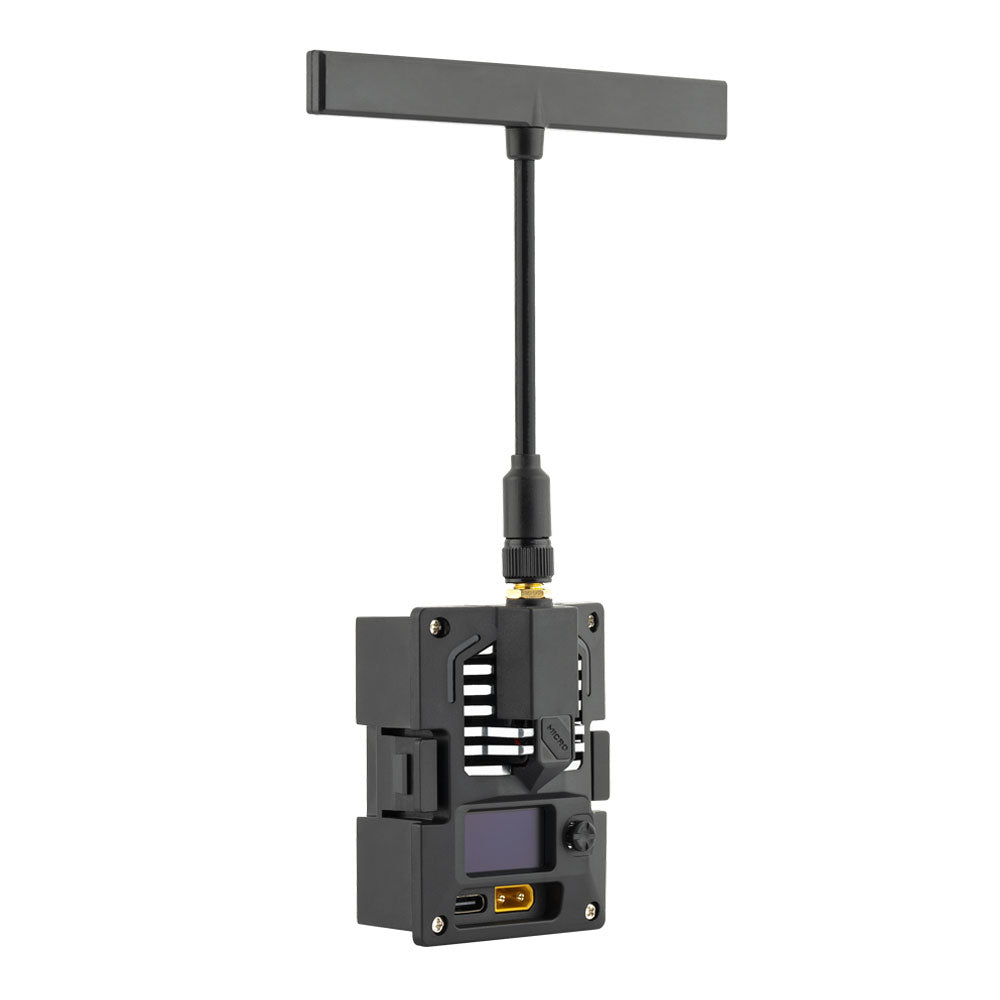

Bandit Micro ExpressLRS 915MHz RF Module
Bandit Micro ExpressLRS 915MHz RF Module
🌍 VAT will be applied to orders shipped to the EU.
🔋 Batteries can't be shipped separately, please purchase batteries with Radio units.
🛠️ Customized products require a 40-day lead time and no refunds can be made after the order is placed.
After extensive research and collaboration with the ExpressLRS team, we are thrilled to unveil the all-new Bandit Micro ExpressLRS RF Module. This cutting-edge module represents the culmination of our efforts to deliver unparalleled performance, reliability, and low-latency links for any application.
Features
- Packet rates up to 200Hz
- Optimized circuitry for ultra-low power consumption
- Built-in TCXO oscillator
- Low noise, high comfort
- High contrast OLED display
- Innovative convection cooling design
- Wifi and Bluetooth support
- Built-in ExpressLRS backpack
- 5 Directional nav key

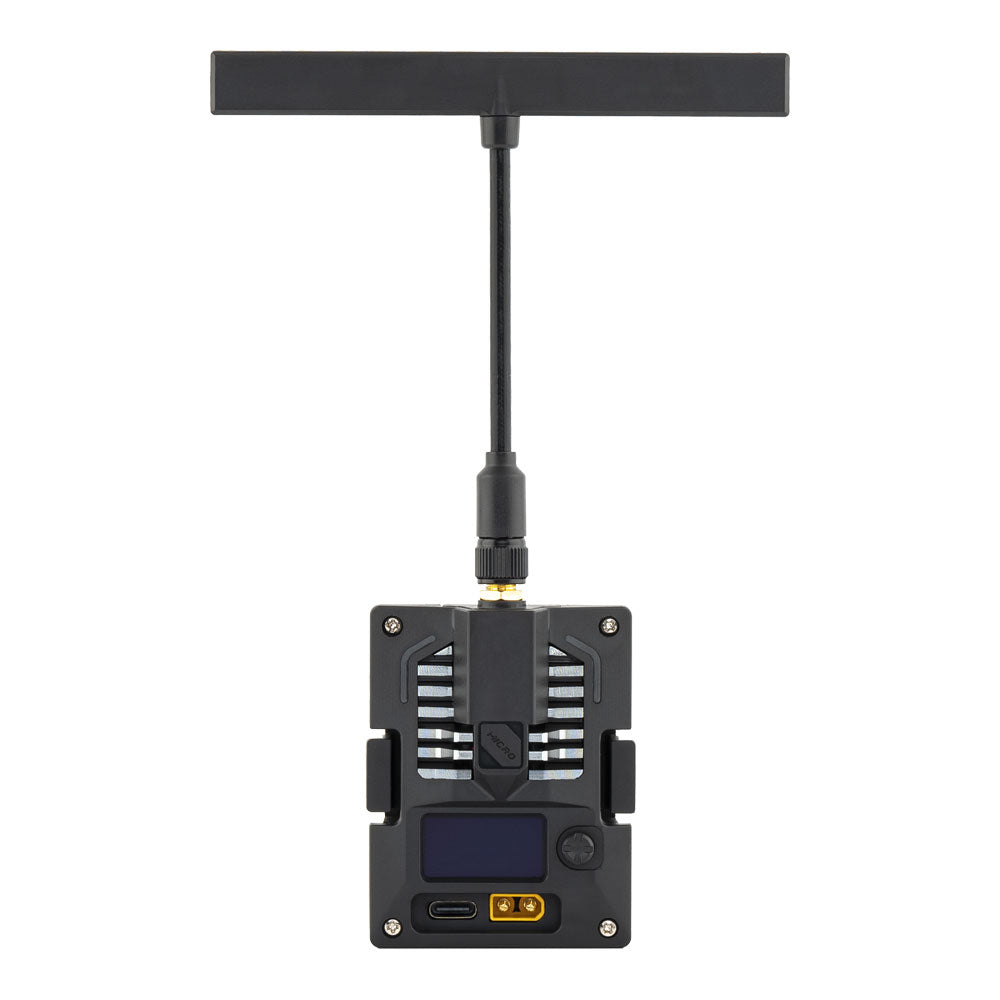

- 915/868MHz T Antenna included
- With the Micro connector, support TX16S MKII, Boxer, and TX12 MKII radio
Specifications
- Item: Bandit Micro ExpressLRS RF Module
- Regulatory Domain: FCC915
- MCU: ESP32(main), ESP8285(aux, as ESP backpack)
- RF Chip: SEMTECH SX1276
- Refresh Rate Min/Max: 25Hz/200Hz
- Micro standard 5pin connector
- Built-in OLED screen
- XT30 Power Supply Voltage: DC 6V ~ 16.8V

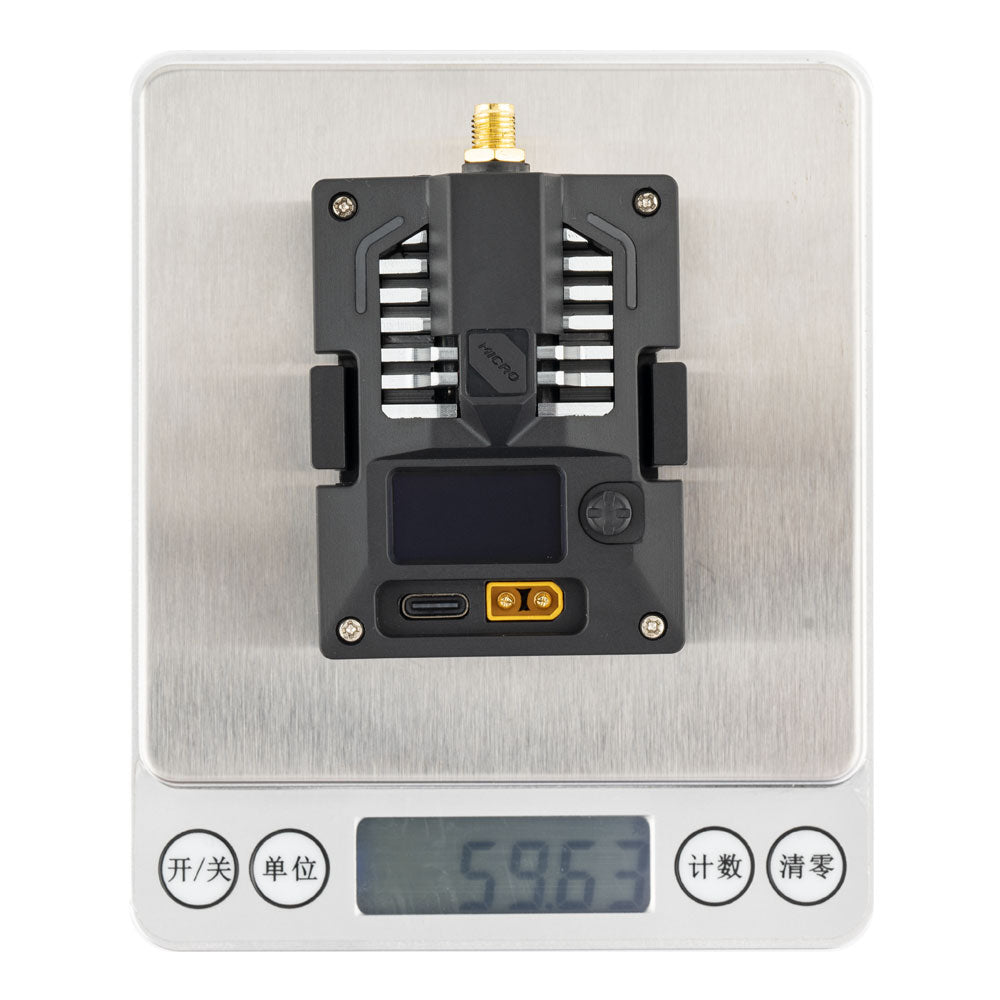

- Weight: 78.0grams (with T antenna)
- Dimension: 64.1*49.6*34.1mm
Keep Your Cool!
With its innovative convection cooling system and built-in turbo fan, the Bandit Micro ExpressLRS module ensures optimal temperature control and operates with minimal noise.The Bandit Micro form factor is ready to go with TX16S MKII, Boxer, TX12 MKII and other radios with a Micro Module bay.
Intuitive Control at Your Fingertips
The Bandit Micro ExpressLRS features an OLED display, a five-directional navigation key, ensuring an unparalleled RC experience.
Versatile Antenna Options for Diverse Applications

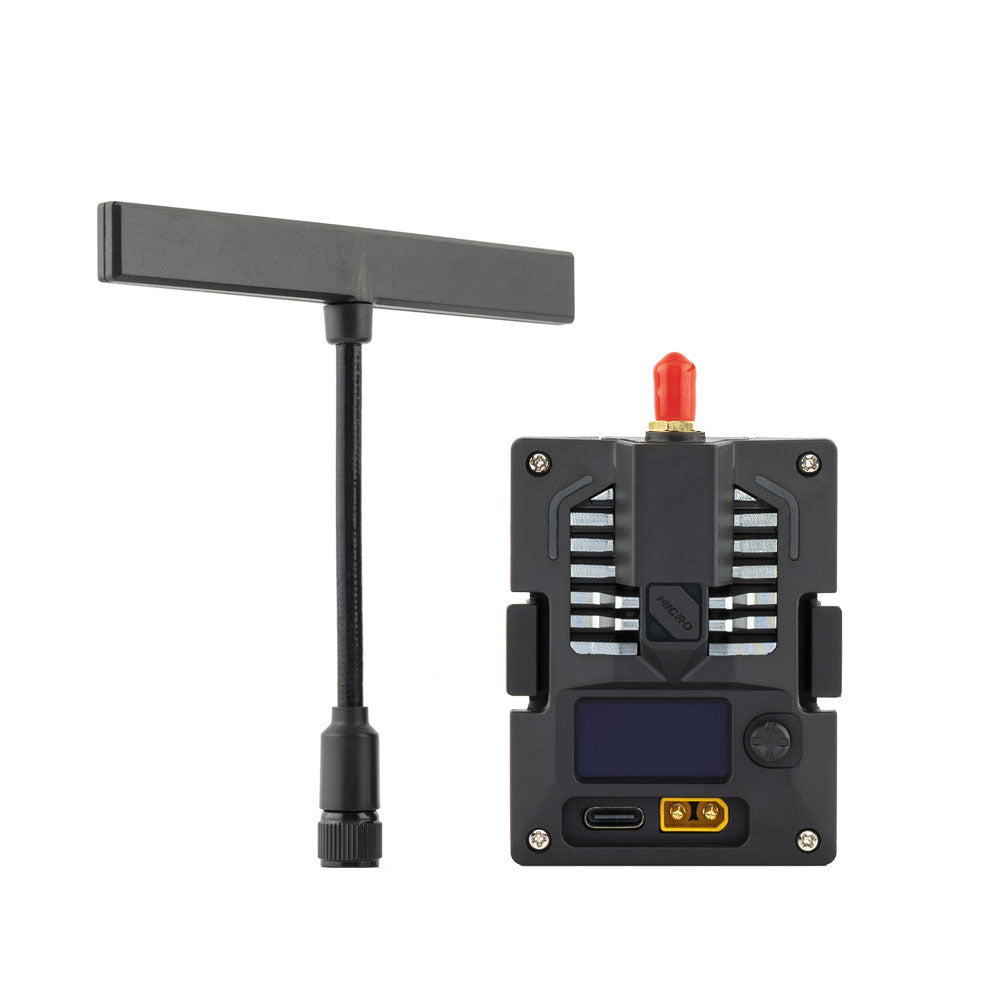

The Bandit Micro ExpressLRS comes equipped with a RadioMaster T Antenna for general-purpose use. The RadioMaster Moxon antenna is available separately for situations where a more focused, directional pattern is needed to achieve a stronger, more reliable link. This versatility allows you to tailor your setup to a wide range of operational scenarios, whether for everyday use or demanding professional applications.
But wait.. there's more!
The Bandit Micro features UART solder pads for advanced users and developers.
The Ideal Solution for Demanding Applications
Whether you’re an experienced operator or a professional requiring precise, dependable control systems, the Bandit Micro ExpressLRS RF Module is the perfect choice for mission-critical use. Its unmatched performance, rugged construction, intuitive controls, and versatile antenna options make it an indispensable tool for those seeking the highest standard in reliable, high-quality RF technology.
Dimensions
Package Includes

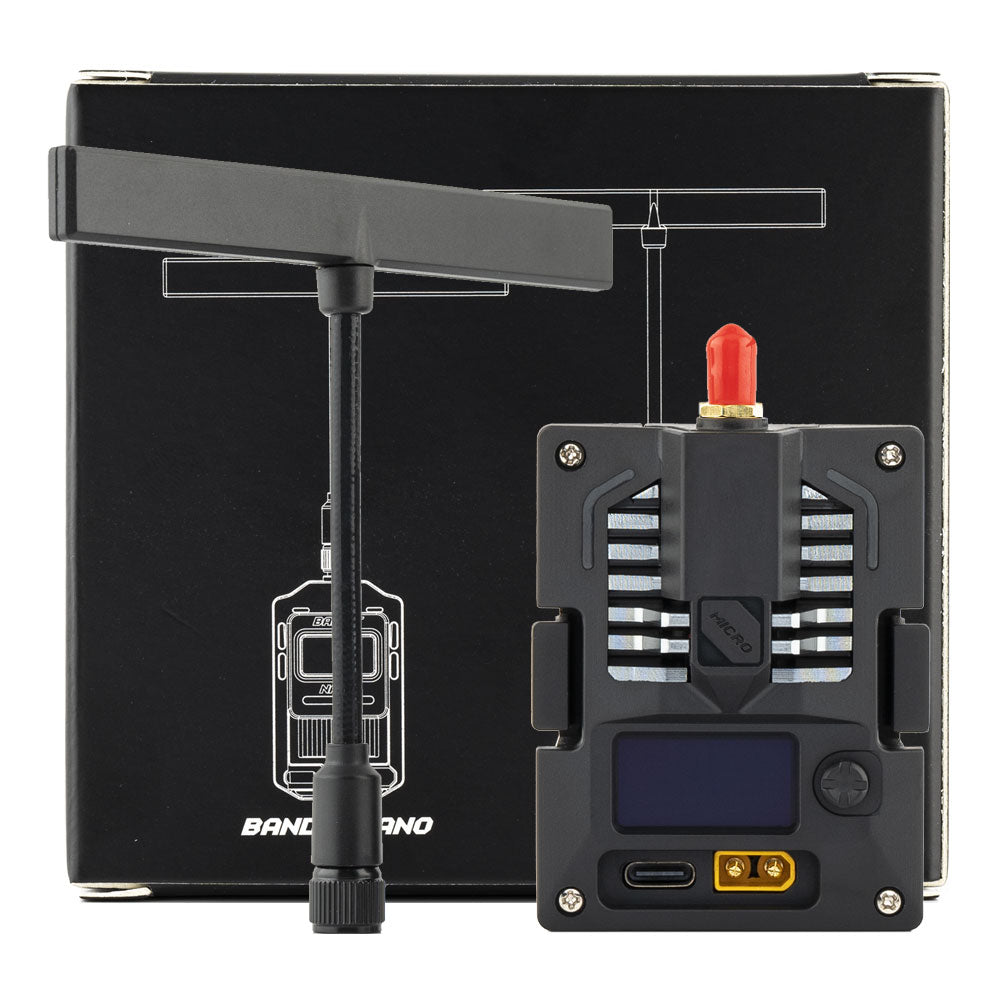

- 1 * Bandit Micro ExpressLRS RF Module
- 1 * 900Mhz T Antenna
- 1 * Manual
