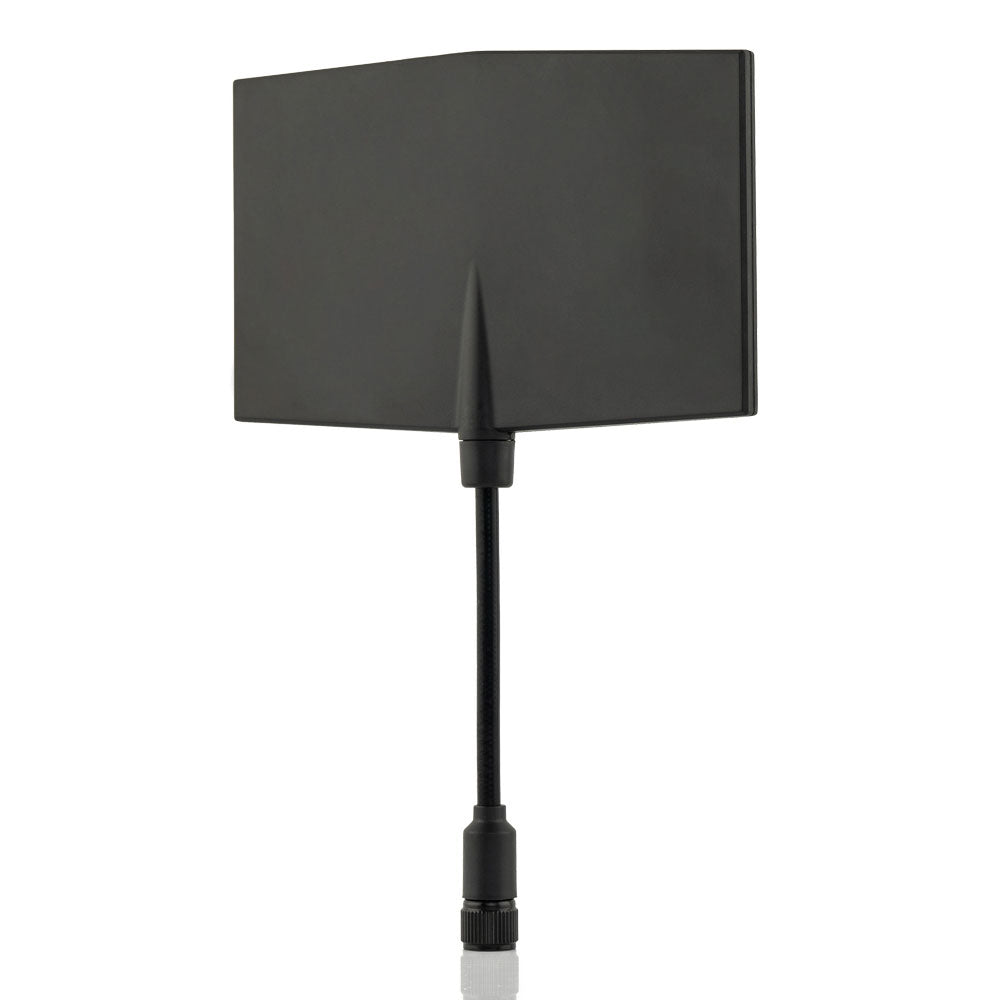

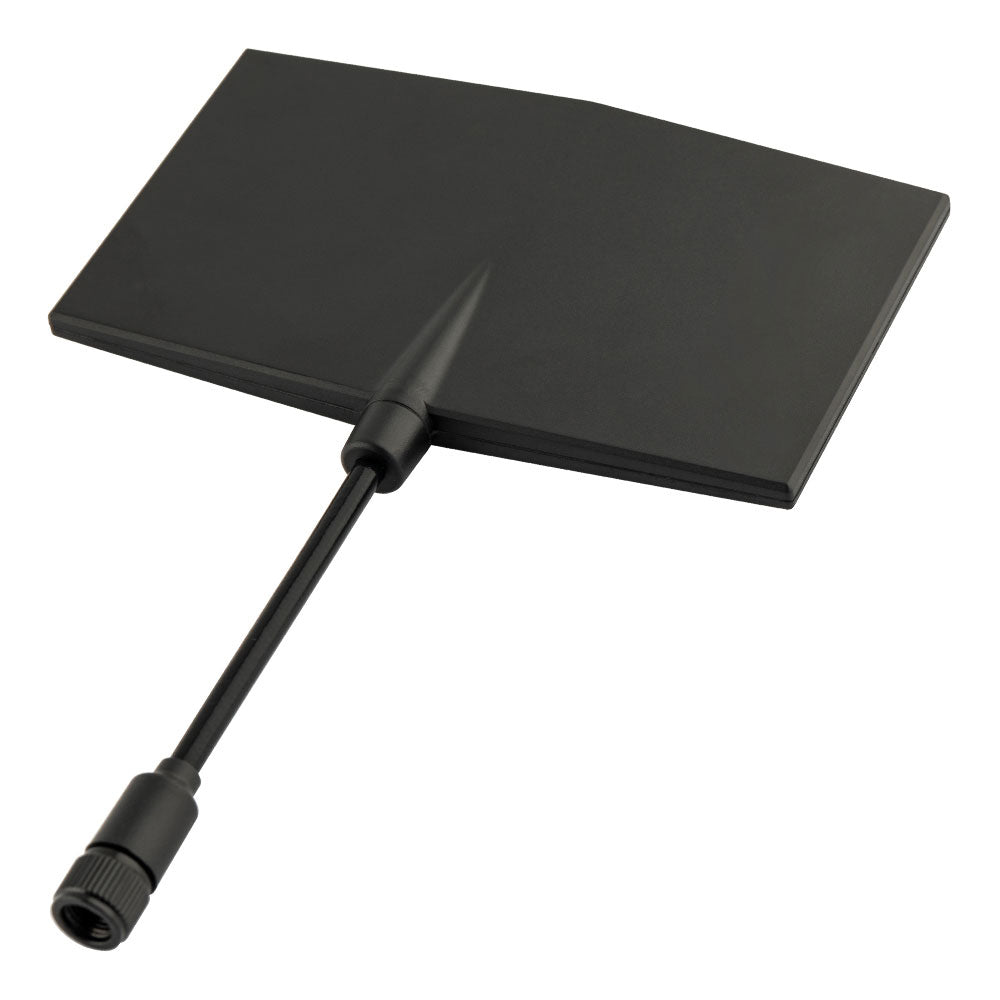

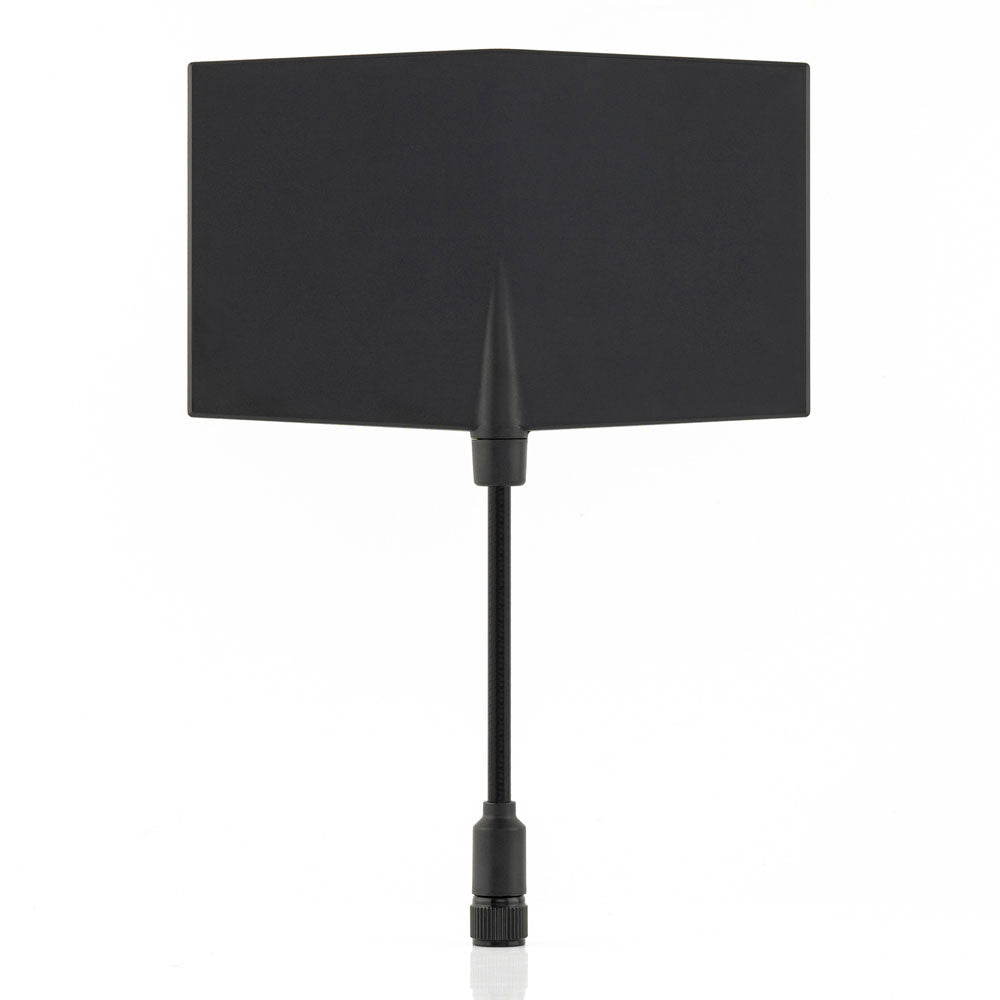

The Bandit Moxon Antenna, with its 80 mm length, provides superior interference separation. Built on a professionally engineered RF PCB substrate and optimized for the Bandit series, the Bandit Moxon antenna delivers a focused, directional pattern ideal for situations where enhanced link robustness and signal clarity are required.

The design incorporates a heavy-duty RG402 coaxial line to improve signal transmission and reduce external interference. A customized 360° swivel RP-SMA connector allows precise positioning for optimal performance.

Note: A Moxon antenna has a narrower field of operation. For best results, orient the antenna toward the general area where your system will be operating.

Features

• High gain, high efficiency directional transmitter antenna
• Compact and rugged housing
• Using professional RF PCB substrate, optimised for traditional MOXON design
• Uses heavy-duty RG402 coax cable and customised 360° swivel RP-SMA socket
• Featuring an 80mm coax cable, reduces interference to the transmitter

Specifications

• Item: Bandit 915/868MHz Moxon Antenna
• Bandwidth: 860-930MHz
• Polarisation: Linear
• Radiation Direction: Directional
• Beam Width @-3dB: 145°
• Gain: 4.6dBi
• VSWR: >1.5

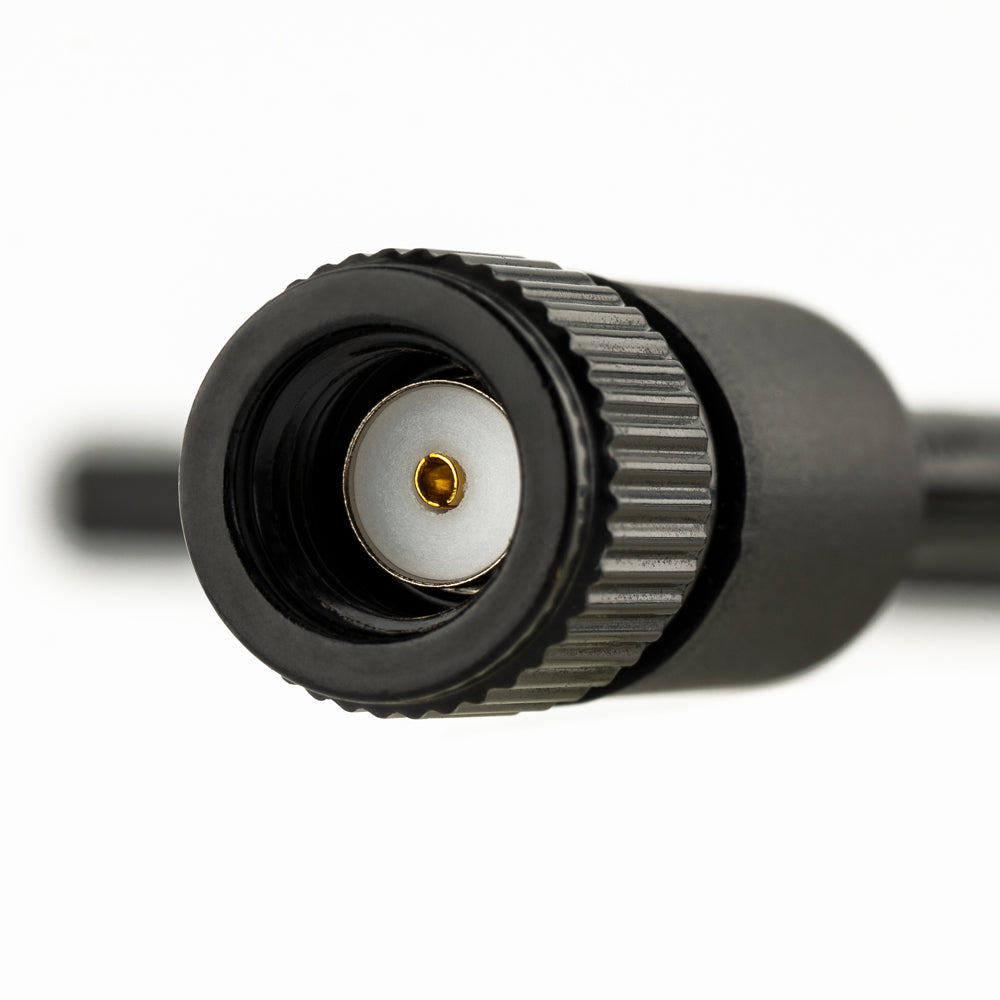

• Connector: RP-SMA
• Input Impedance: 50Ω
• Dimension: 107*155mm

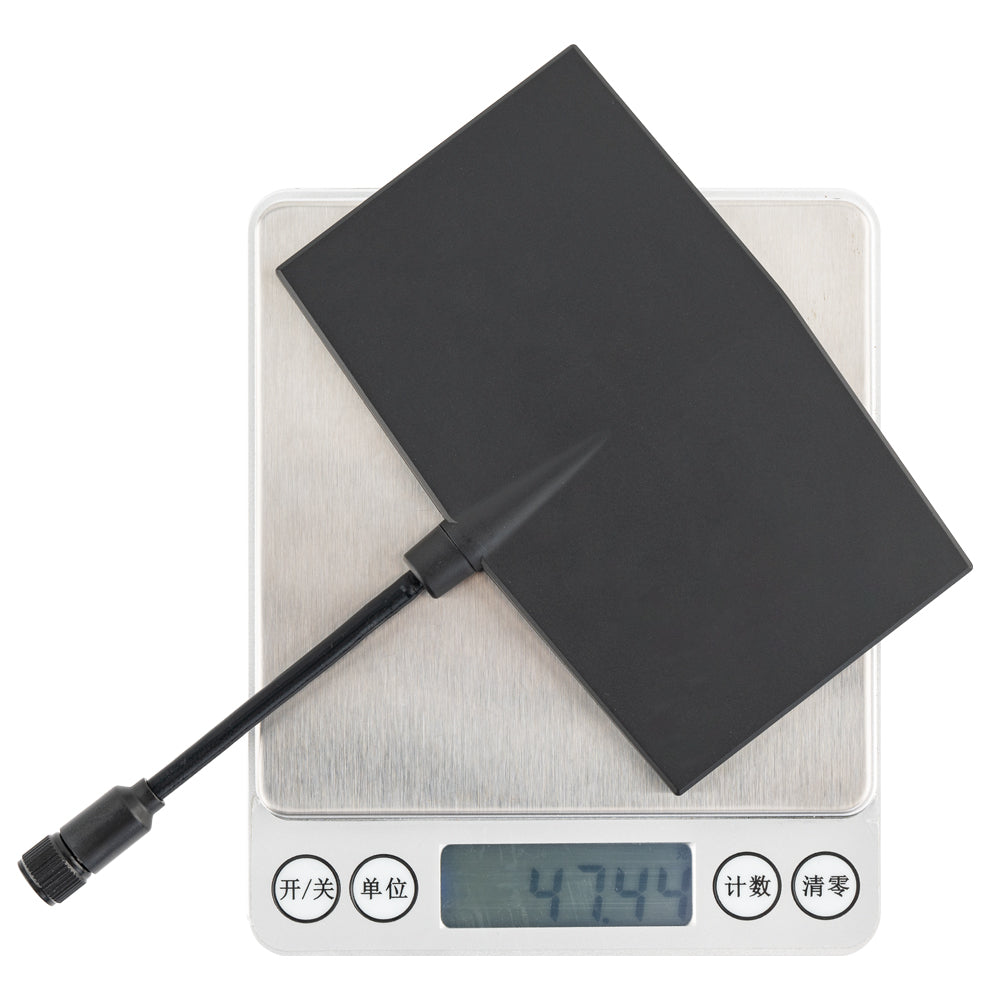

• Weight: 47.44g

Dimensions

Bandit Series

Package Includes

• 1 * Bandit Moxon Antenna
