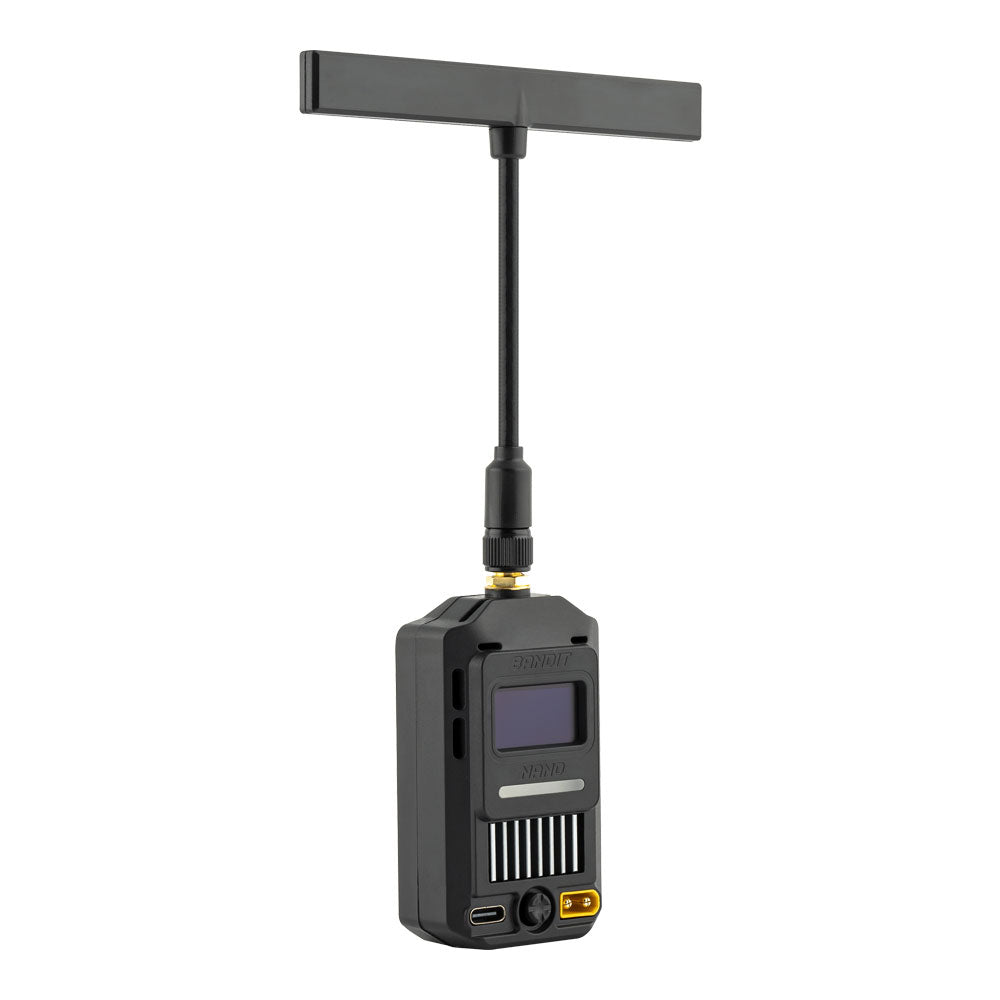

After extensive research and collaboration with the ExpressLRS team, we are thrilled to unveil the all-new Bandit Nano ExpressLRS RF Module. This cutting-edge module represents the culmination of our efforts to deliver unparalleled performance and reliability for any application.

Features

• Up to 1 Watt power output
• Packet rates up to 200Hz
• Optimized circuitry for ultra-low power consumption
• Built-in TCXO oscillator
• Low noise, high comfort
• High contrast OLED display
• High efficiency cooling system
• Wifi and Bluetooth support
• Built-in ExpressLRS backpack
• 5 Directional nav key
• 915/868MHz T Antenna included
• With the Nano connector, support Zorro, Pocket and MT12 Radio

Specifications

• Item: Bandit Nano ExpressLRS RF Module
• Regulatory Domain: FCC915
• MCU: ESP32(main), ESP8285(aux, as ESP backpack)
• RF Chip: SEMTECH SX1276
• Refresh Rate Min/Max: 25Hz/200Hz

• Nano standard 8 pin connector
• Built-in OLED screen
• XT30 Power Supply Voltage: DC 6V ~ 16.8V
• Weight: 62.5grams (with T antenna）
• Dimension: 68.5*41.0*27.0mm

Keep Your Cool!

With its innovative convection cooling system and built-in turbo fan, the Bandit Nano ExpressLRS module ensures optimal temperature control and operates with minimal noise. The Bandit Nano form factor is ready to go with our , , and other radios with a "Nano" Module bay.

Intuitive Control at Your Fingertips

The Bandit Nano ExpressLRS features an OLED display, a five-directional navigation key. Easily adjust settings and tailor the module’s behavior to your specific needs for a more responsive and efficient experience.

Versatile Antenna Options for Diverse Applications

The Bandit Nano ExpressLRS comes equipped with a RadioMaster T antenna for general-purpose use. The RadioMaster Moxon antenna is available separately for applications that require a directional antenna. This versatility lets you easily adapt your setup to suit various scenarios, from everyday recreational projects to more advanced professional applications.

But wait.. there's more!

The Bandit Nano has UART solder pads on the PCB and may also be repurposed as a receiver! That's right, you can use the Bandit Nano as a 1000mW Telemetry receiver for ultra long range flights.

The Ideal Solution for Demanding Applications

Whether you're an experienced enthusiast or a professional operator, the Bandit Nano ExpressLRS RF Module is an excellent choice for demanding projects. Its exceptional performance, durable build, user-friendly controls, and flexible antenna options make it an essential tool for those who want the highest quality technology.

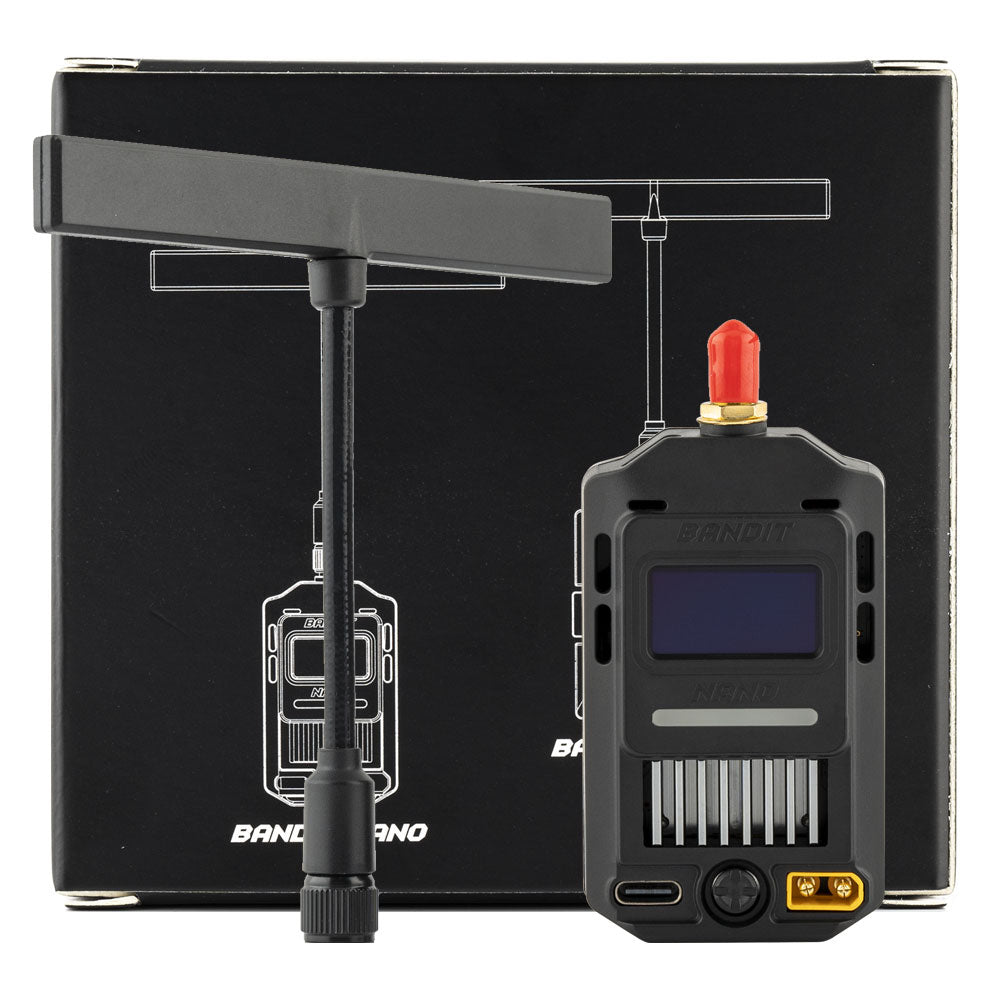

Package Includes

• 1 * Bandit Nano ExpressLRS RF Module
• 1 * 900Mhz T Antenna
• 1 * Manual
