BLS505 8.4V HV Brushless Cyclic Servo 7Kgf.cm 0.07sec/60degree for RC Helicopter
$69.99
Skip to product information
BLS505 8.4V HV Brushless Cyclic Servo 7Kgf.cm 0.07sec/60degree for RC Helicopter
$69.99
KST BLS505 uses two ball bearings and a brushless motor for super durability against heavy use. The all-aluminum CNC solid housing structure enhances heat dissipation. Capable of 8.4V HV operation voltage, and can output 7Kgf.cm ultra-powerful torque and 0.075 sec speed when it reaches this voltage.
Features
- Hardened Steel Gears
- Extreme torque and Excellent speed
- CNC aluminum case
- Brushless DC Motor
- For Align T-Rex 500 as cyclic servo
Specification
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Stalling Torque: 5.0Kgf.cm@6.0V, 6.2Kgf.cm@7.4V, 7.0Kgf.cm@8.4V
- No-load Speed: 0.09sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V
- Working Frequency: 1520µs/333Hz
- Default Travel Angle: ±50°=100° when1000us-2000us
- Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer

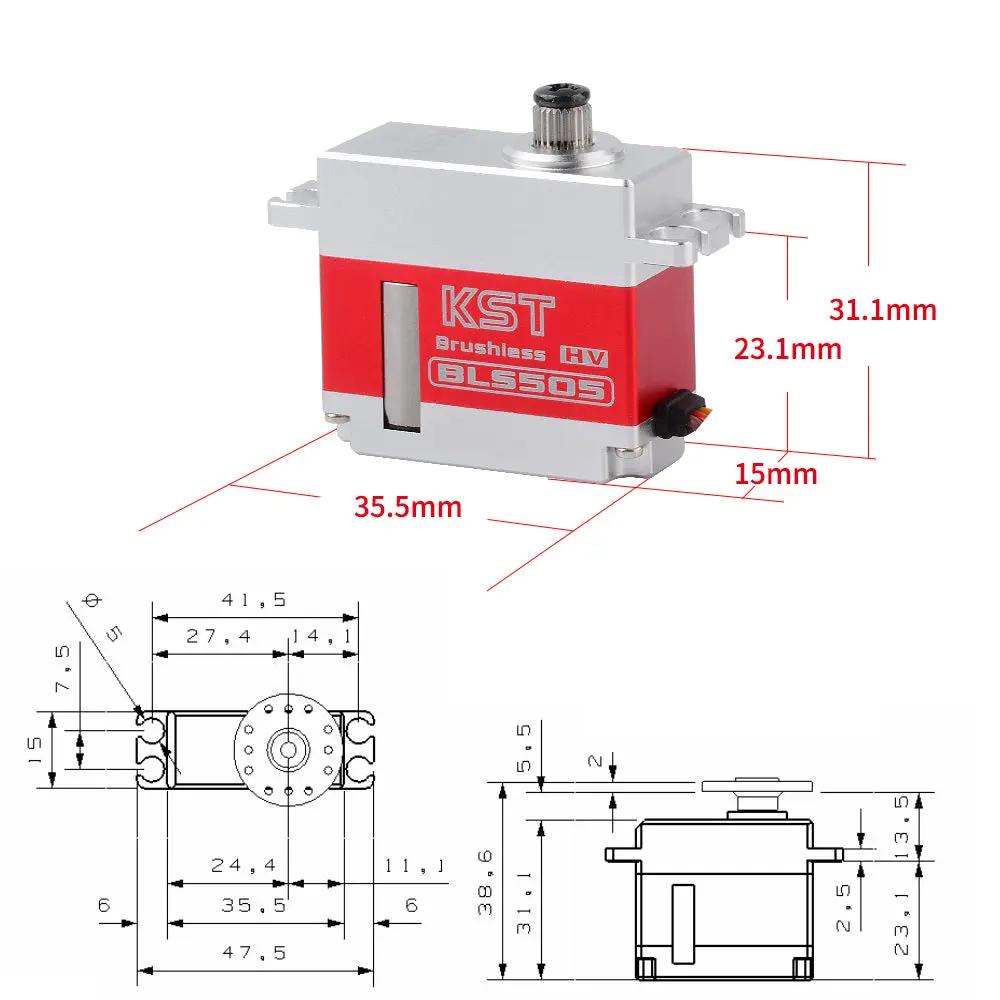

- Case Dimensions: 35.5mm*15mm*32.5mm±0.2mm
- Weight: 40g±10%
Size

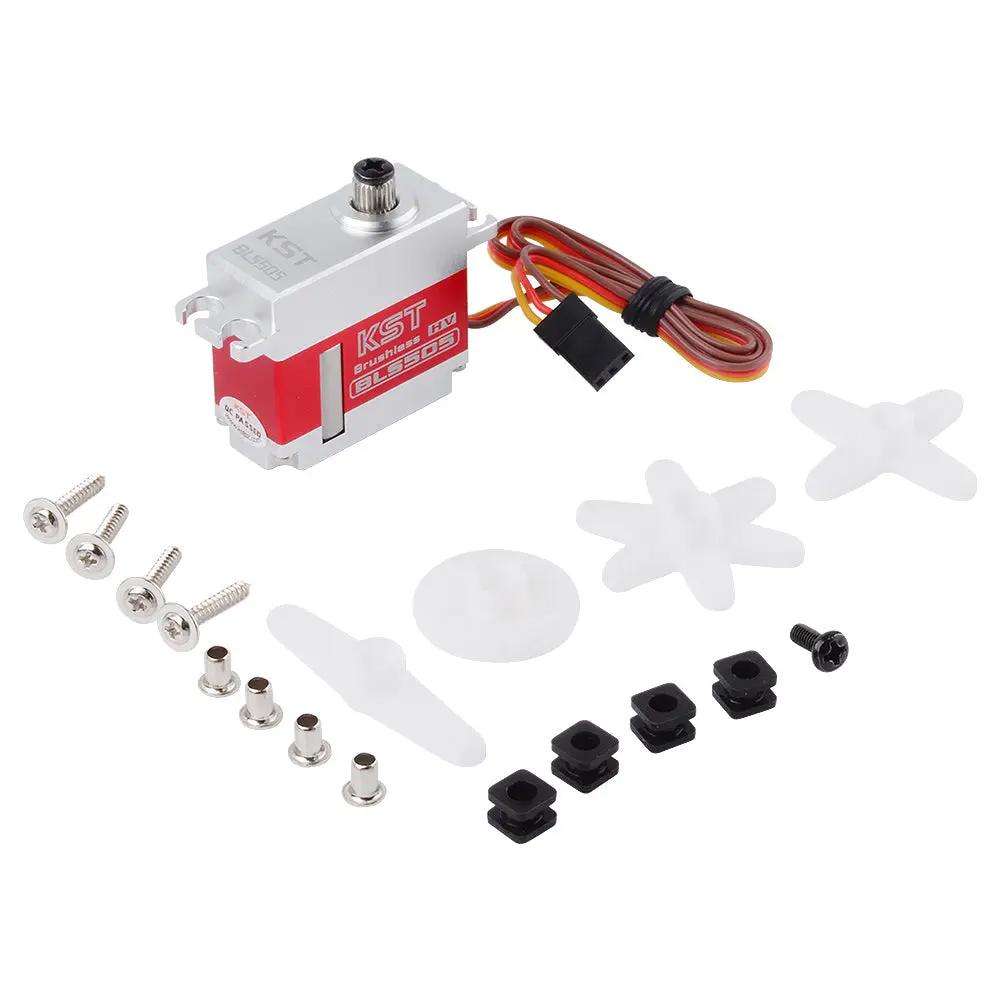

Package Including
- 1 * BLS505 Brushless HV Servo
- 1 * Pack of Accessories
