CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
$29.99
Skip to product information

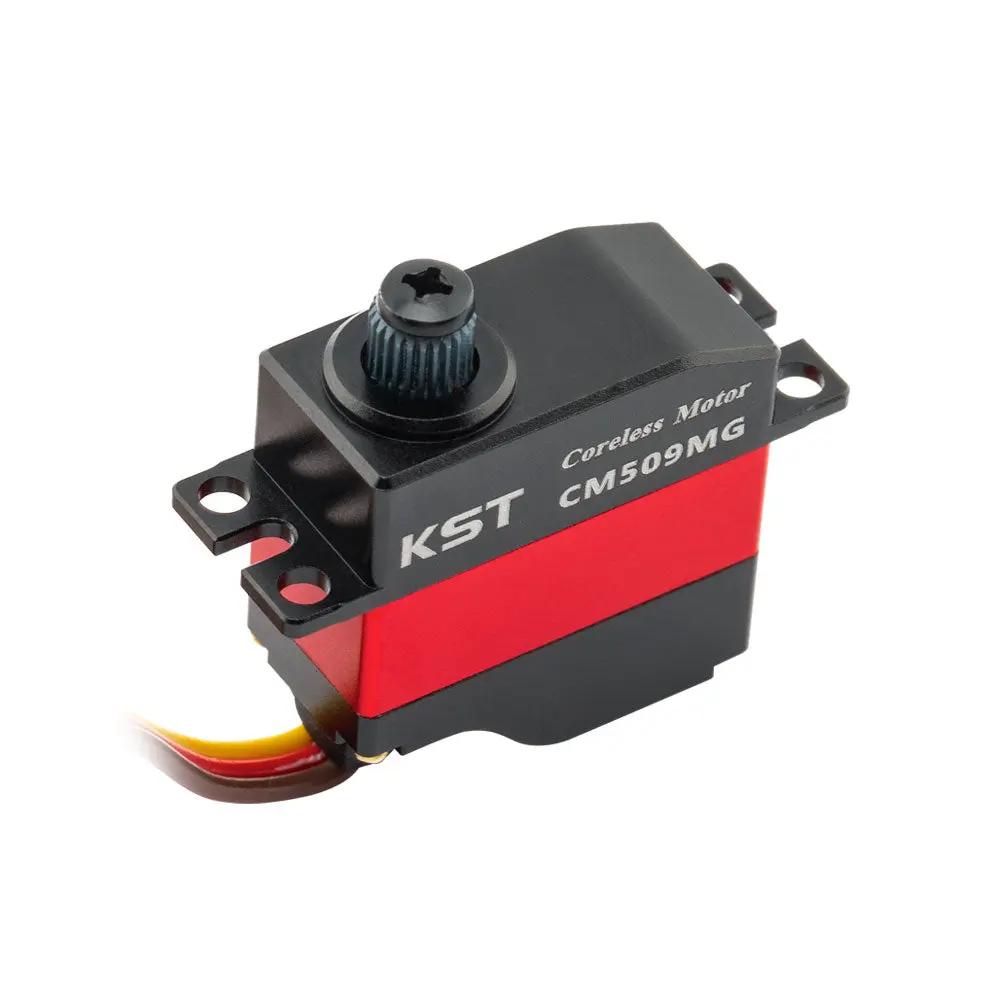

CM509MG Micro Coreless Metal Gear 6.0Kgf.cm 0.08sec Digital Servo for Small Scale RC Planes & Cars
$29.99
The CM509MG micro coreless servo with fast response and high torque is perfect for small-scale RC planes & cars. It features an ultra-fast 0.08sec/60° response speed and an amazing 6.0Kgf.cm of torque. The micro-size design makes it perfect for any small-scale RC model. The CM509MG also supports programming, making it one of the most advanced servos of its kind.
Features
- High Torque & Amazing Speed
- Compact and Lightweight Design
- Programmable
- Dual Ball Bearings
- Coreless DC Motor
- Ideal for Small Scale RC Planes & Cars
Specification
- Item: CM509MG Micro Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC4.8V-8.4V
- Torque: 3.6Kgf.cm@4.8V / 4.8Kgf.cm@6.0V / 5.5Kgf.cm@7.4V / 6.0Kgf.cm@8.4V
- Speed: 0.13sec/60°@4.8V / 0.11sec/60°@6.0V / 0.09sec/60°@7.4V / 0.08sec/60°@8.4V
- Stalling Current: 0.95A@4.8V / 1.15A@6.0V / 1.35A@7.4V / 1.60A@8.4V
- Working Frequency: 1520μs/333Hz

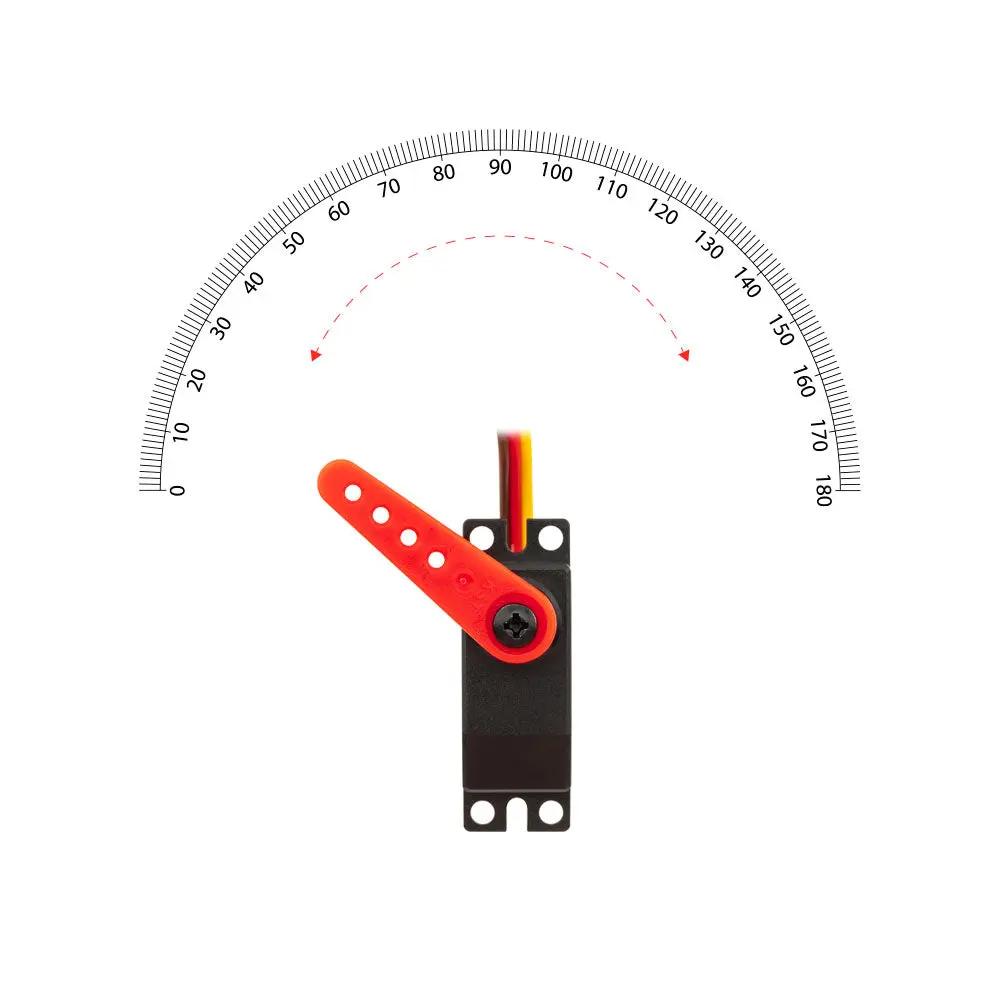

- Default Travel Angle: ±50° =100° Total
- Temperature Range: -10℃.......+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: Coreless Motor
- Gear Set Material: Metal Gear
- Position Sensor: Potentiometer
- Ball Bearing: 2BB
- Case Dimensions: 23mm*11mm*24mm ±0.2mm
- Weight: 15g±10%

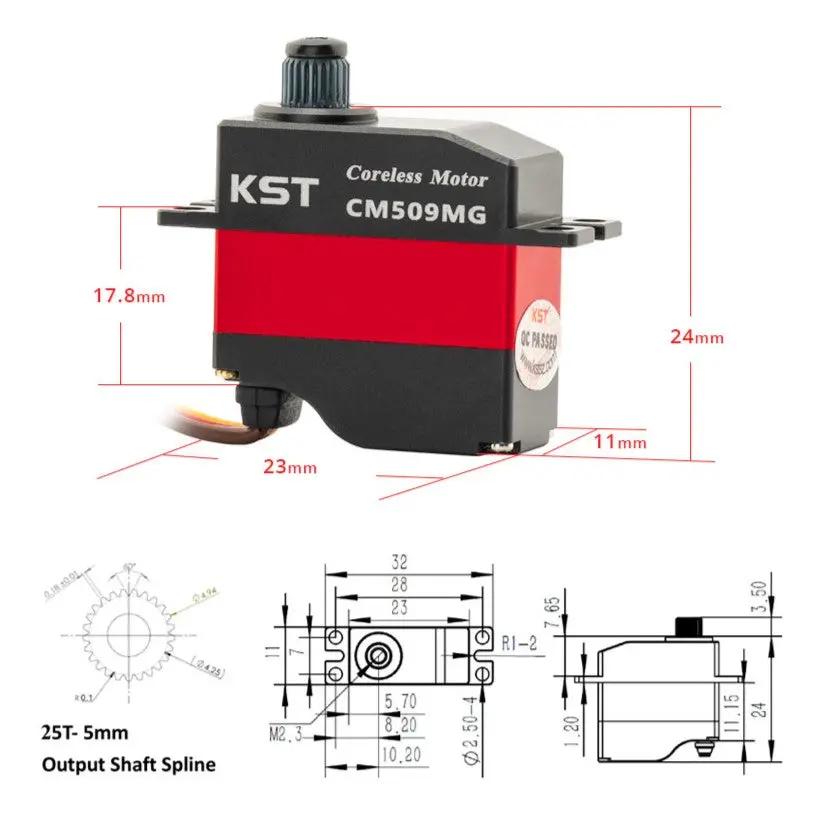

Size

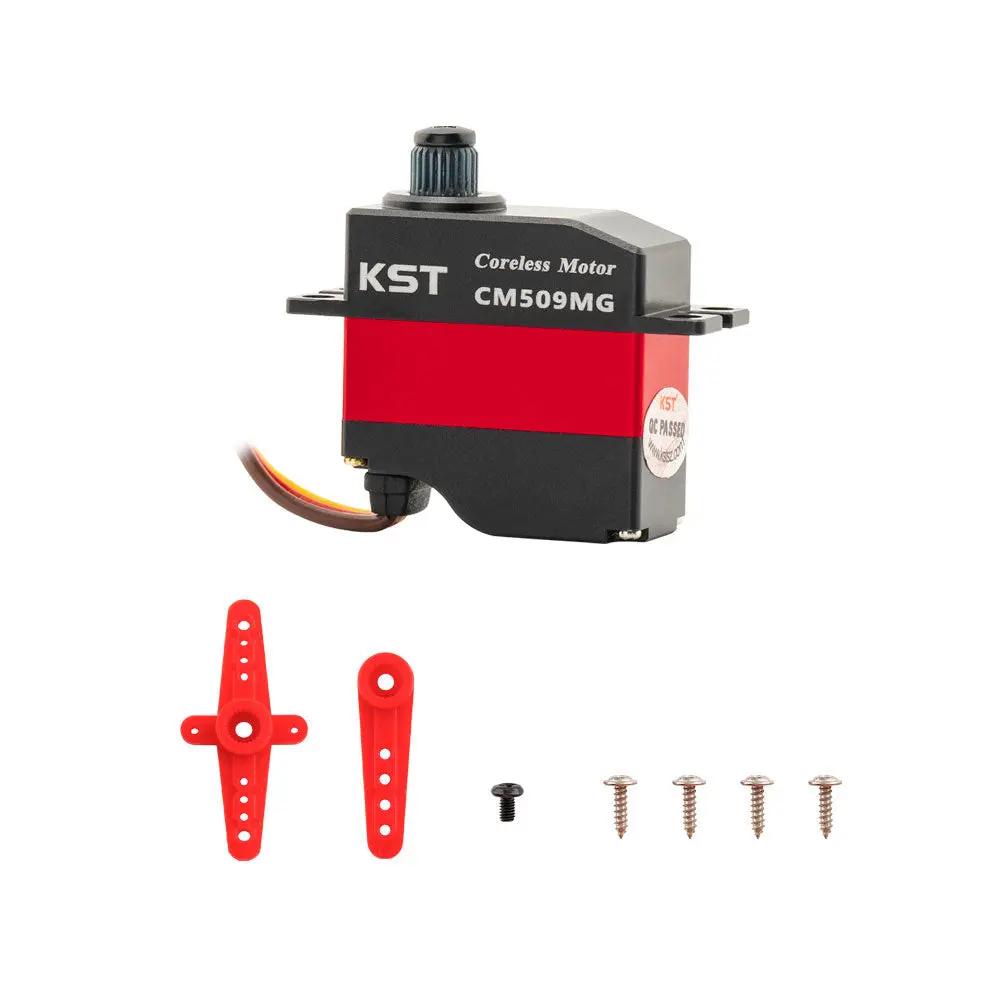

Package Includes
- 1 * CM509MG Micro Servo
- 2 * Plastic Servo Horn
- 1 * Servo Horn Screw
- 4 * Mounting Screw
