DS525MG features with 0.04sec extremely fast speed and robust aluminum housing. Precise and backlash-free metal gear. Extremely accurate and therefore ideal for helicopter tail rotors in the 550-700 class.

Features

• Hardened Steel Gears
• Extreme Torque and Excellent Speed
• CNC Aluminium Case
• Two Ball Bearings

Specification

• Item: DS525MG Metal Gear Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC6.0V-8.4V
• Torque:
  7.5Kgf.cm@8.4V
  6.5Kgf.cm@7.4V
  5.5Kgf.cm@6.0V

• Speed:
  0.040sec/60°@8.4V
  0.045sec/60°@7.4V
  0.050sec/60°@6.0V
• Working Frequency: 760μs/560Hz
• Temperature Range: -10℃……+65℃
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Case Dimensions: 40.5mm*20mm*38mm±0.2mm
• Weight: 70g±10%
• Ball Bearing: 2 BB

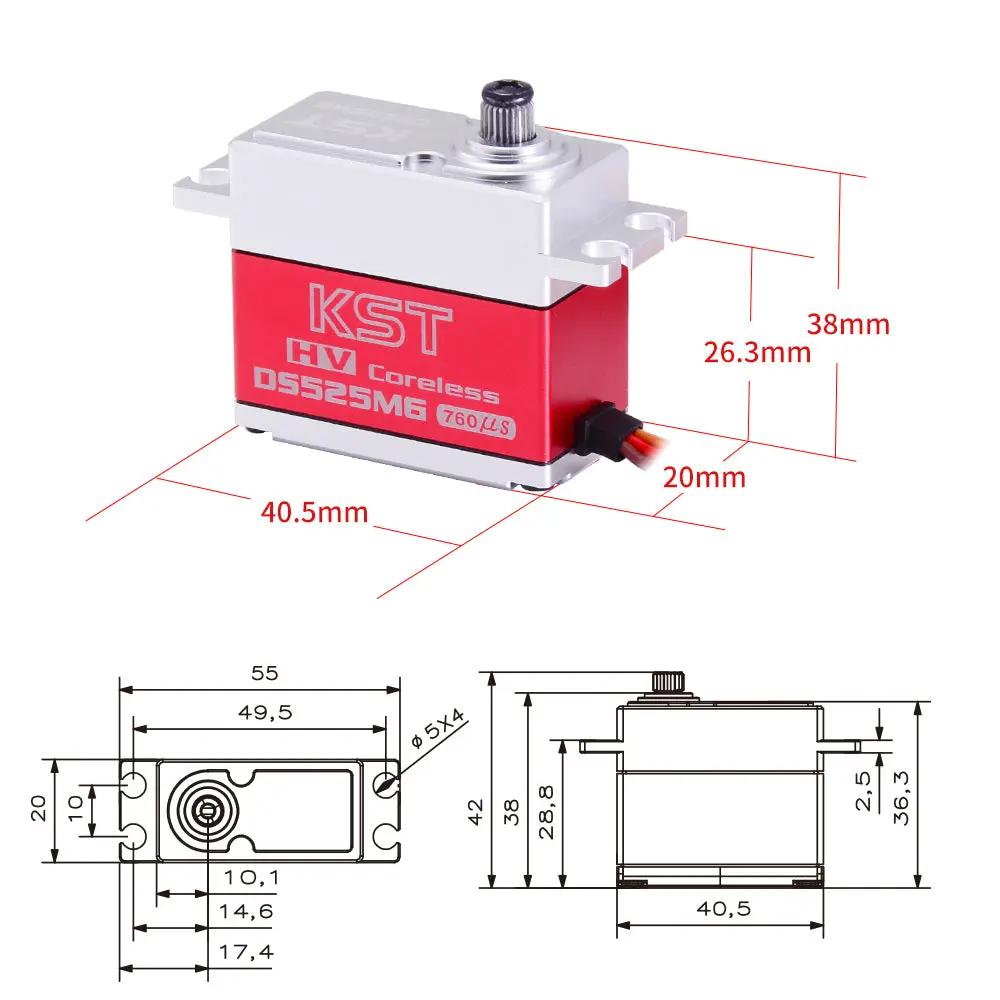

Size

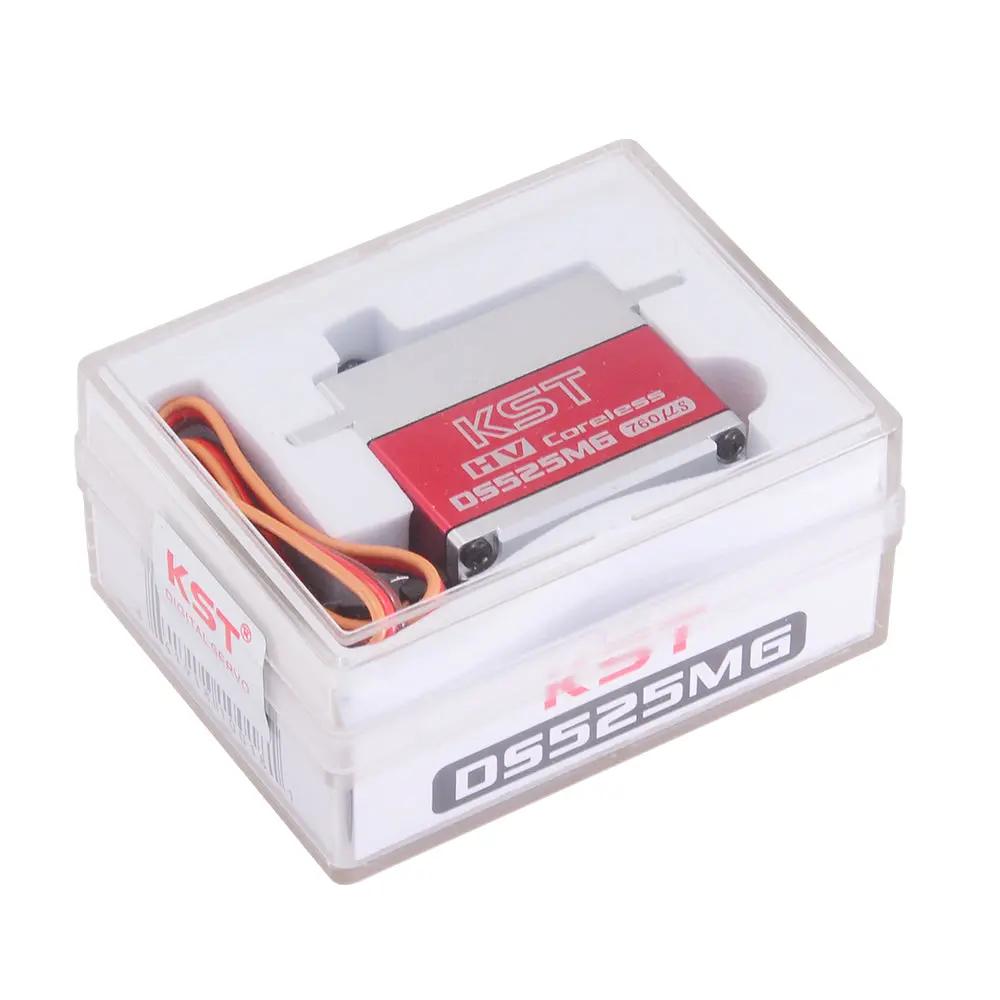

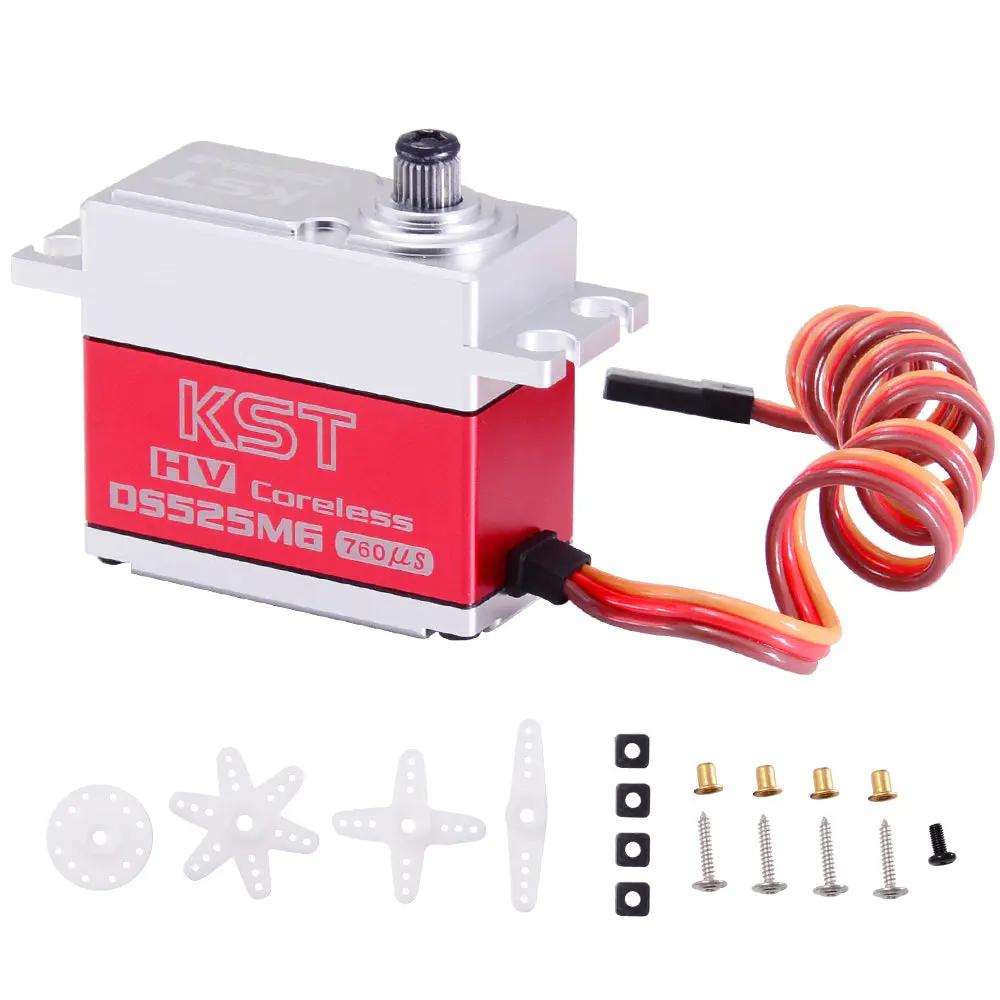

Package Including

• 1 * DS525MG Metal Gear Servo Motor
• 1 * Pack of Accessories

Download

• DS525MG Servo Technical Specification
