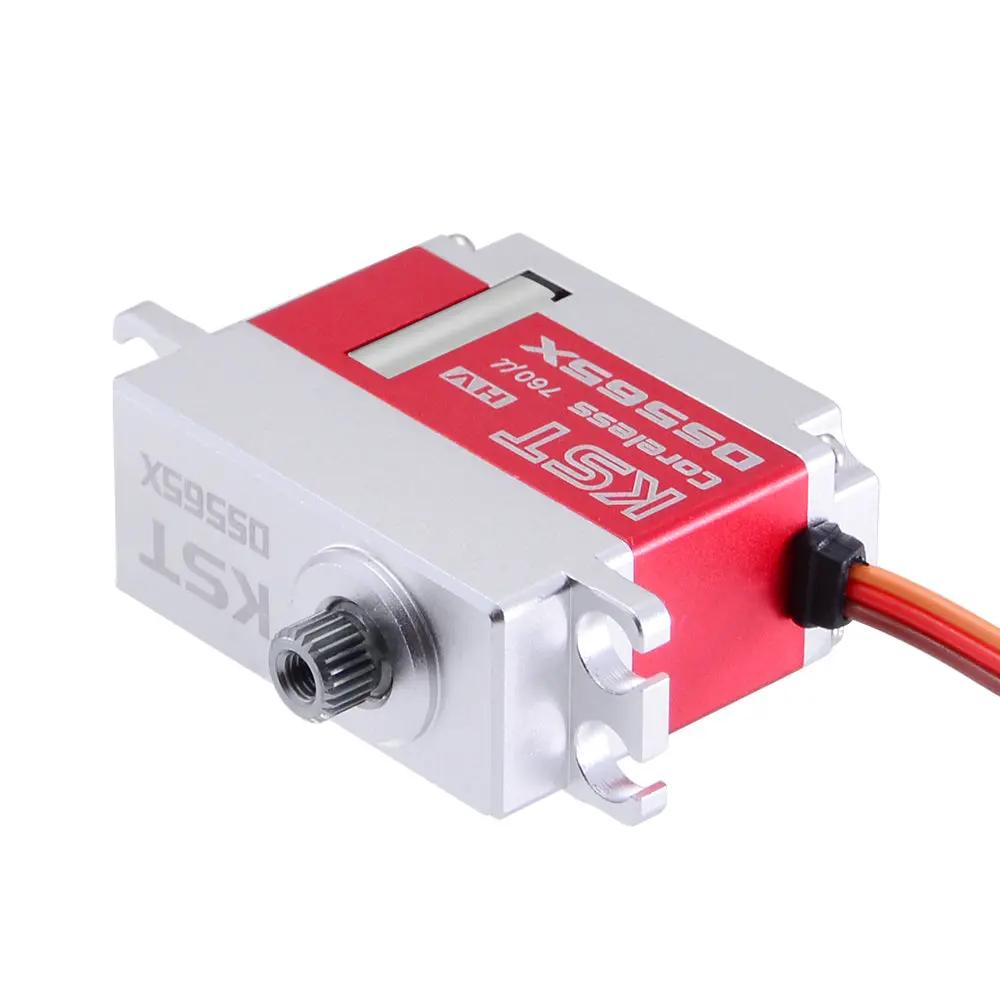

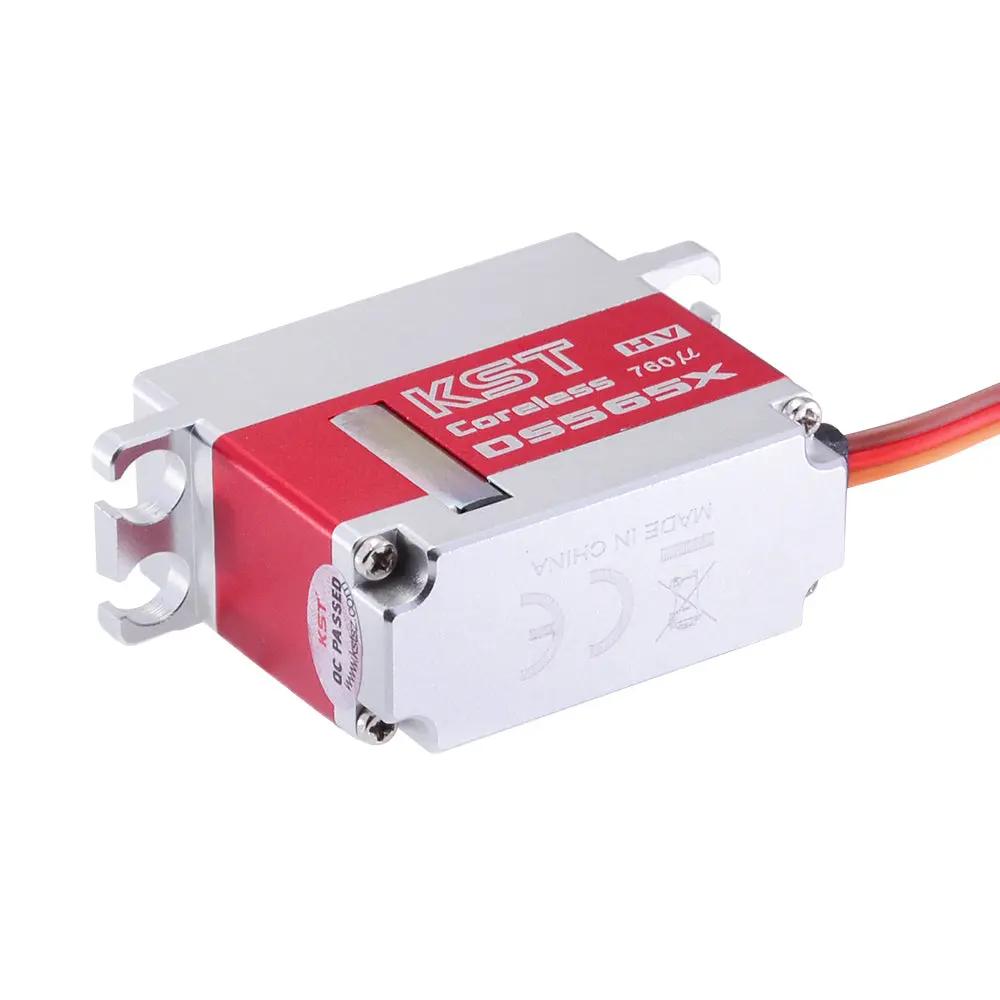

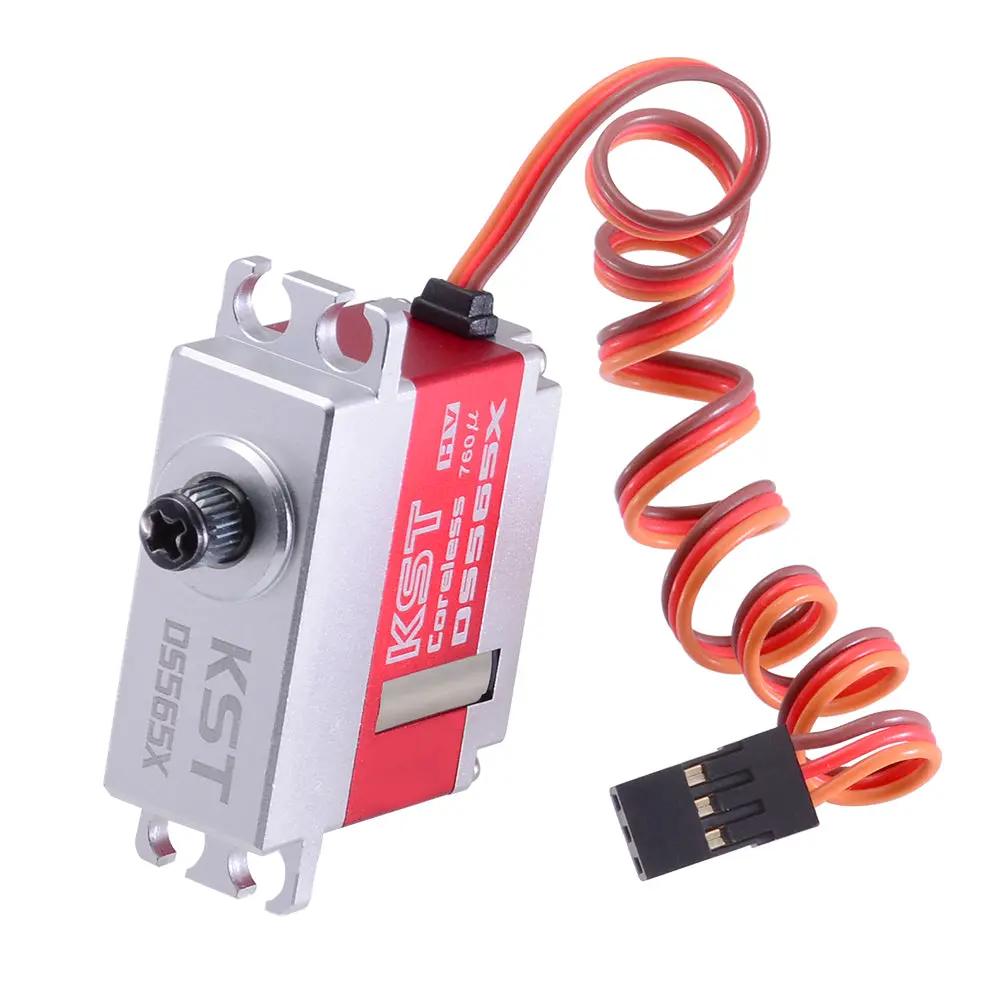

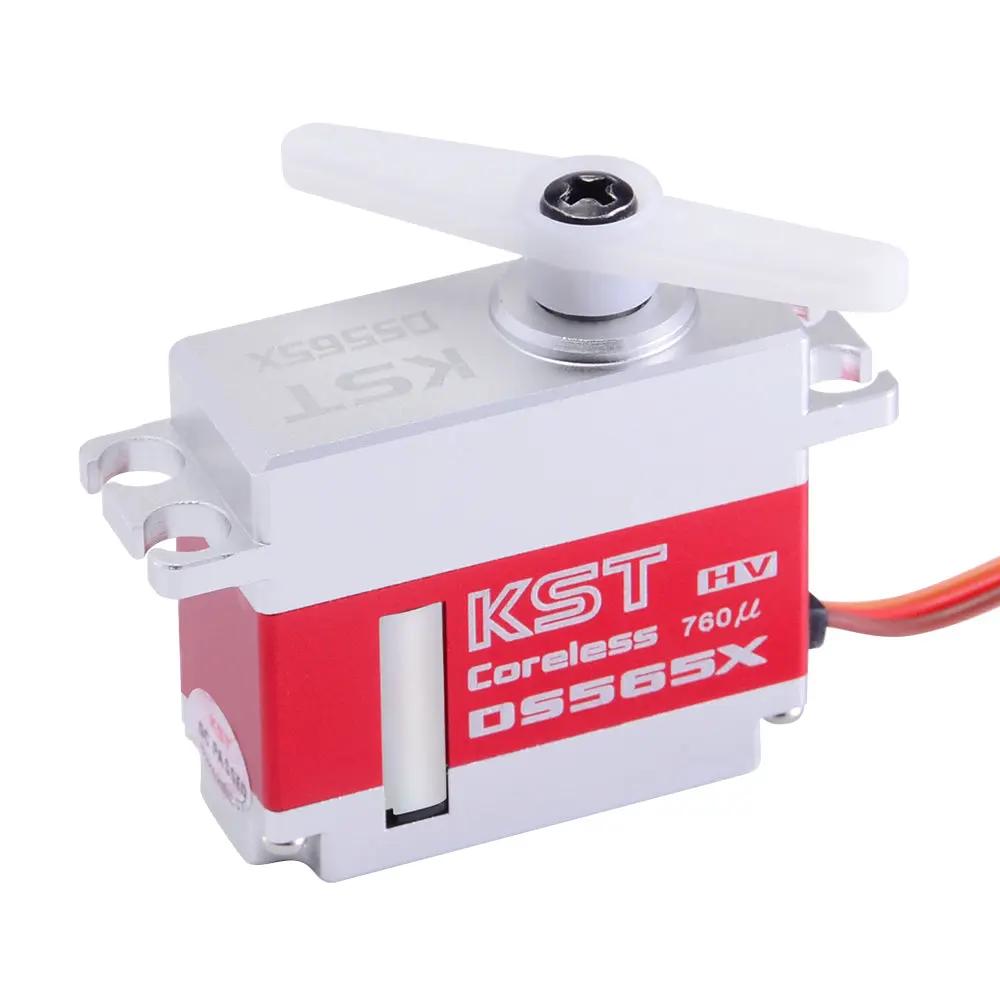

KST DS565X Mini Digital Tail Servo
The KST DS565X is a compact mini digital tail servo designed for helicopters using 325mm to 425mm rotor blades. Its small form factor makes it an excellent choice for helicopter tail systems where installation space and weight are important considerations.
The DS565X is designed for 760μs tail servo operation, providing fast and precise tail control for responsive helicopter performance. Before installation, make sure your gyro or flybarless controller supports 760μs tail servos to ensure proper operation.
With its compact size and dedicated tail-servo design, the DS565X is a reliable choice for 325–425mm class helicopters.
Features
- Extreme Torque and Excellent Speed
- Programmable
- Dual Ball Bearings
- CNC Aluminium Case
Specification
| Parameter | Value |
| Item | DS565X Servo |
| Rated Voltage | DC7.4V |
| Voltage Range | DC6.0V-8.4V |
| Stalling Torque | 4.0Kgf.cm@6.0V / 5.0Kgf.cm@7.4V / 6.0Kgf.cm@8.4V |
| No-load Speed | 0.06sec/60°@6.0V / 0.05sec/60°@7.4V / 0.04sec/60°@8.4V |
| Working Frequency | 760μs/560Hz |
| Temperature Range | -10℃ ~ +65℃ |
| Soft Start | Programmable |
| Programmable | Yes |
| Case Material | Aluminum Alloy |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |

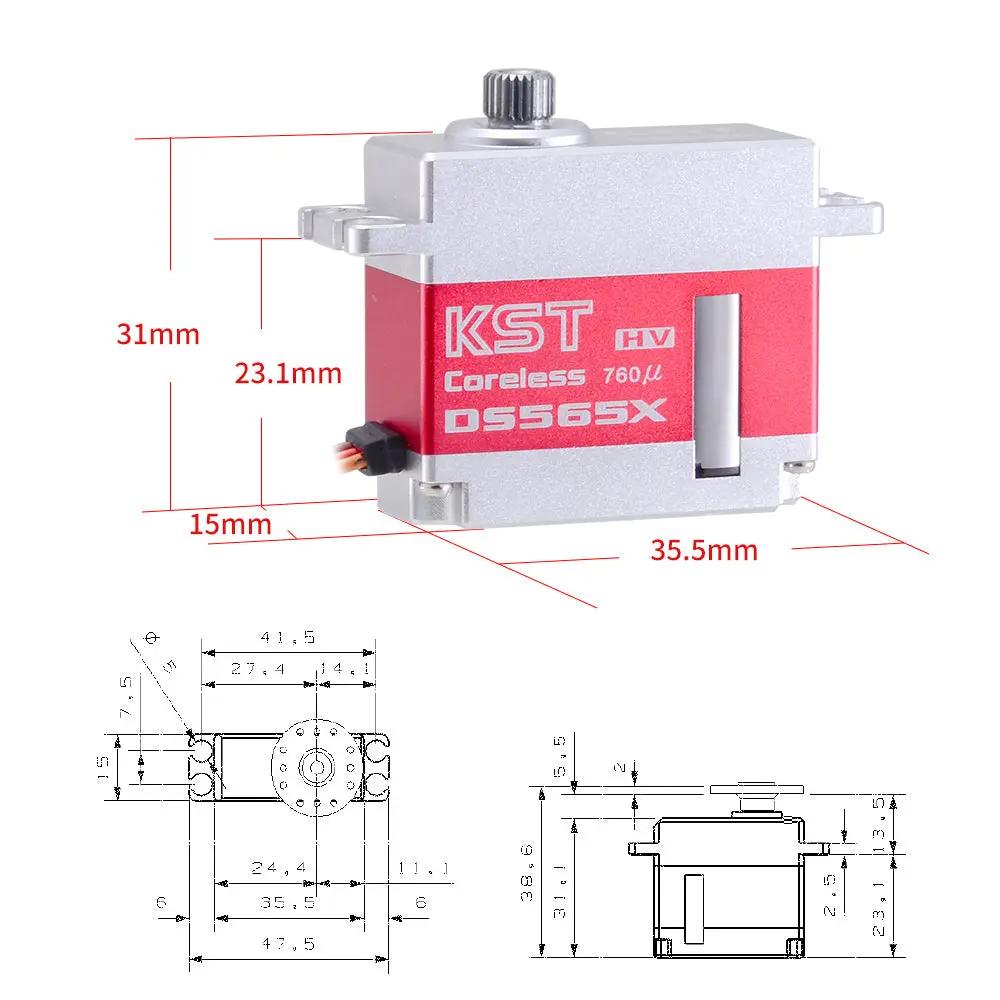

| Case Dimensions | 35.5mm × 15mm × 32.5mm ±0.2mm |
| Weight | 40g ±10% |

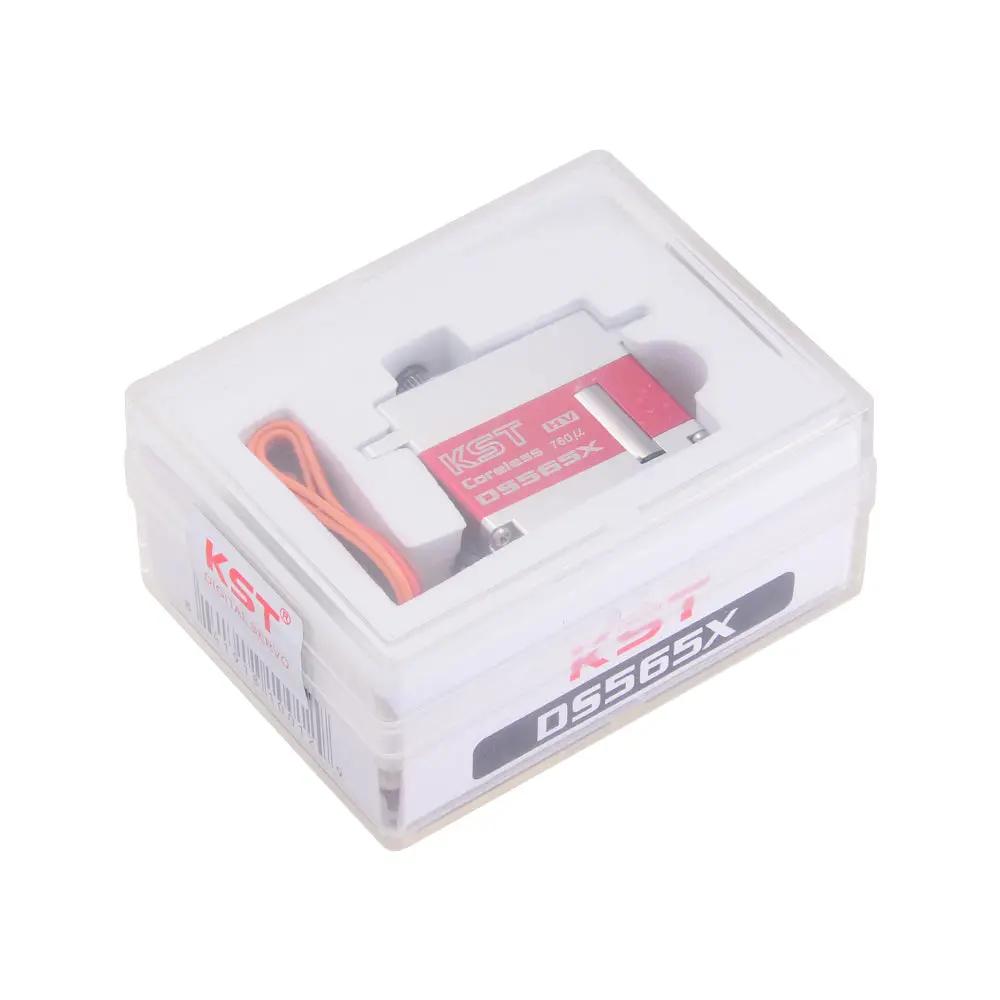

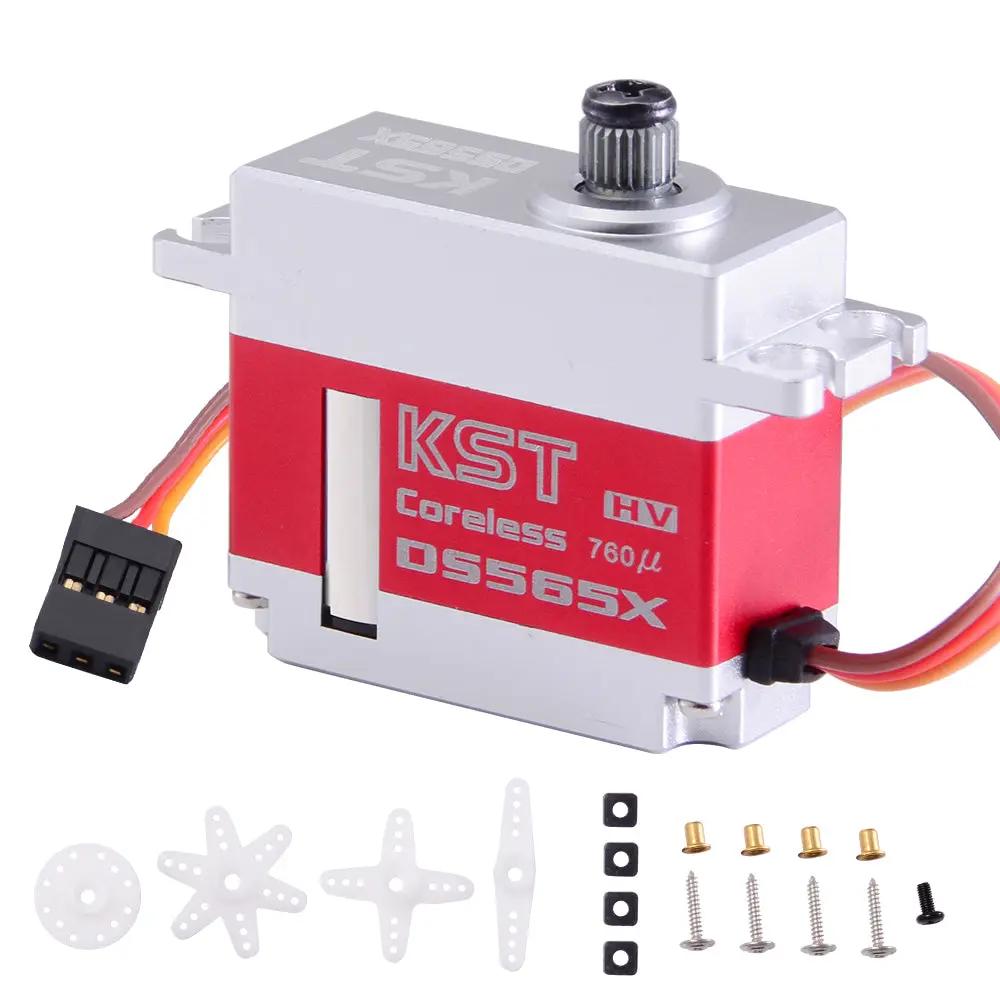

Package Including
- 1 * KST DS565X Servo
- 1 * Pack of Accessories
