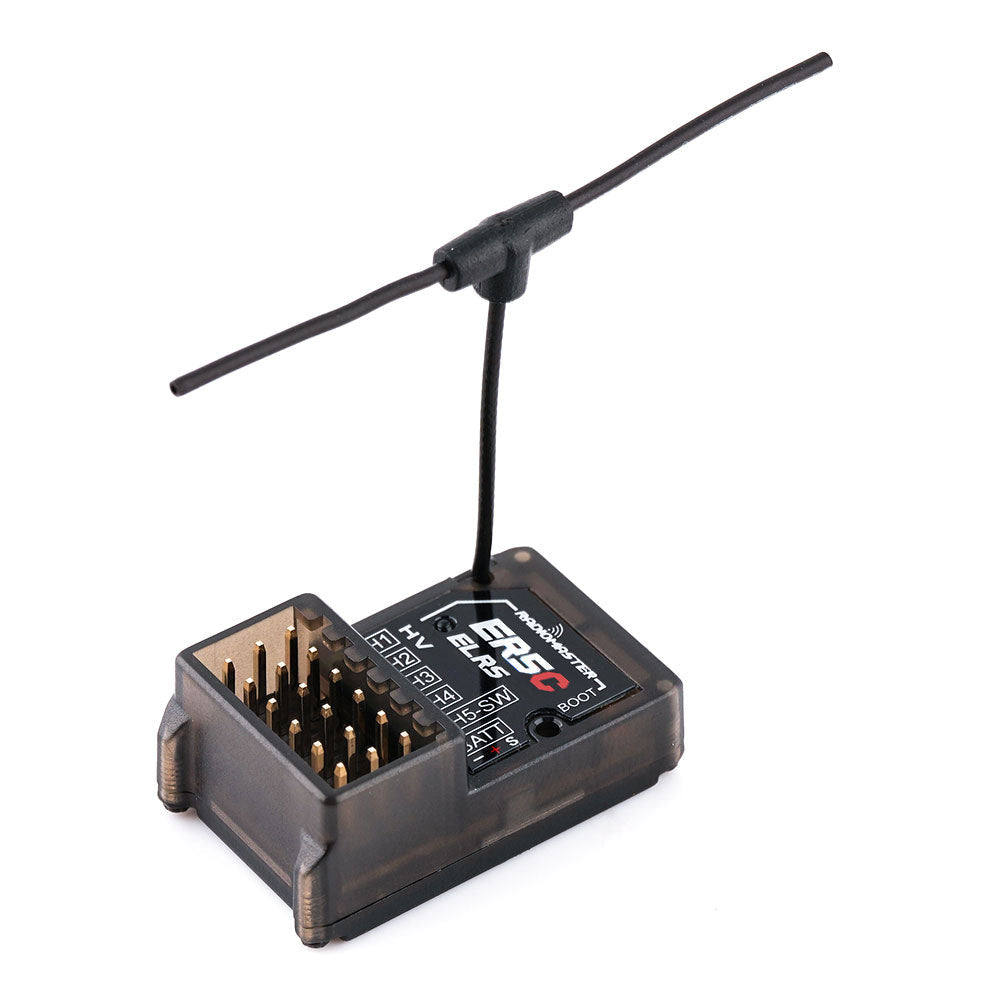

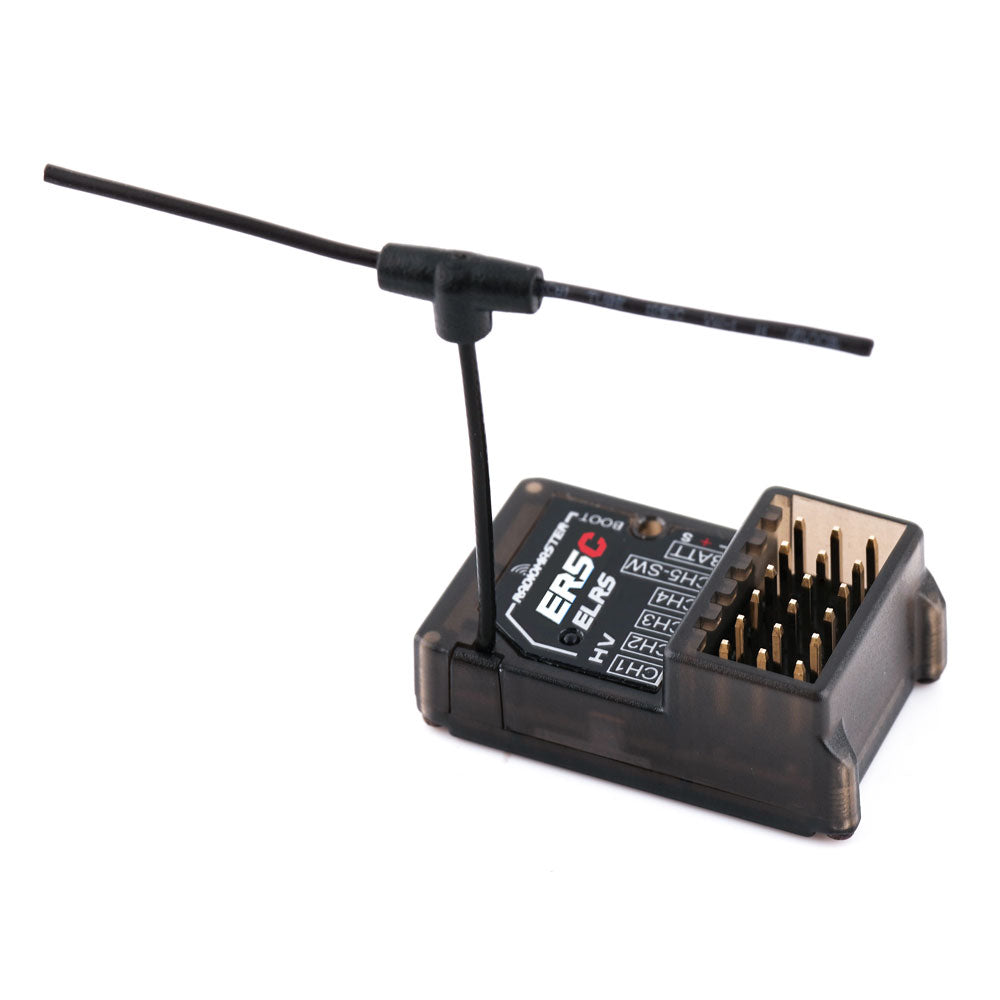

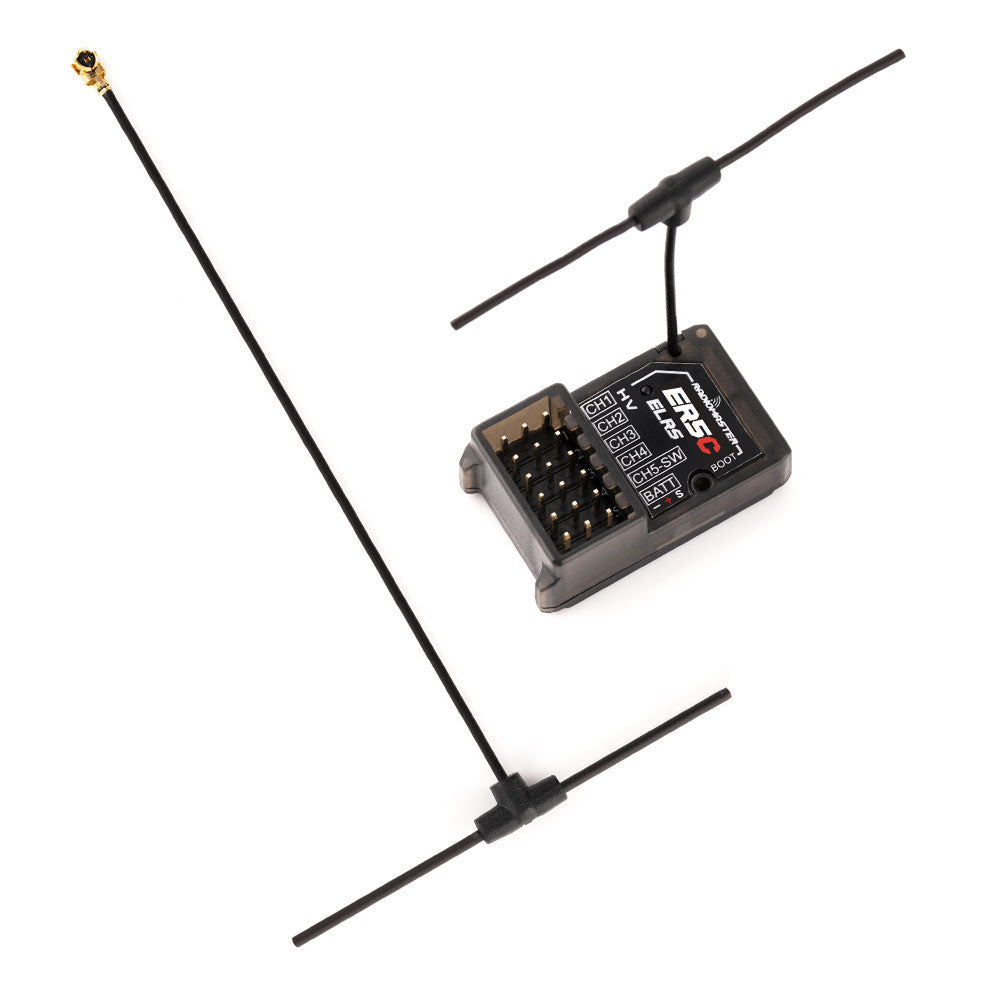

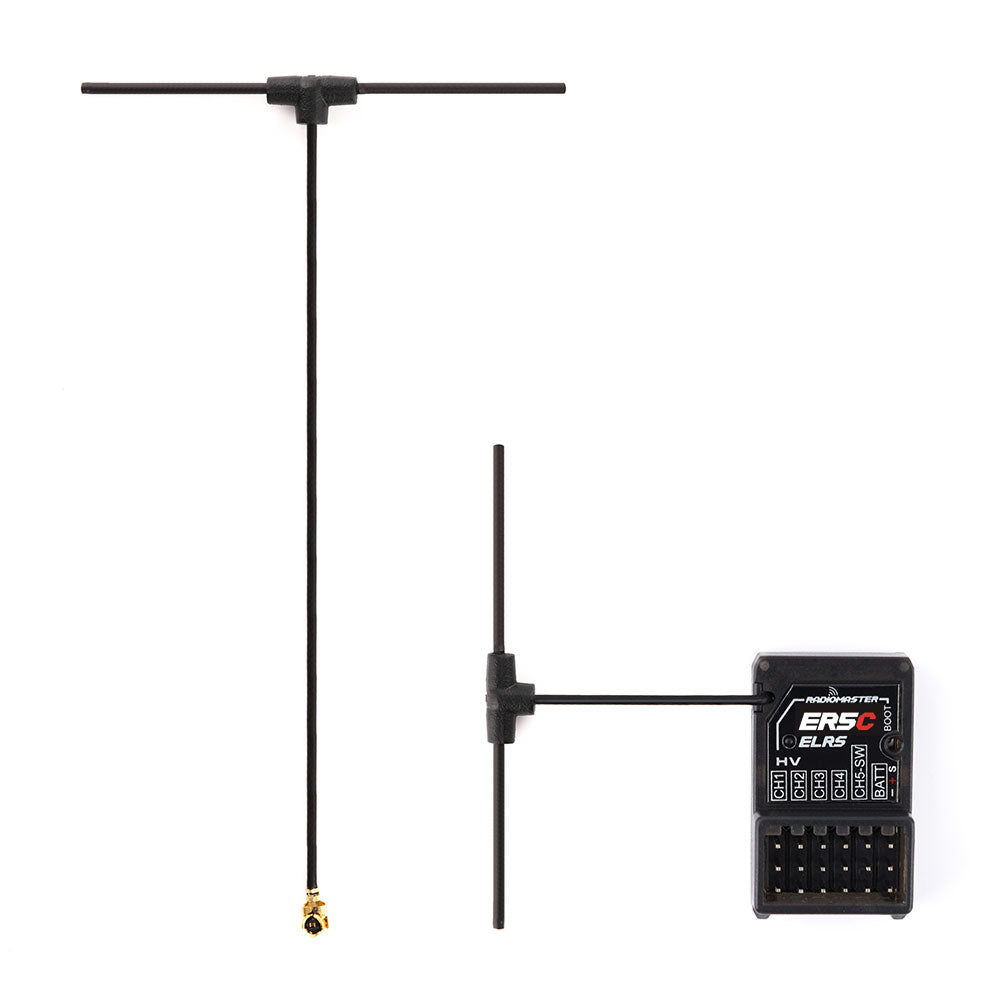

ER5C 2.4GHz 5Ch ELRS PWM Receiver

BR0157.ER5C

$19.99

🌍 VAT will be applied to orders shipped to the EU.
🔋 Batteries can't be shipped separately, please purchase batteries with Radio units.
🛠️ Customized products require a 40-day lead time and no refunds can be made after the order is placed.

We are excited to introduce the new ER5 Series ELRS PWM receivers. The series includes the ER5C ELRS PWM receiver, designed for surface and marine R/C applications, along with the ER5A for aircraft applications.

Features

Supports 8.4V HV servos and accessories
Durable injection-molded receiver housing for enhanced protection
Fast response times and exceptional range
Supports 4 proportional channels + 1 switch channel with ExpressLRS 2.x
Supports 5 proportional channels with ExpressLRS 3.x
Compact and easy to install, ideal for surface, marine, and air R/C applications
Compatible with all 2.4GHz ExpressLRS modules and transmitters with built-in 2.4GHz ExpressLRS

Specification

Item	ER5C 2.4GHz Receiver
Power Supply	DC 4.5 – 8.4V
Antenna Type	High Sensitivity T-Shape Antenna
Wireless Protocol	ELRS 2.0 (pre-installed)
Output Channel	CH1–4 Standard PWM; CH5 Switch (ON/OFF) PWM
Weight	6.6g
Dimensions	37 × 19 × 13mm
