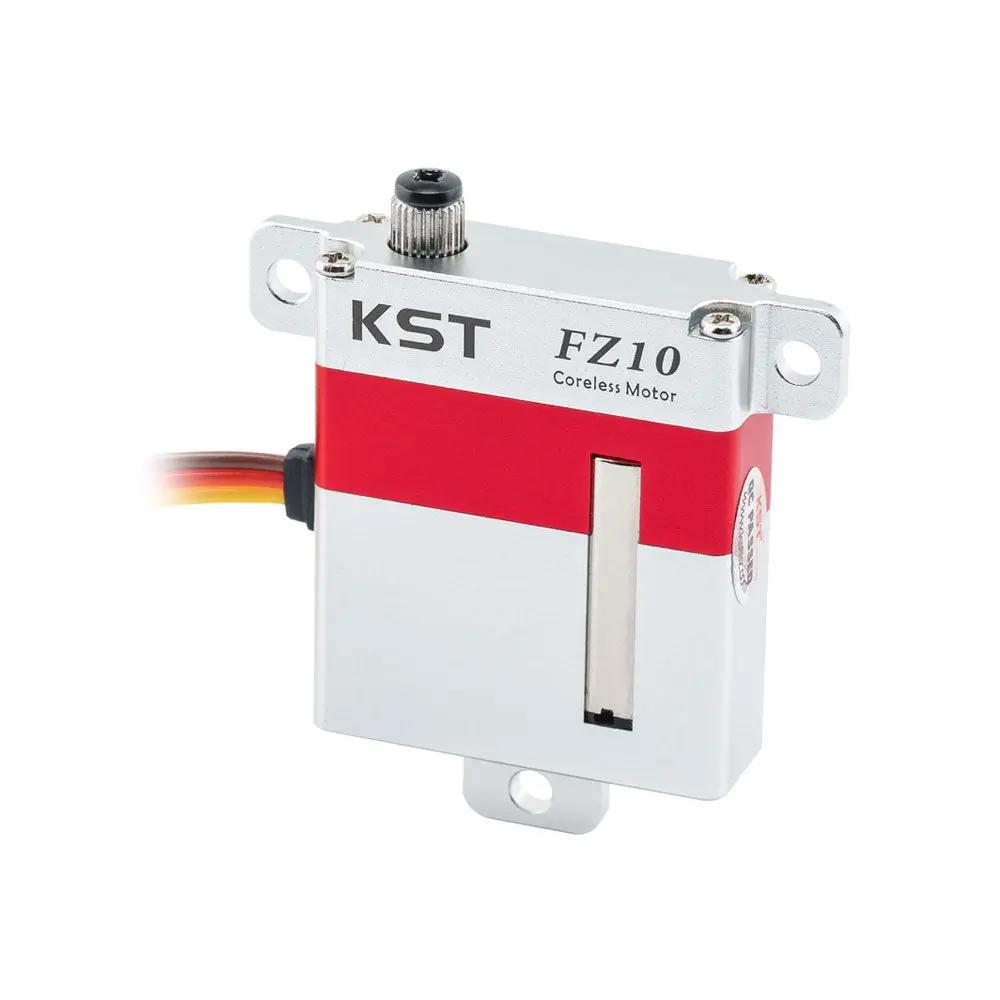

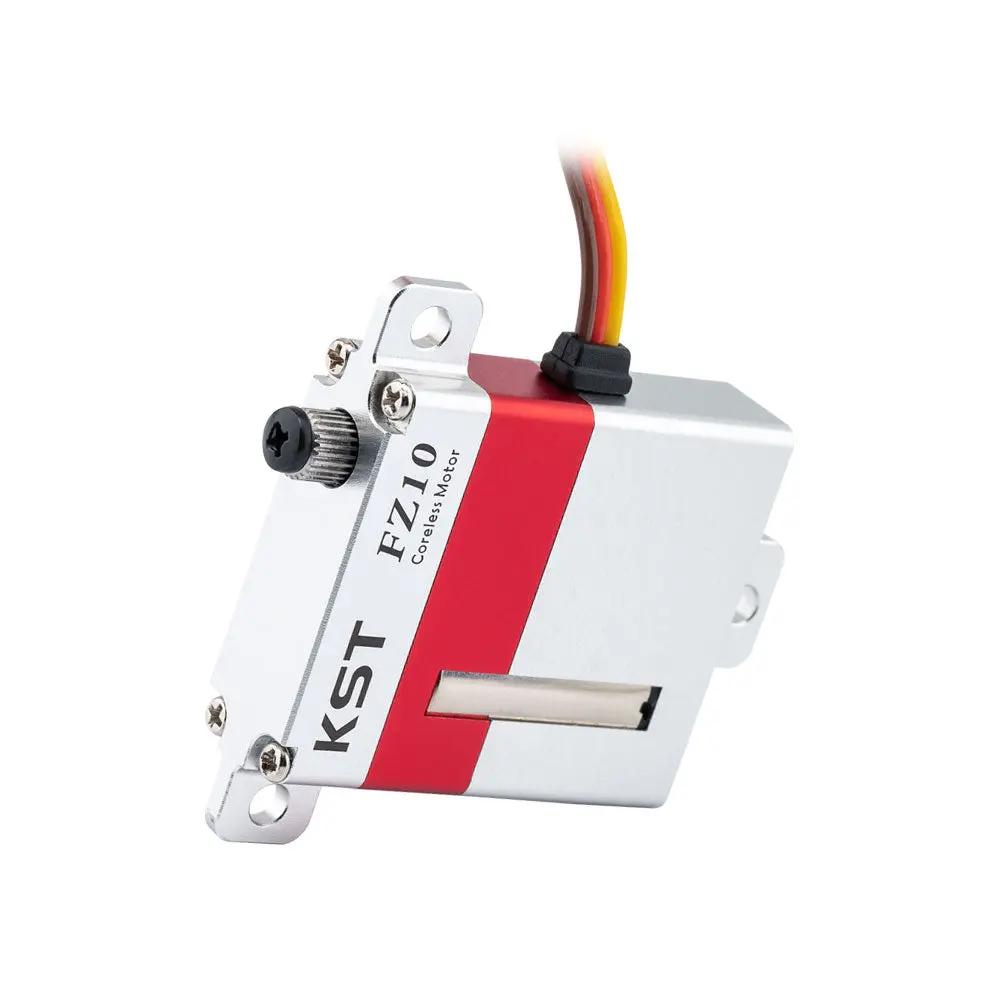

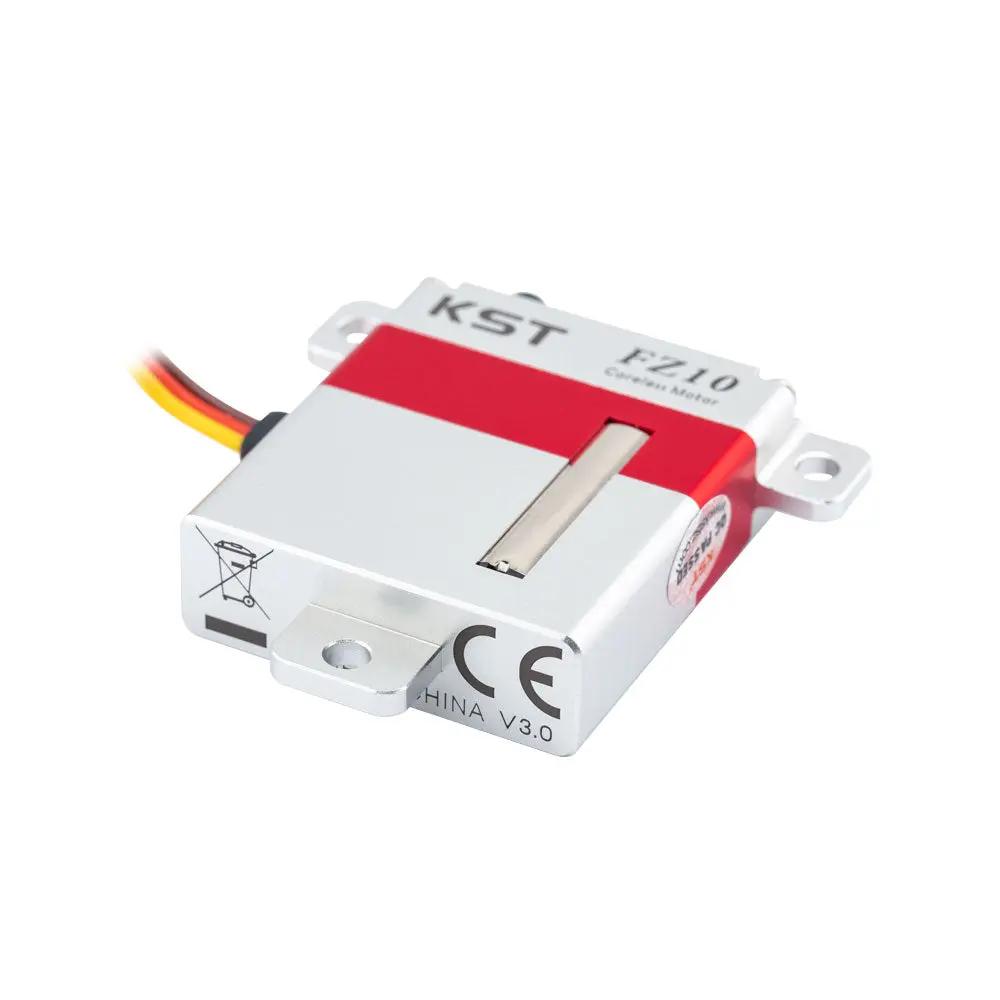

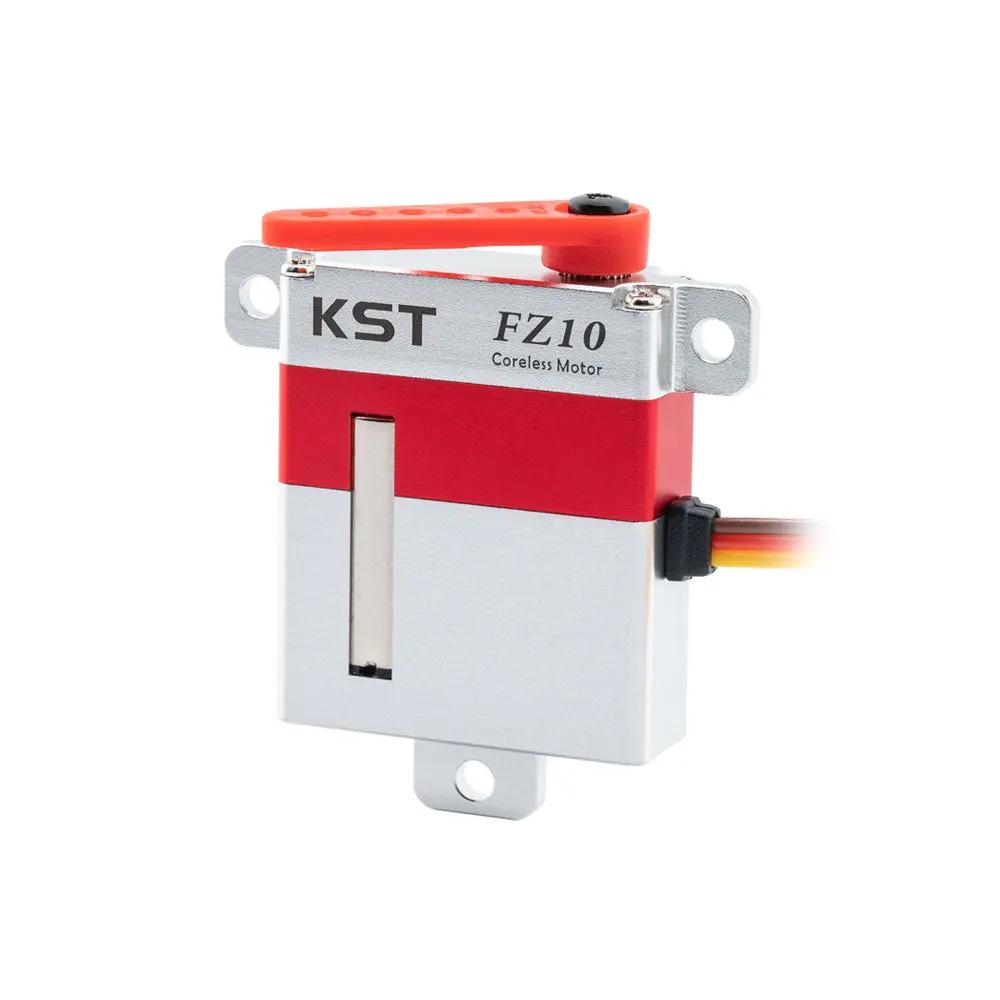

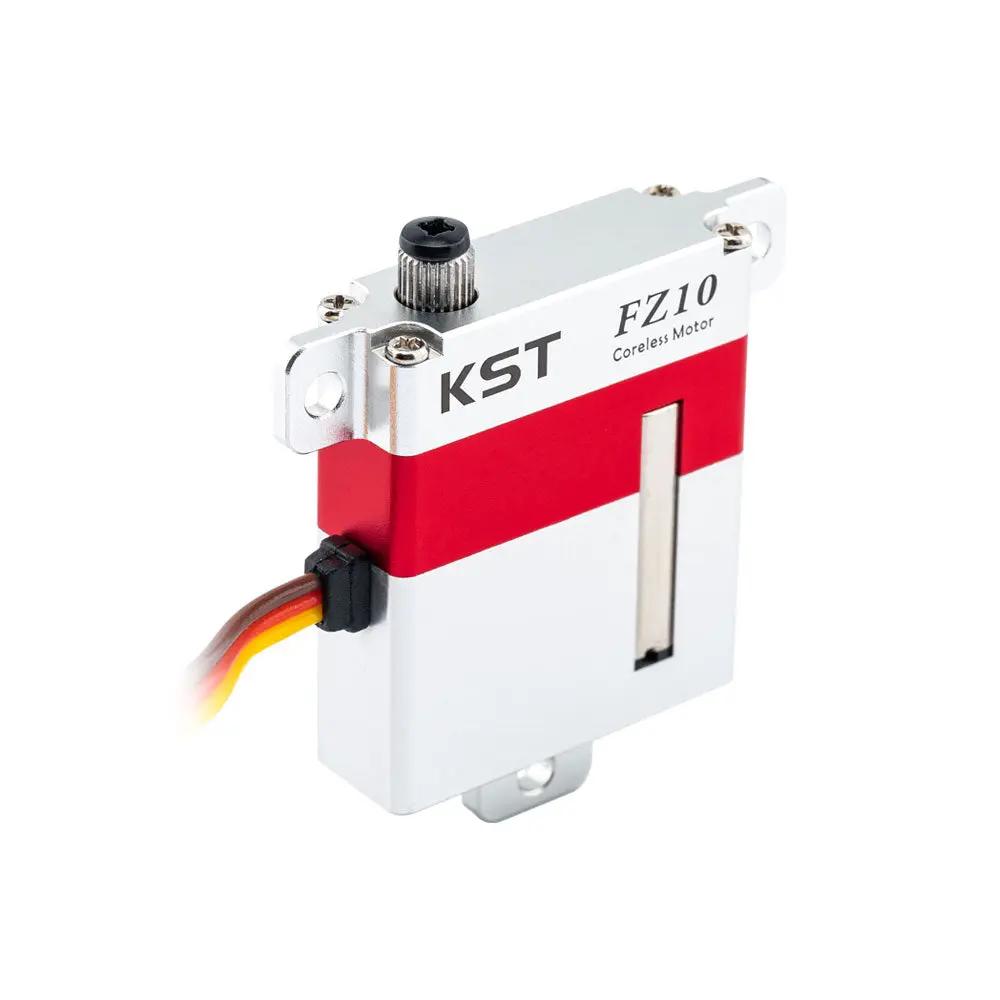

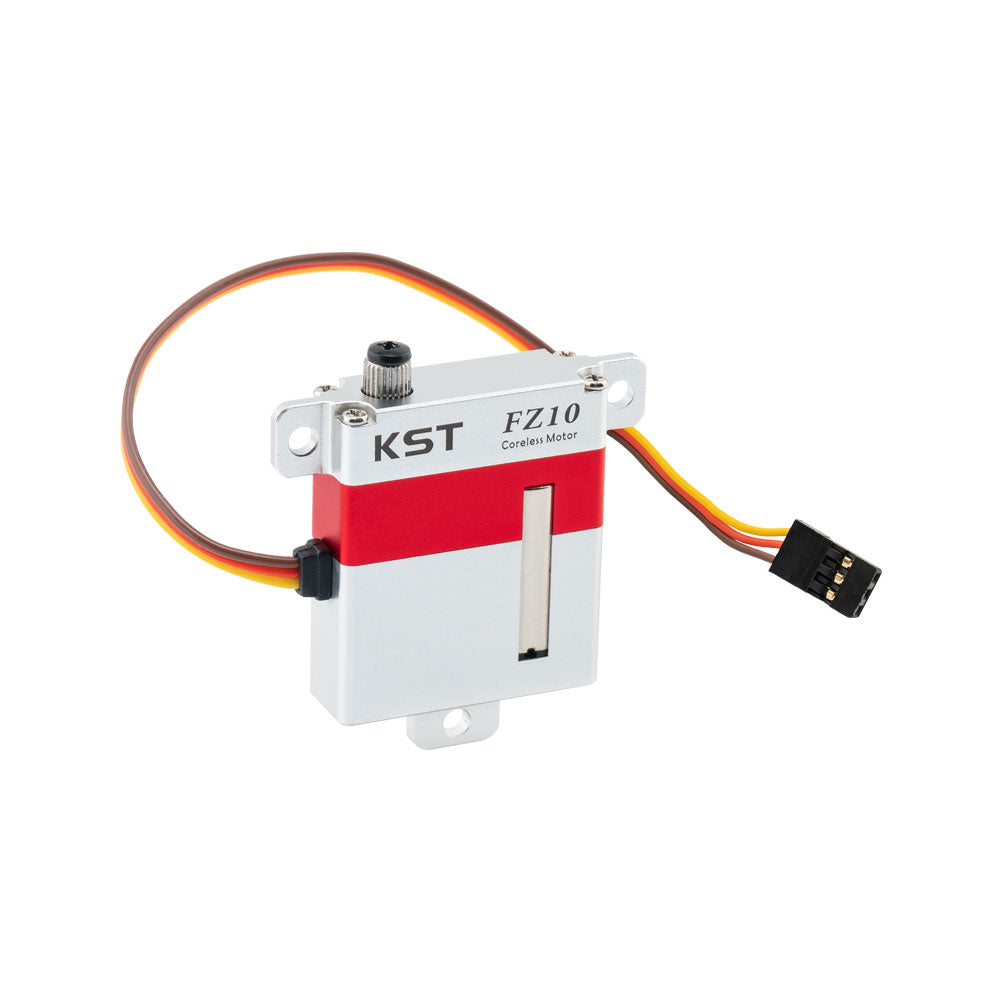

KST FZ10 HV Wing Servo
The KST FZ10 HV Wing Servo is designed for RC jets and gliders where fast response, reliable control, and interference resistance are essential. Its low-EMF anti-interference technology helps maintain stable servo performance, making it well suited for demanding aircraft applications.
Designed specifically for wing applications, the FZ10 delivers strong torque and responsive control to support precise and confident flight performance. It is an excellent choice for a wide range of high-performance gliders and RC jets.
The FZ10 is particularly suitable for F3F, F3B, F3J, F5B, and F5J models, as well as other RC aircraft where reliable, responsive, and interference-resistant servo performance is required.
Features
- Low EMF Anti-interference Technology
- Extreme Torque and Excellent Speed
- Two Ball Bearings
- CNC Aluminium Case
- Ideal for RC Jets and Gliders
Specification
| Parameter | Value |
| Item | FZ10 Digital Metal Gear Servo |
| Rated Voltage | DC7.4V |
| Voltage Range | DC4.8V-8.4V |
| Torque | 6.2Kgf.cm@4.8V / 7.5Kgf.cm@6.0V / 9.5Kgf.cm@7.4V / 10.8Kgf.cm@8.4V |
| Speed | 0.16sec/60°@4.8V / 0.14sec/60°@6.0V / 0.12sec/60°@7.4V / 0.10sec/60°@8.4V |
| Working Frequency | 1520us/333Hz |

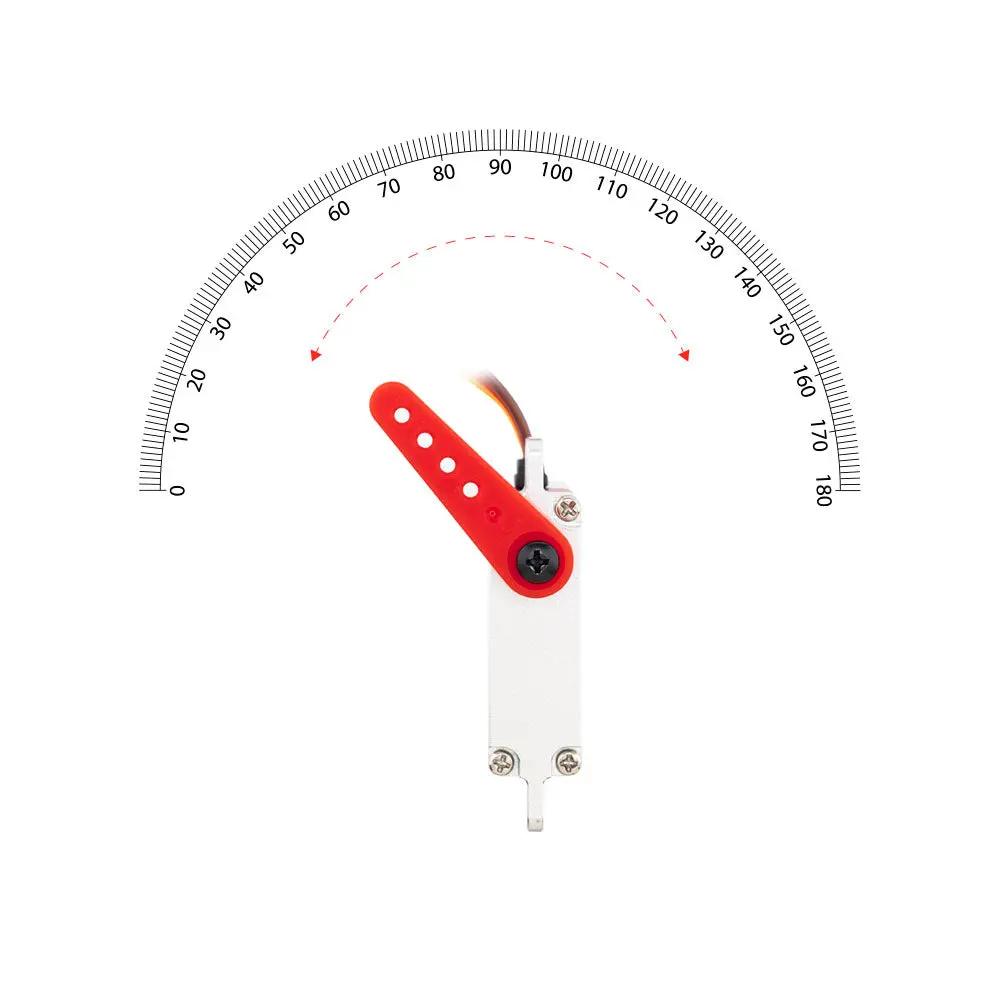

| Default Travel Angle | ±50° = 100° Total |
| Temperature Range | -10℃ ~ +65℃ |
| Soft Start | Programmable |
| Programmable | Yes |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |
| Ball Bearing | 2BB |

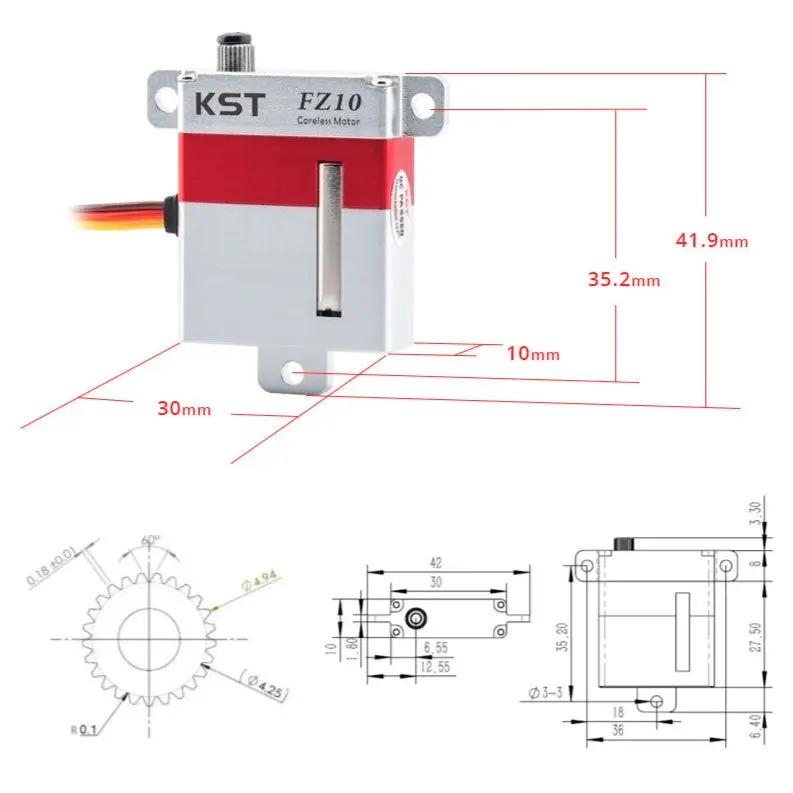

| Case Dimensions | 30 × 10 × 35.5mm ±0.2mm |
| Weight | 28g ±10% |

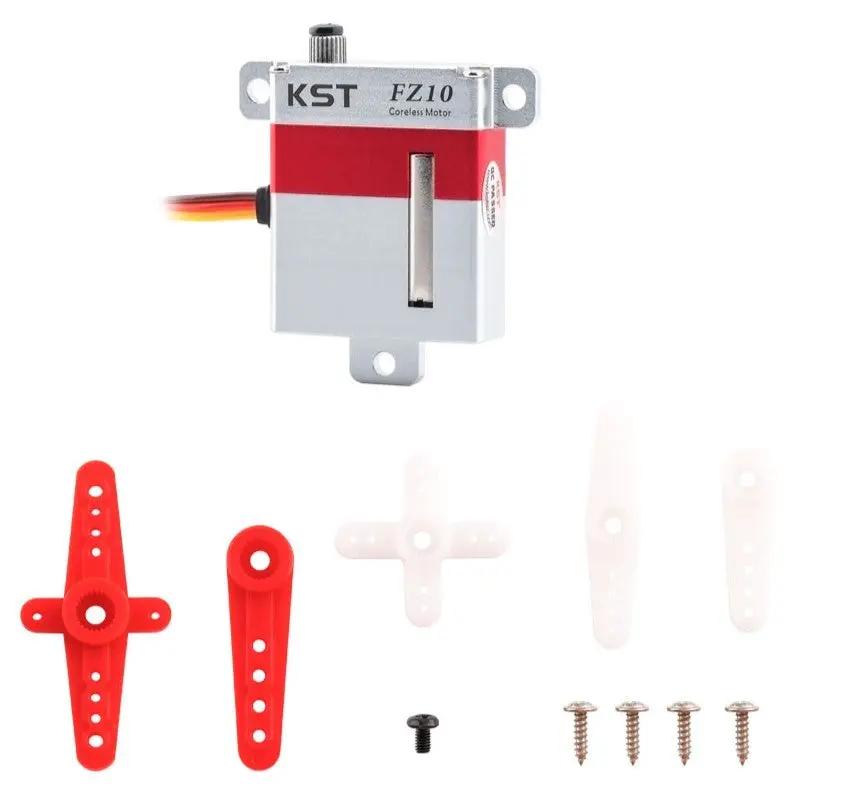

Package Including
- 1 * FZ10 Servo
- 1 pack of accessories
