FZ320 HV Digital Metal Gear Servo 5.5Kgf.cm 0.09sec for RC Gliders and Jets
FZ320 HV Digital Metal Gear Servo 5.5Kgf.cm 0.09sec for RC Gliders and Jets
KST FZ320 Digital Standard Servo
The KST FZ320 is a lightweight digital standard servo designed for RC gliders, jets, and other aircraft applications where fast response and precise control are essential. Its robust aluminum housing and precision metal geartrain provide a durable and rigid structure for reliable operation.
The precision geartrain is designed with minimal backlash, helping deliver accurate and consistent control throughout flight. The FZ320 also features low-EMF anti-interference technology, helping maintain stable servo performance in demanding RC aircraft environments.
With its combination of fast response, durable metal construction, interference-resistant design, and lightweight build, the FZ320 is a reliable choice for pilots looking for precise and responsive control without unnecessary weight.
Features
- Extreme Torque and Excellent Speed
- Compact and Light-weight Design
- Two Ball Bearings
- CNC Aluminum Case
- Ideal for RC Gliders and Jets
Specification
| Parameter | Value |
| Item | FZ320 Digital Metal Gear Servo |
| Rated Voltage | DC7.4V |
| Voltage Range | DC6.0V-8.4V |
| Torque | 4.5Kgf.cm@6.0V / 5.5Kgf.cm@7.4V |
| Speed | 0.10sec/60°@6.0V / 0.09sec/60°@7.4V |
| Working Frequency | 1520us/333Hz |

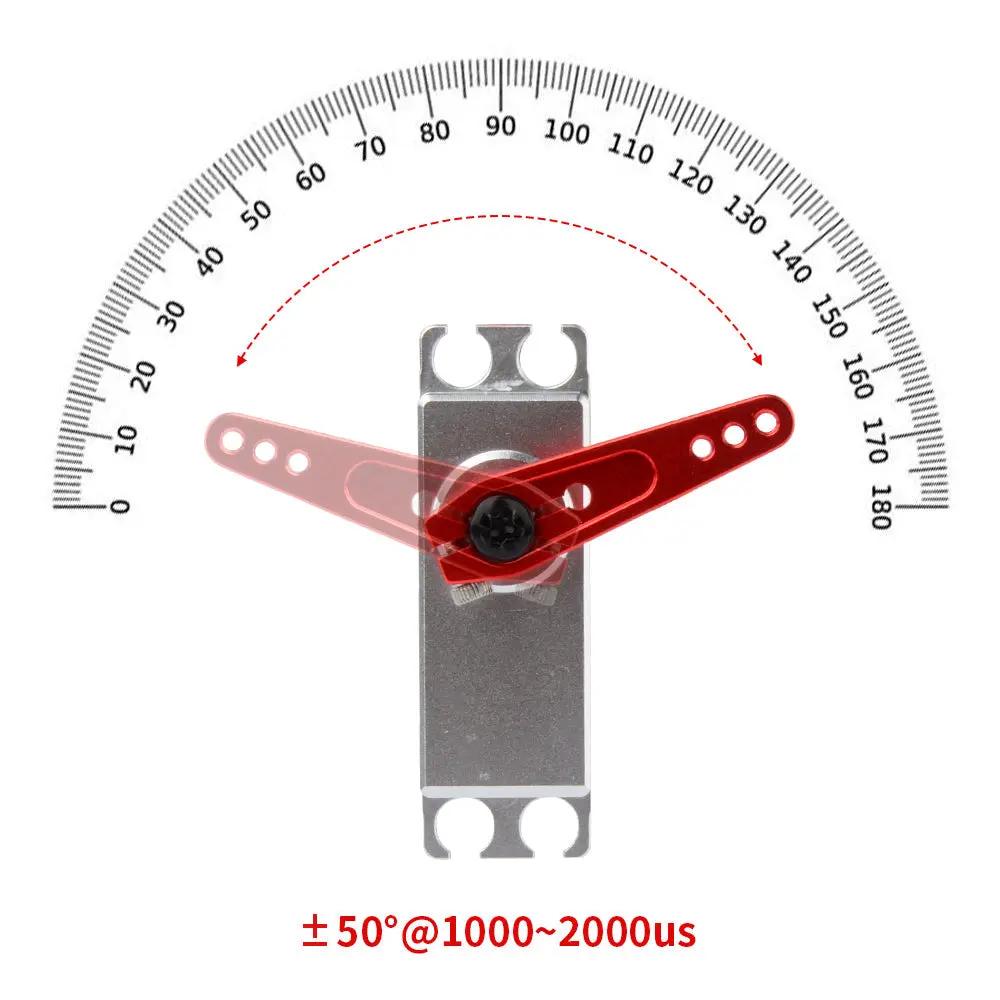

| Default Travel Angle | ±50° = 100° Total |
| Temperature Range | -20℃ ~ +65℃ |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Metal Gear |
| Position Sensor | Potentiometer |
| Ball Bearing | 2BB |

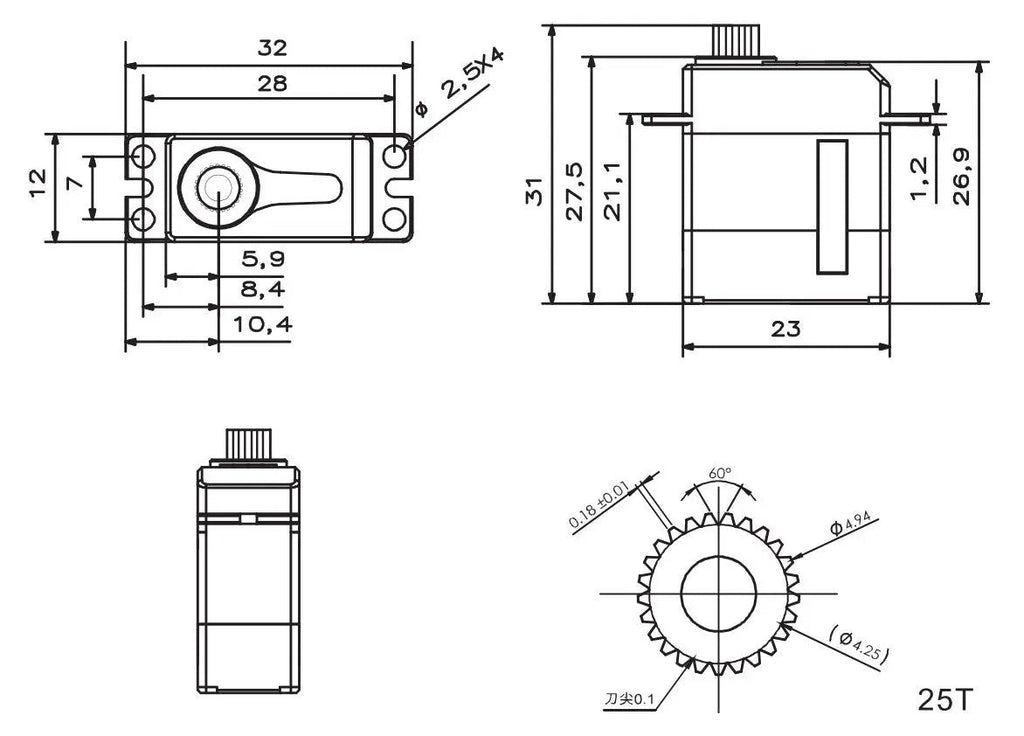

| Case Dimensions | 23 × 12 × 27mm ±0.2mm |
| Weight | 20g ±10% |
Package Including
- 1 * FZ320 Metal Gear Servo Motor
- 1 pack of accessories
