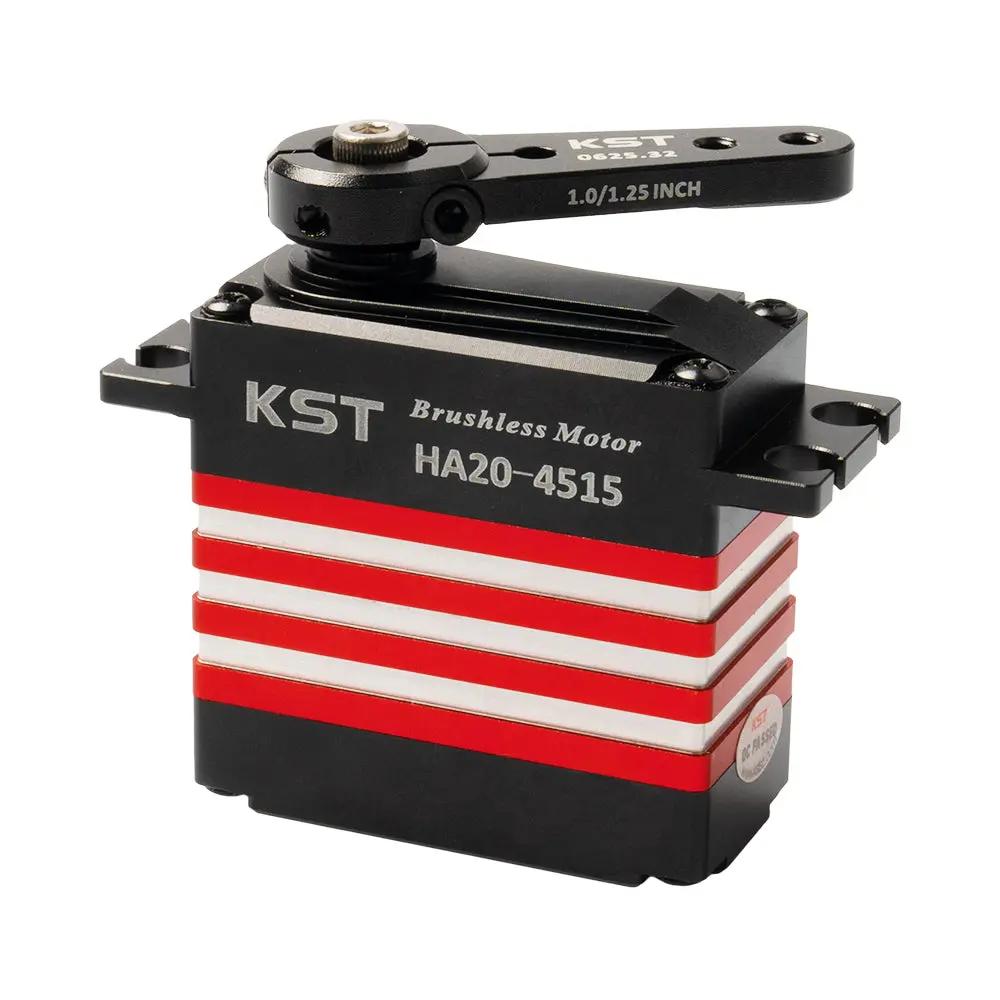

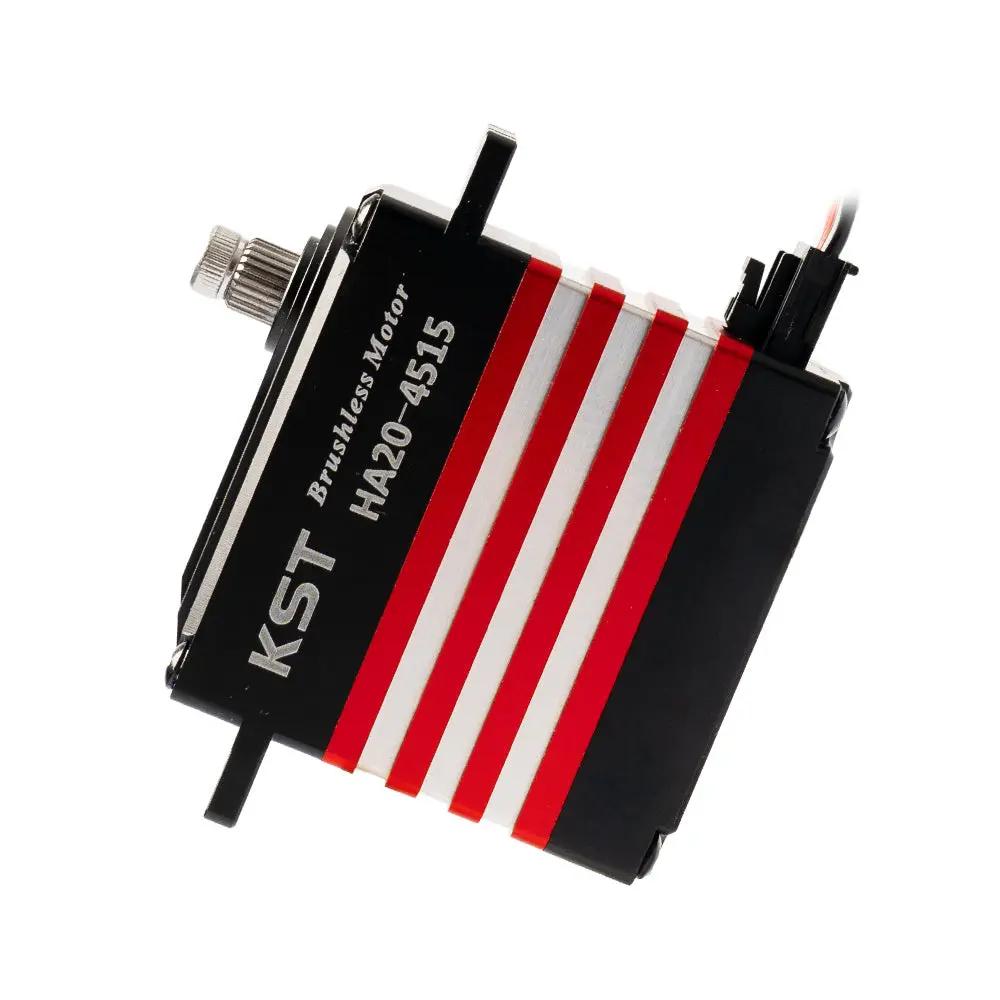

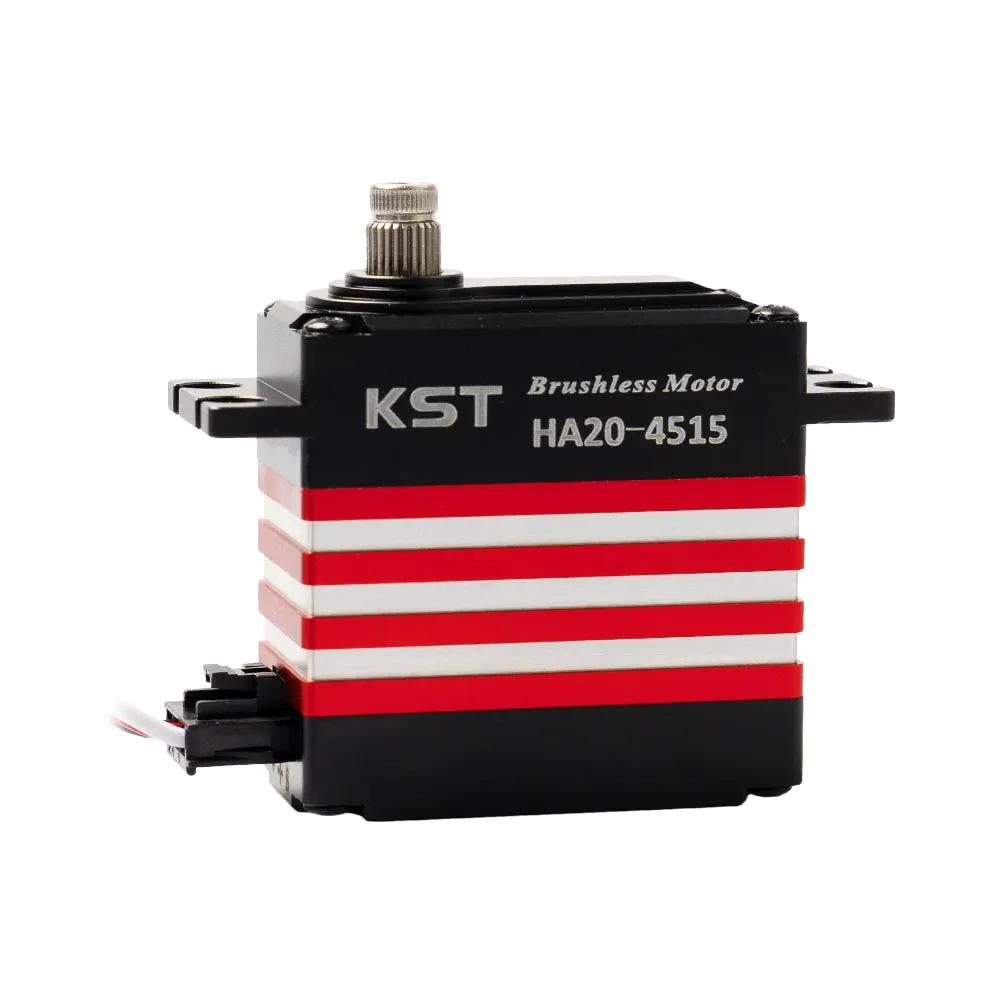

The HA20-4515 is a high-performance brushless servo motor designed for Large Scale RC Planes, Competition RC Planes. It delivers 50Kgf.cm torque, 0.13sec/60° response, and precise PWM control, ensuring accuracy in heavy duty scenarios. Built with a brushless DC motor, hardened steel gear, and a lightweight aluminium alloy housing, it combines durability with optimized weight. The A2509HFA-3P locking plug interface with its anti-pullout design ensures secure connections in even the most demanding high-vibration environments.
Features
- DC Brushless motor
- High Torque Output & Fast Response
- Dual Ball Bearings
- Hardened Steel Gear & CNC aluminium Case

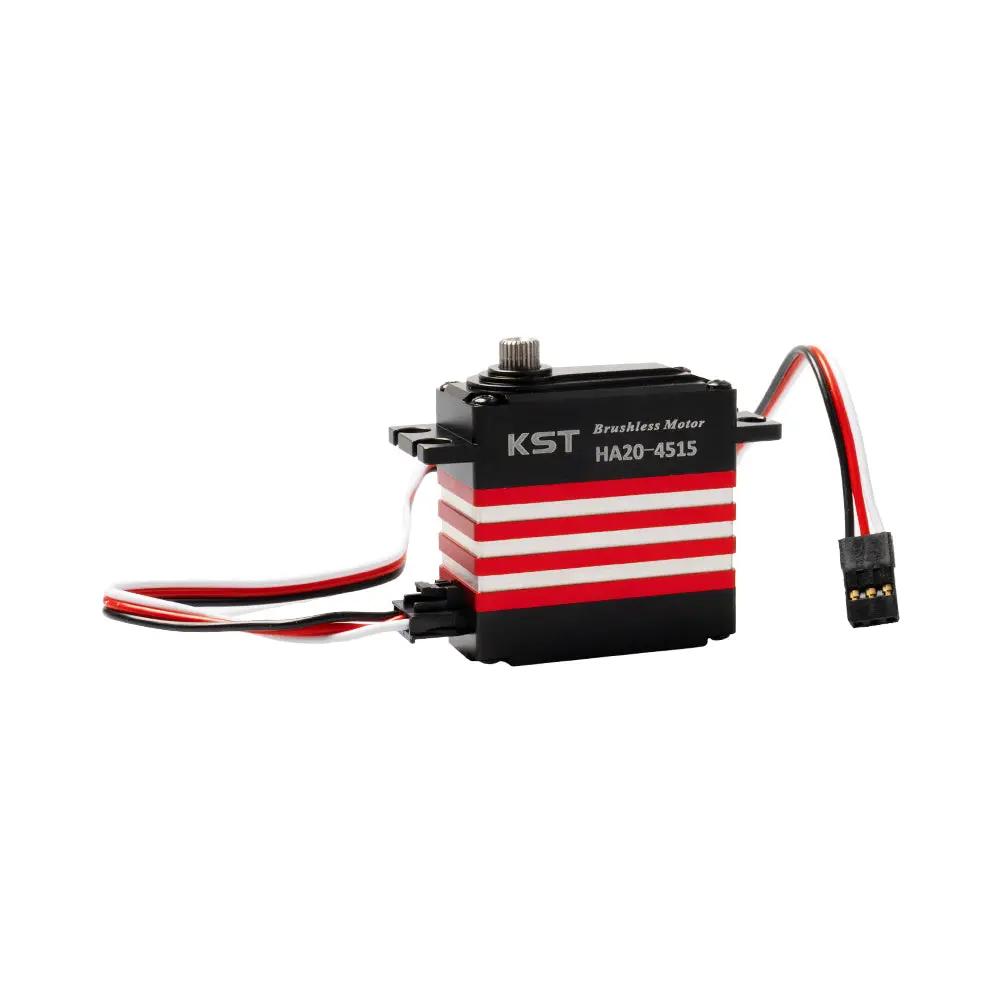

- A2509HFA-3P Locking Plug Interface
- Hardened Steel Gear
- Programmable
- Ideal for Large Scale RC Planes, Competition RC Planes
Specification
- Item: HA20-4515 Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque: 36Kgf.cm@6.0V, 45Kgf.cm@7.4V, 50Kgf.cm@8.4V
- No-load Speed：0.19sec/60°@6.0V, 0.15sec/60°@7.4V, 0.13sec/60°@8.4V
- Working Frequency: 1520us/333Hz

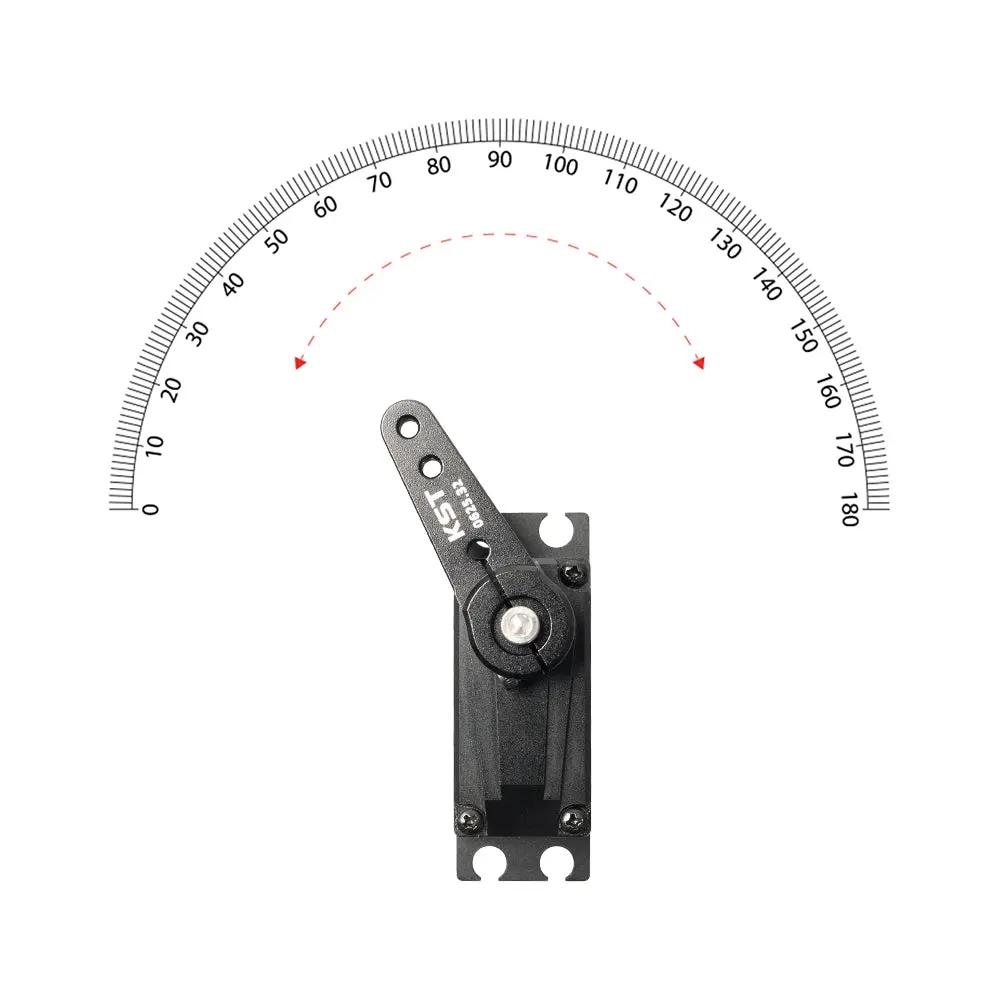

- Default Travel Angle: ±50°=100°Total
- Temperature Range: -10℃……+65℃
- Case Material: Aluminium Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB

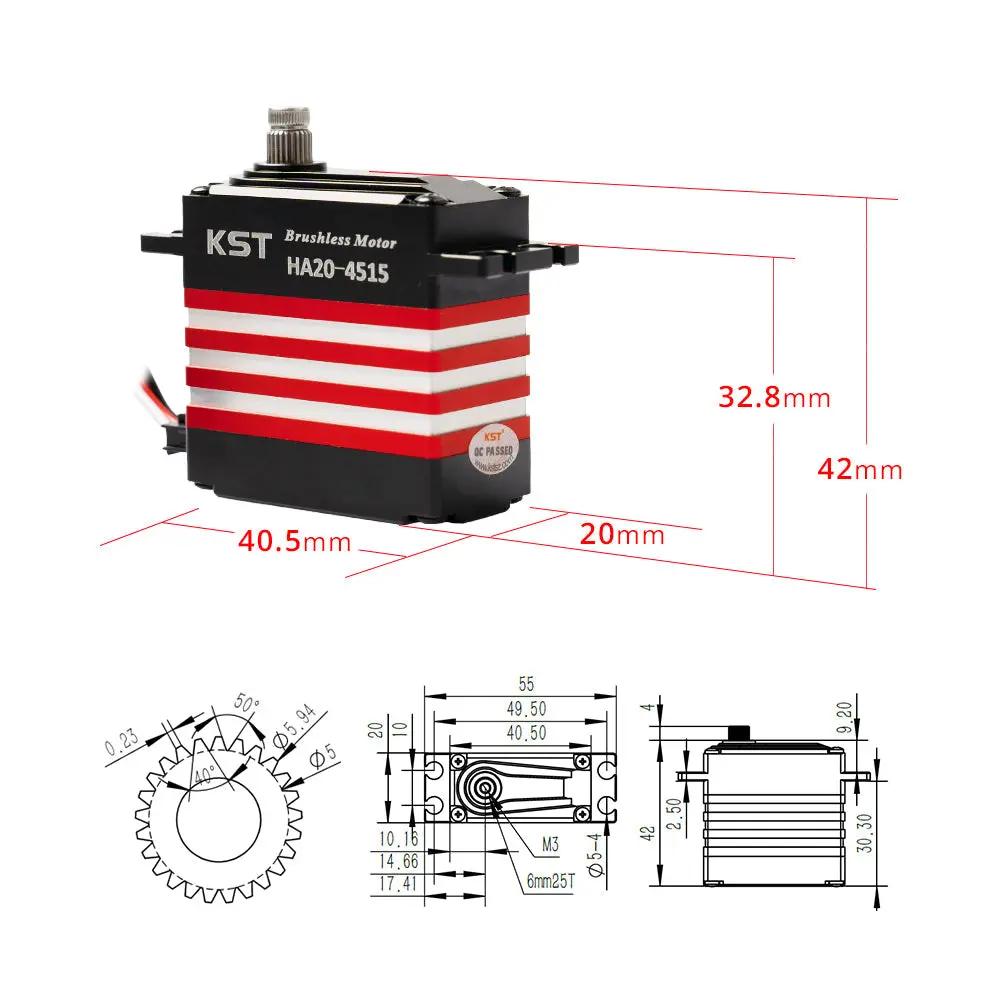

- Case Dimensions: 40.5*20*42mm±0.2mm
- Weight: 72g±10%

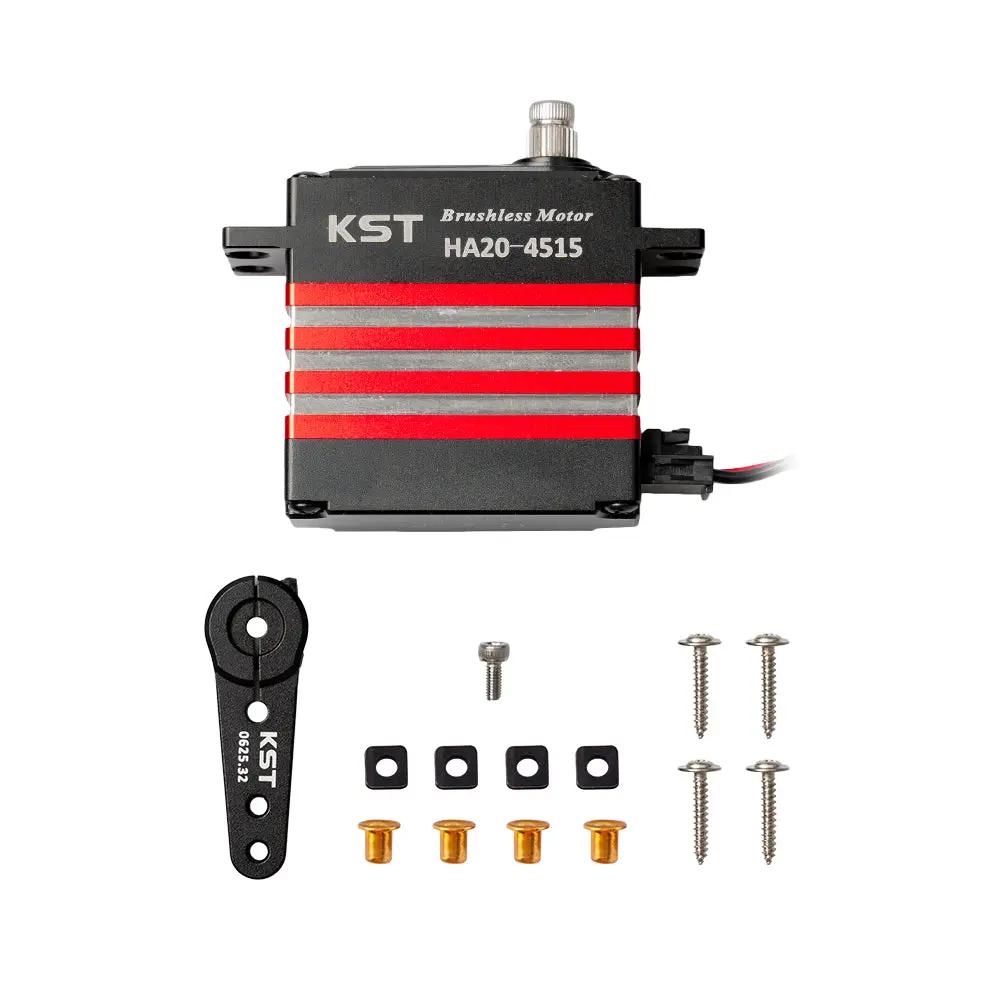

Package Includes
- 1 * HA20-4515 Servo
- 4 * Mounting Screw
- 4 * Eyelet
- 4 * Grommet
- 1 * CNC Servo Horn
- 1 * Servo Horn Screw
