JX Servo BLS-HV7146MG 46kg Brushless High Precision Steel Gear Full CNC Digital Servo

JX Servo BLS-HV7146MG 46kg Brushless High Precision Steel Gear Full CNC Digital Servo

Sale price  $40.13 Regular price $90.30
Skip to product information
JX Servo BLS-HV7146MG 46kg Brushless High Precision Steel Gear Full CNC Digital Servo
JX Servo BLS-HV7146MG 46kg Brushless High Precision Steel Gear Full CNC Digital Servo
Sale price  $40.13 Regular price $90.30

FEATURE:
-- High voltage
-- High performance programmable digital brushless standard servo

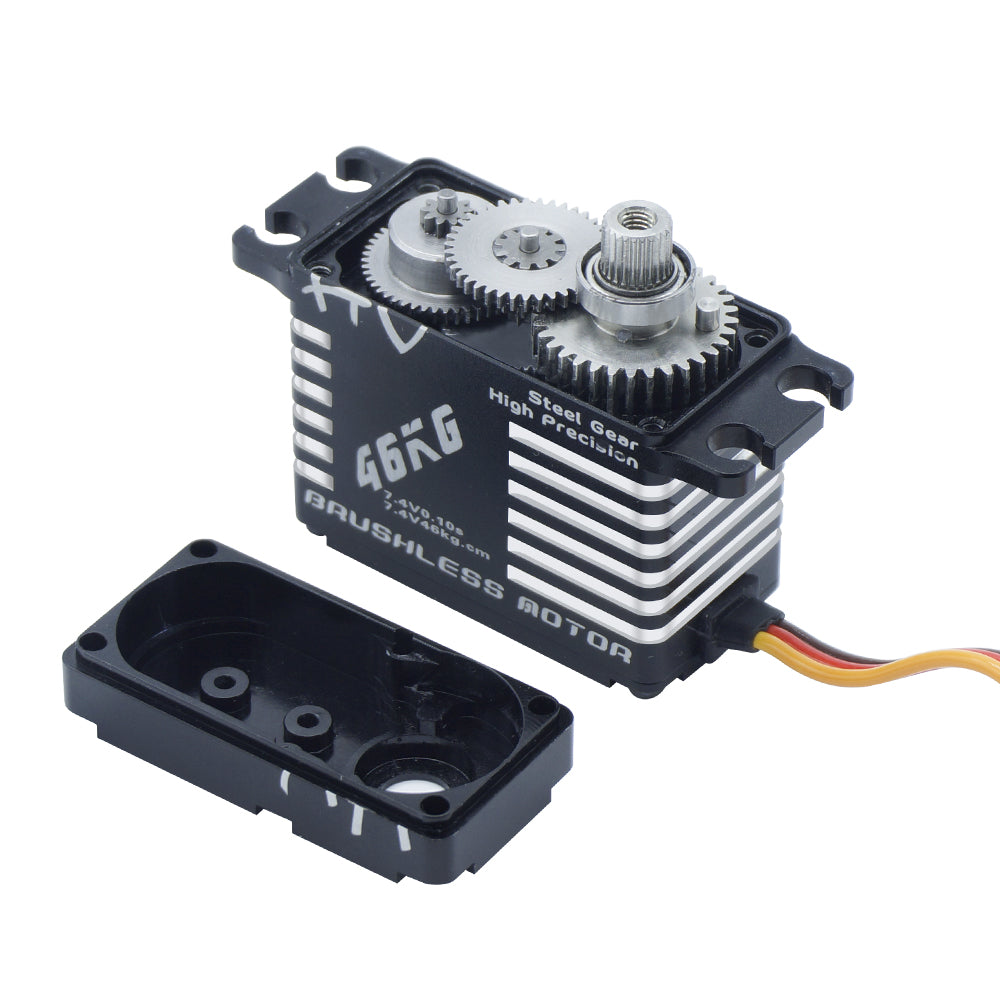

-- High-precision Taiwan-made steel gears with hard anodizing
-- Full CNC aluminium Shell structure
-- Dual ball bearings
-- Waterproof

SPECIFICATIONS:
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: brushless motor
Operating Speed (6V): 0.12sec/60°
Operating Speed (7.4V): 0.10sec/60°
Stall Torque (6V): 37.6kg.cm
Stall Torque (7.4V): 47.8kg.cm

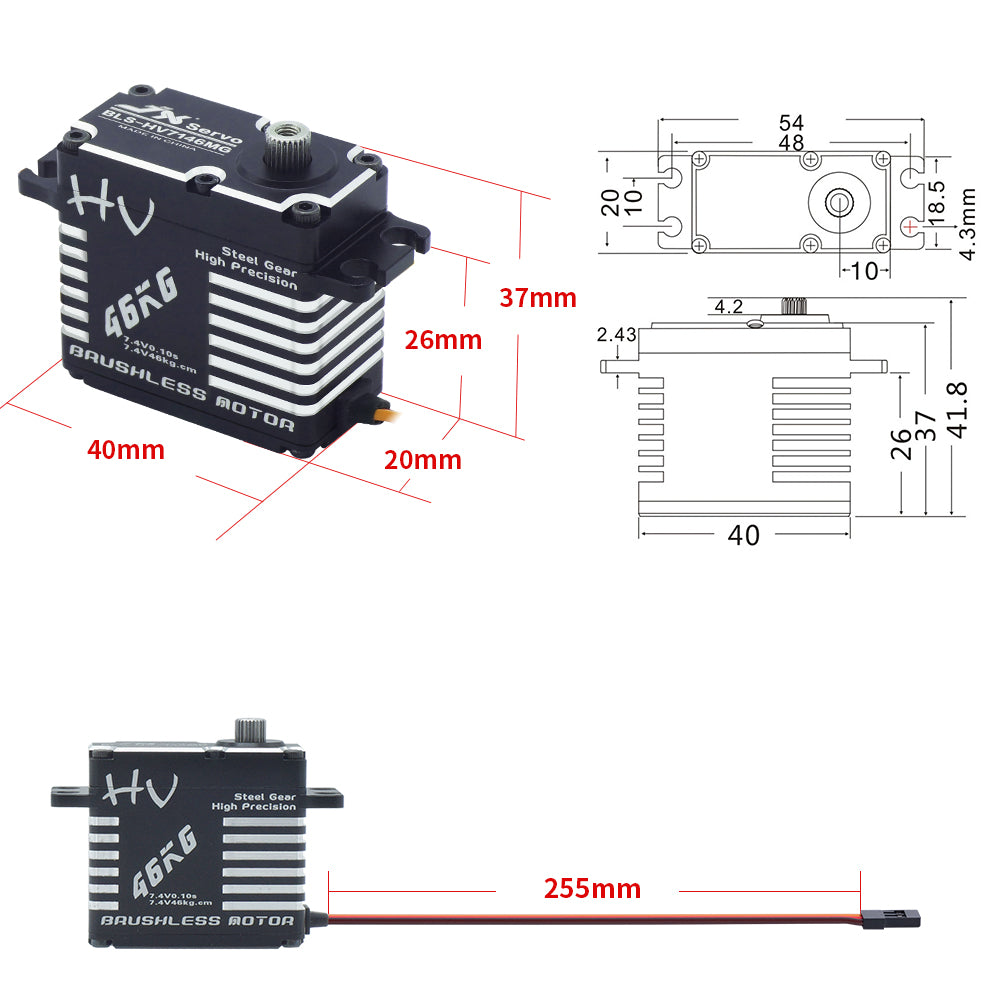

Dimensions: 40.5X20.5X36mm
Weight:  71 g
Connector Wire Length: JR  265 mm
Bearing: 2BB
Tooth Count: 25
