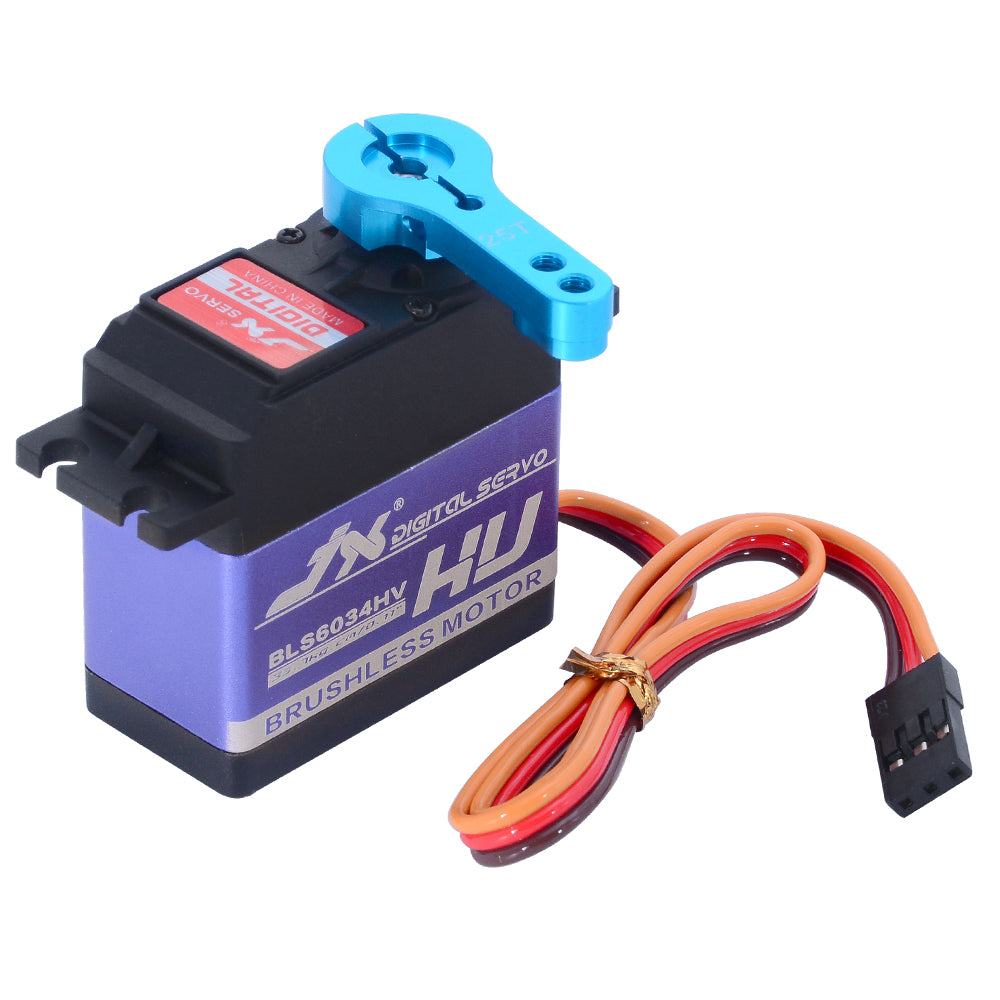

JX Servo BLS6034HV 33kg Brushless Metal Gear Digital Servo
$24.84
Skip to product information

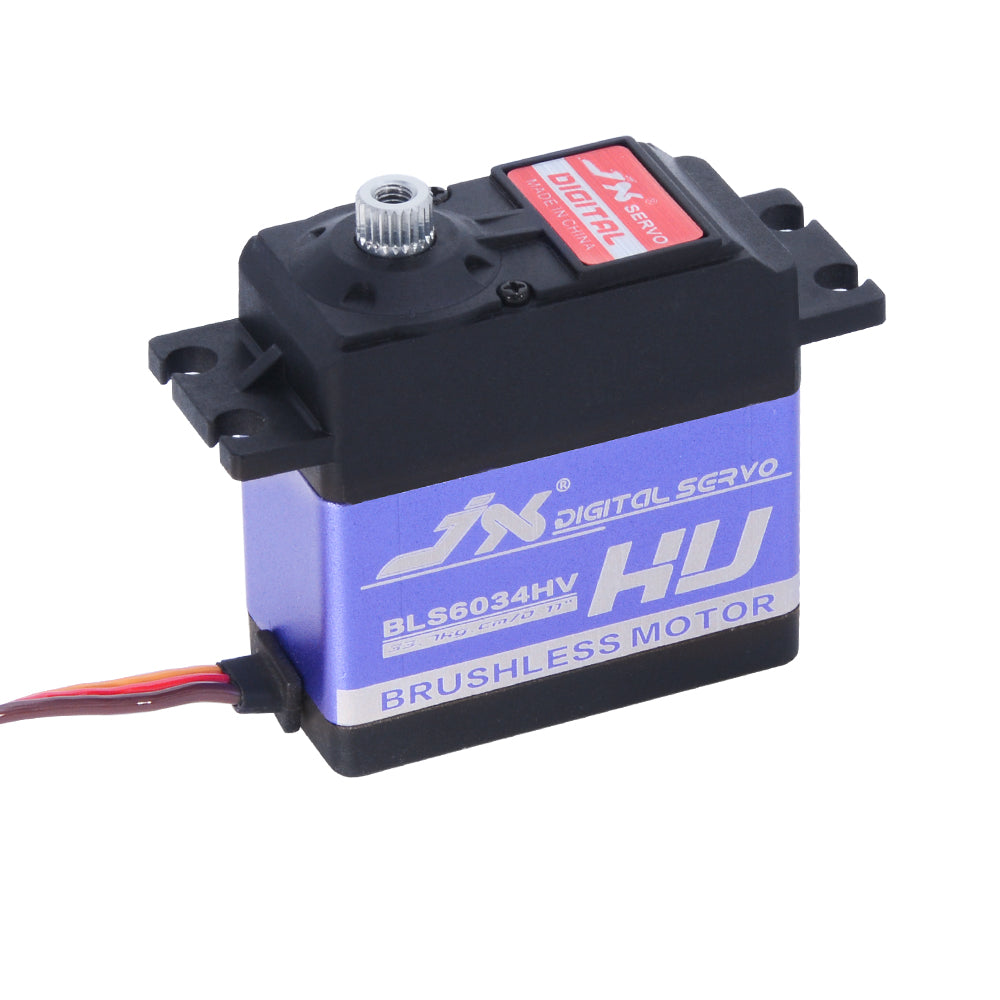

JX Servo BLS6034HV 33kg Brushless Metal Gear Digital Servo
$24.84
Product Specifications
FEATURE
| CNC metal on the cover in the shell |
| High-precision Taiwan-made aluminium gears with hard anodizing |
| High Voltage Brushless Digital Servo |
SPECIFICATIONS
| Dead band | 1μs |
| Working Frequency | 1520μs / 330hz |
| Motor | Brushless |
| Operating Speed (6.6V) | 0.13 sec/60° |
| Operating Speed (7.4V) | 0.11 sec/60° |
| Stall Torque (6.6V) | 26.7 kg.cm |
| Stall Torque (7.4V) | 33.7 kg.cm |

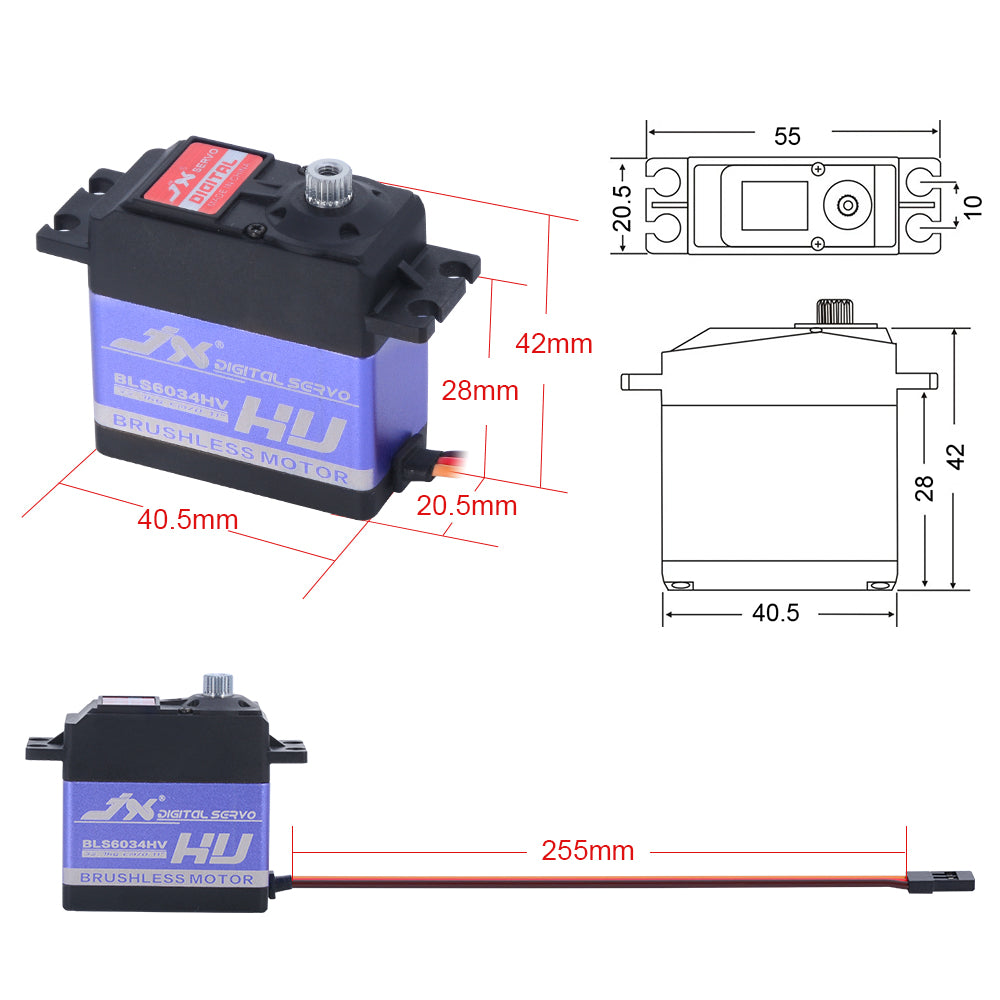

| Dimensions | 40.5x20.5x40mm |
| Weight | 60 g |

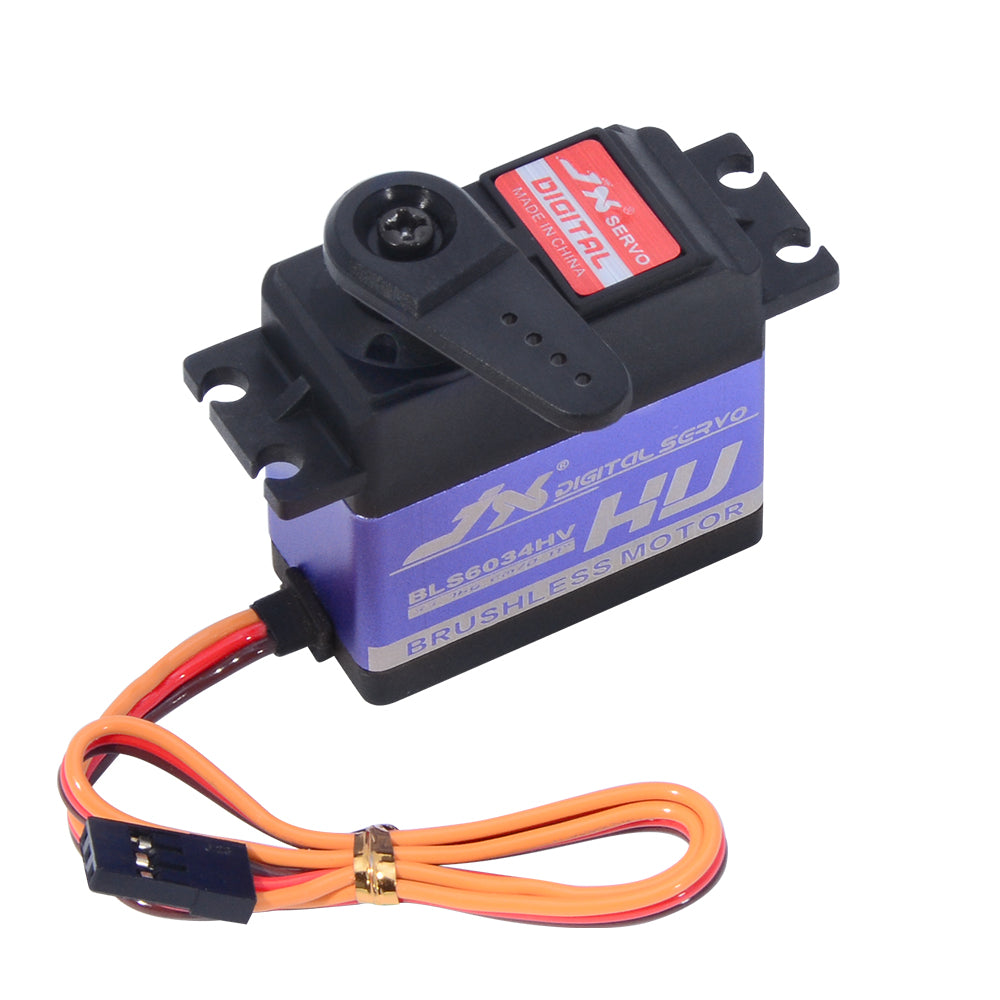

| Wire / Color | JR 265mm / -Brown +Red S Orange |
| Bearing | 2BB |
| Tooth Count | 25 |
