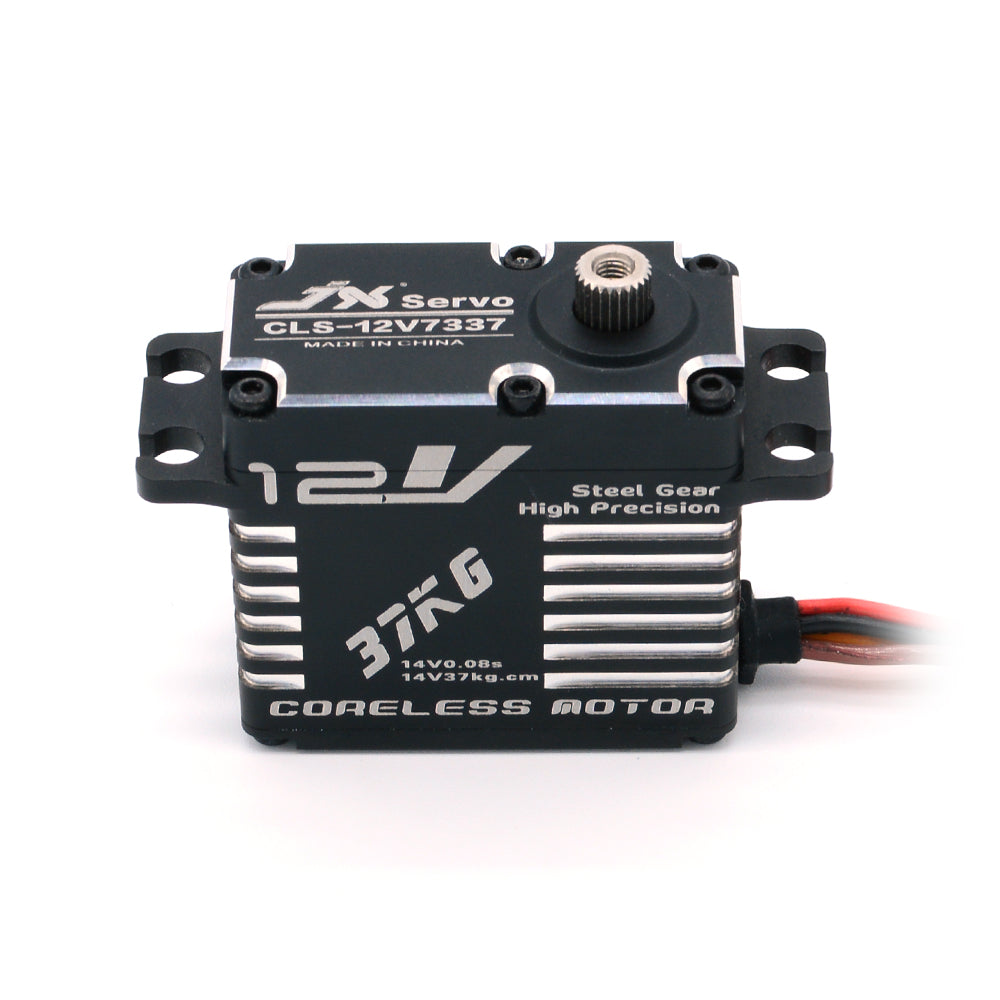

JX Servo CLS-12V7337 37kg Coreless High Precision Steel Gear Full CNC Digital Servo
$34.40
Skip to product information

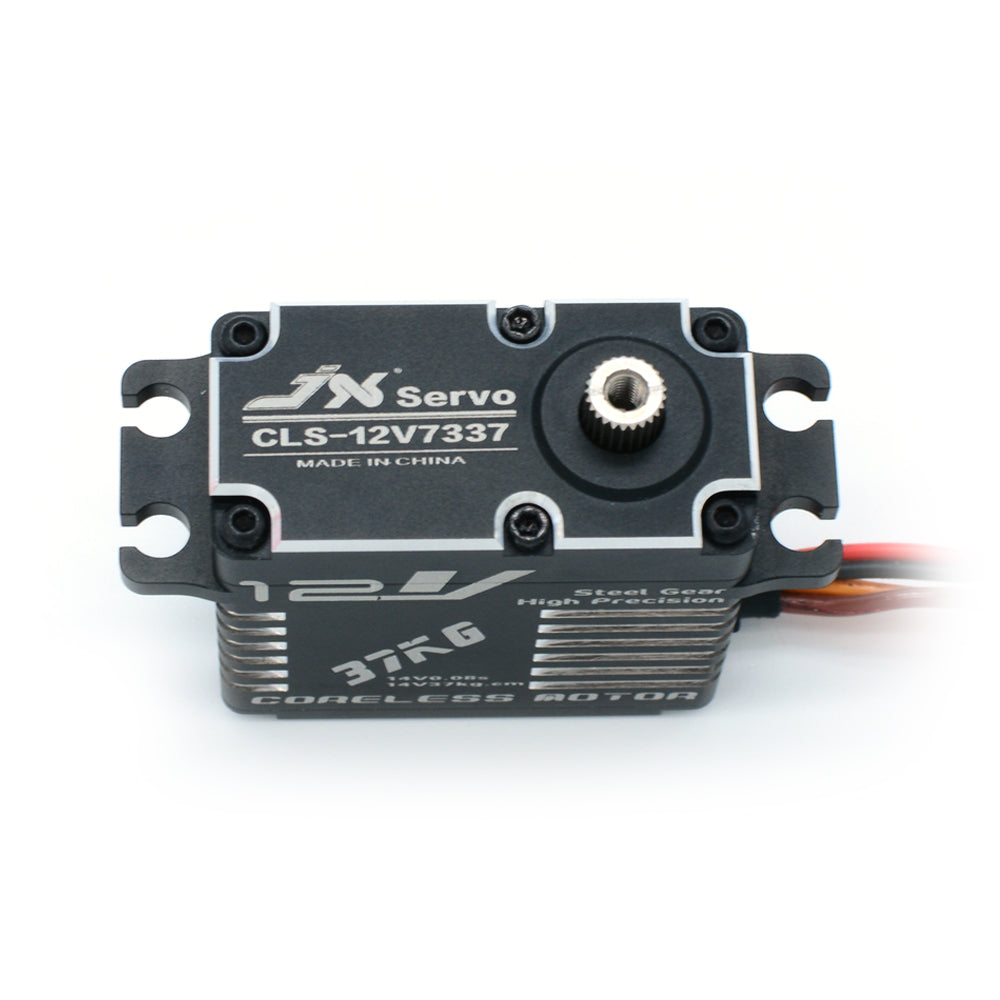

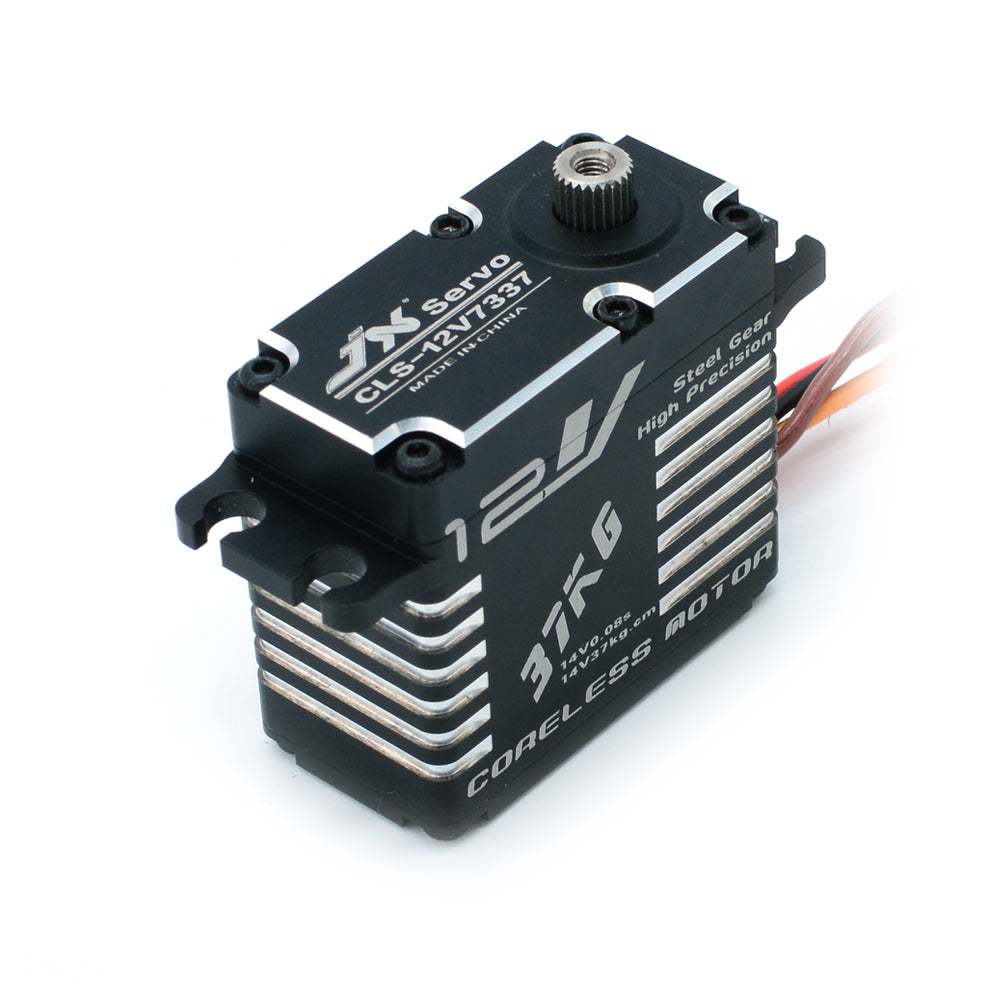

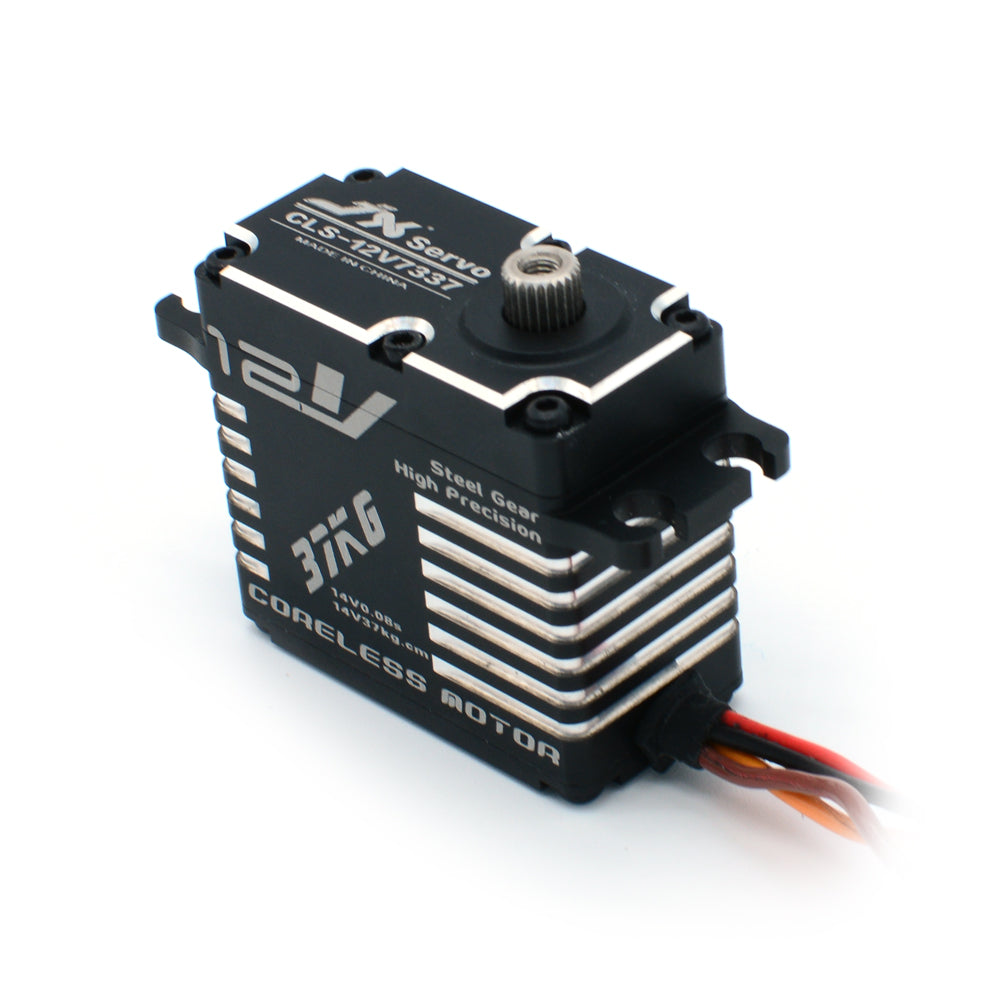

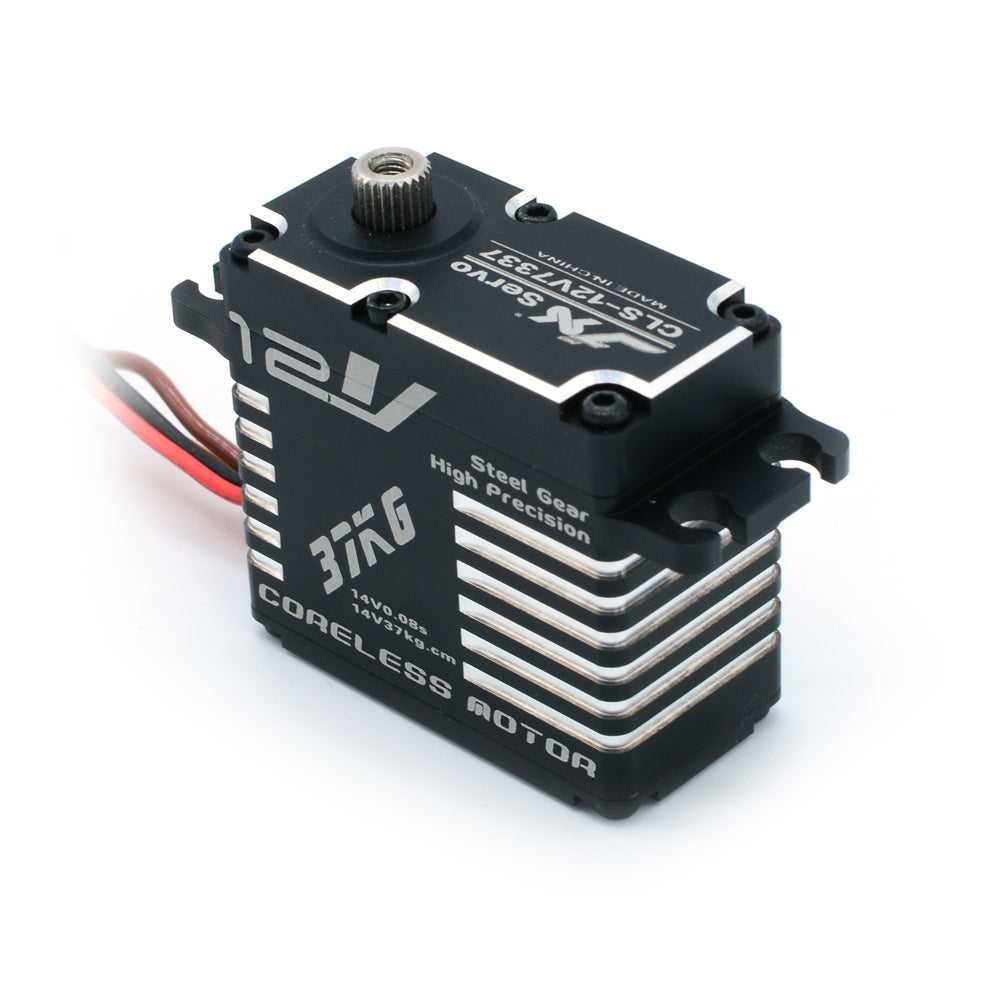

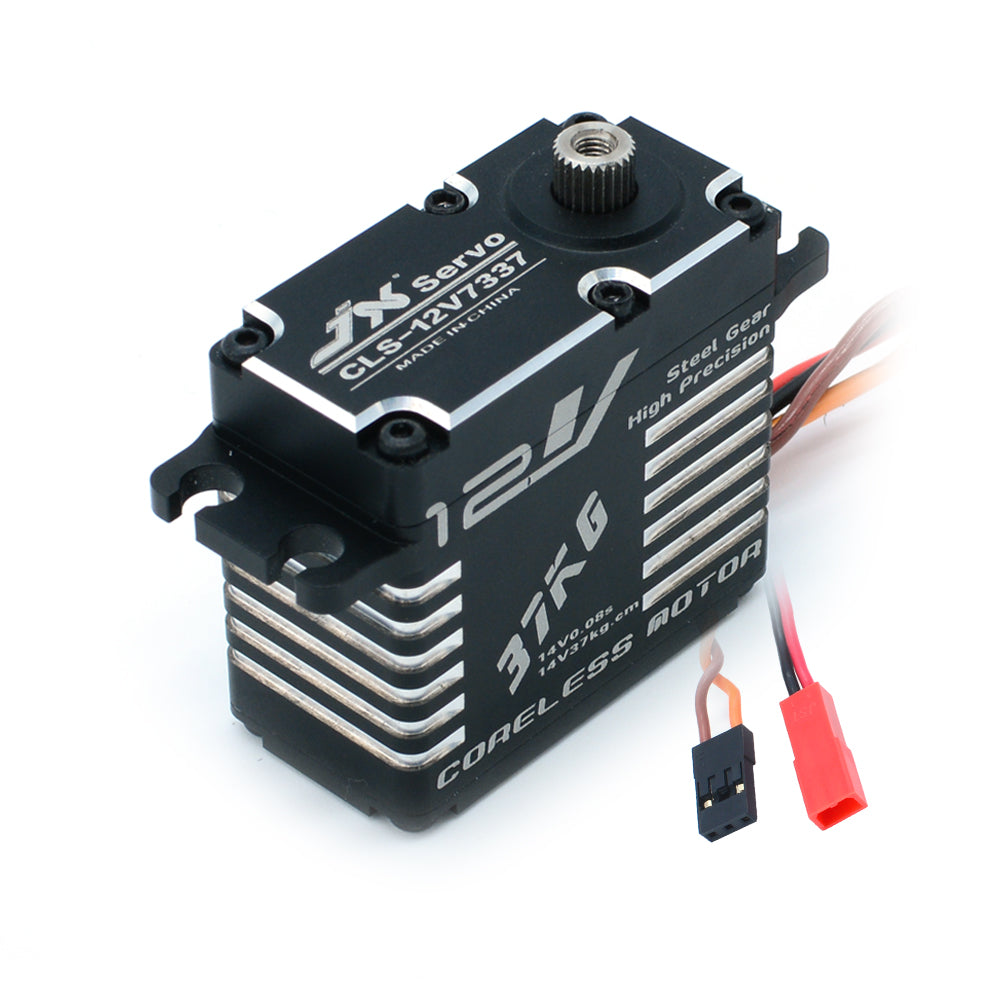

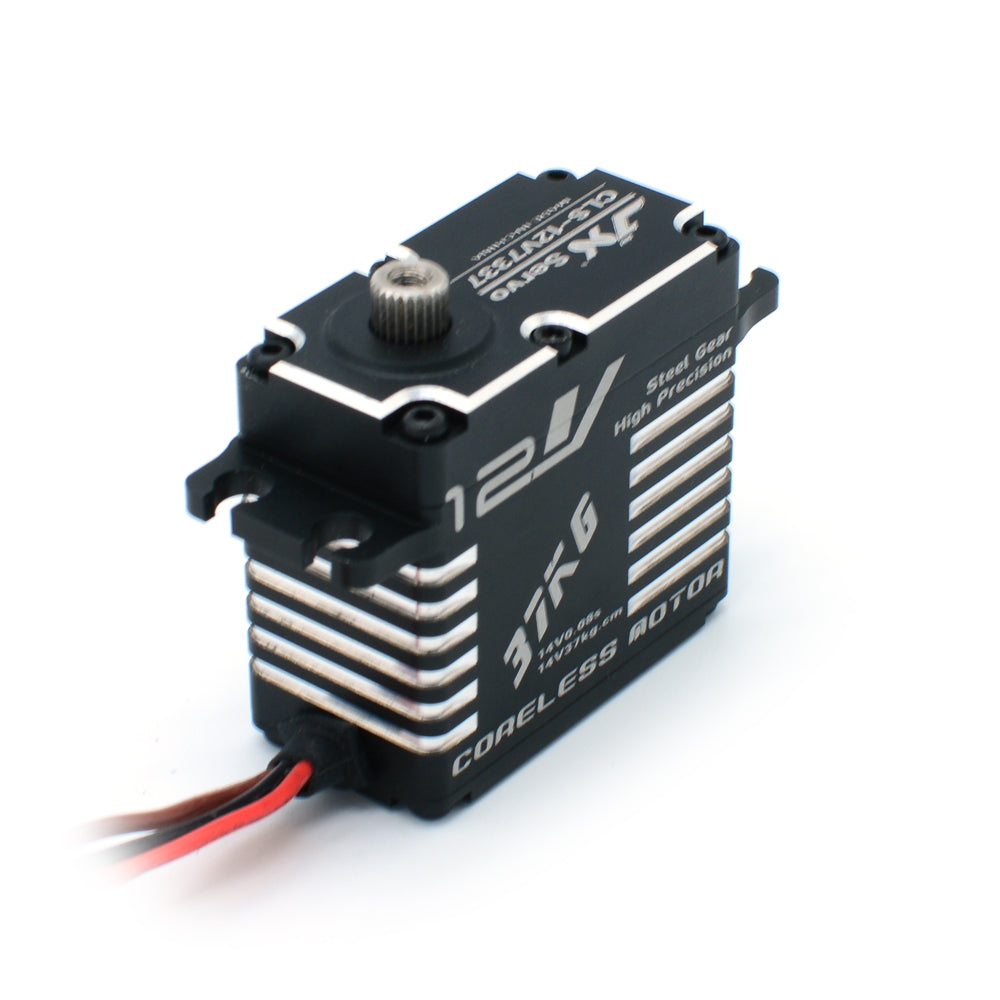

JX Servo CLS-12V7337 37kg Coreless High Precision Steel Gear Full CNC Digital Servo
$34.40
Product Specifications
FEATURE
| 12V High voltage |
| High performance programmable digital coreless standard servo |
| High-precision Taiwan-made steel gears with hard anodizing |
| Full CNC aluminium shell structure |
| Dual ball bearings |
| Waterproof |
SPECIFICATIONS
| Dead band | 2μs |
| Working Frequency | 1520μs / 330hz |
| Motor | Coreless |
| Operating Speed (11.1V) | 0.1 sec/60° |
| Operating Speed (14V) | 0.08 sec/60° |
| Stall Torque (11.1V) | 33 kg.cm |
| Stall Torque (14V) | 37.5 kg.cm |
| Dimensions | 40x20x37mm |
| Weight | 73 g |
| Connector Wire Length | JR 265mm |
| Bearing | 2BB |
| Tooth Count | 25 |
