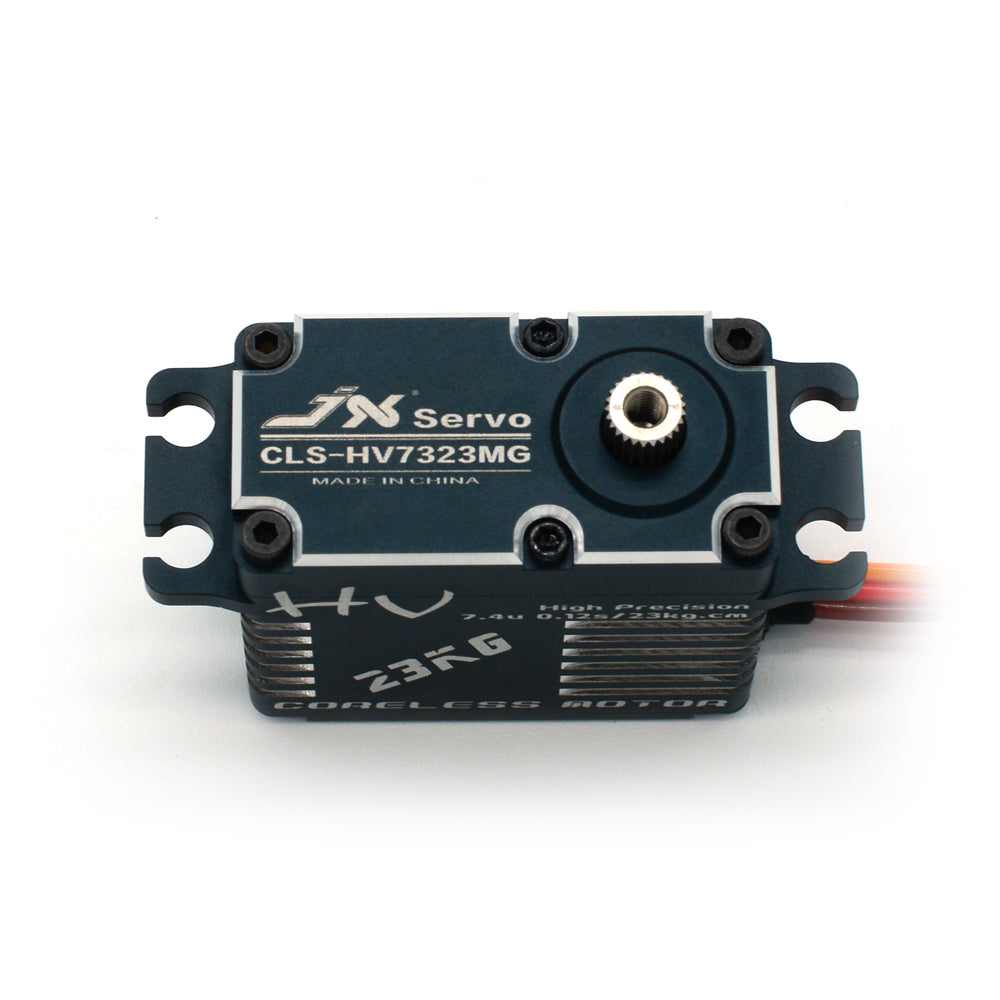

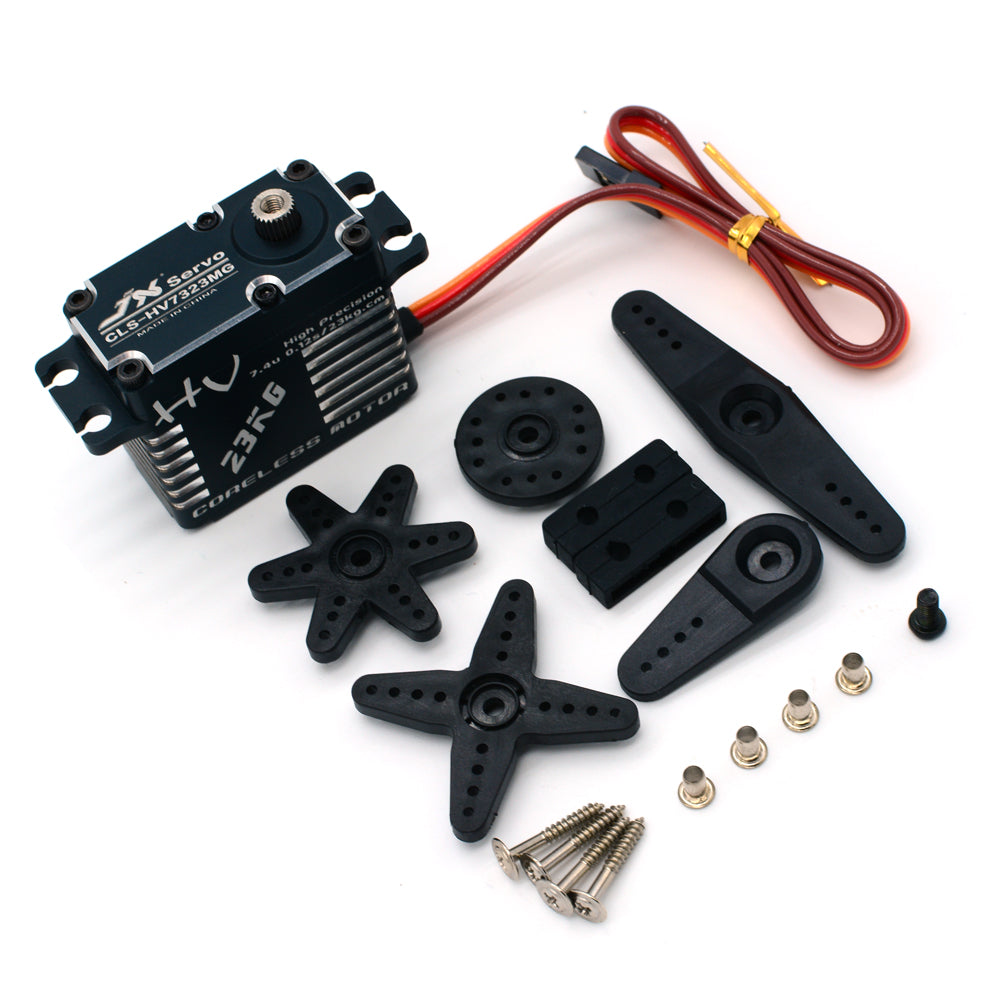

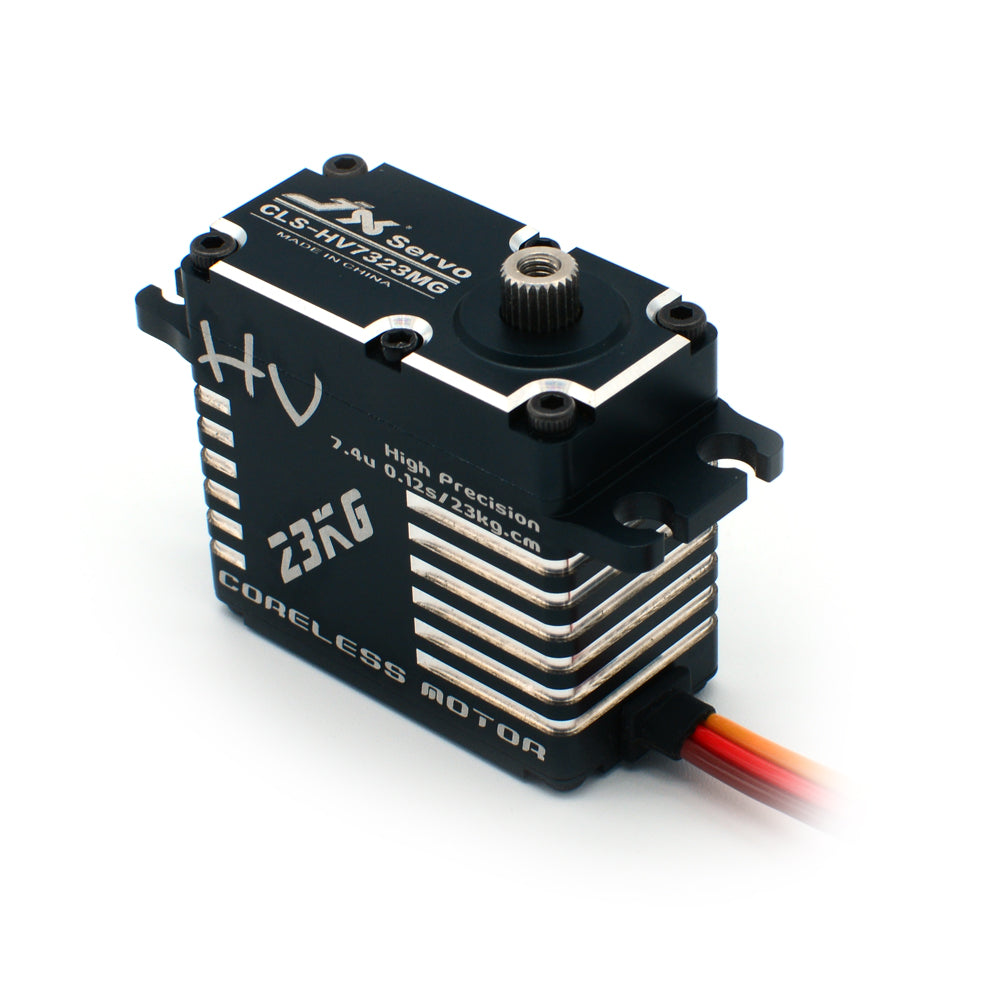

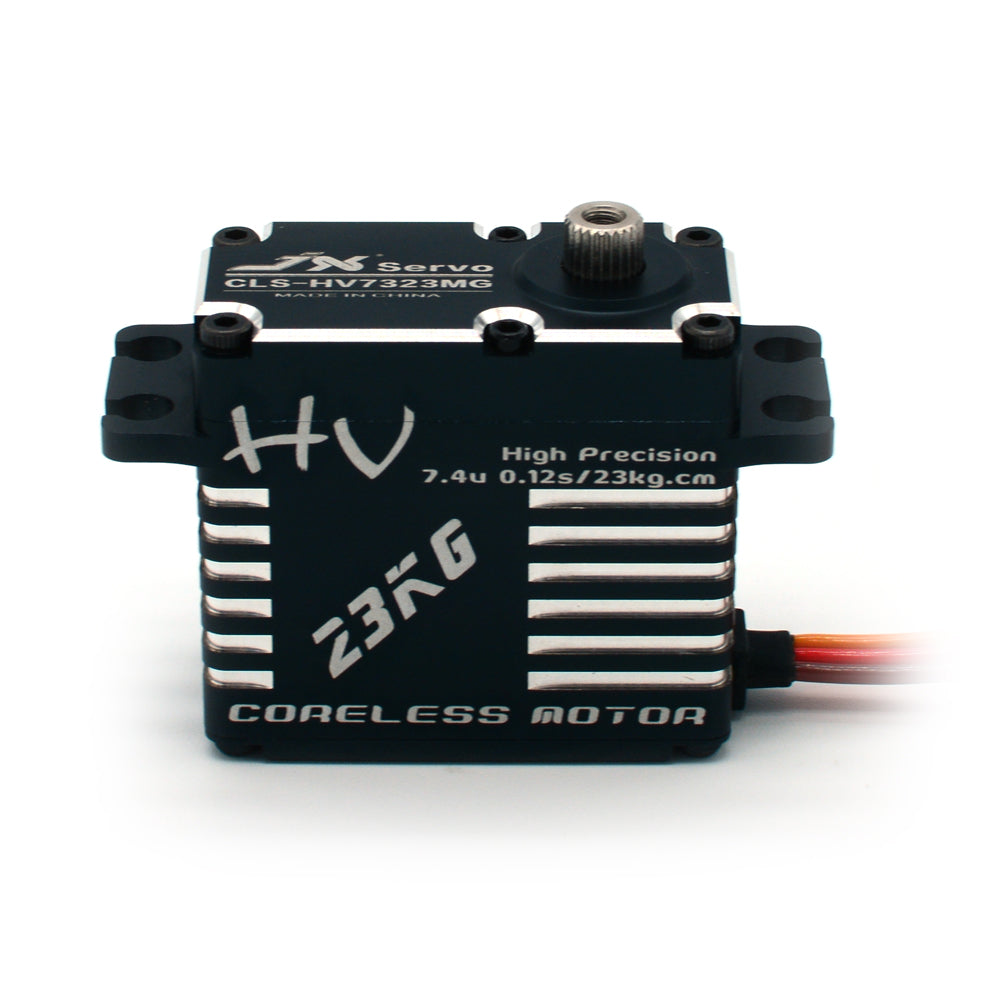

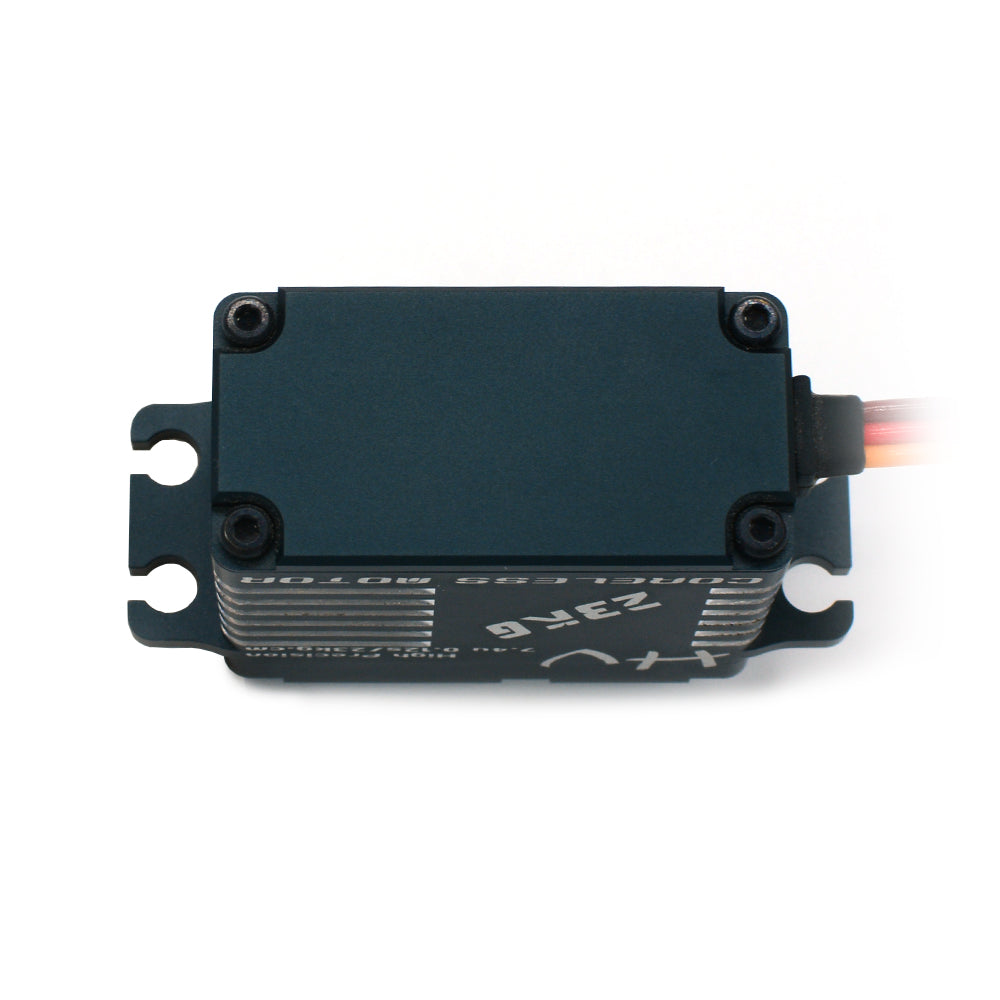

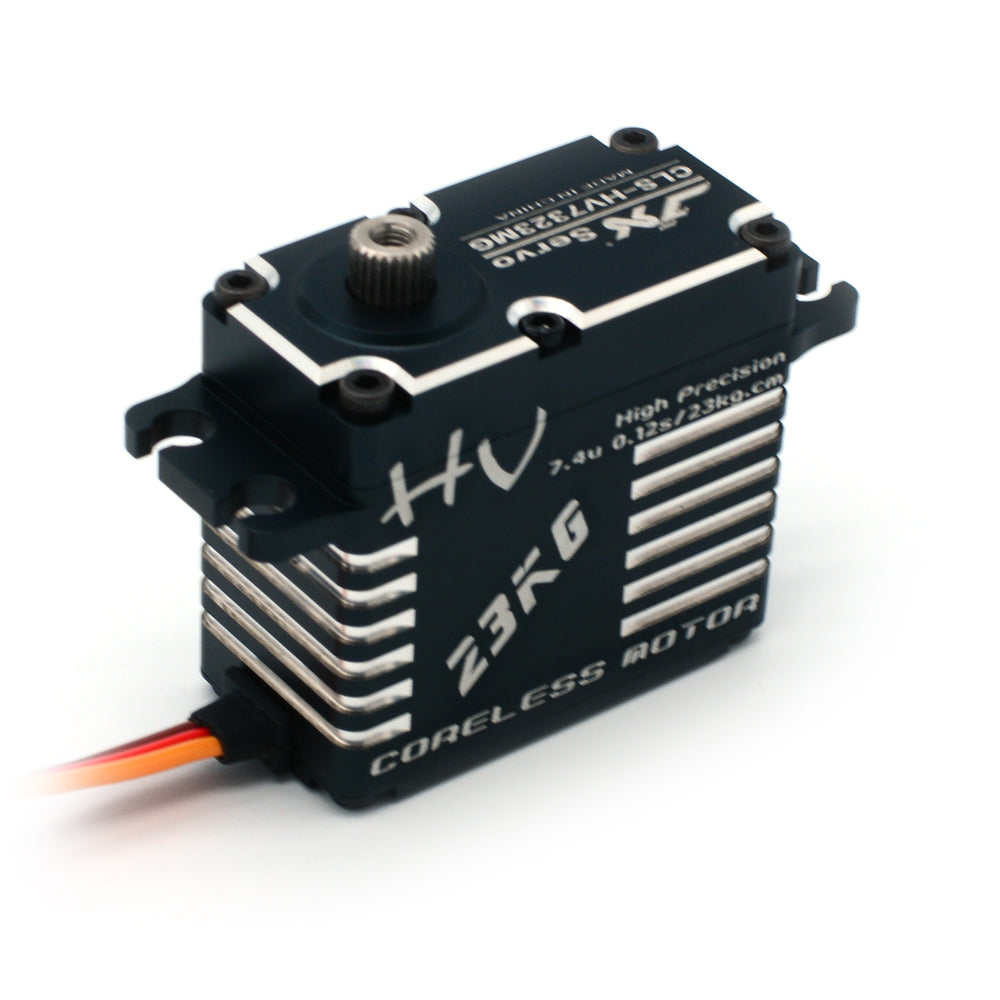

JX Servo CLS-HV7323MG 23kg Coreless High Precision Steel Gear Full CNC Digital HV Servo
$32.49
Skip to product information
JX Servo CLS-HV7323MG 23kg Coreless High Precision Steel Gear Full CNC Digital HV Servo
$32.49
Product Specifications
FEATURE
| High voltage |
| High performance programmable digital coreless standard servo |
| High-precision Taiwan-made steel gears with hard anodizing |
| Full CNC aluminium shell structure |
| Dual ball bearings |
| Waterproof |
SPECIFICATIONS
| Dead band | 1μs |
| Working Frequency | 1520μs / 330hz |
| Motor | Coreless |
| Operating Speed (6V) | 0.15 sec/60° |
| Operating Speed (7.4V) | 0.12 sec/60° |
| Stall Torque (6V) | 20.2 kg.cm |
| Stall Torque (7.4V) | 23.9 kg.cm |
| Dimensions | 40.5x20.5x36mm |
| Weight | 73 g |
| Connector Wire Length | JR 265mm |
| Bearing | 2BB |
| Tooth Count | 25 |
