JX Servo CLS6027HV 27kg Coreless Metal Gear Digital Servo
Sale price
$18.15
Regular price $38.70
Skip to product information
JX Servo CLS6027HV 27kg Coreless Metal Gear Digital Servo
Sale price
$18.15
Regular price $38.70
FEATURE：
--CNC metal On the cover In the shell
--High-precision Taiwan-made aluminium gears with hard anodizing
--High Voltage Coreless Digital Servo

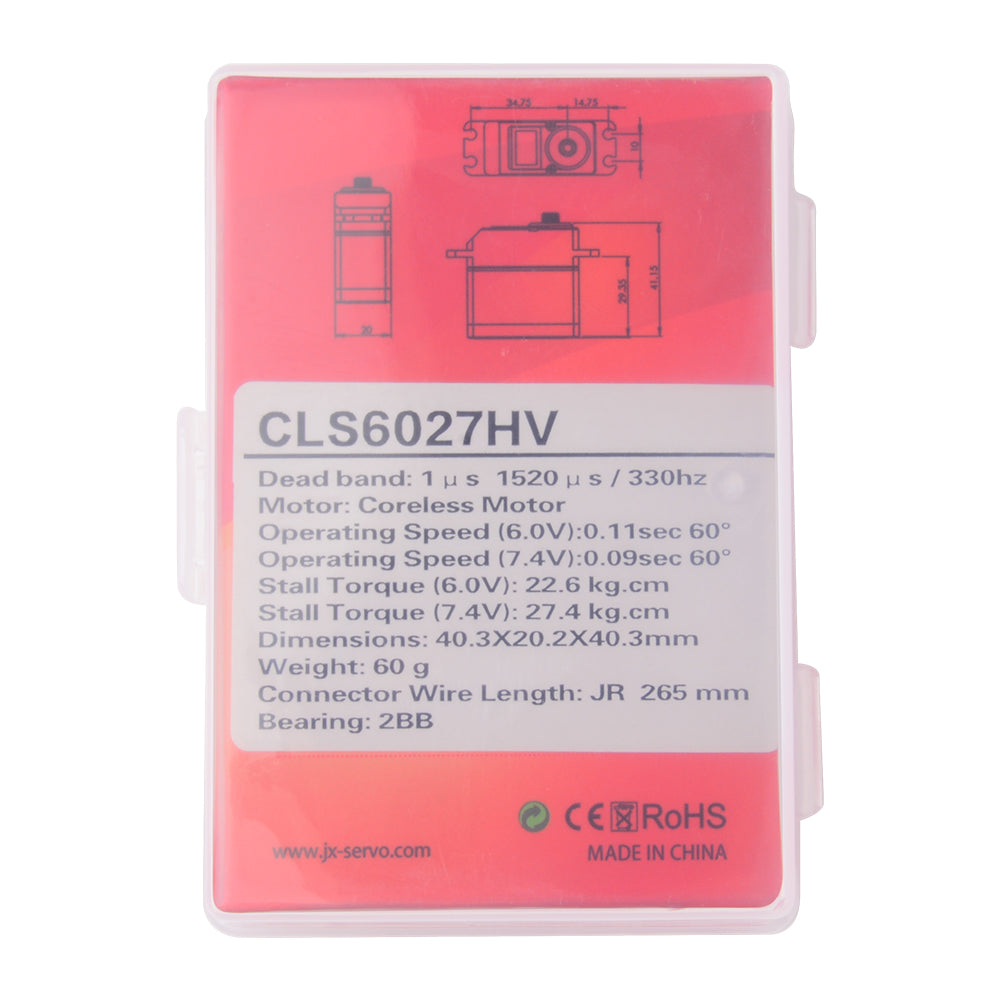

SPECIFICATIONS：
Dead band： 1μs
Working frequence： 1520μs / 330hz
Motor： Coreless
Operating Speed6.6v 0.11 sec/60°
Operating Speed7.4v 0.09 sec/60°
Stall Torque 6.6v 22.6 kg.cm
Stall Torque 7.4v 27.4 kg.cm

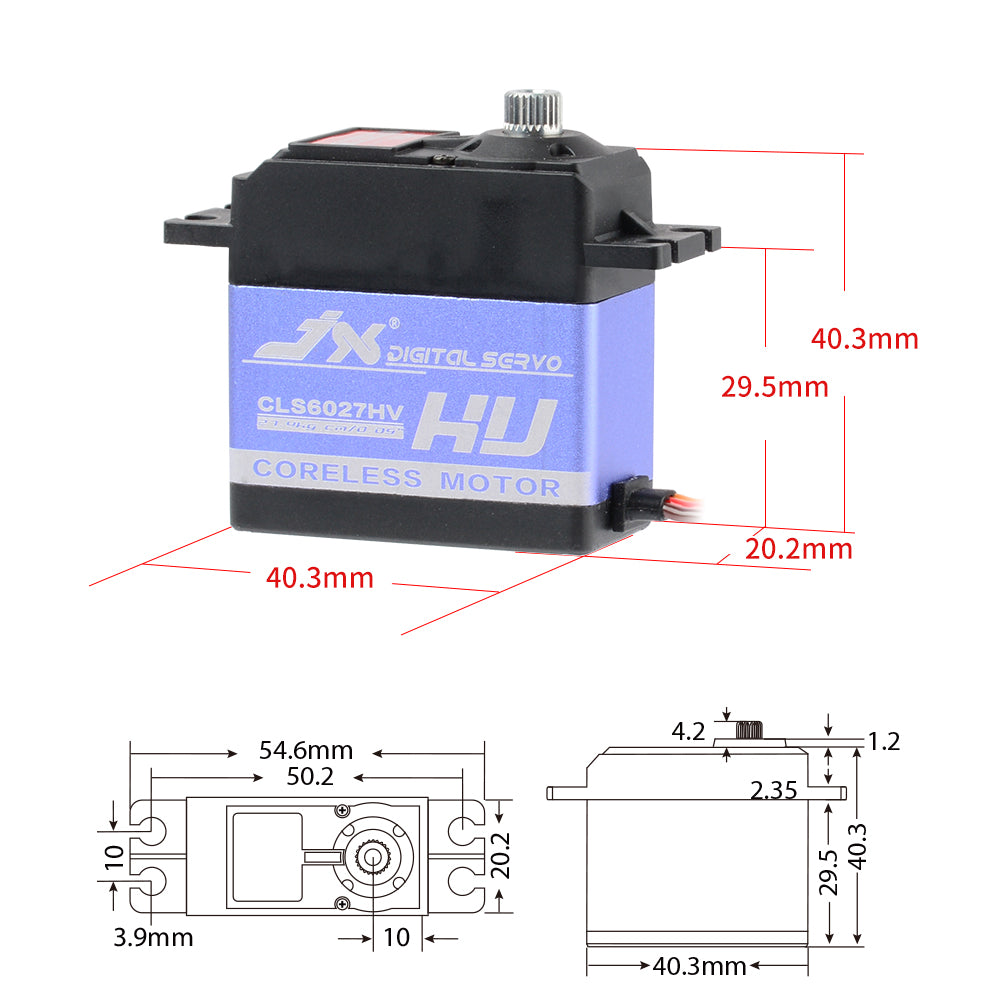

Dimensions： 40.5X20.5X40mm
Weight： 60 g
Wire/Color： JR 265 mm/ -Brown +Red S Orange
Bearing： 2BB
--CNC metal On the cover In the shell
--High-precision Taiwan-made aluminium gears with hard anodizing
--High Voltage Coreless Digital Servo
SPECIFICATIONS：
Dead band： 1μs
Working frequence： 1520μs / 330hz
Motor： Coreless
Operating Speed6.6v 0.11 sec/60°
Operating Speed7.4v 0.09 sec/60°
Stall Torque 6.6v 22.6 kg.cm
Stall Torque 7.4v 27.4 kg.cm
Dimensions： 40.5X20.5X40mm
Weight： 60 g
Wire/Color： JR 265 mm/ -Brown +Red S Orange
Bearing： 2BB
