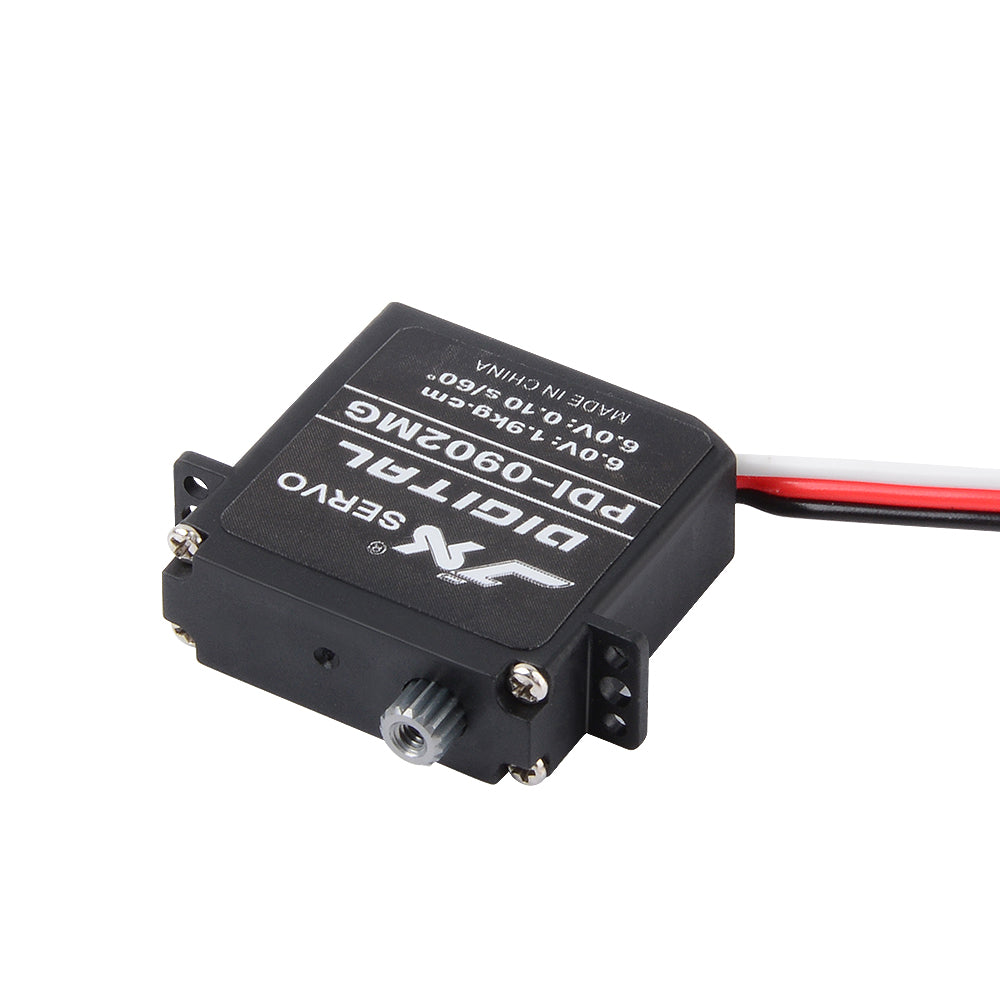

JX Servo PDI-0902MG 9.4g High Torque Digital Standard Servo
$7.26
Product Specifications

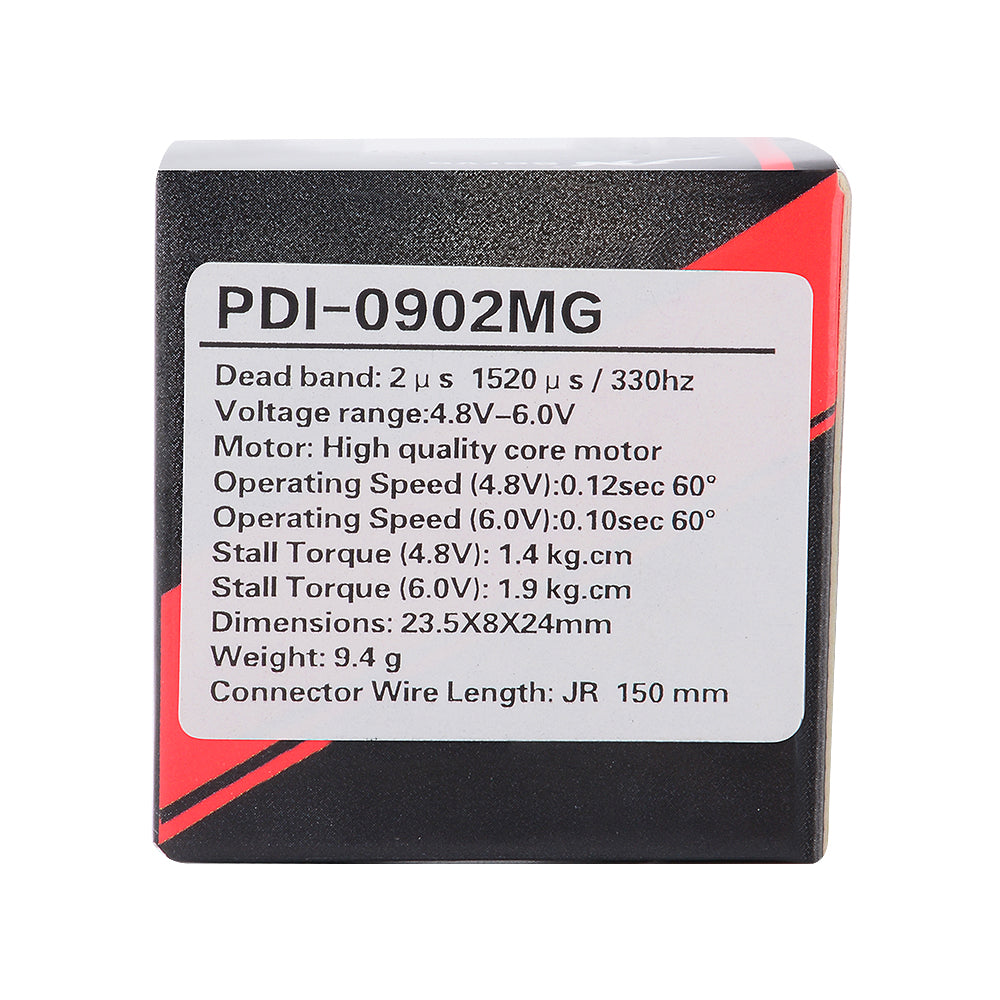

SPECIFICATIONS
| Dead band | 2μs |
| Control System | +Pulse Width Control |
| Working Frequency | 1520μs / 330hz |
| Operating Voltage | DC6~7.4 V |
| Operating Temperature | -10 to +60°C |
| Operating Speed (6V) | 0.09 sec/60° |
| Operating Speed (7.4V) | 0.07 sec/60° |
| Stall Torque (6V) | 2 kg.cm |
| Stall Torque (7.4V) | 2.6 kg.cm |
| Potentiometer Drive | Direct Drive |

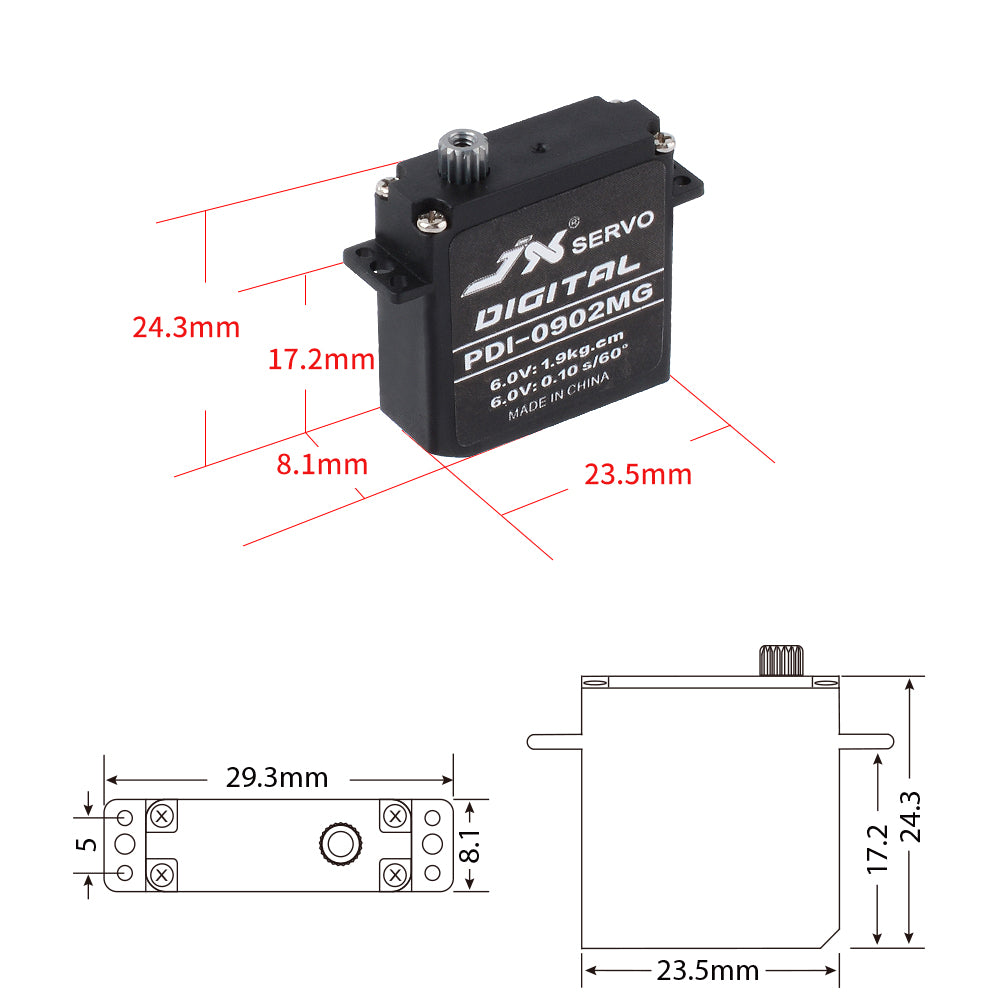

| Dimensions | 23.5x8x24mm |
| Weight | 9.4 g |

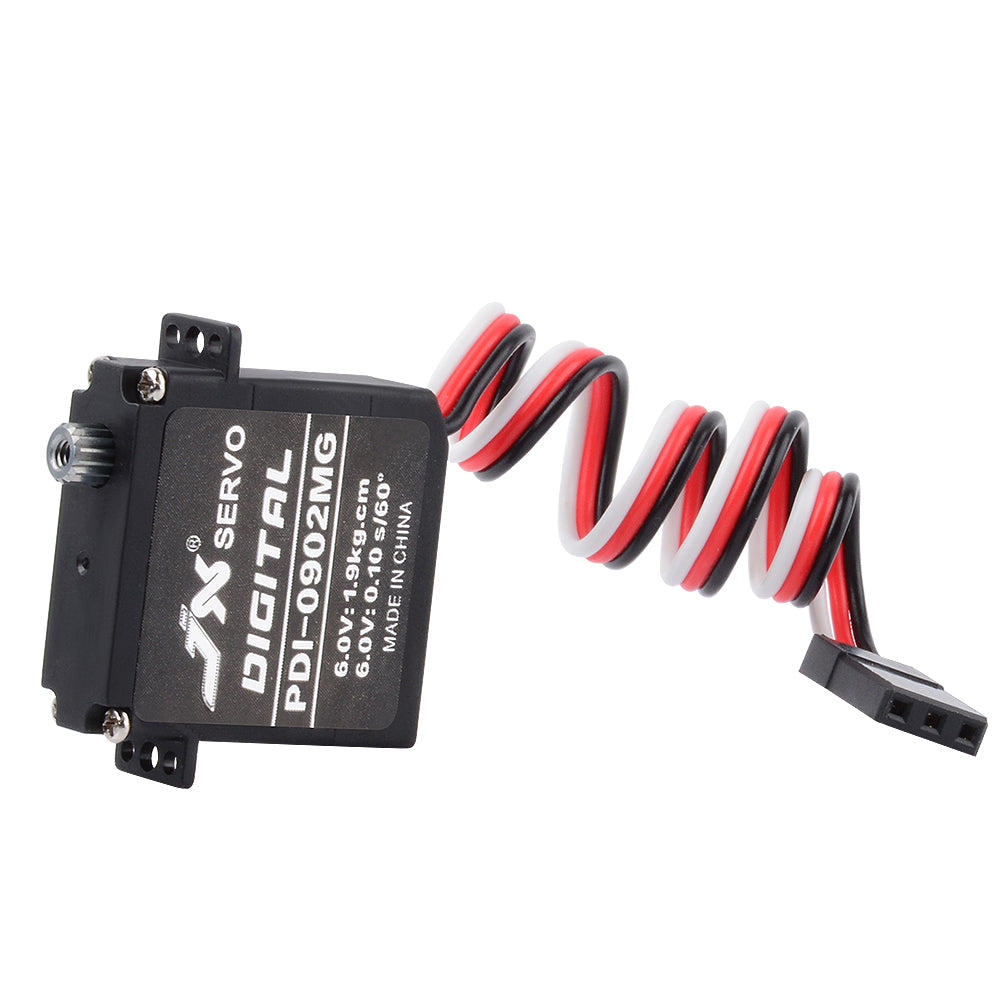

| Connector Wire Length | JR/Futaba 150mm |
| Bearing | 2BB |
| Tooth Count | 14 |
