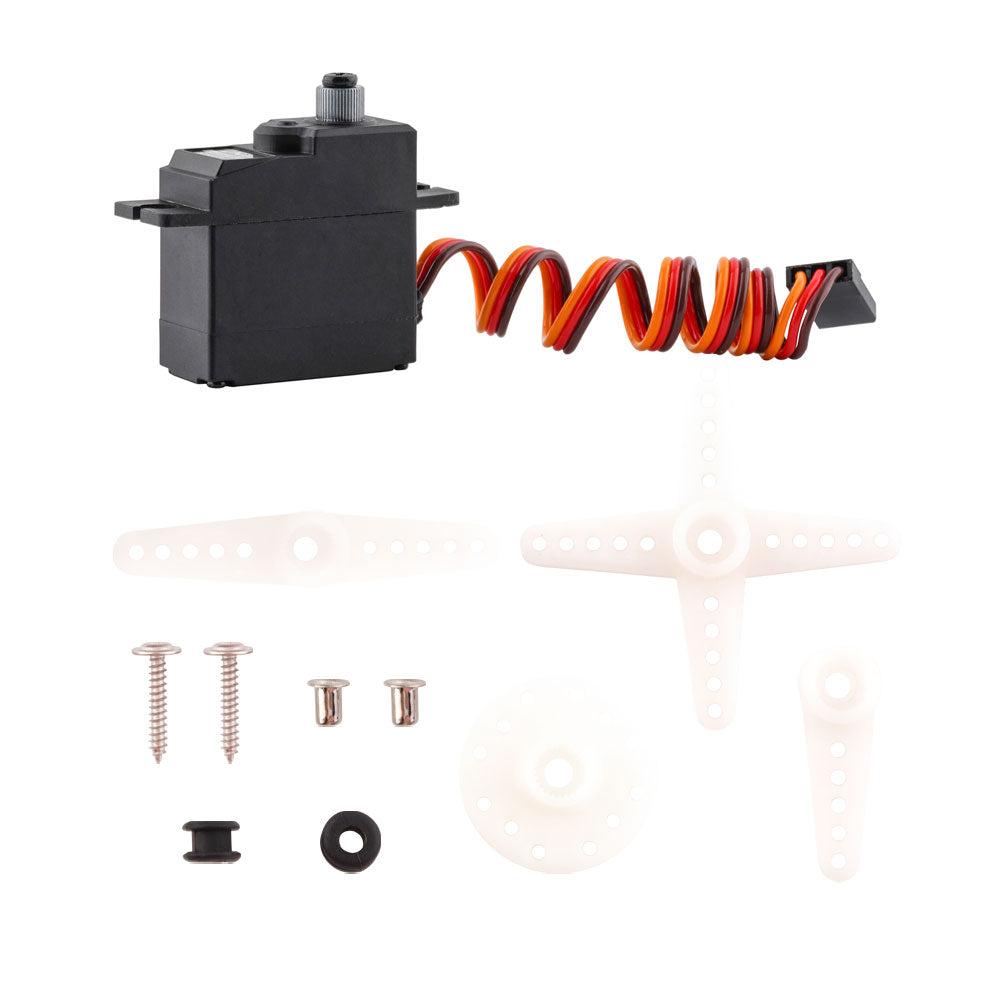

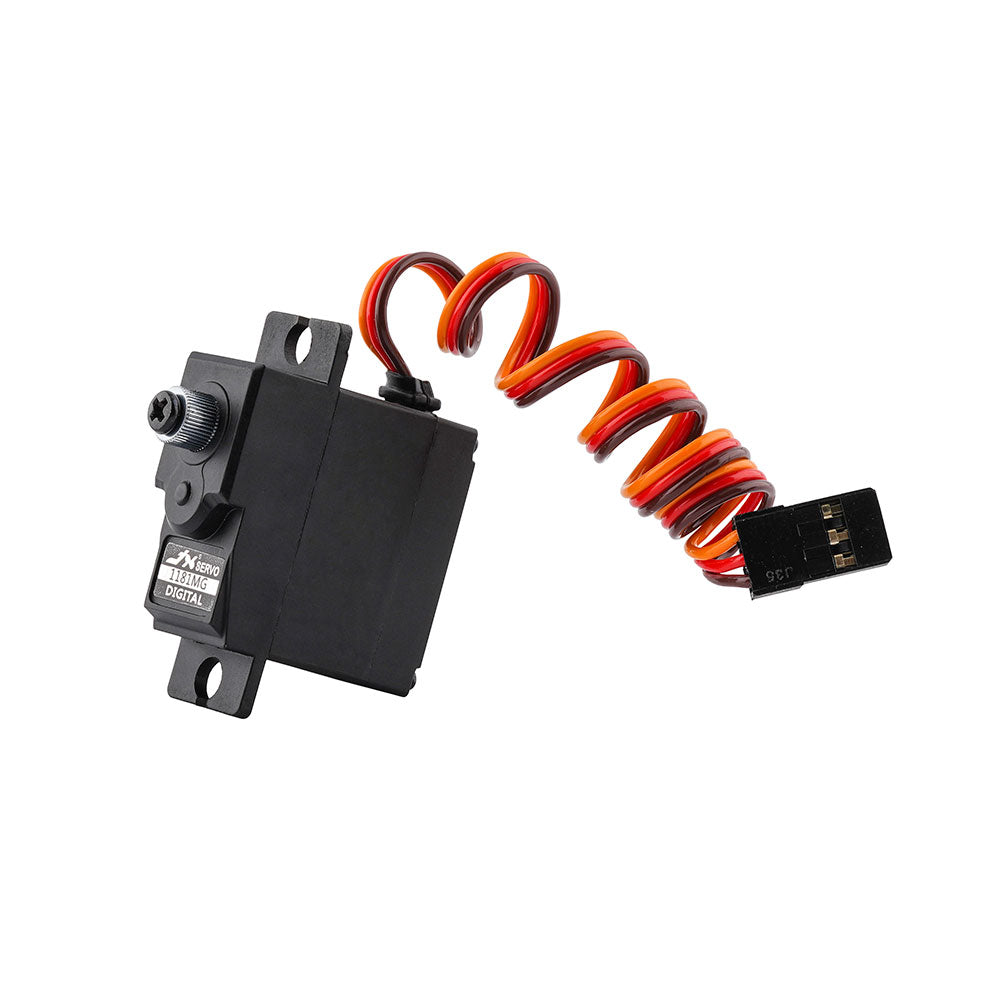

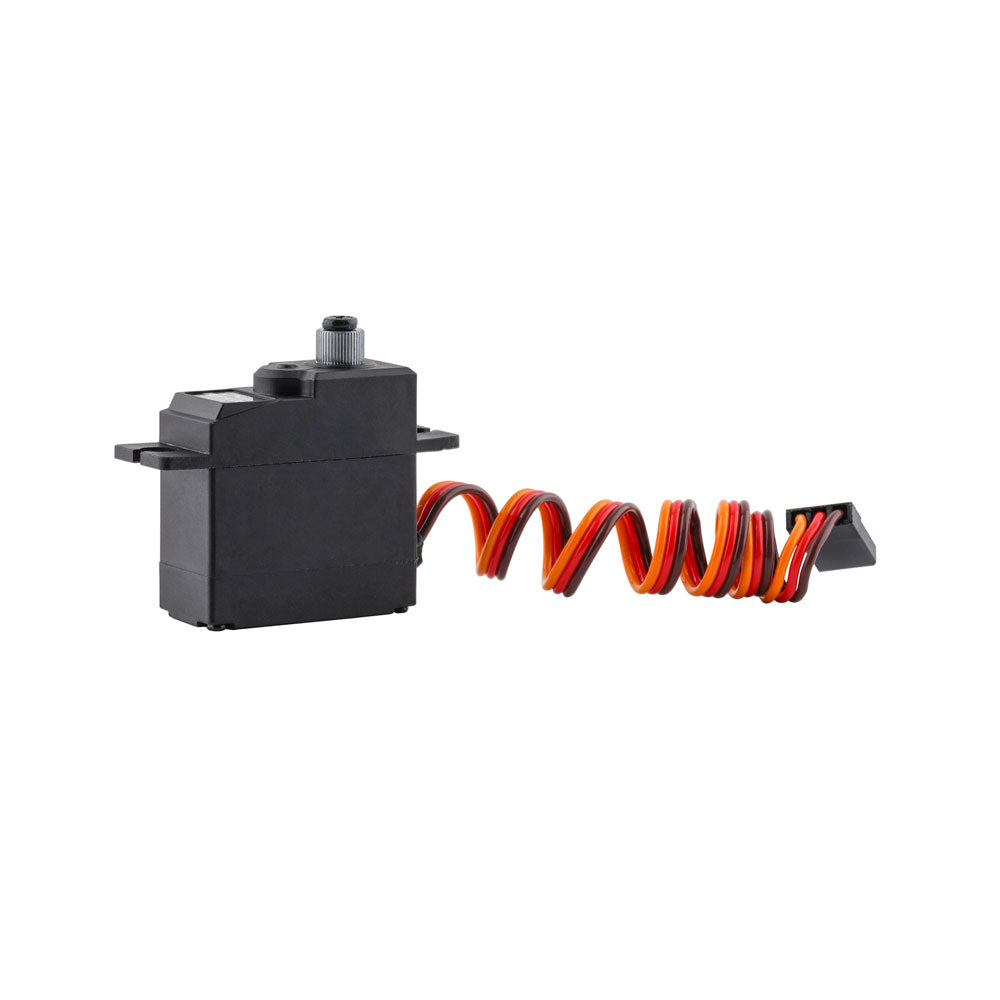

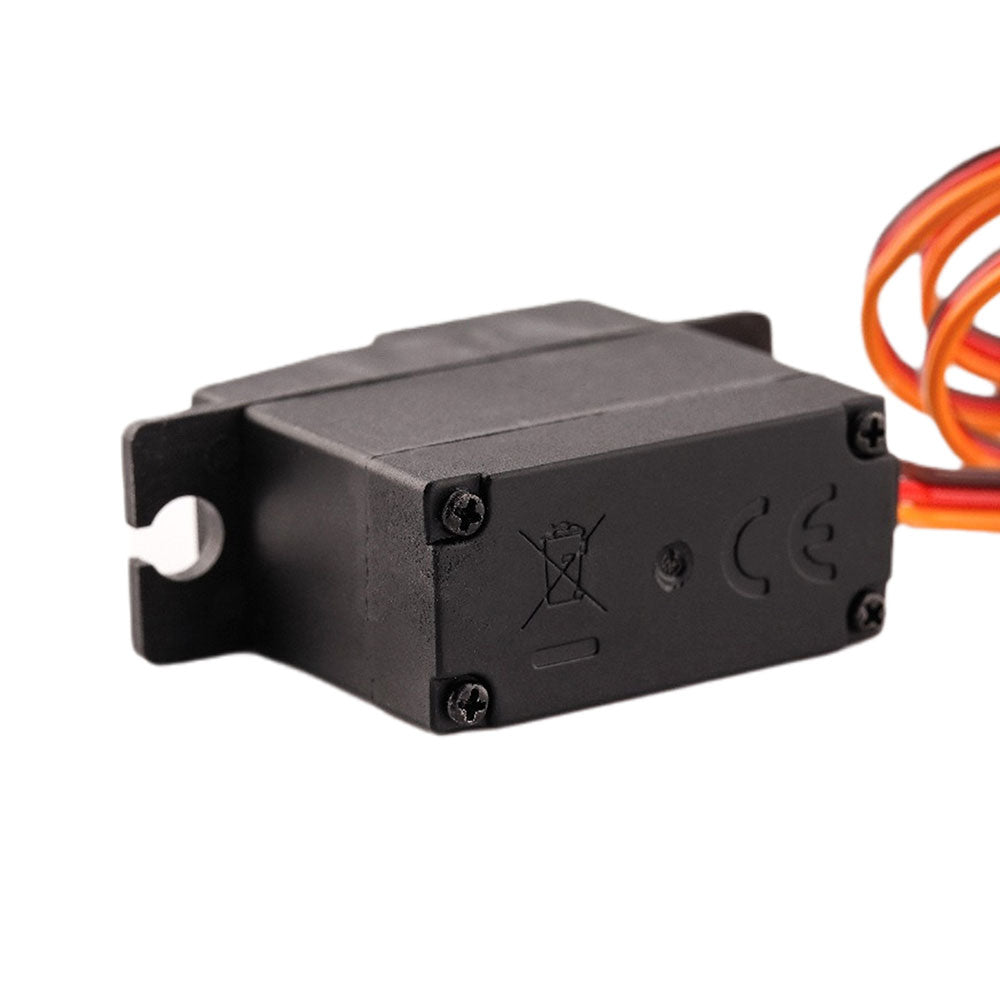

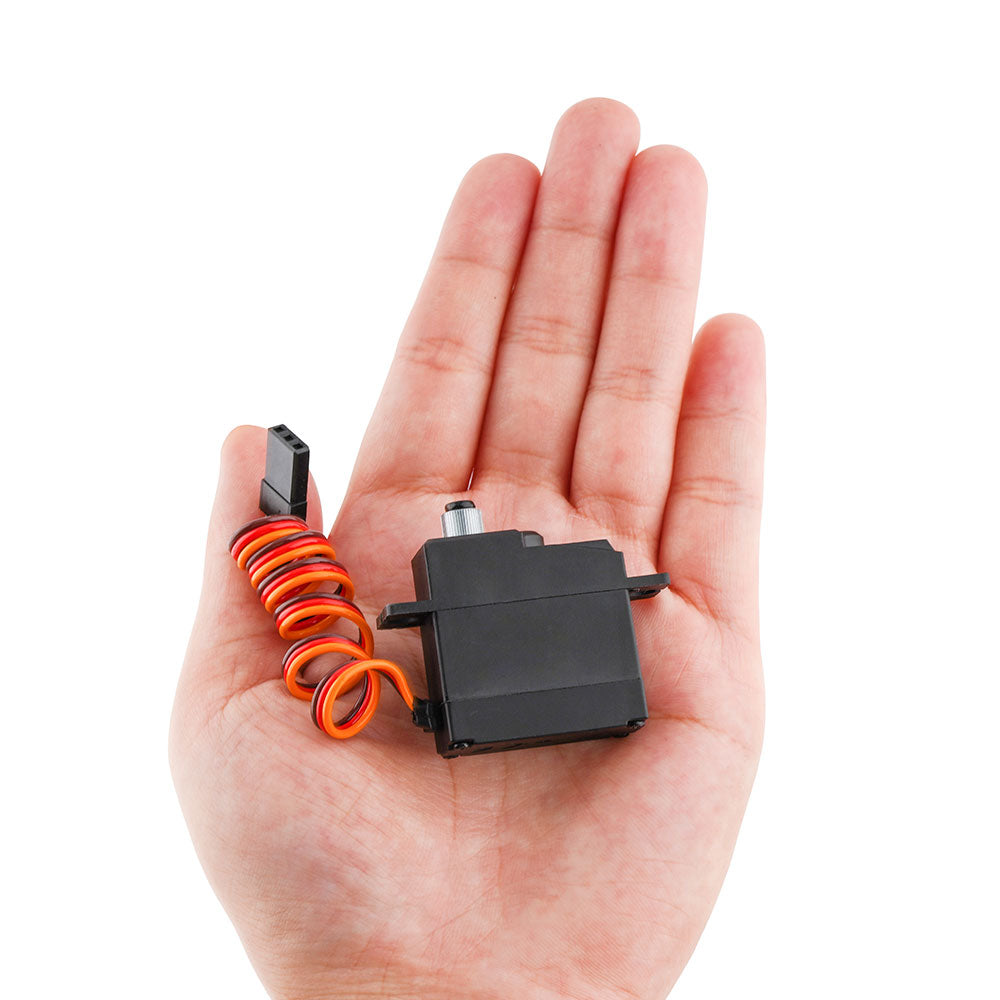

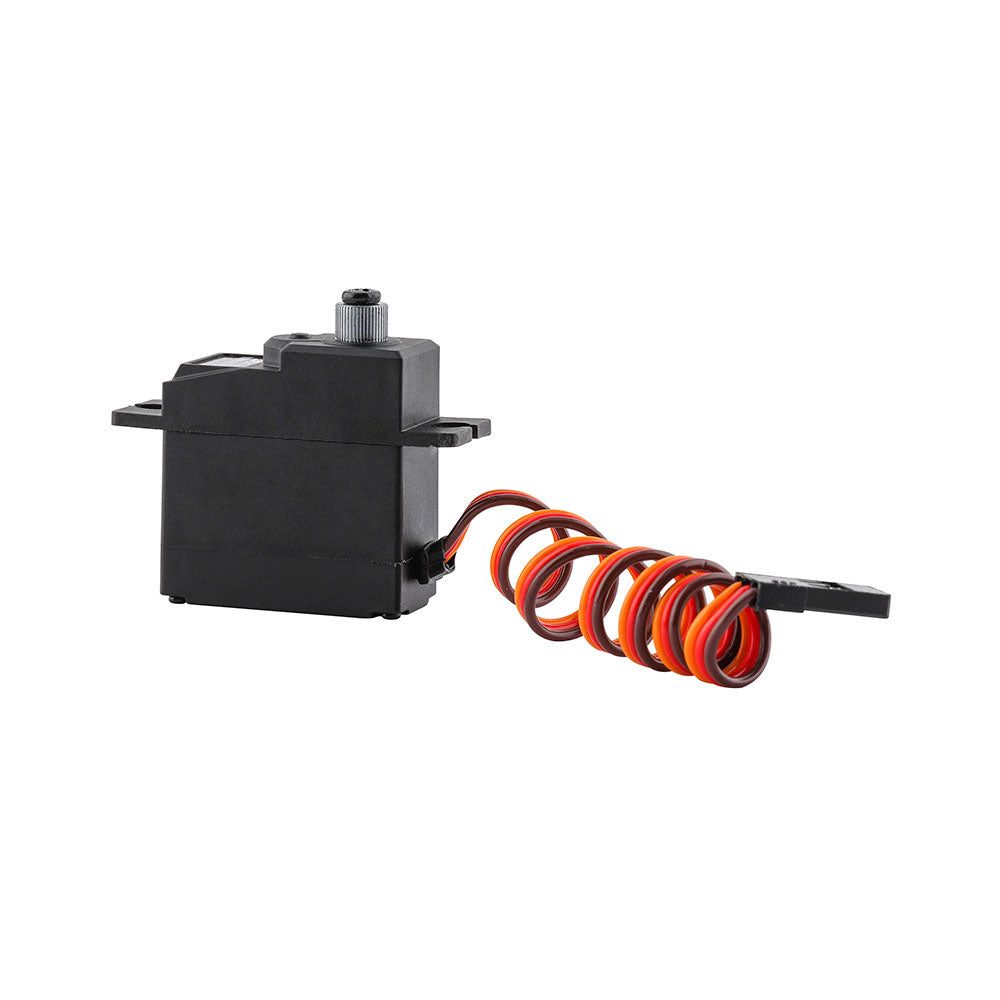

JX Servo PDI-1181MG 18g Metal Gear digital Core servo
$8.90
Skip to product information

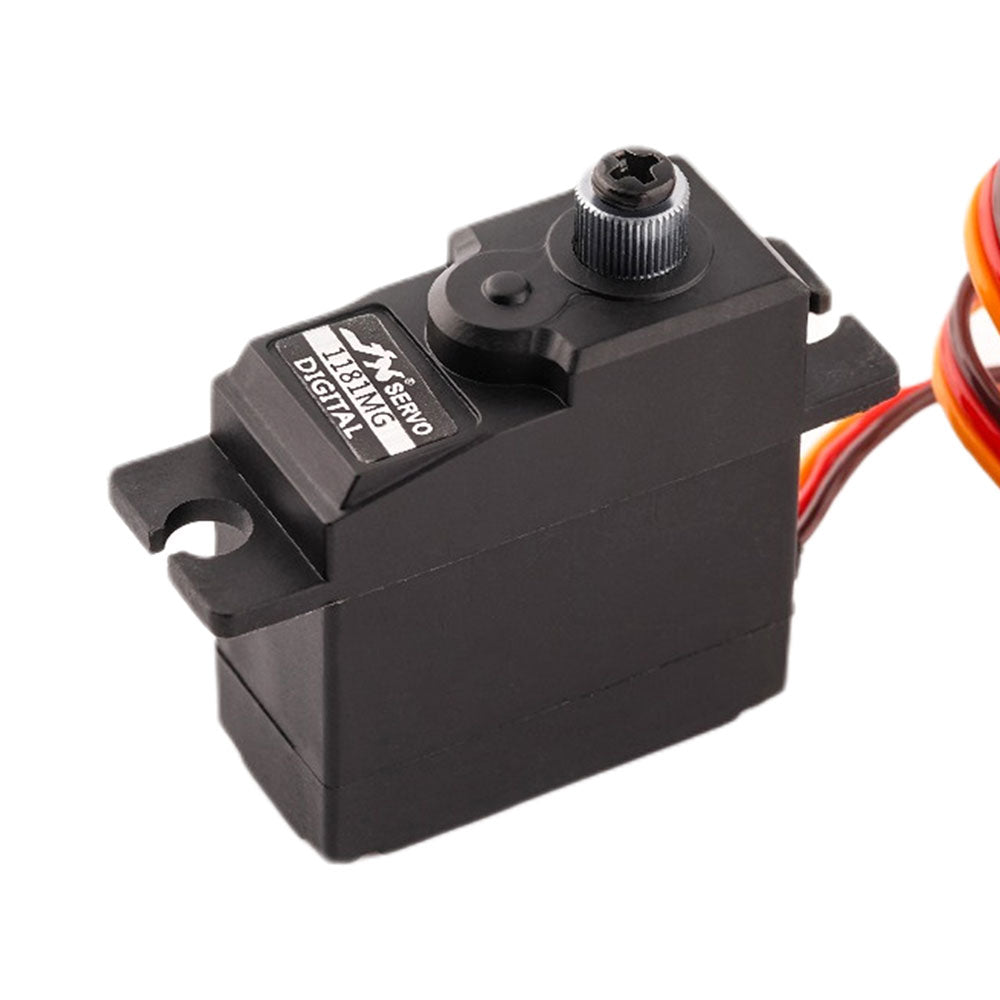

JX Servo PDI-1181MG 18g Metal Gear digital Core servo
$8.90
Parameters
Ideal servo for foam or balsa Park Scale models 900mm to 1300mm wing span. Also suitable for small robotics and DIY applications.

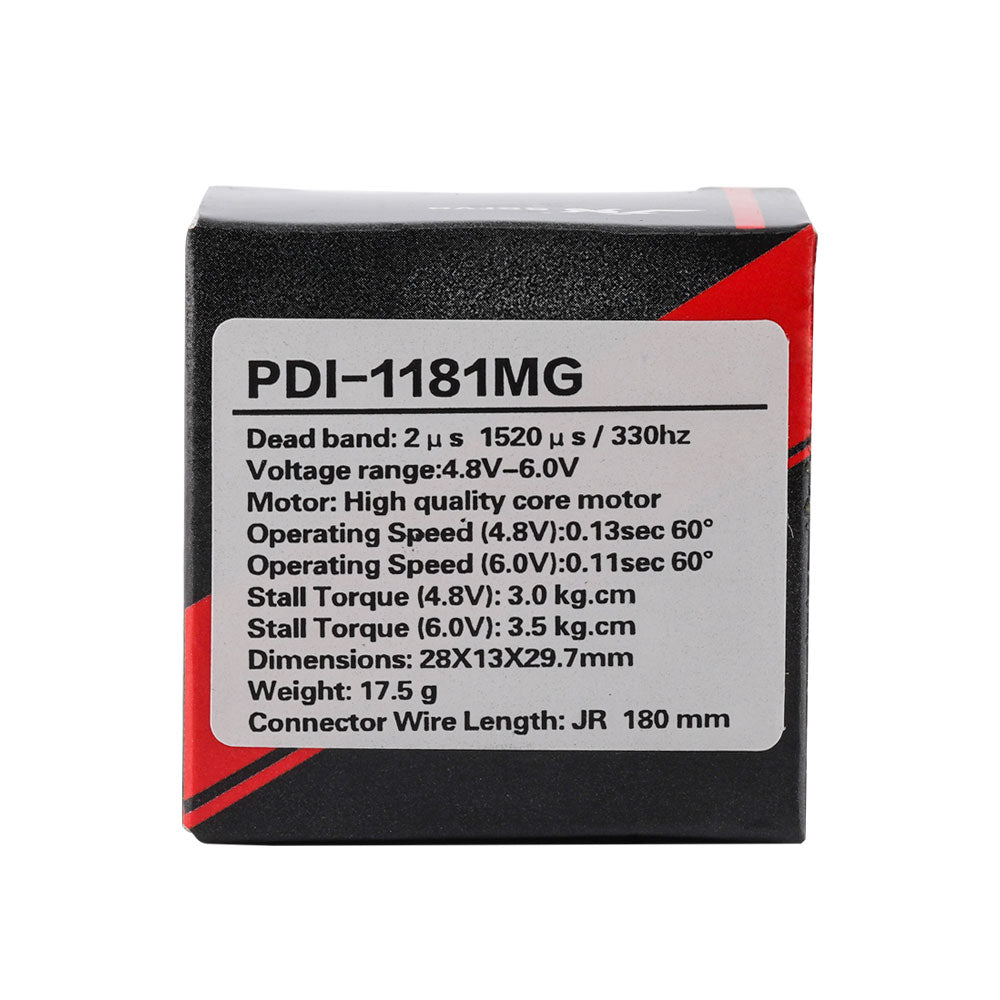

SPECIFICATIONS
| Dead band | 2μs |
| Working Frequency | 1520μs / 300hz |
| Motor | Core |
| Operating Voltage | DC4.8~6.0 V |
| Operating Speed (4.8V) | 0.13sec/60° |
| Operating Speed (6V) | 0.11 sec/60° |
| Stall Torque (4.8V) | 3.0kg.cm |
| Stall Torque (6V) | 3.5kg-cm |
| Dimensions | 28x13x29.7mm |
| Weight | 17.5g |
| Connector Wire Length | JR 180mm |
| Tooth Count | 46 |
