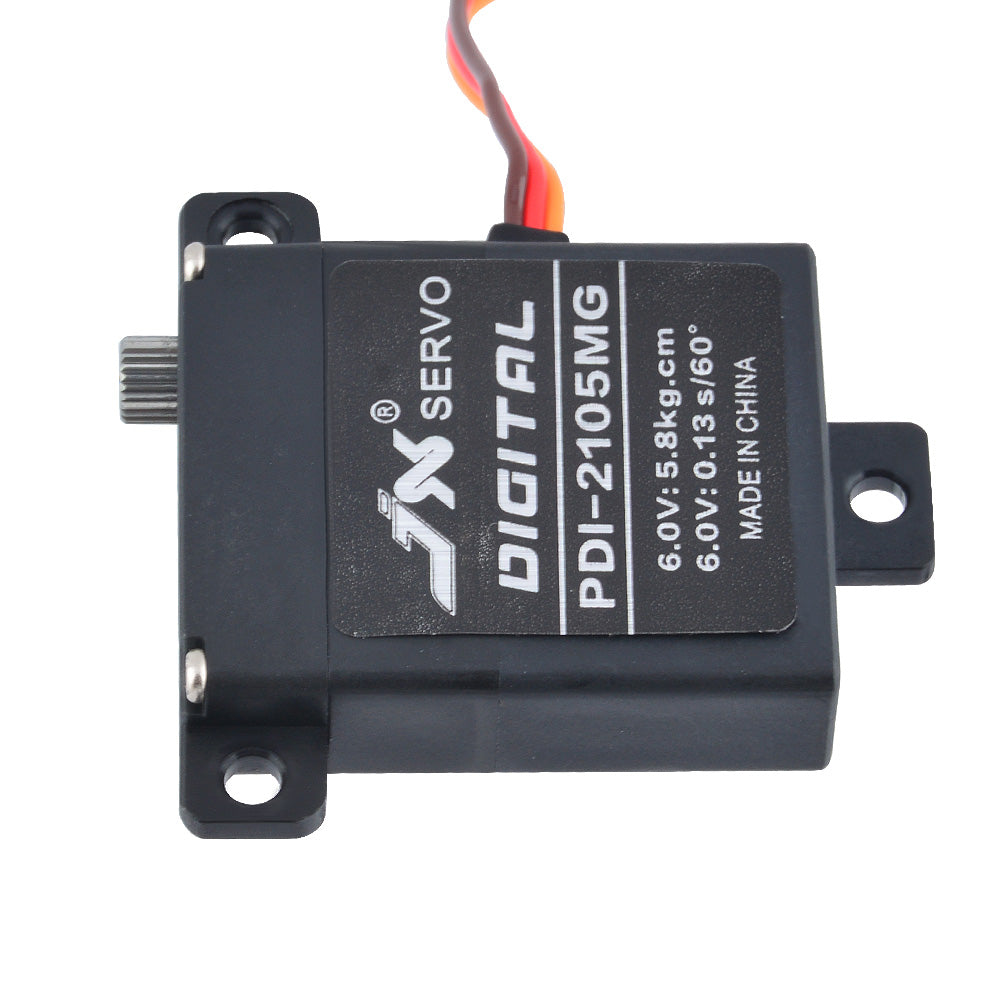

JX Servo PDI-2105MG 21g High Torque Digital Standard Servo
$7.26
Product Specifications

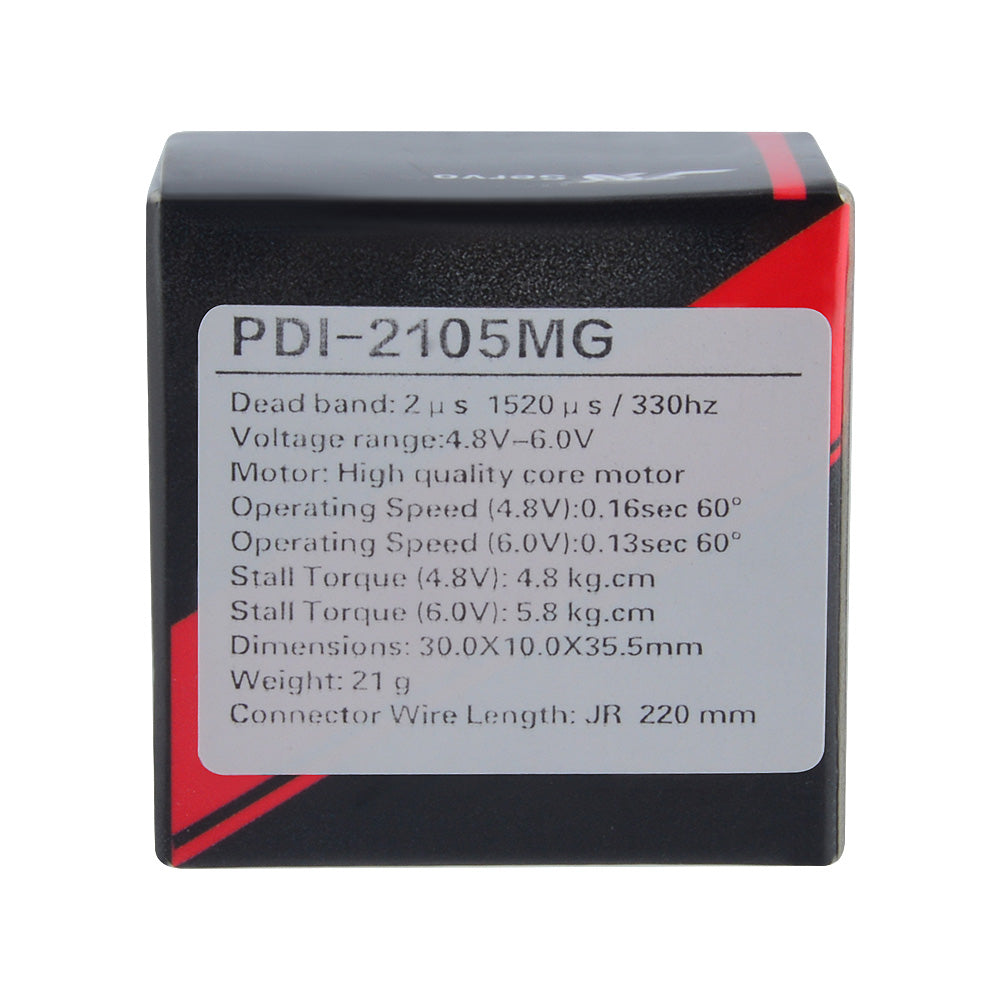

SPECIFICATIONS
| Dead band | 2μs |
| Control System | +Pulse Width Control |
| Working Frequency | 1520μs / 330hz |
| Operating Voltage | DC4.8~6.0 V |
| Operating Temperature | -10 to +60°C |
| Operating Speed (4.8V) | 0.16 sec/60° |
| Operating Speed (6.0V) | 0.13 sec/60° |
| Stall Torque (4.8V) | 4.8 kg.cm |
| Stall Torque (6.0V) | 5.8 kg.cm |
| Potentiometer Drive | Direct Drive |

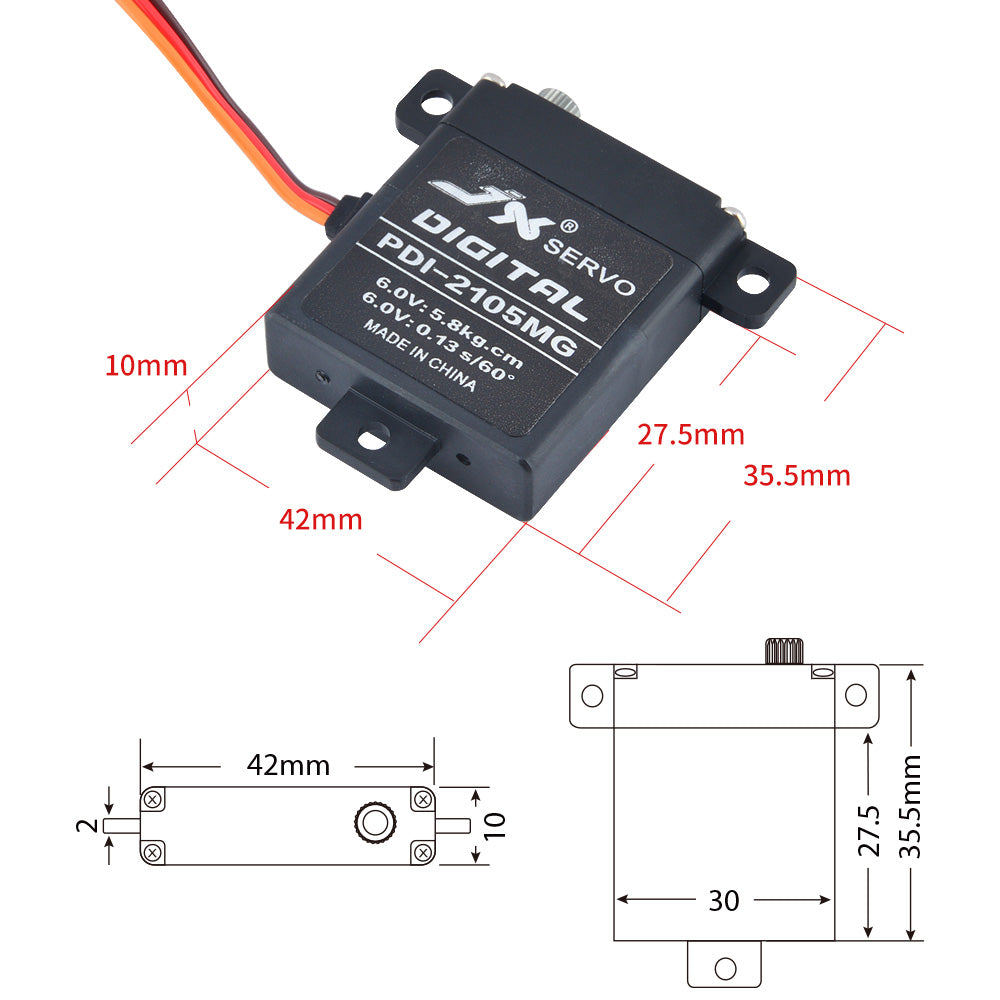

| Dimensions | 30.0x10.0x35.5mm |
| Weight | 21 g |
| Connector Wire Length | JR/Futaba 220mm |
| Bearing | 2BB |
| Tooth Count | 25 |
