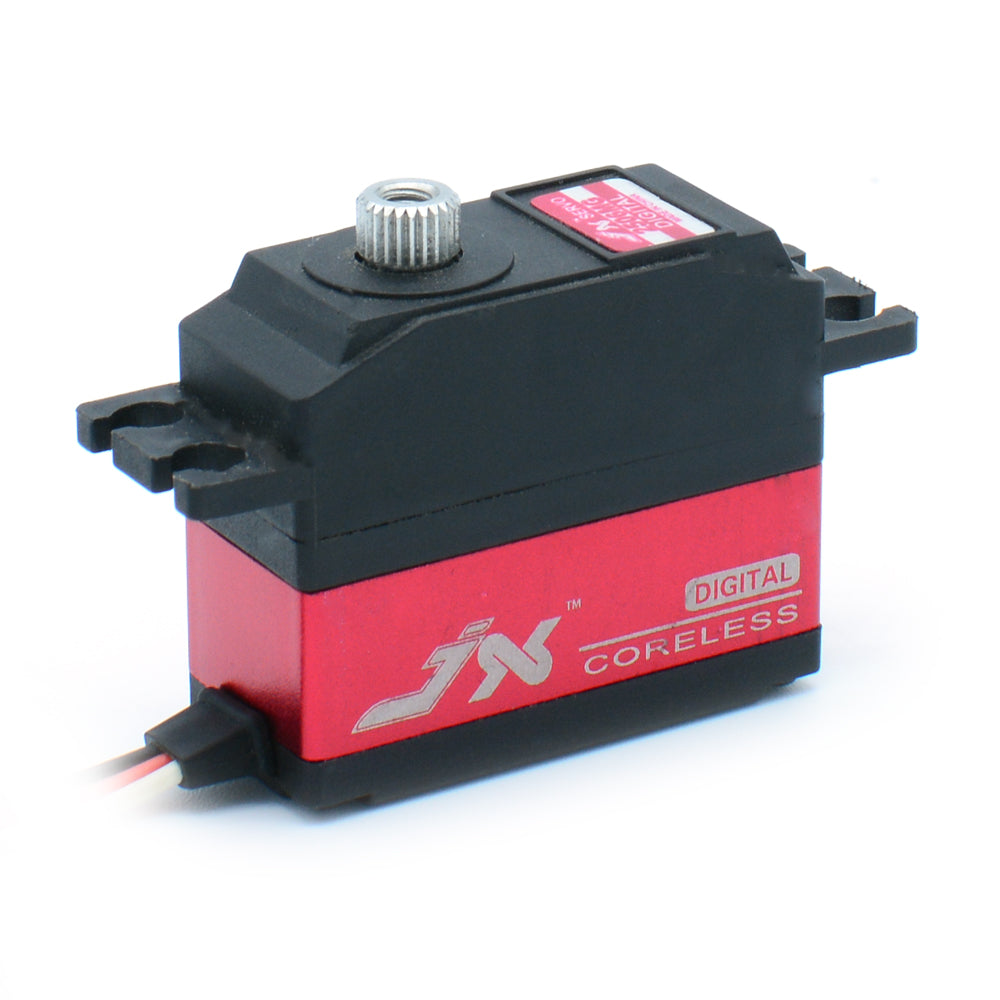

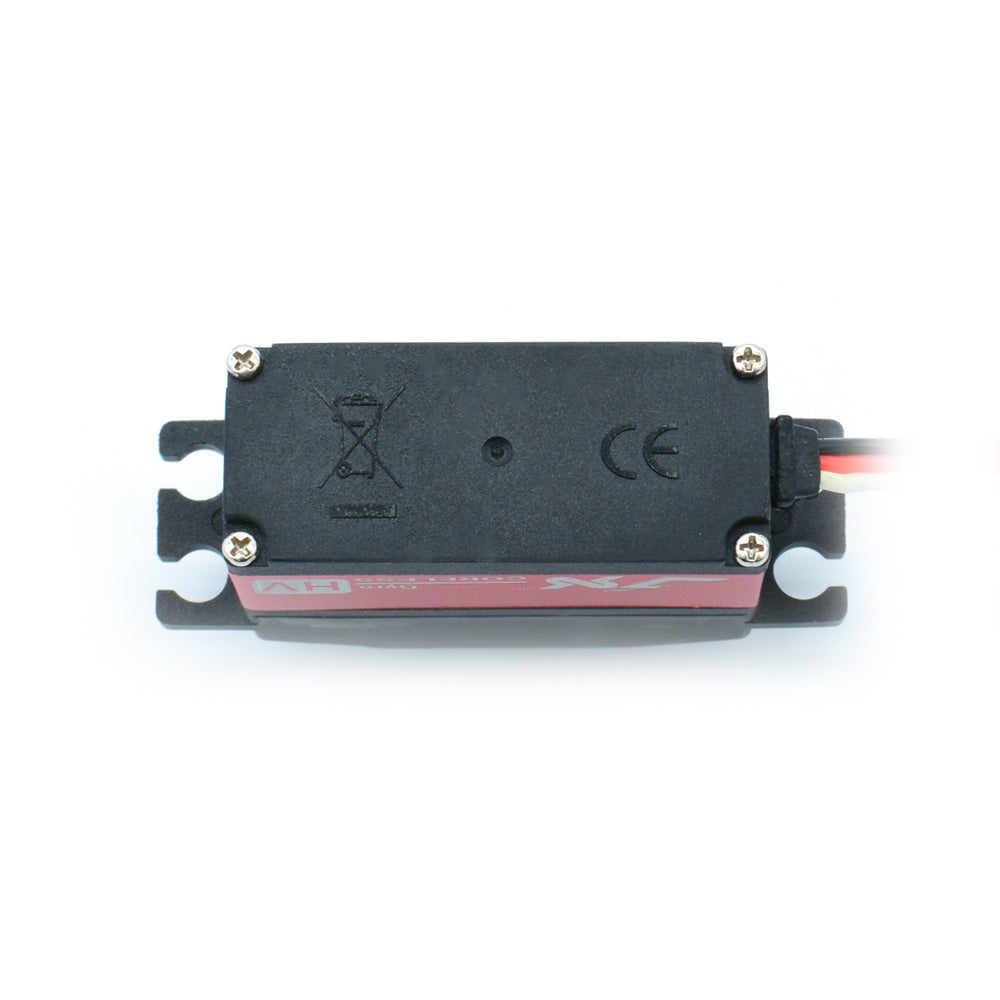

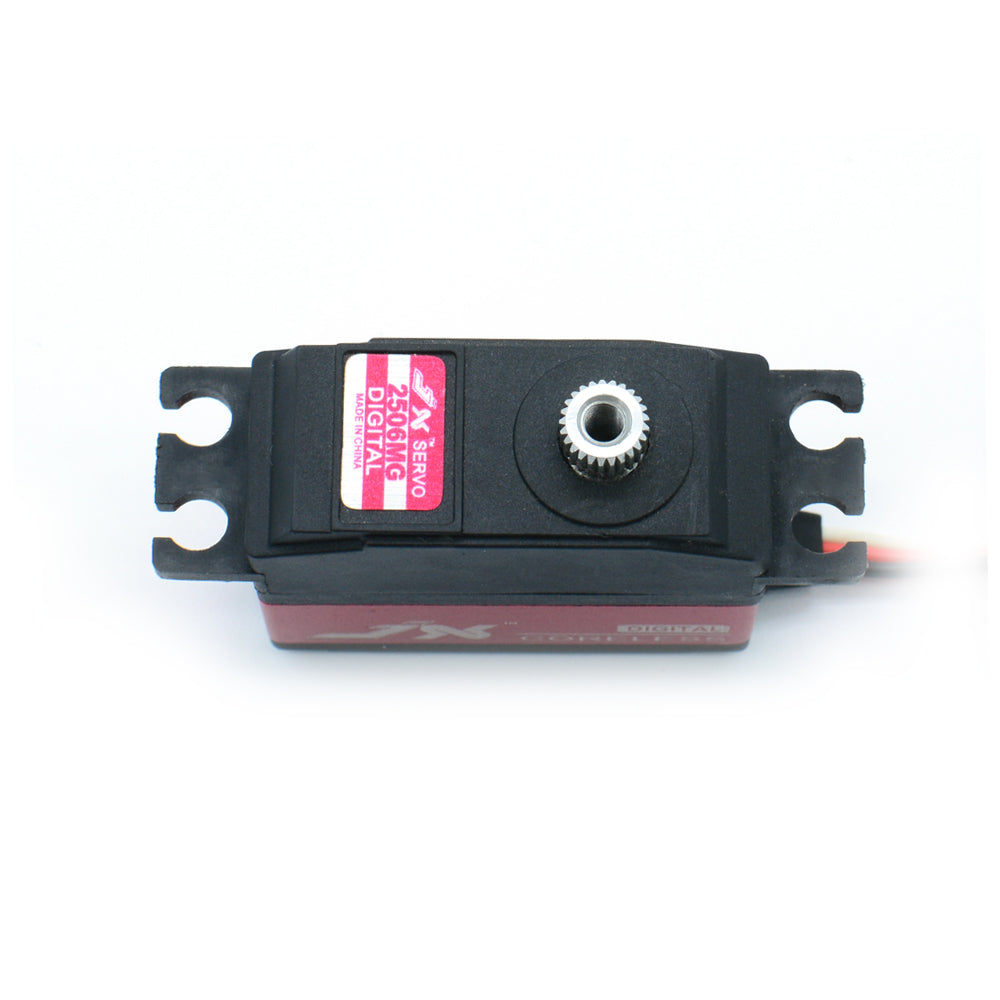

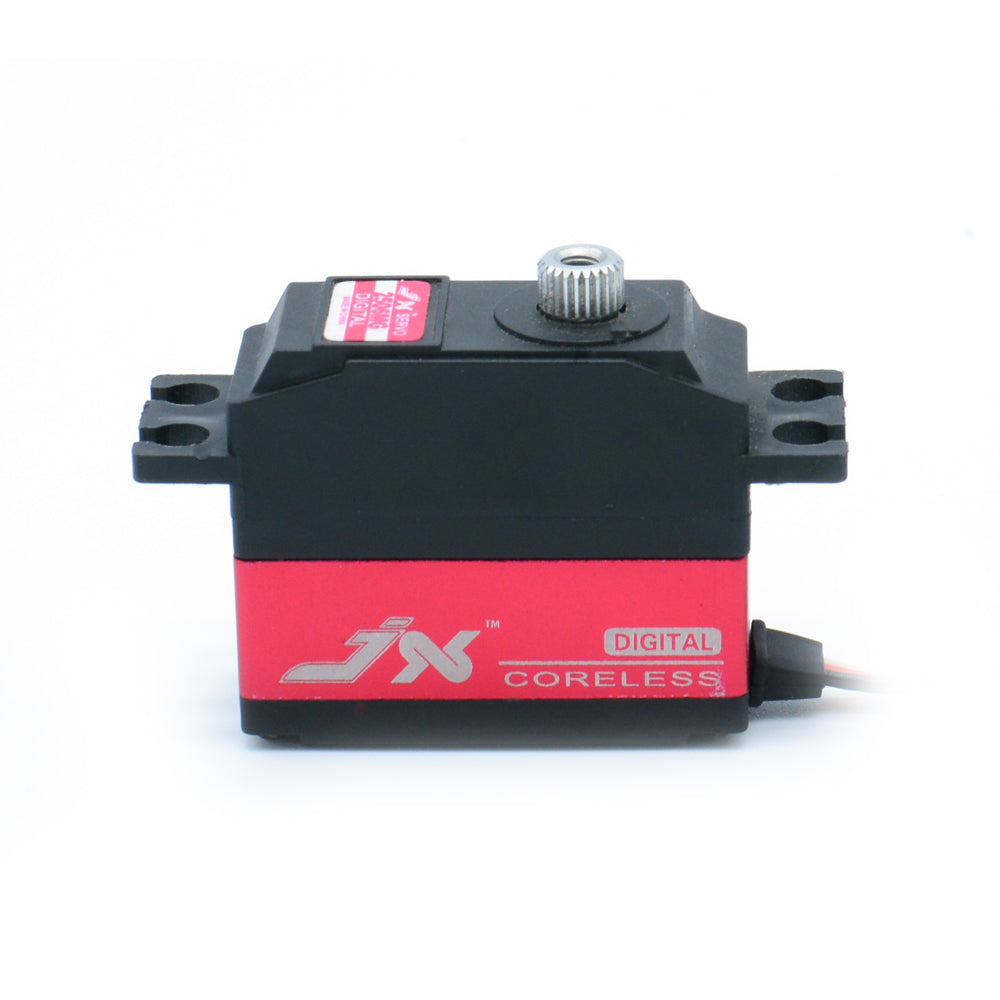

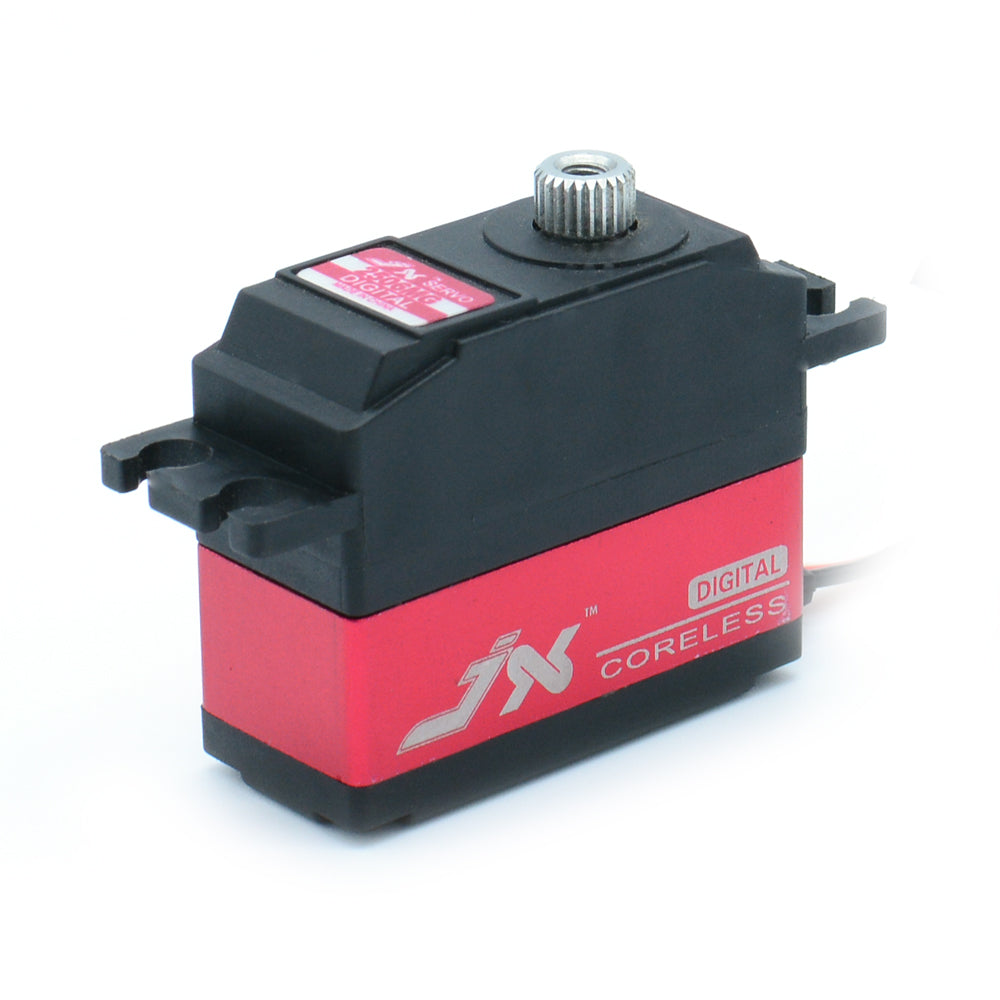

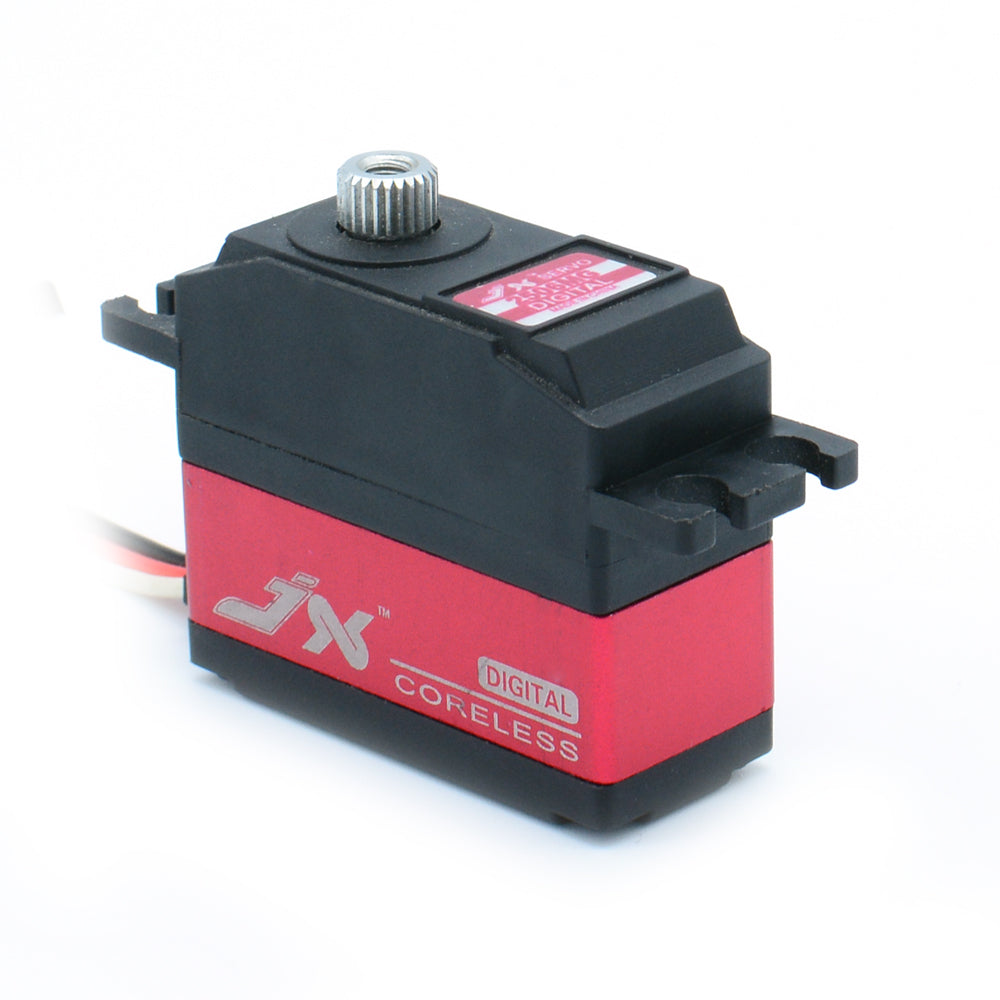

JX Servo PDI-2506MG 25g Metal Gear digital coreless servo
$11.08
Skip to product information
JX Servo PDI-2506MG 25g Metal Gear digital coreless servo
$11.08
Product Specifications
FEATURE
- High performance programmable digital coreless servo
- High-precision Taiwan-made aluminium gears with hard anodizing
- CNC aluminium middle hull
- Dual ball bearings
- Waterproof
SPECIFICATIONS
| Dead band | 1μs |
| Working Frequency | 1520μs / 330hz |
| Motor | Coreless |
| Operating Speed (4.8V) | 0.11 sec/60° |
| Operating Speed (6V) | 0.09 sec/60° |
| Stall Torque (4.8V) | 5.3 kg.cm |
| Stall Torque (6V) | 6.6 kg.cm |
| Dimensions | 36x15x32.4mm |
| Weight | 26.32 g |
| Connector Wire Length | JR 180mm |
| Bearing | 2BB |
| Tooth Count | 25 |
