JX Servo PDI-4409MG 44.5g Coreless Metal Gear Standard Digital Servo
$8.60
Skip to product information
JX Servo PDI-4409MG 44.5g Coreless Metal Gear Standard Digital Servo
$8.60
Product Specifications
FEATURE
- High-performance standard digital servo

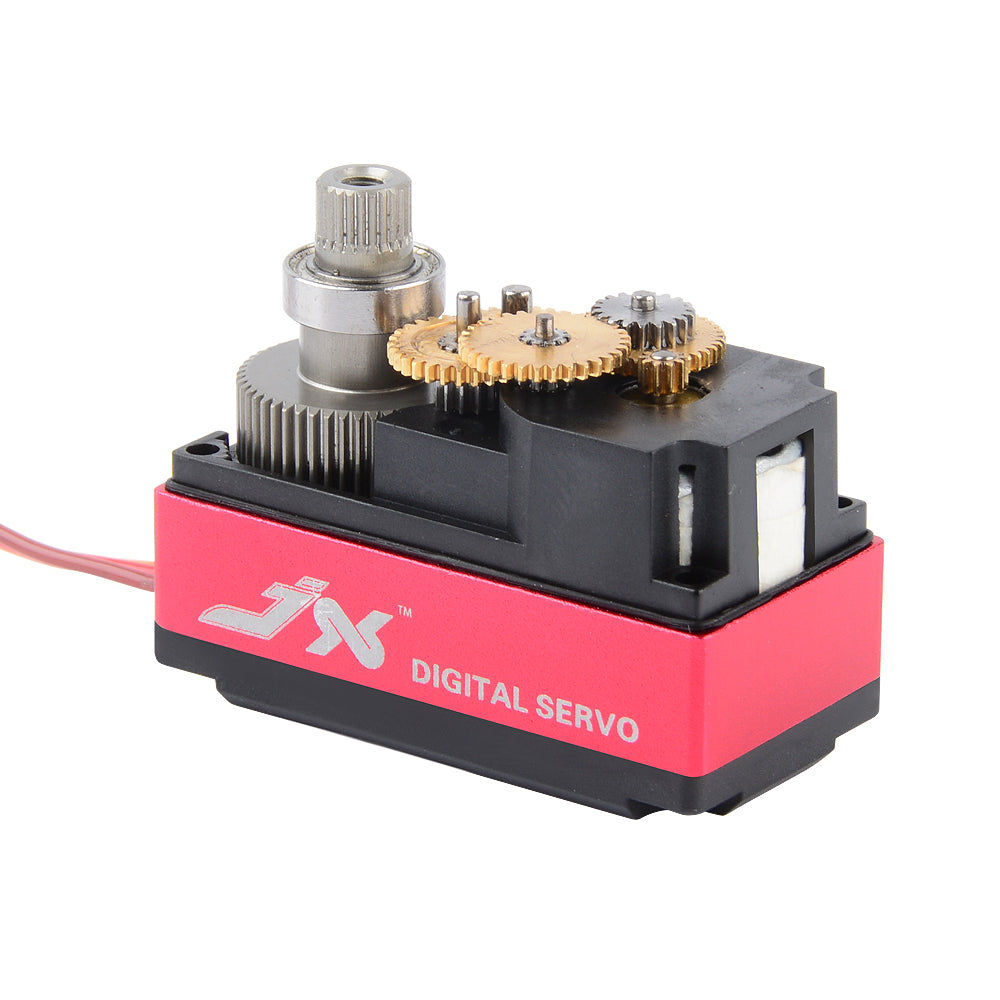

- High-precision metal gear
- High-quality brushed motor
- Dual ball bearings

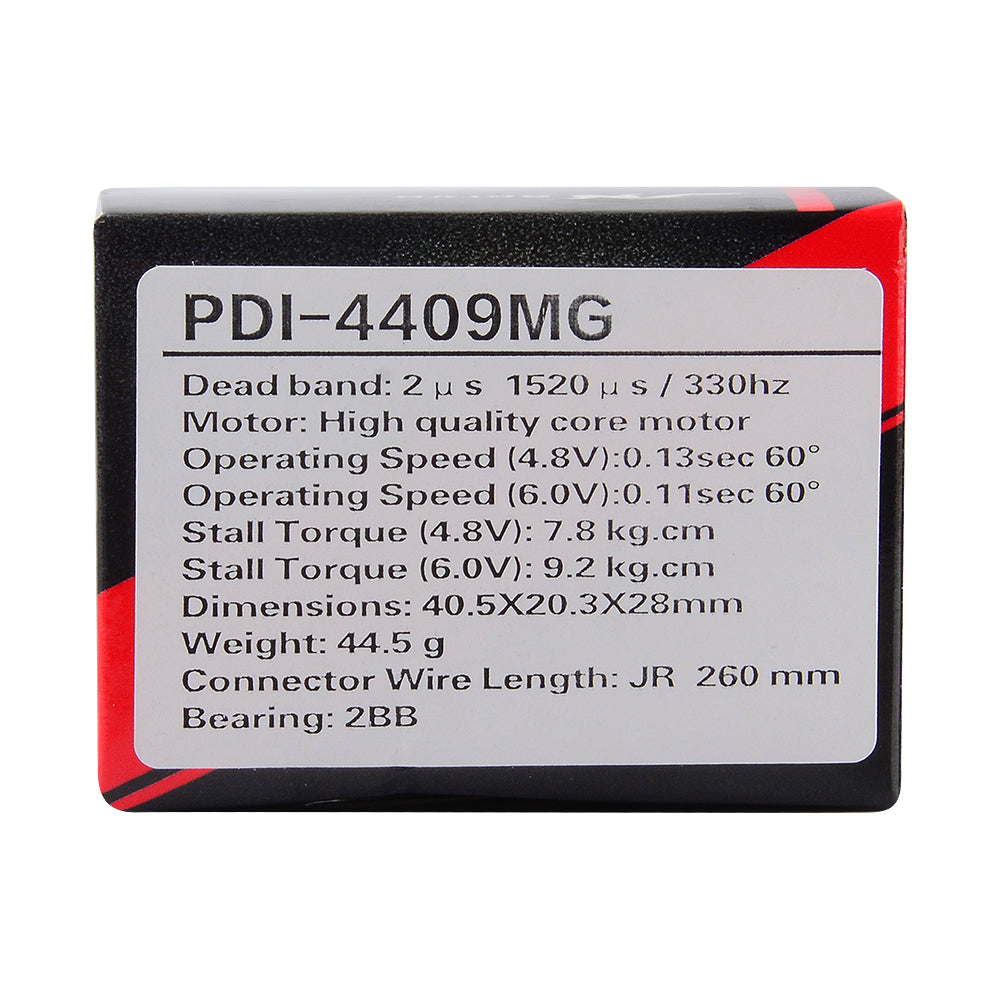

SPECIFICATIONS
| Dead band | 2μs |
| Working Frequency | 1520μs / 330hz |
| Motor | High quality core motor |
| Operating Speed (4.8V) | 0.13 sec/60° |
| Operating Speed (6V) | 0.11 sec/60° |
| Stall Torque (4.8V) | 7.8 kg.cm |
| Stall Torque (6V) | 9.2 kg.cm |

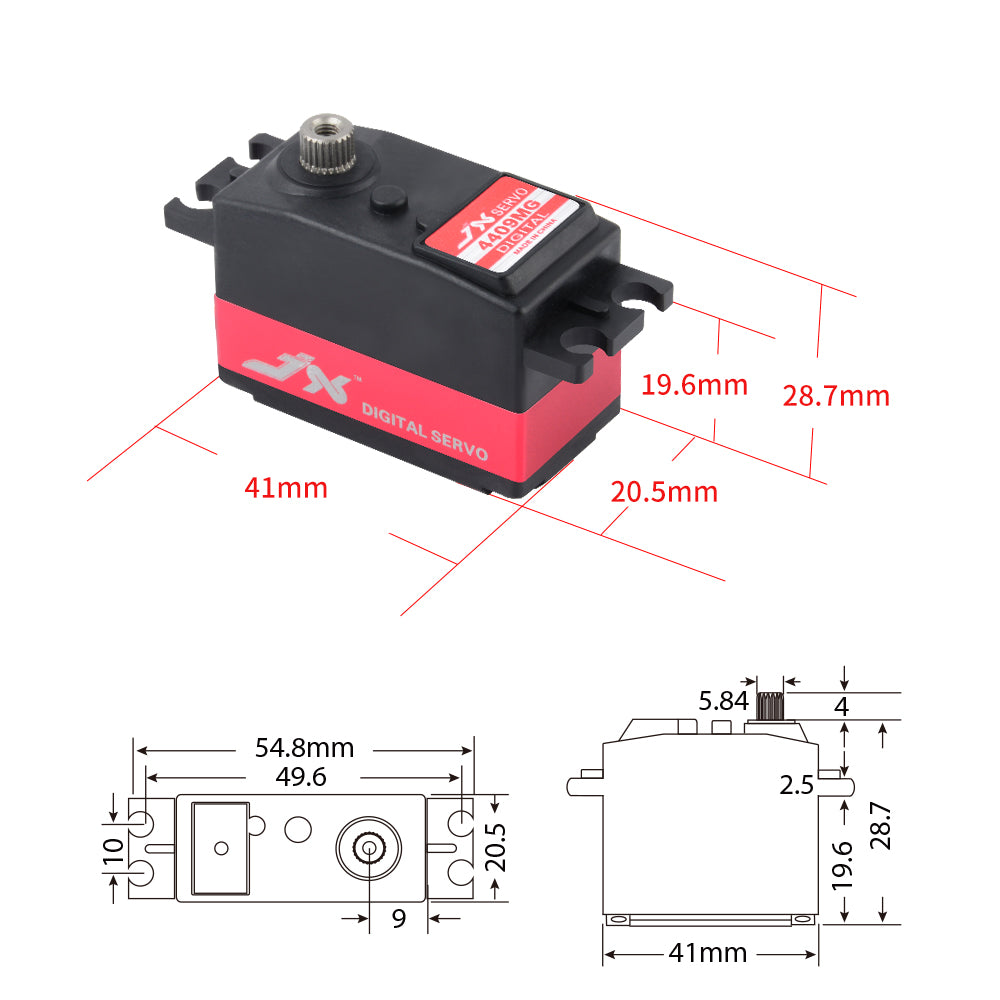

| Dimensions | 40.5x20.3x28mm |
| Weight | 44.5 g |
| Connector Wire Length | JR 265mm |
| Bearing | 2BB |
| Tooth Count | 25 |
