JX Servo PDI-5521MG-180 55.6g Metal Gear Digital Standard Servo
$7.64
Skip to product information
JX Servo PDI-5521MG-180 55.6g Metal Gear Digital Standard Servo
$7.64
Product Specifications
FEATURE
- High performance digital standard servo
- High-precision Taiwan-made metal gears
- High quality brushed motor
- Dual ball bearings
- Large stall torque of 20.32 kg/cm
- Suitable for RC car, boat, drone and helicopter

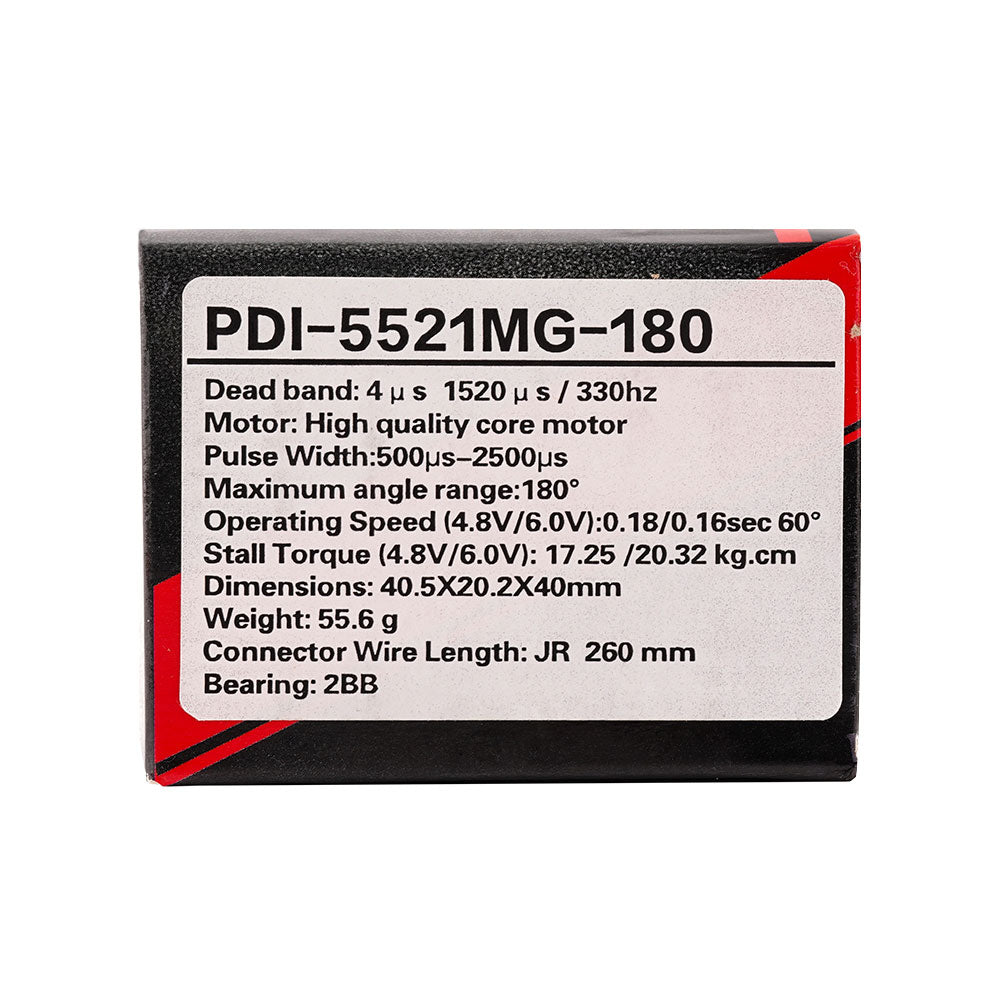

SPECIFICATIONS
| Max Angle | 180° |
| Pulse Width (90°) | 1000~2000μs |
| Pulse Width (180°) | 500~2500μs |
| Dead band | 2μs |
| Working Frequency | 1520μs / 330hz |
| Operating Voltage | DC4.8~6.0 V |
| Operating Speed (4.8V) | 0.18 sec/60° |
| Operating Speed (6V) | 0.16 sec/60° |
| Stall Torque (4.8V) | 17.25 kg.cm |
| Stall Torque (6V) | 20.32 kg.cm |
| Dimensions | 40.5x20.2x38mm |
| Weight | 55.6 g |
| Connector Wire Length | ~250mm |
| Tooth Count | 25 |
