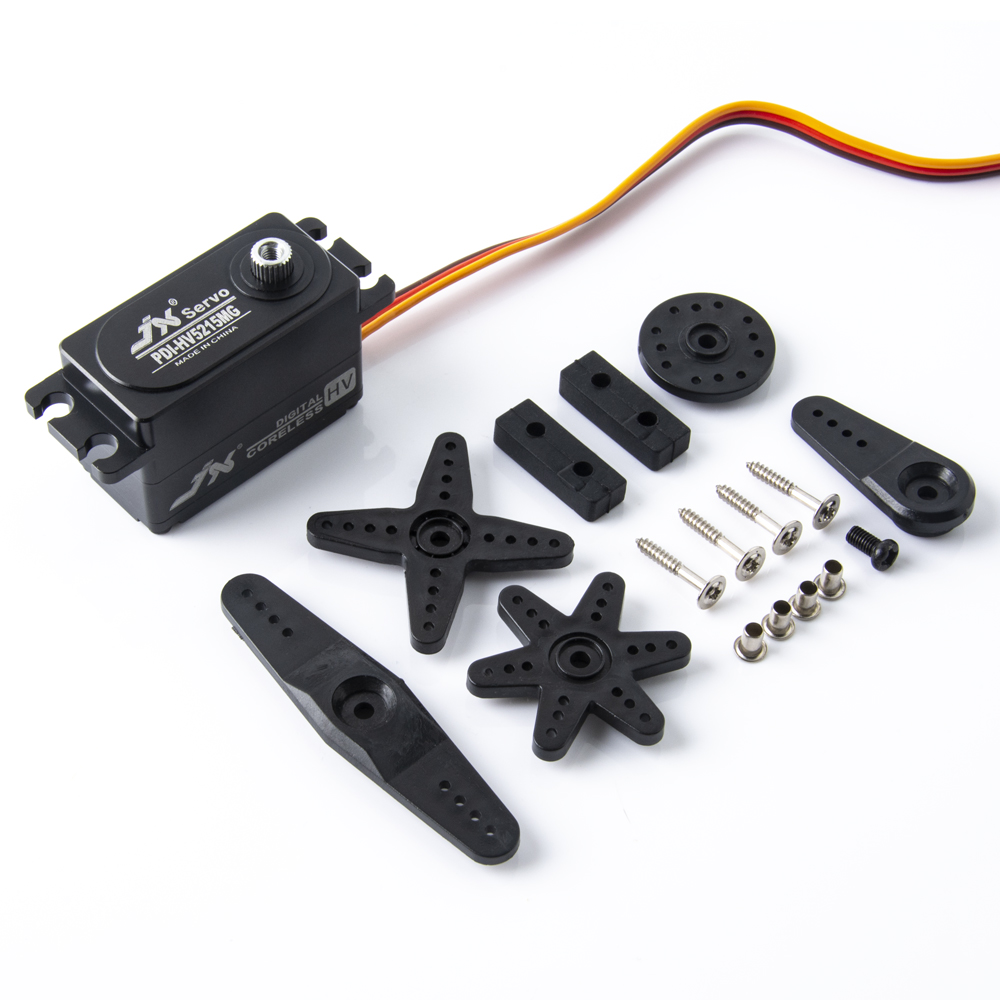

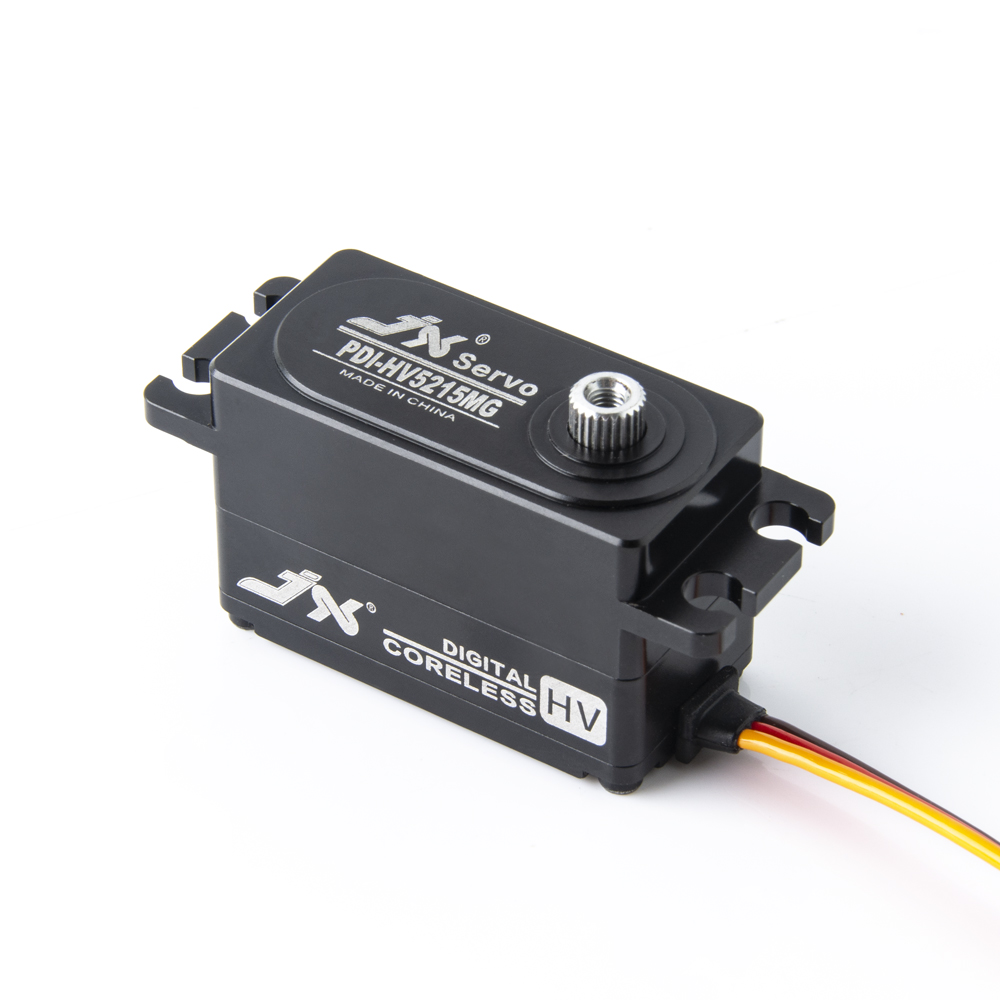

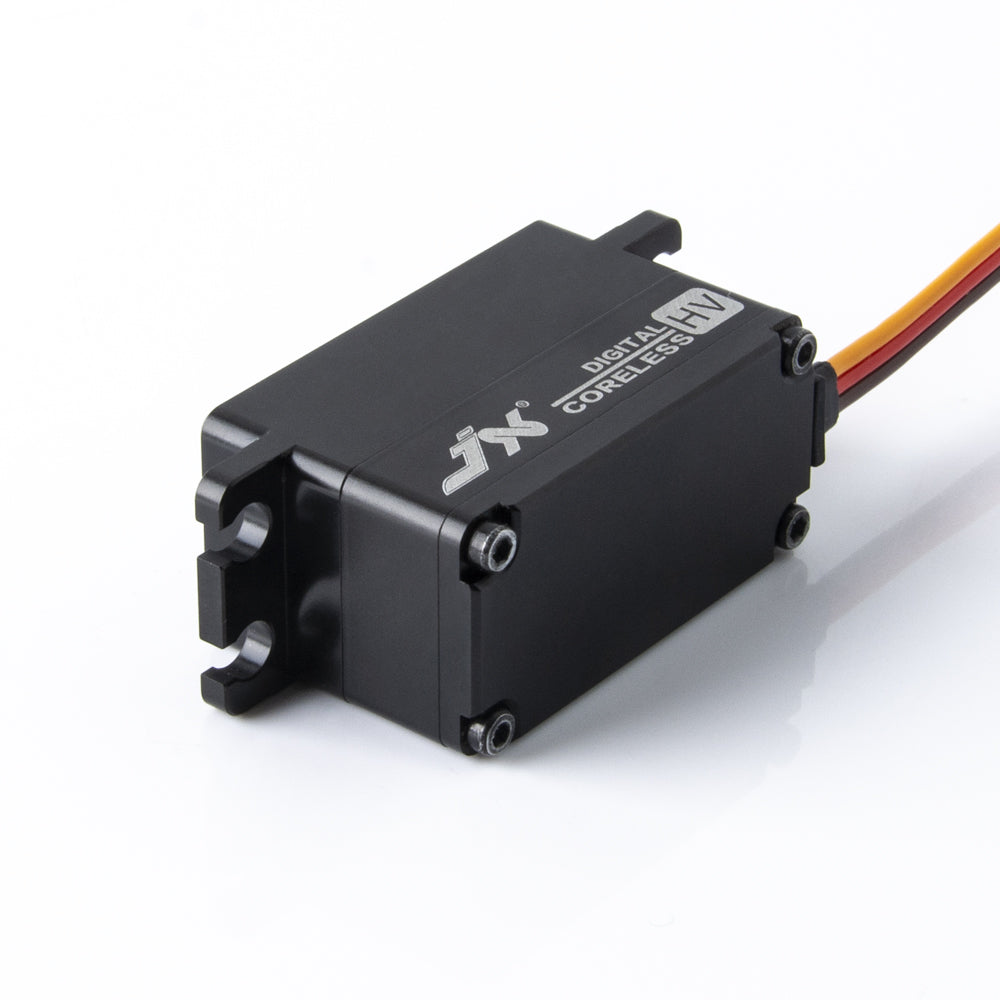

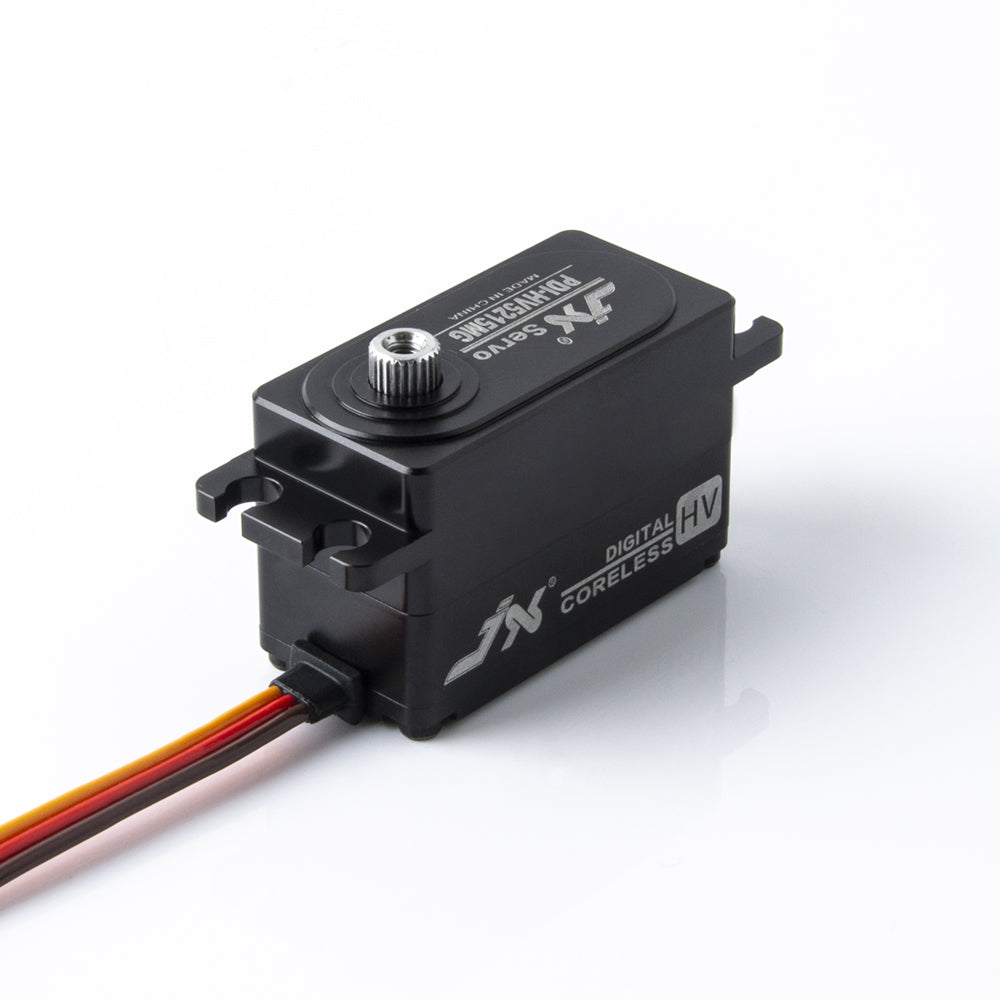

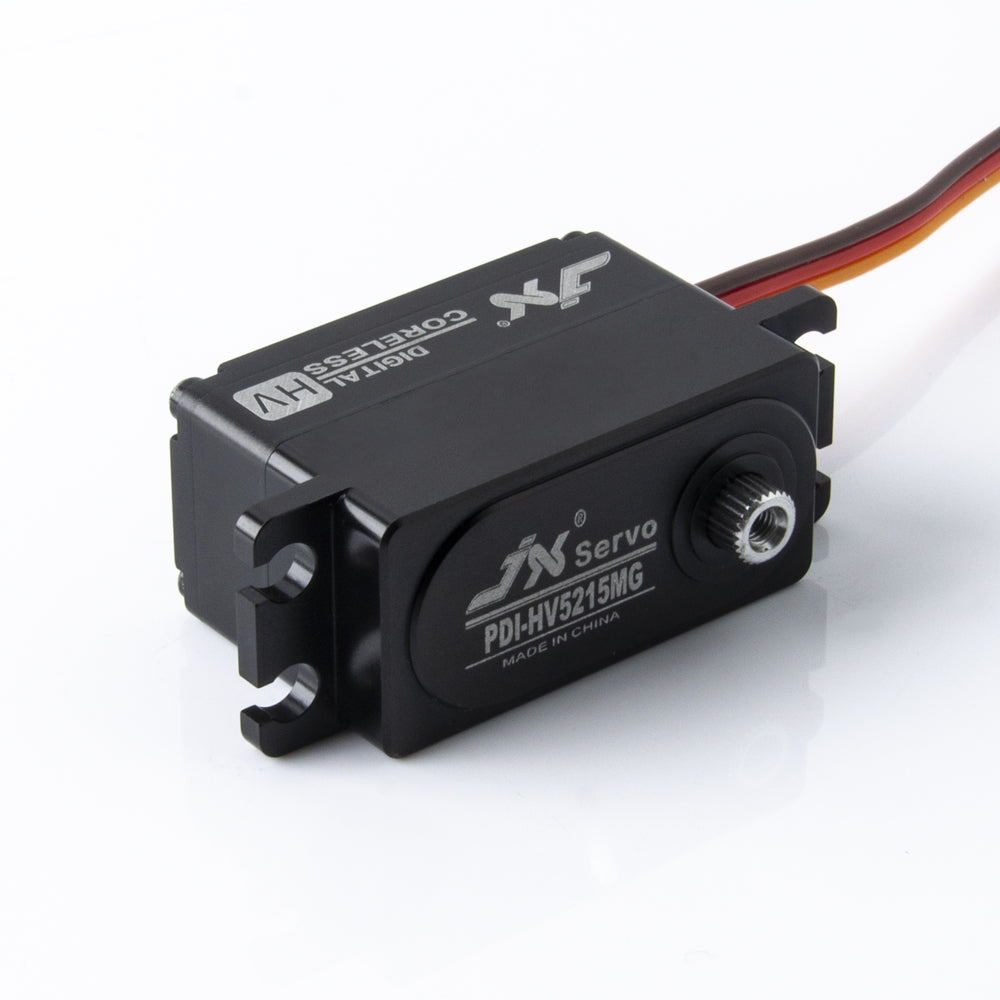

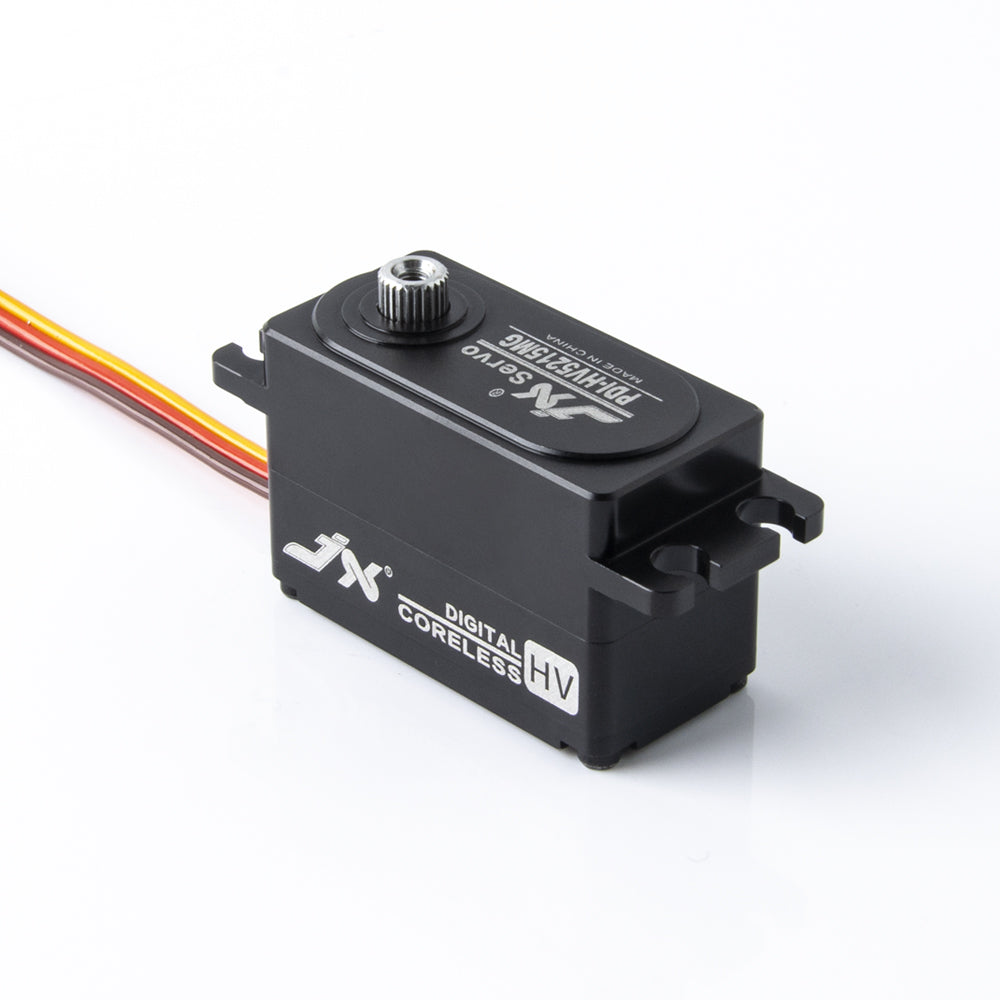

JX servo PDI-HV5215MG 15.6KG Metal Gear Aluminium Digital Coreless Short body low profile Servo
$34.40
Skip to product information
JX servo PDI-HV5215MG 15.6KG Metal Gear Aluminium Digital Coreless Short body low profile Servo
$34.40
Product Specifications
Short body 15kg high voltage digital servo, suitable for RC model planes, cars, robots and mechanical arms. Compatible with 1/8, 1/10, 1/12 RC vehicles.
FEATURE
- High performance 15kg high torque high voltage digital short body servo
- High-precision Taiwan-made metal gears
- High quality coreless motor
- Dual ball bearings
SPECIFICATIONS
| Dead band | 2μs |
| Working Frequency | 1520μs / 330hz |
| Operating Voltage | DC6.0~8.4 V |
| Motor | Coreless |
| Temperature Range | -10 ~ +60°C |
| Operating Speed (6V) | 0.09 sec/60° |
| Operating Speed (8.4V) | 0.07 sec/60° |
| Stall Torque (6V) | 13.2 kg.cm |
| Stall Torque (8.4V) | 15.6 kg.cm |
| Dimensions | 40.5x20.5x26.8mm |
| Weight | 52 g |
| Connector Wire Length | JR 260mm |
| Bearing | 2BB |
| Tooth Count | 25T |
