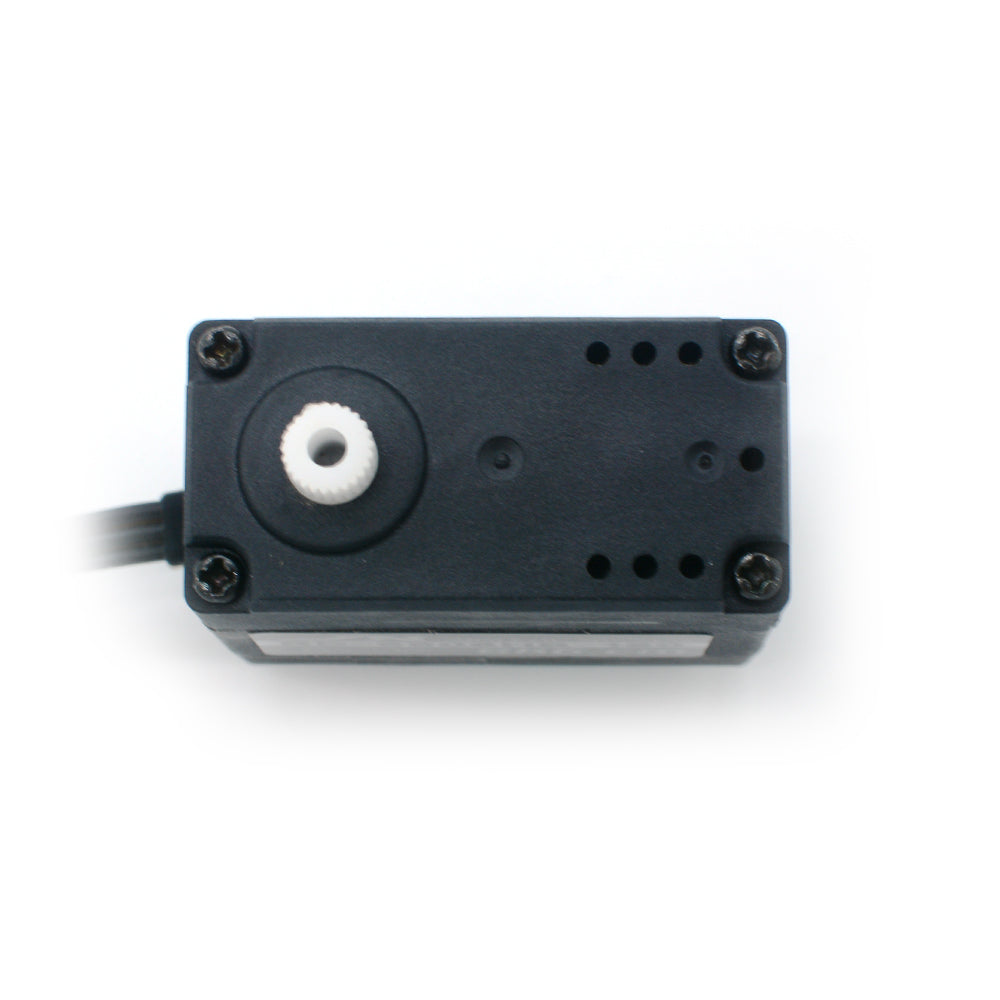

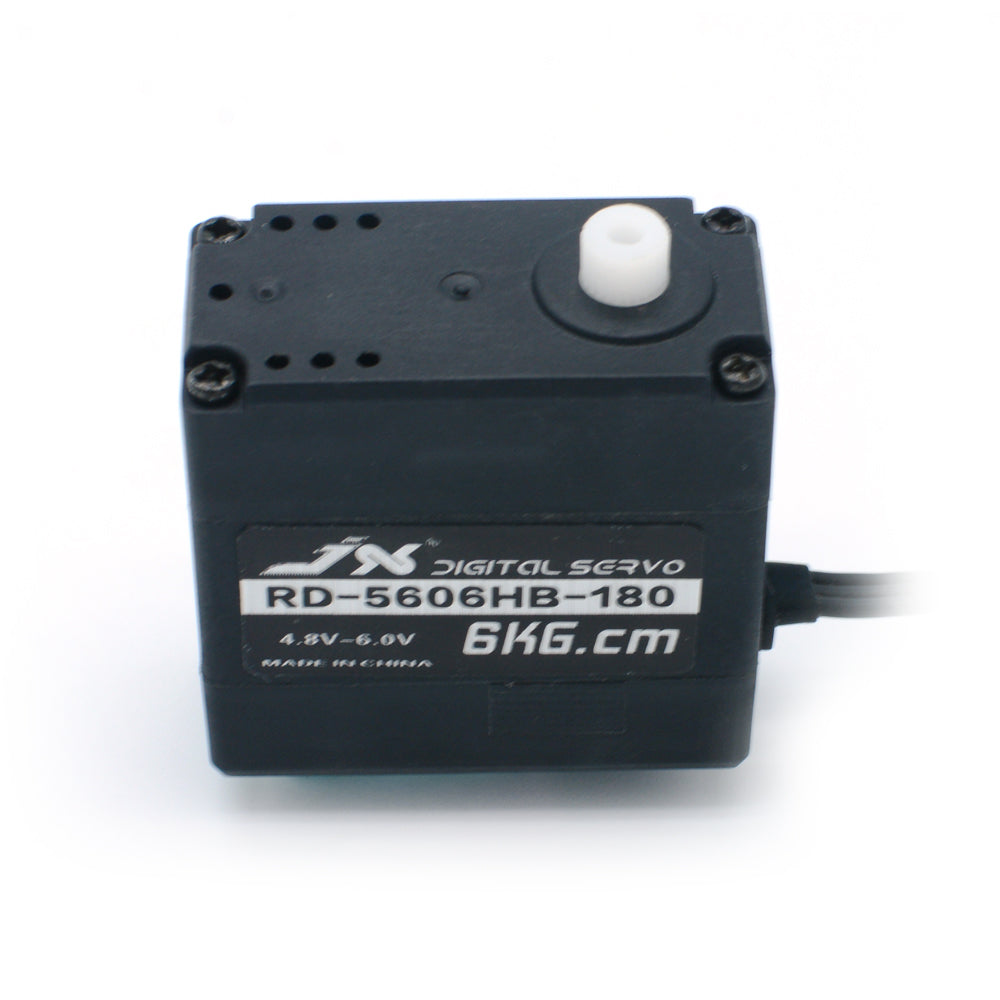

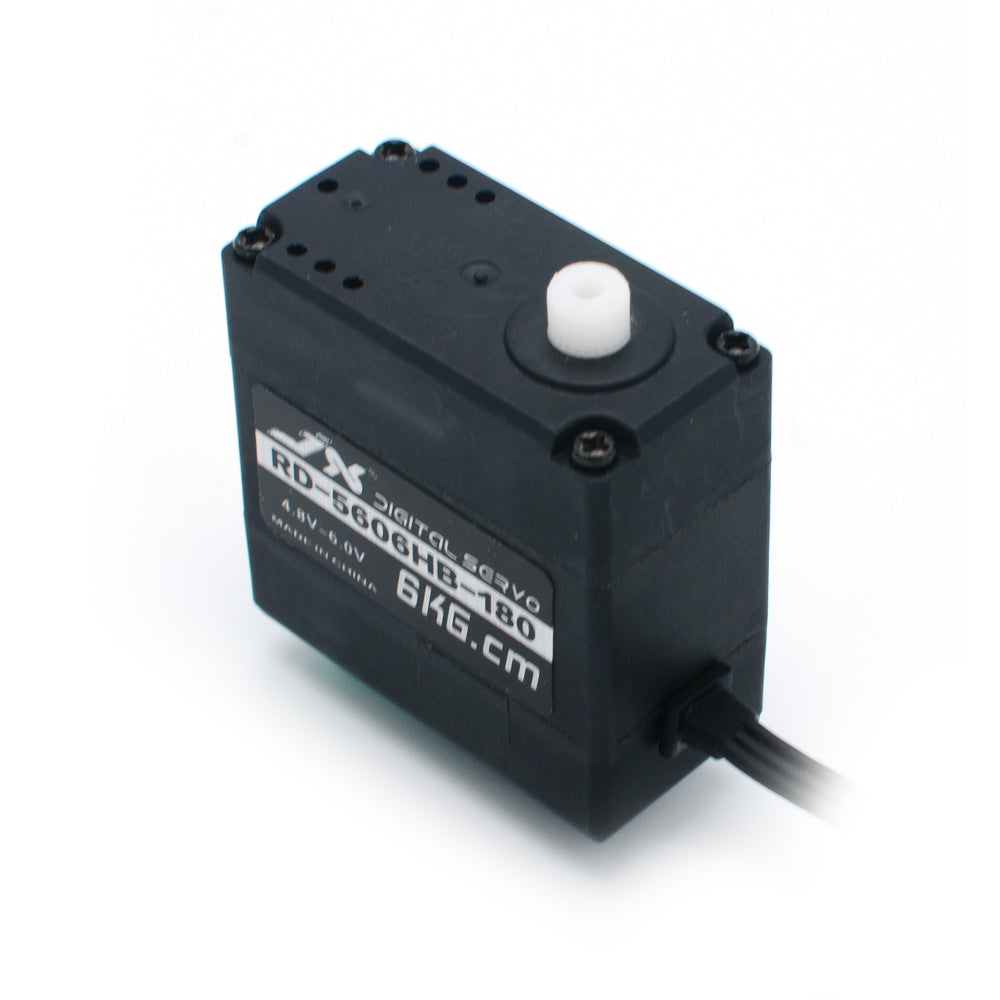

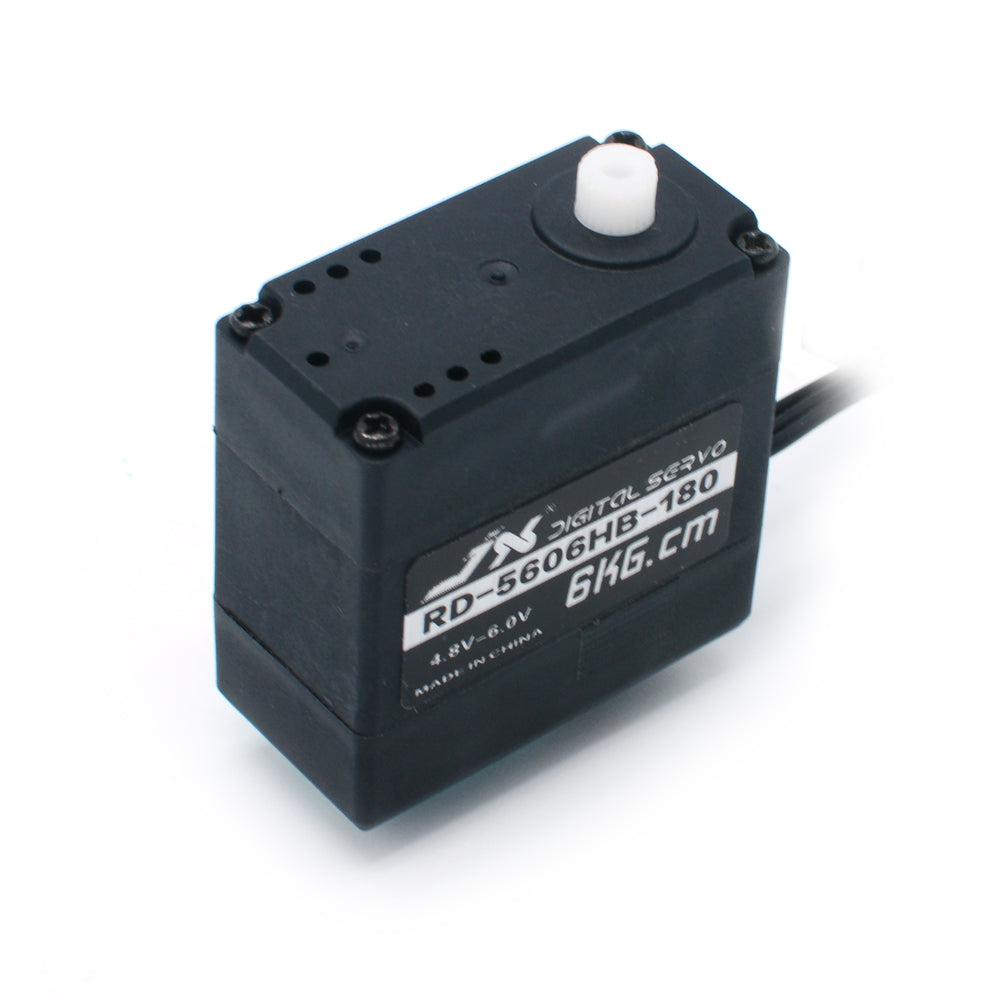

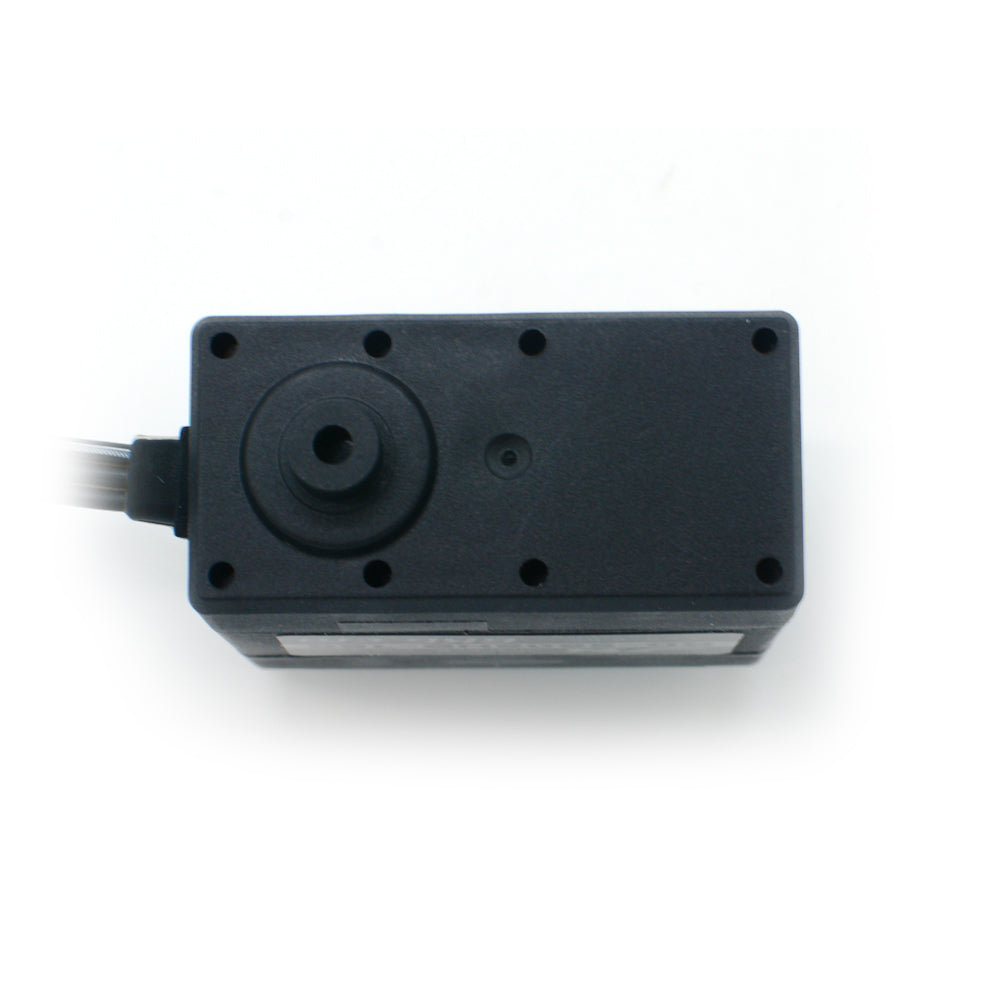

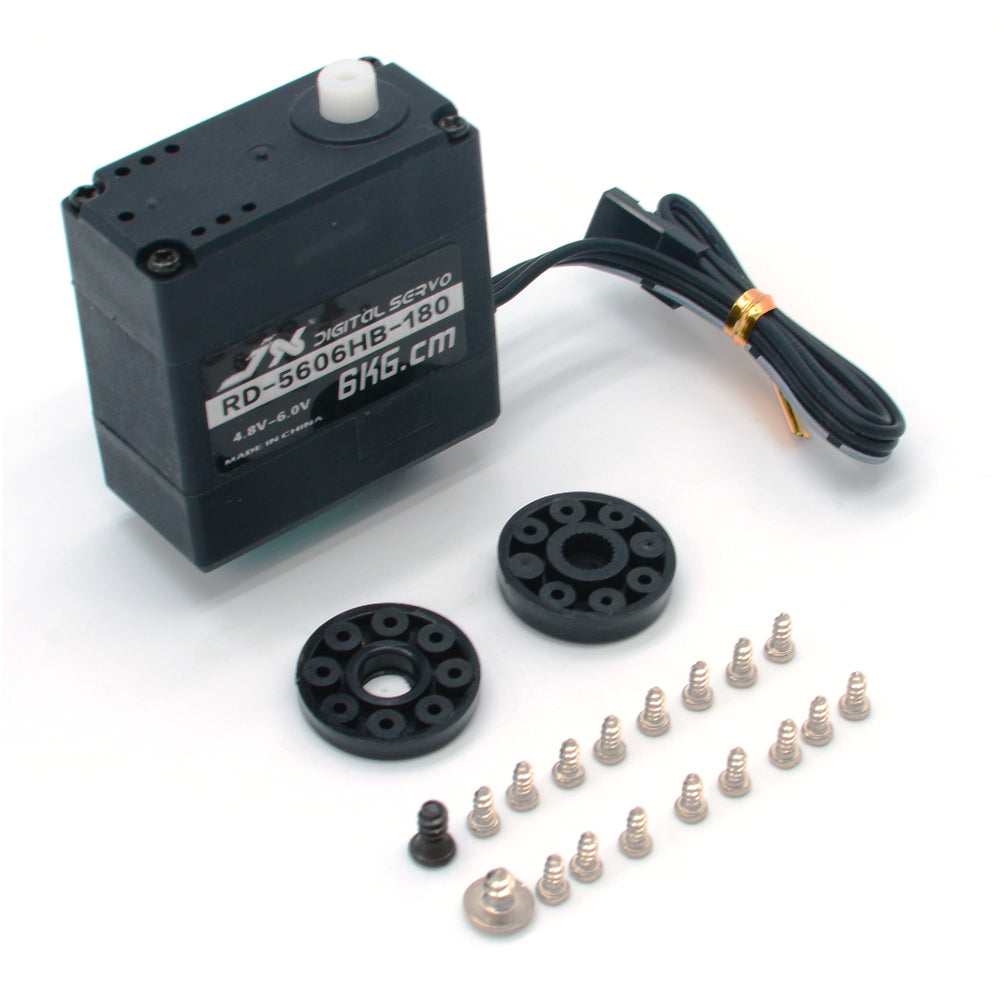

JX servo RD-5606HB 6kg 180 degree Digital Servo Robotics Education Industrial
$3.44
Skip to product information
JX servo RD-5606HB 6kg 180 degree Digital Servo Robotics Education Industrial
$3.44
Product Specifications
FEATURE
- High performance robot servo
- High quality core motor
- 180° angle
SPECIFICATIONS
| Dead band | 4μs |
| Neutral Point | 1500μs |
| Pulse Width | 500~2500μs |
| Motor | Core |
| Max Angle | 180°±2° |
| Working Frequency | 330hz |
| Operating Voltage | DC4.8~6.0 V |
| Operating Speed (4.8V) | 0.14 sec/60° |
| Operating Speed (6V) | 0.12 sec/60° |
| Stall Torque (4.8V) | 5.50 kg.cm |
| Stall Torque (6V) | 6.20 kg.cm |
| Dimensions | 40.5x20.3x40mm |
| Weight | 47 g |
| Connector Wire Length | JR 200mm |
| Spline Count | 25T |
