The KST X12-508 High-Voltage Micro Digital Servo is defined by its buttery-smooth operation, high torque, and surgical accuracy, establishing itself as one of the best servos on the market right now for high-performance applications. Delivering an ultra-fast 0.07s speed and 6.2kg.cm torque at 8.4V, this premium HV micro servo ensures instant stick response and uncompromising control for aggressive 3D flights and competitive maneuvers.
Skip to product information
X12-508 Micro Metal Gear HV Digital Servo 6.2Kgf.cm 0.07sec for RC Helicopters
$39.99
Engineered with a high-efficiency coreless motor and a hardened steel drivetrain, the X12-508 completely eliminates slop and provides unparalleled centering precision for a truly connected feel. Its slim micro profile makes it perfect for narrow glider fuselage installations on F3J, F3F, and F3B sailplanes—providing zero-flex authority for elevator and rudder controls—while delivering the rigid power required for precise cyclic servo inputs on modern 380 to 450-size high-performance RC helicopters.

Features
-
Compact and Lightweight Design
- Extreme Torque and Excellent Speed
- Excellent Heat Dissipation
- Designed for 380/450 Helicopters & F3J, F3F, and F3B Gliders
Specification
- Item: X12-508 V8.0 Micro Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
-
Torque:
4.2Kgf.cm@ 6.0V
5.2Kgf.cm@ 7.4V
6.2Kgf.cm@ 8.4V
-
Speed:
0.09 sec/60°@ 6.0V
0.08 sec/60°@ 7.4V
0.07 sec/60°@ 8.4V
- Working Frequency: 1520us/20KHz
- Default Travel Angle: ±50° =100° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Weight: 20g±10%
- Case Dimensions: 23mm*12mm*27.5mm±0.2mm

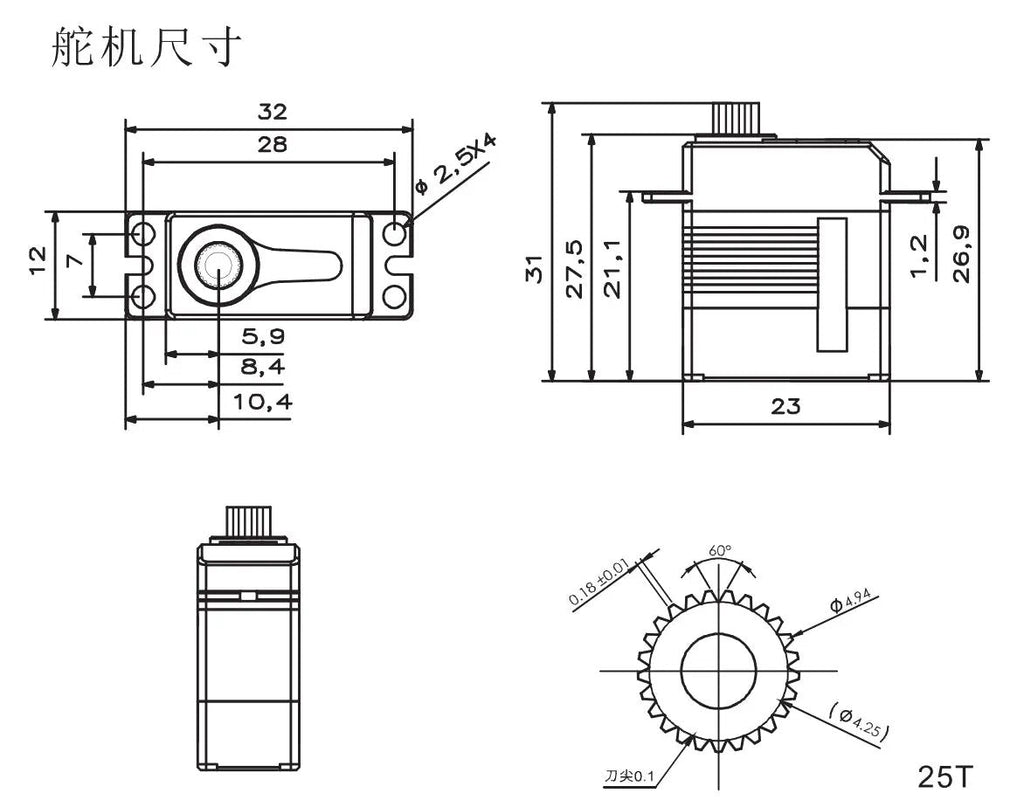

Size

Package Including
- 1 * X12-508 HV Servo
- 1 * Accessories
