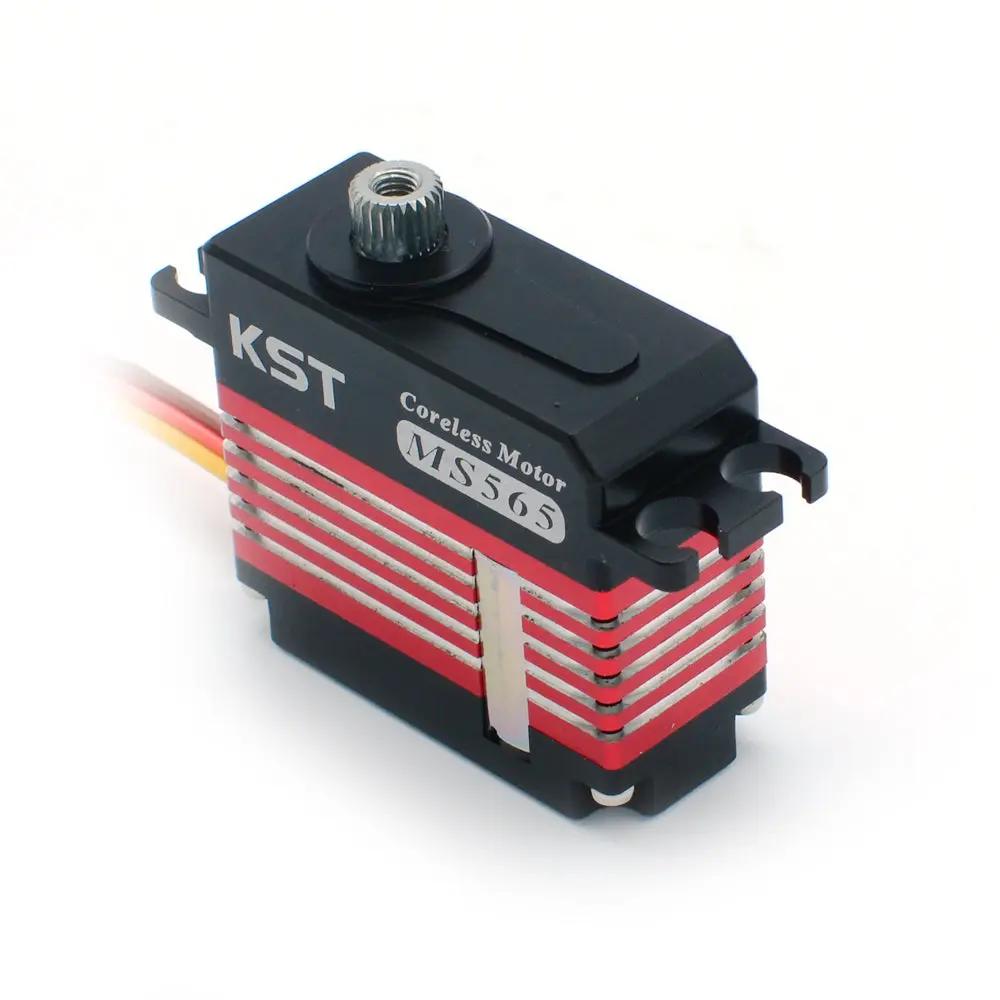

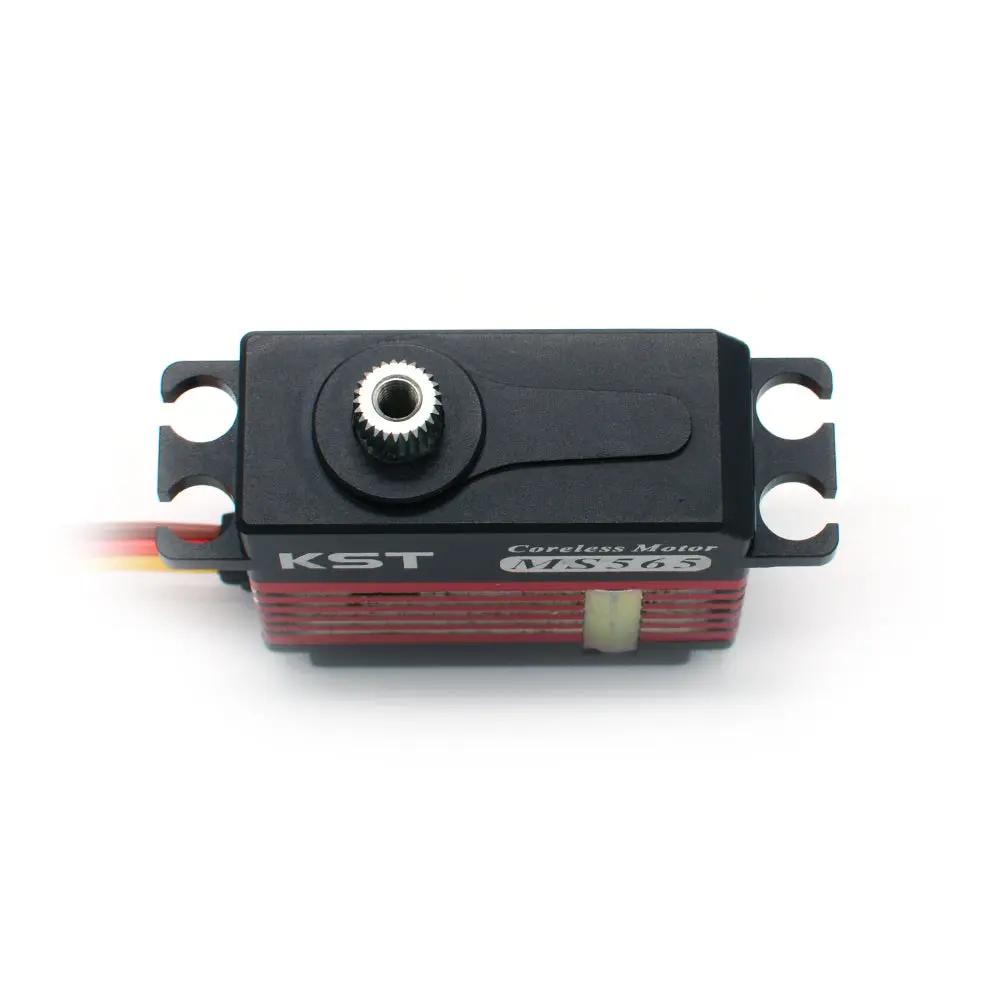

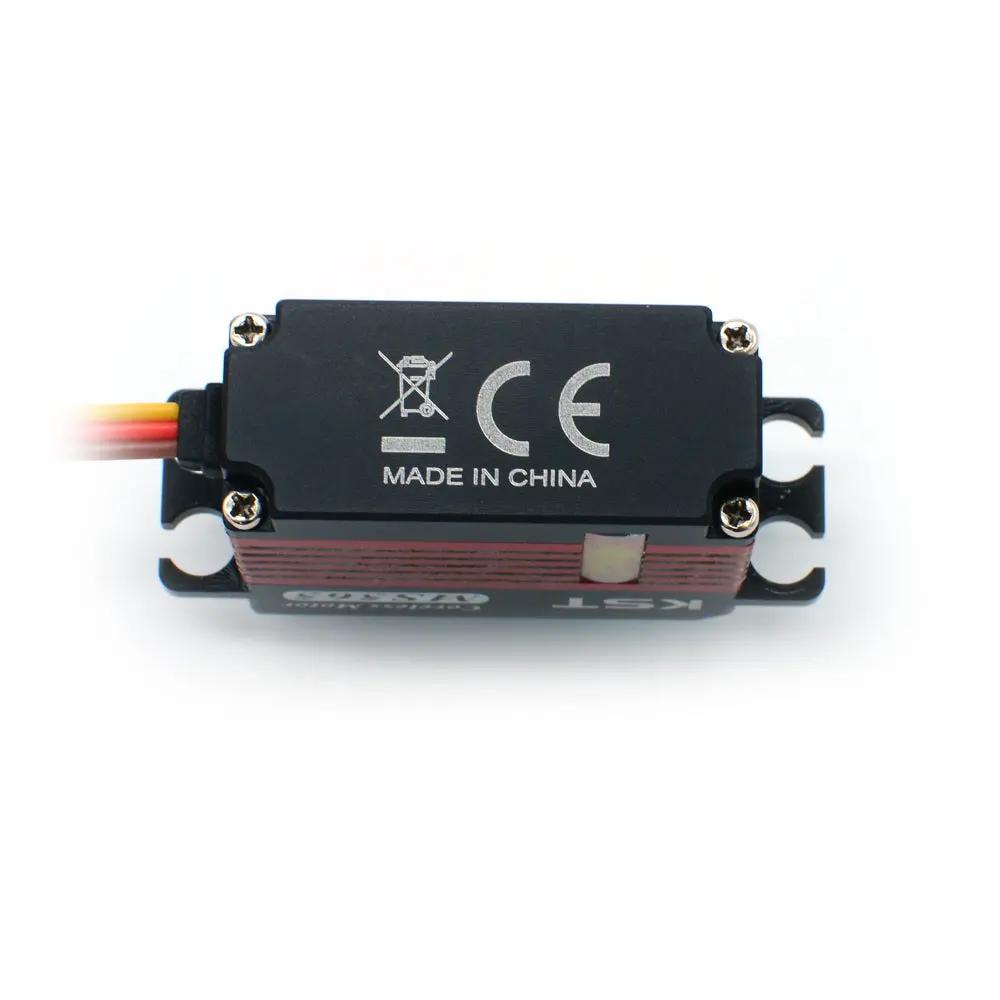

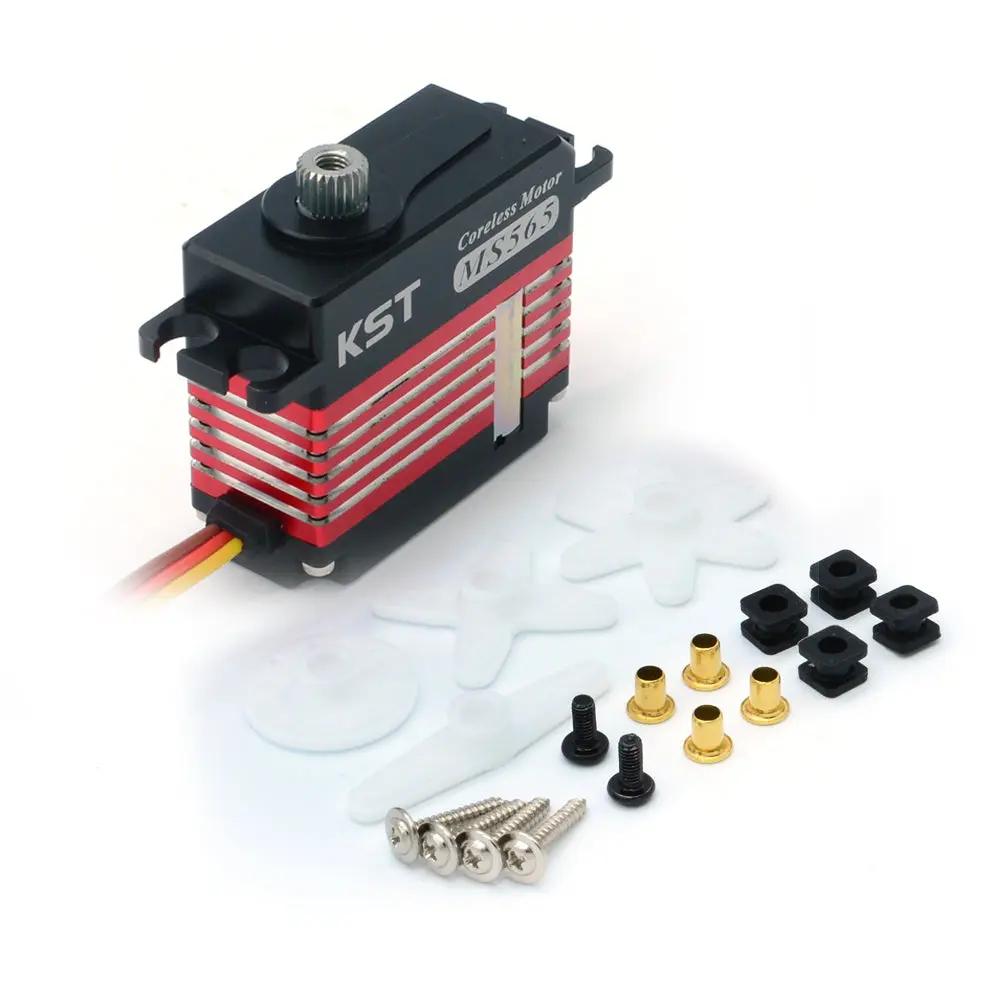

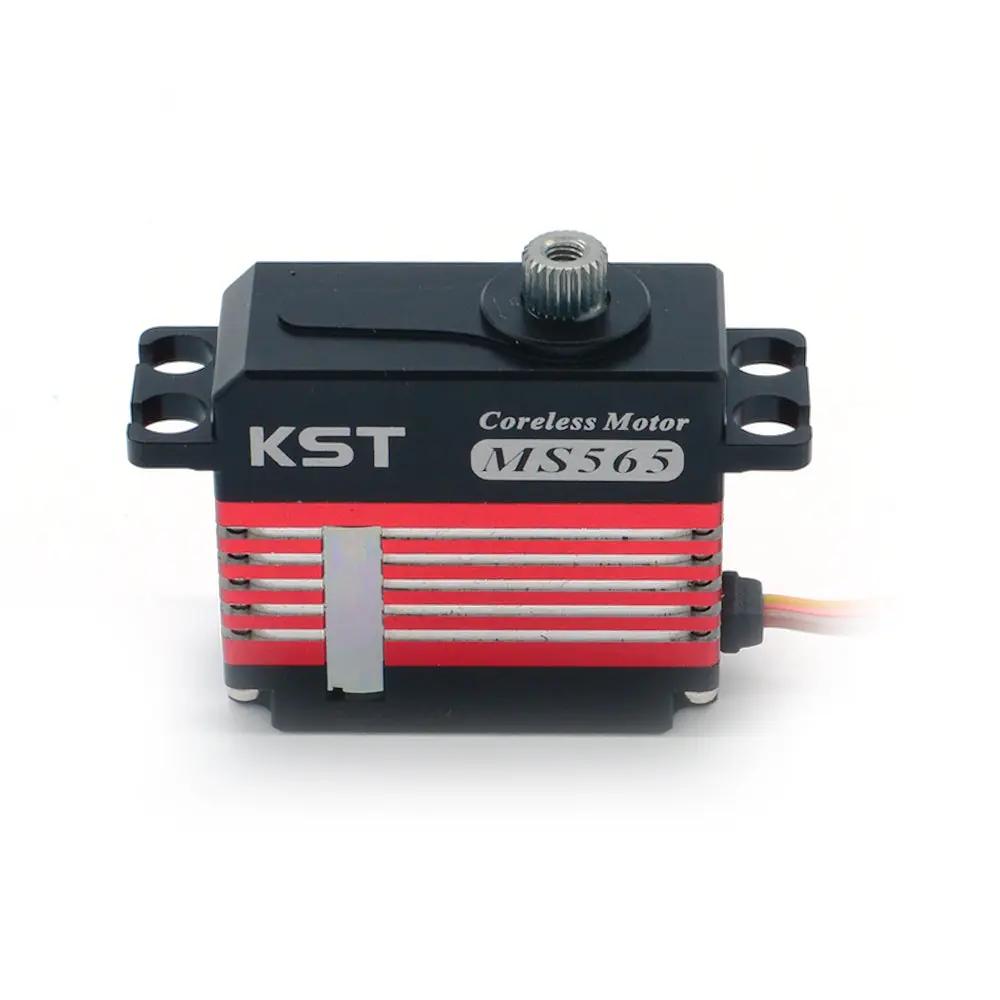

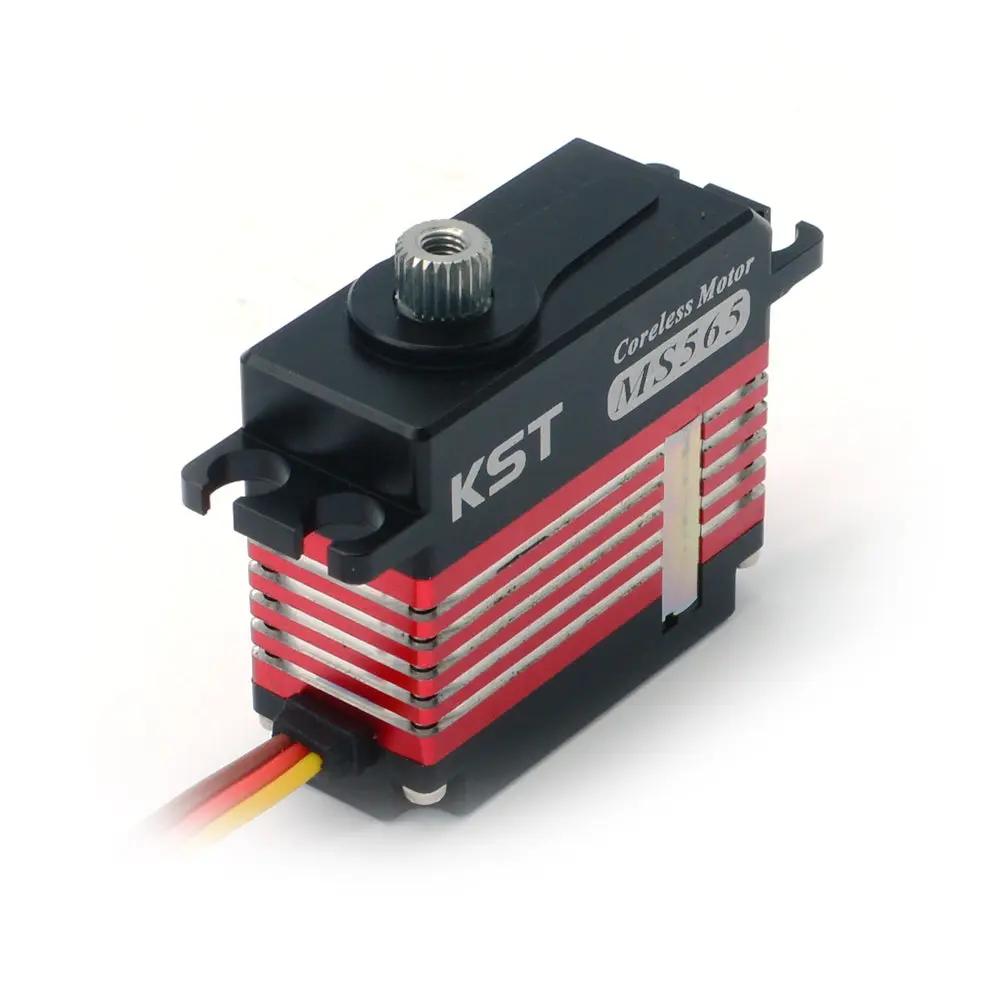

MS565 is a high performance tail servo for the 450-550 class RC helicopters. Features with a brilliant 6.5kgf.cm torque and and extreme fast 0.035sec/60° speed at 8.4V with fantastic precision and reliability.

KST new MS series uses contactless magnetic sensors (or, hall sensors) to improve accuracy, repeatability and reliability. The servos are made with CNC alloy cases for maximum strength to weight, and powered by a digital coreless motor and hardened steel gears.

The high torque and precision of the MS565 tail servo allow you to optimize the performance of your RC helicopters.

Features

• Support 8.4V High Voltage
• Ultra High Torque & Hyper Speed
• Contactless Hall Sensor
• Hardened Steel Gear
• CNC Aluminium Case
• Dual ball bearings
• Ideal for 450-550 Class RC Helicopters

Specification

• Item: MS565 Coreless Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC6.0V-8.4V
• Stalling Torque: 4.2Kgf.cm@6.0V / 5.5Kgf.cm@7.4V / 6.5Kgf.cm@8.4V
• No-load Speed: 0.05sec/60°@6.0V / 0.04sec/60°@7.4V / 0.035sec/60°@8.4V
• Working Frequency: 760μs/560Hz
• Temperature Range: -10℃.......+65℃
• Case Material: Aluminium Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Contactless
• Case Dimensions: 35.5mm*15mm*32.5mm±0.2mm
• Weight: 38g±10%
• Ball Bearing: 2BB
