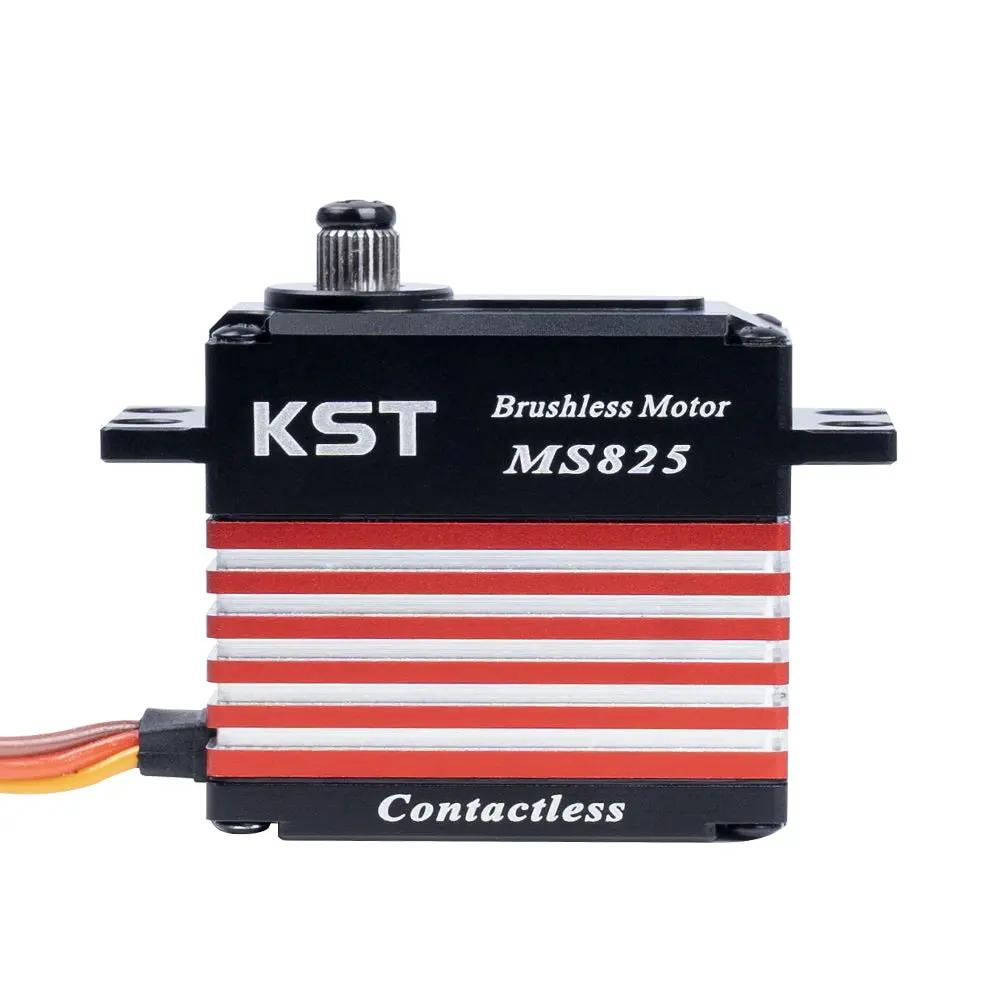

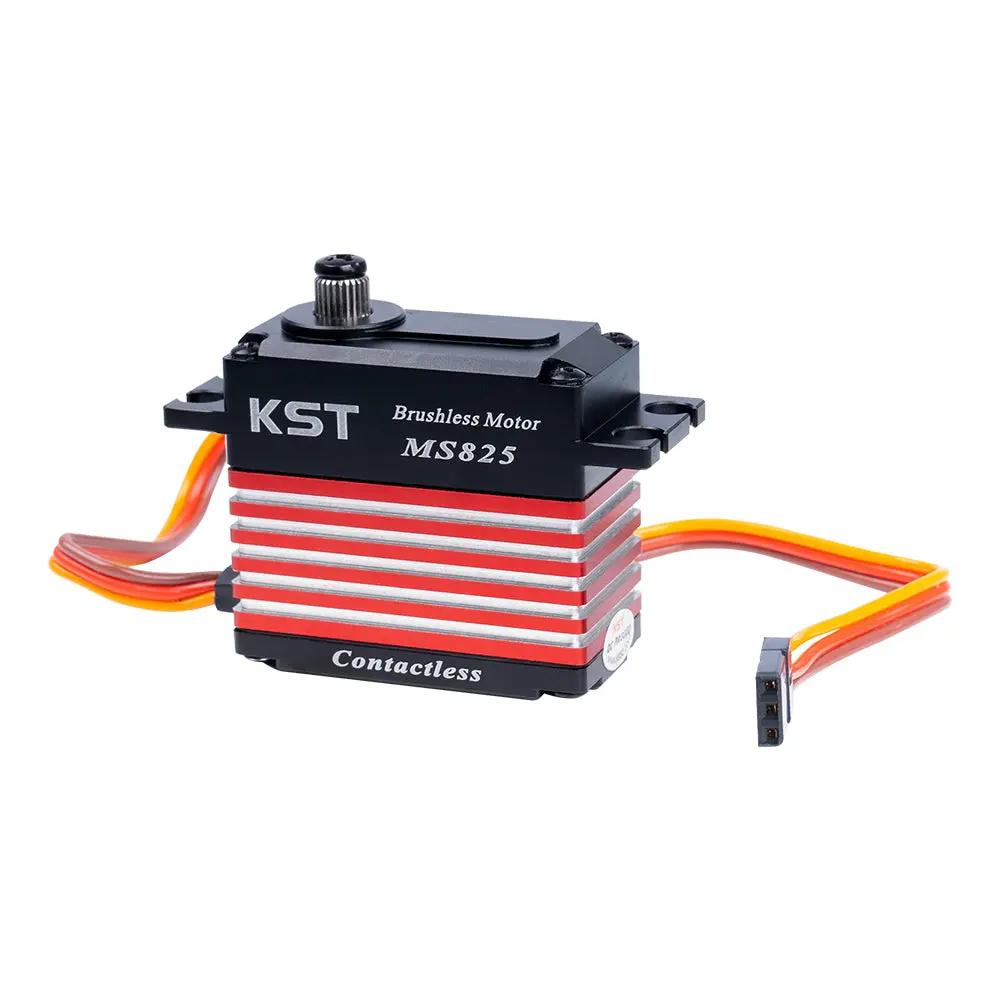

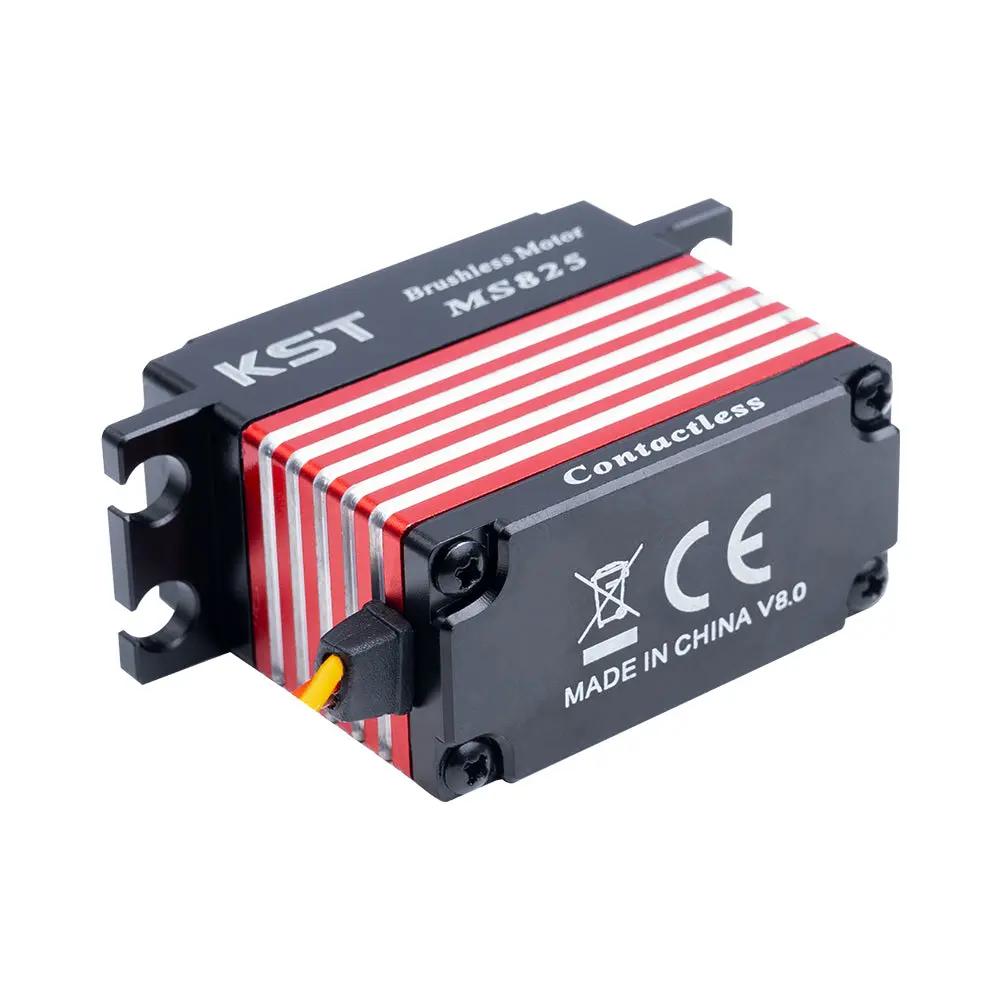

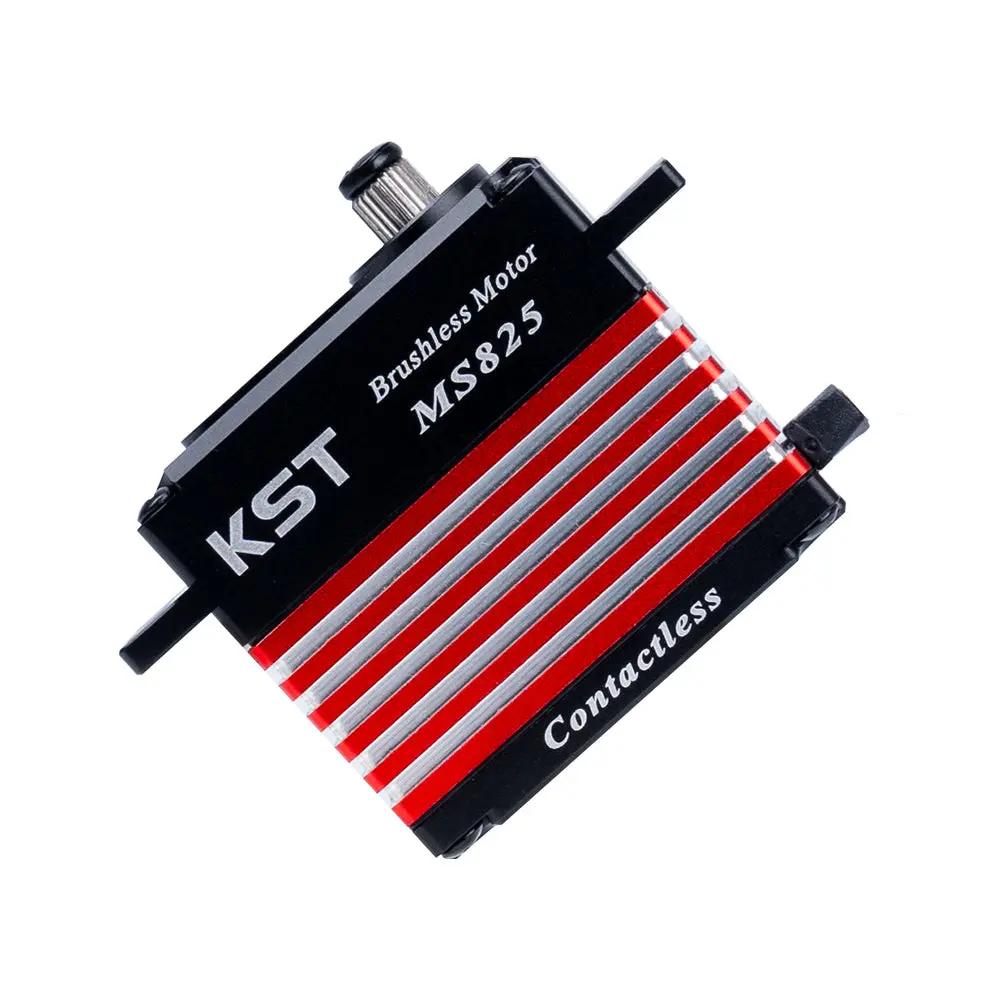

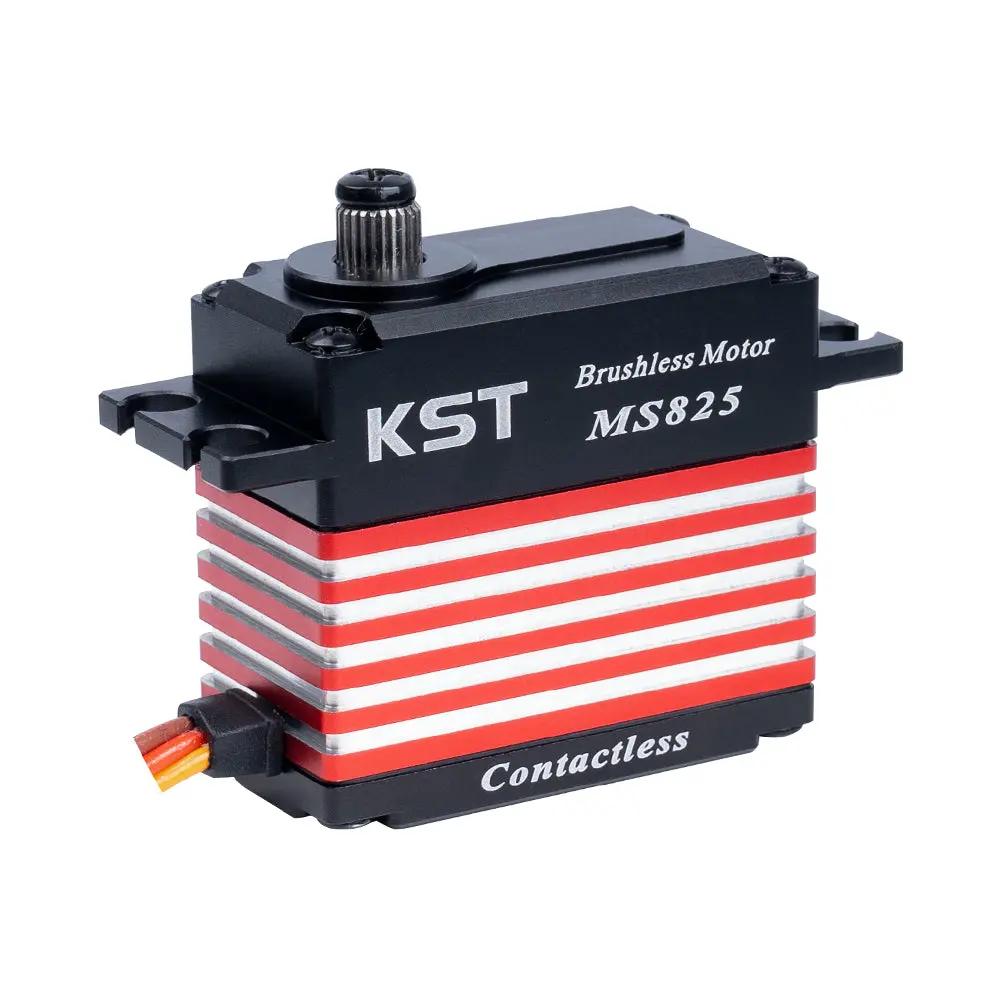

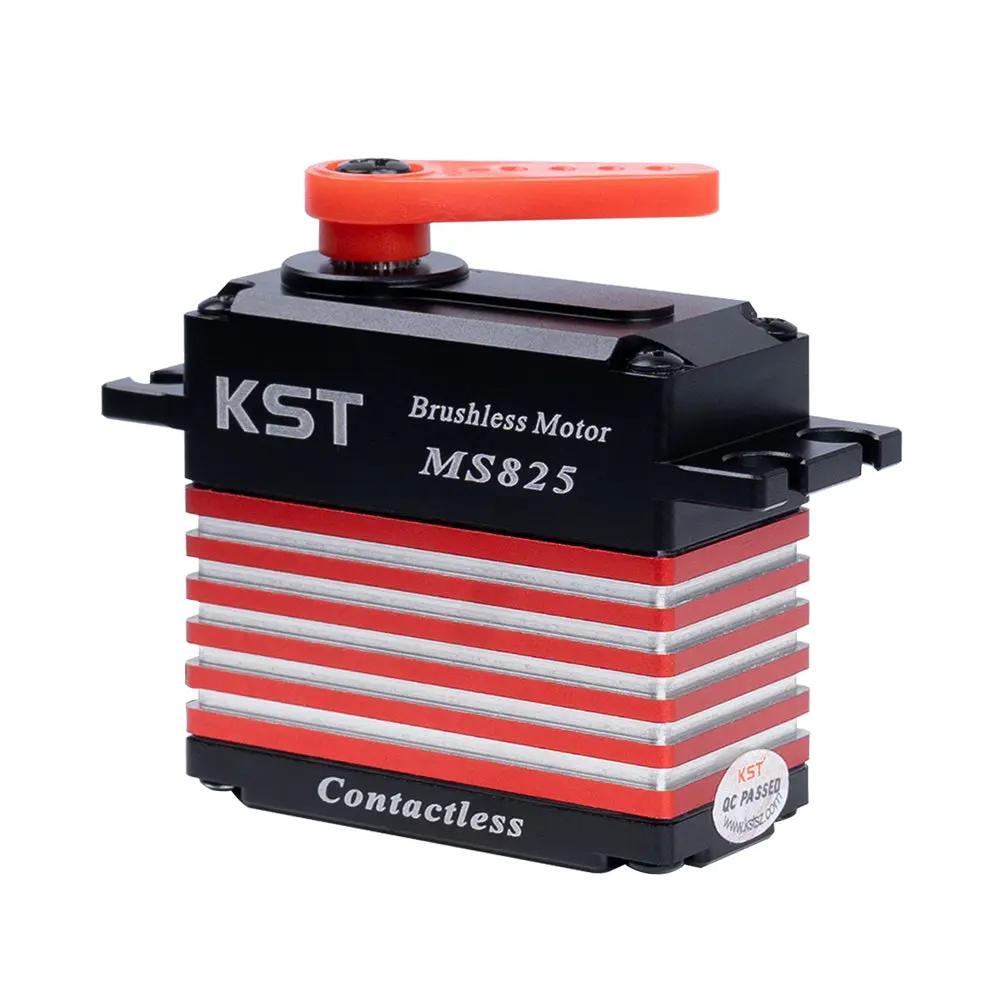

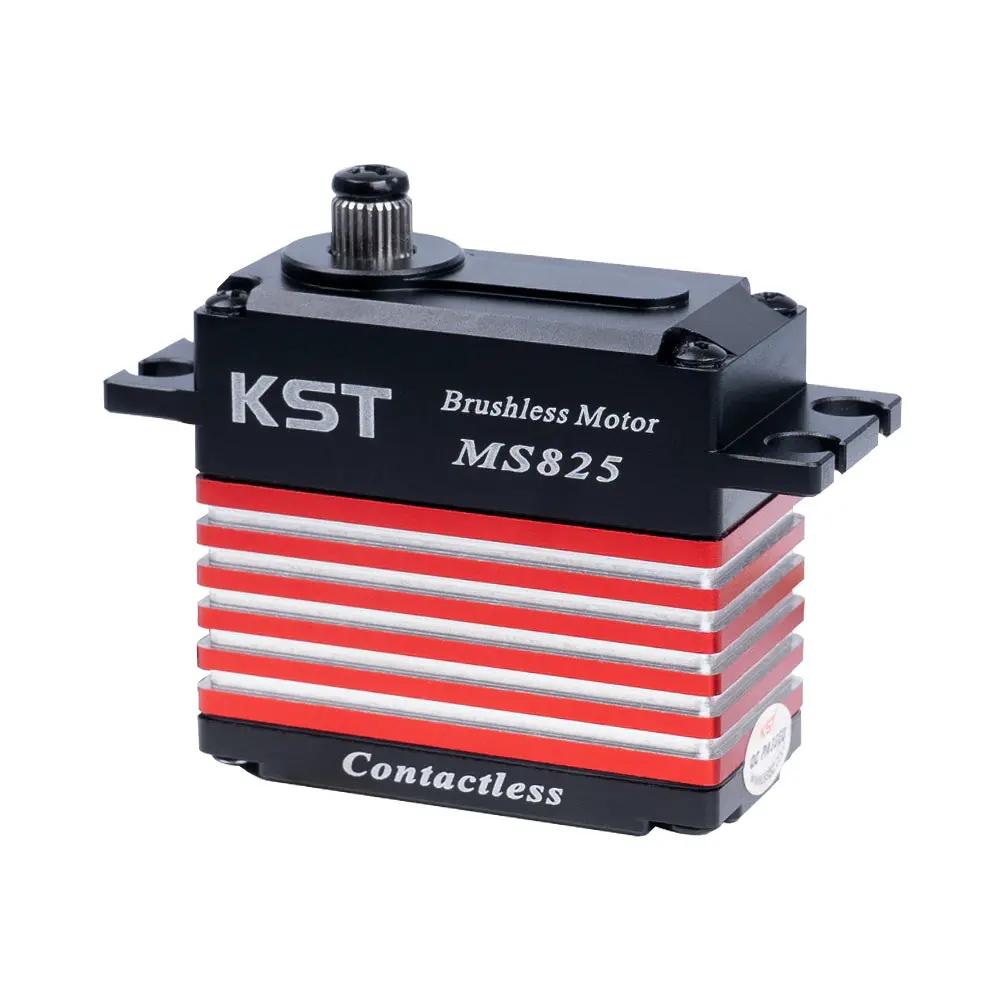

MS825 is an excellent standard servo for large scale RC planes. Features with an astonished 35kgf.cm super high torque and and fast speed of 0.11sec/60° at 8.4V with fantastic precision and reliability.

KST new MS series uses contactless magnetic sensors (or, Hall Sensors) to improve accuracy, repeatability and reliability. The servos are made with CNC alloy cases for maximum strength to weight, and powered by brushless DC motor and hardened steel gears.

The monster torque and accuracy of the MS825 servo allow you to effortlessly enhance the performance of your RC aircraft.

• Support 8.4V High Voltage
• High Torque & Fast Speed
• Programmable
• Contactless Hall Sensor
• Brushless DC Motor
• Hardened Steel Gear
• Dual Ball Bearings
• Ideal for Large Scale RC Planes

Specification

• Item: MS825 V8.0 Brushless Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC6.0V-8.4V
• Stalling Torque: 25Kgf.cm@6.0V / 30Kgf.cm@7.4V / 35Kgf.cm@8.4V
• No-load Speed: 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.11sec/60°@8.4V
• Working Frequency: 1520μs/333Hz

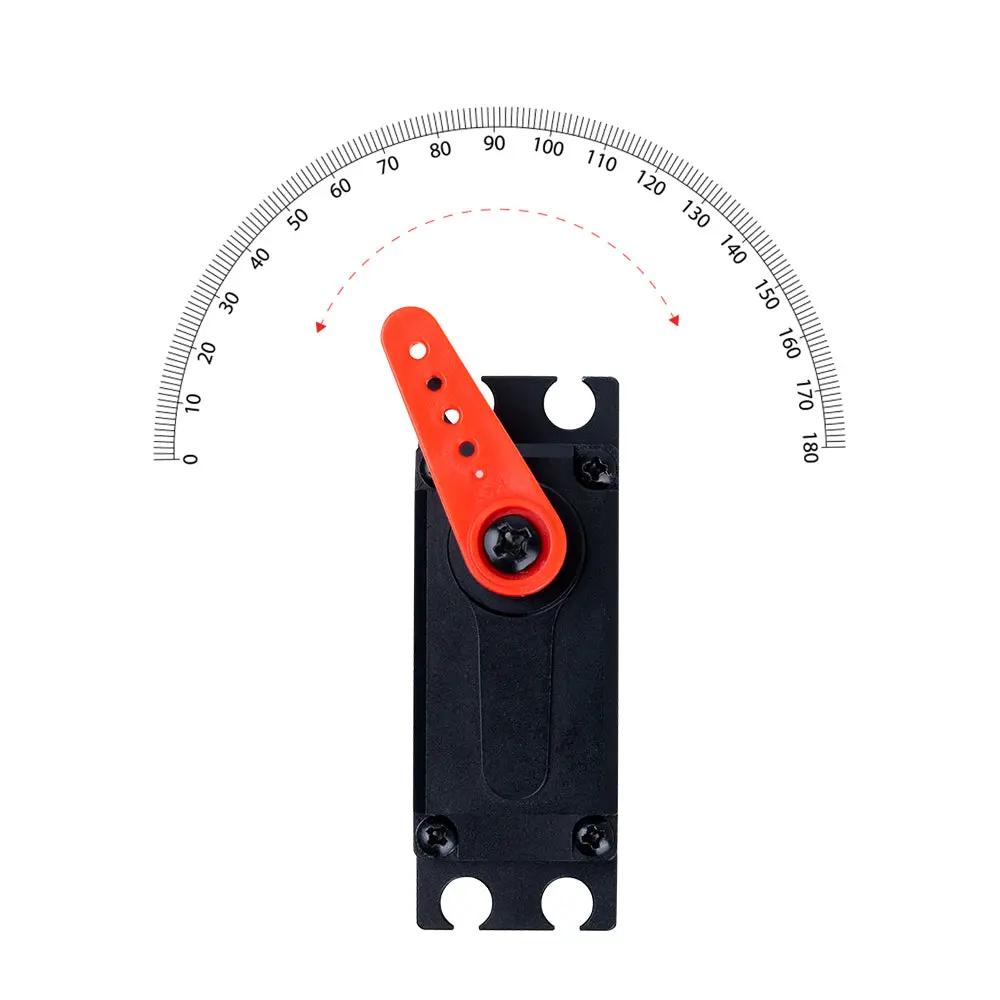

• Default Travel Angle: ±100°=200° Total
• Temperature Range: -20℃.......+65℃
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminium Alloy
• Motor Type: Brushless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Contactless

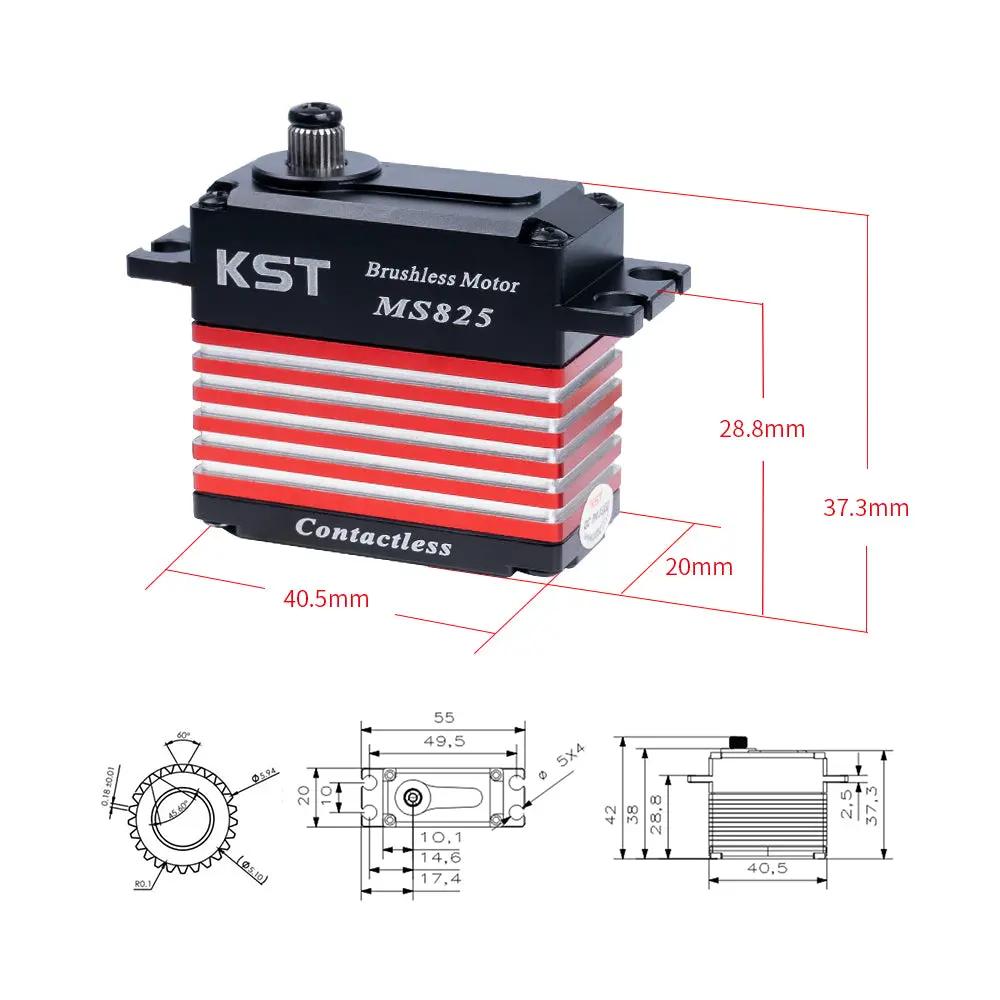

• Case Dimensions: 40.5mm*20mm*38mm±0.2mm
• Weight: 70g±10%
• Ball Bearing: 2BB

Related Products

• MS3509 Servo
• BLS825 Servo
• X20-3012 Servo

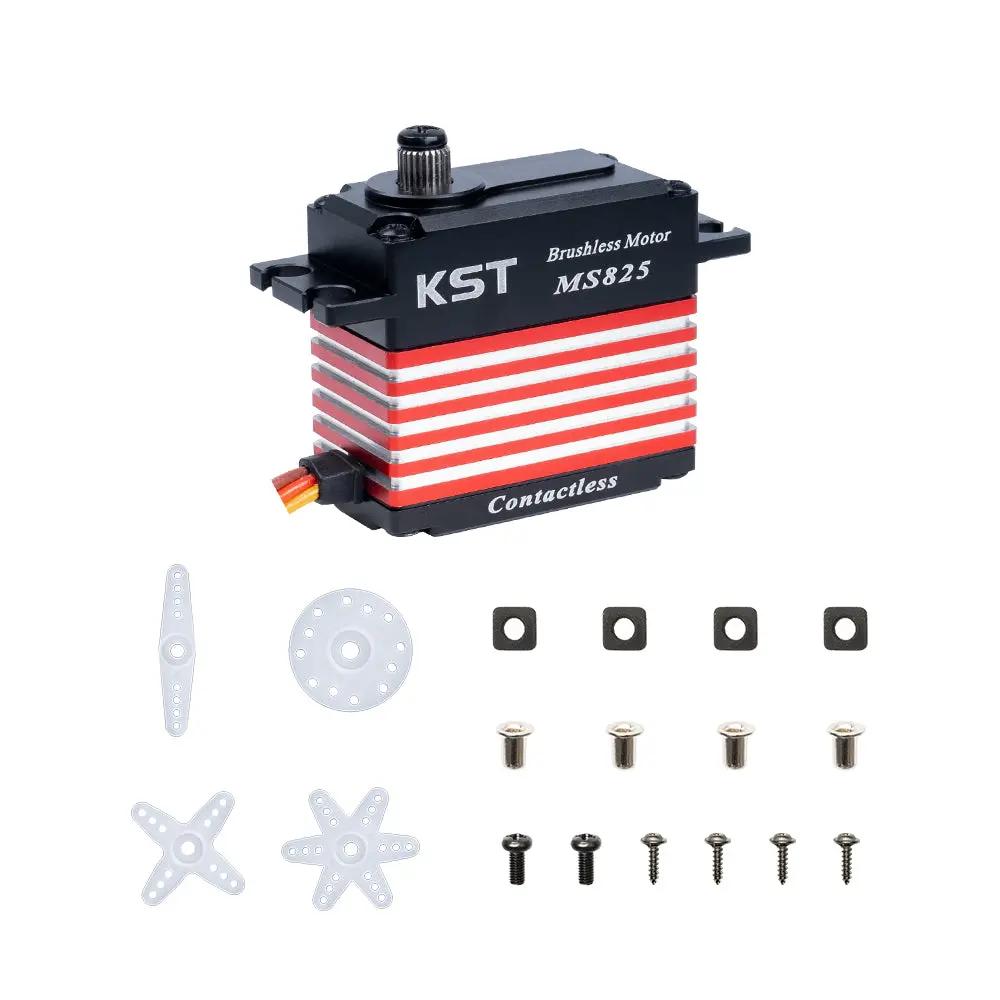

Package Includes

• 1 * MS825 V8.0 Brushless Servo
• 1 Pack of Accessories

Download

• Technical Specification of MS825 Servo
