SV10-12A & SV10-12B Super High Voltage 14.0Kgf.cm 0.10sec/60° Wing

SV10-12A&SV10-12B For RC Gliders and Industrial UAVs

SV10-12A & SV10-12B Super High Voltage 14.0Kgf.cm 0.10sec/60° Wing Servo for RC Gliders, and Industrial UAVs

BR0023.0249-A

$49.99

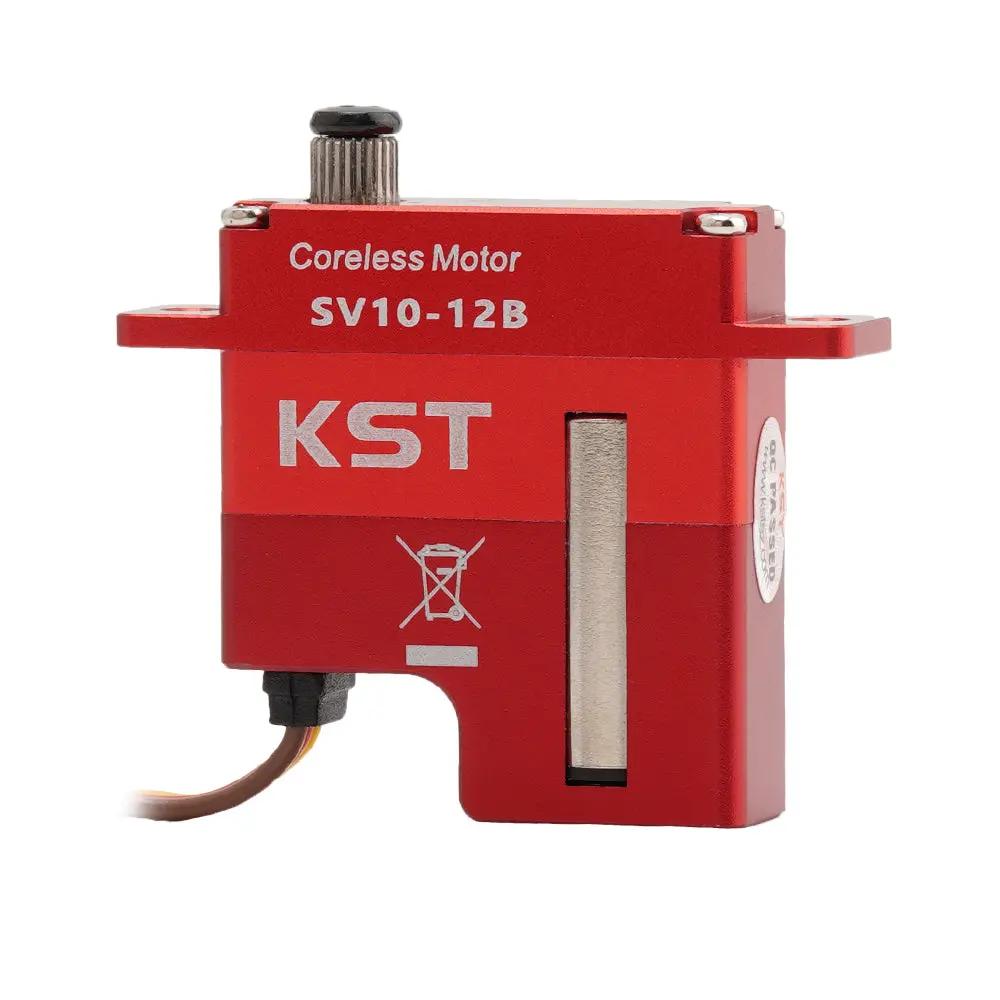

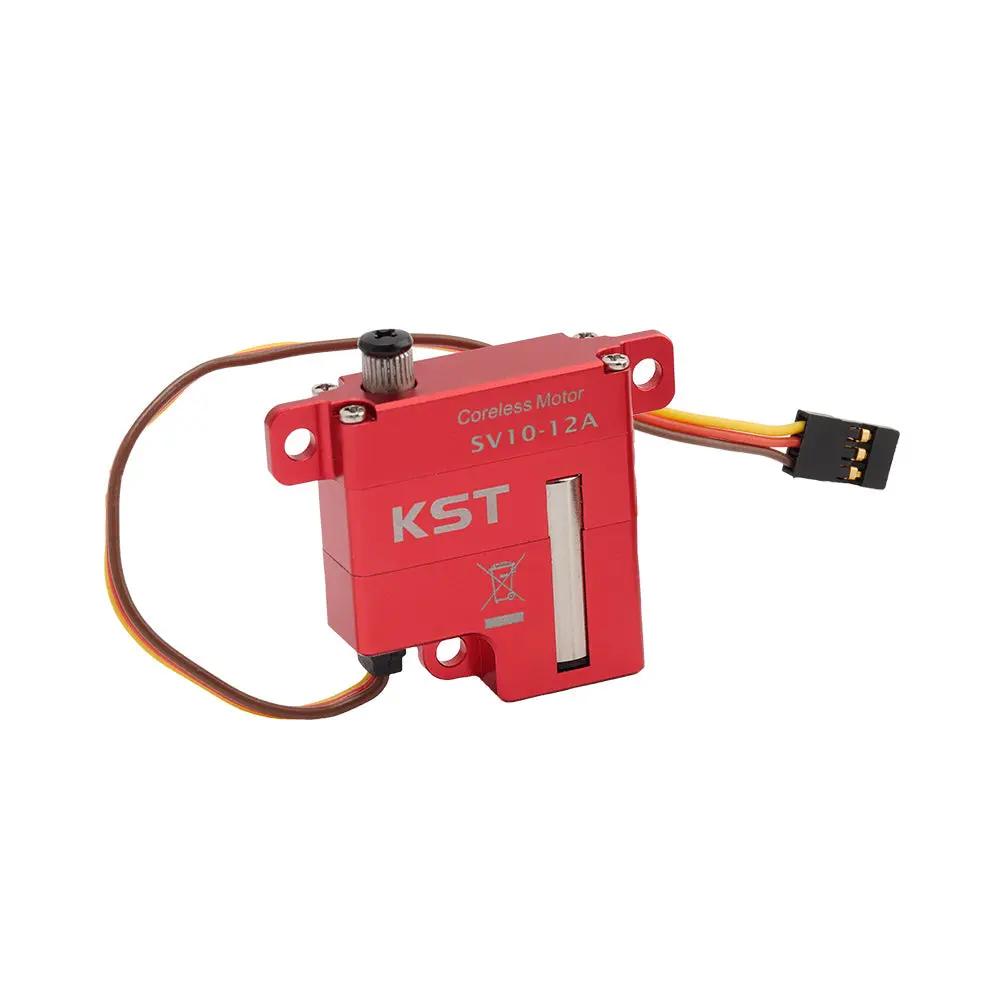

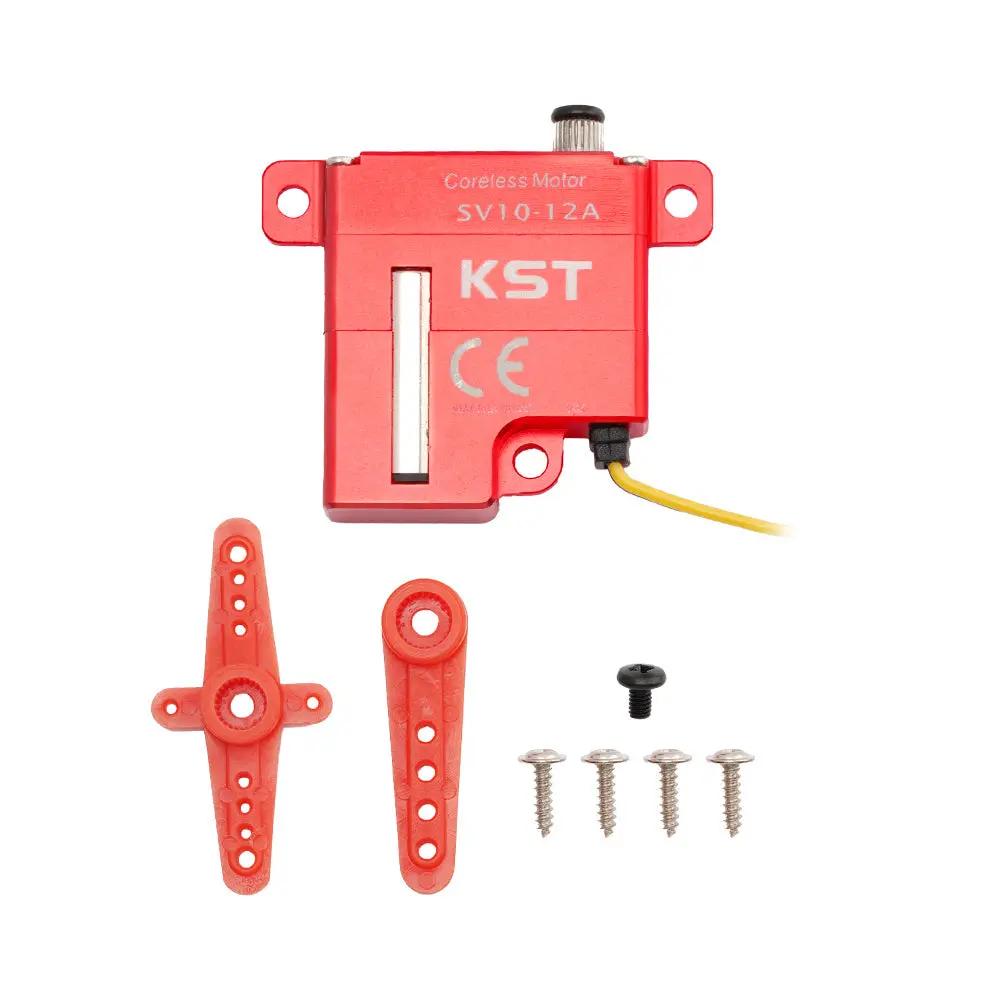

KST SV10-12A & SV10-12B SHV Servo

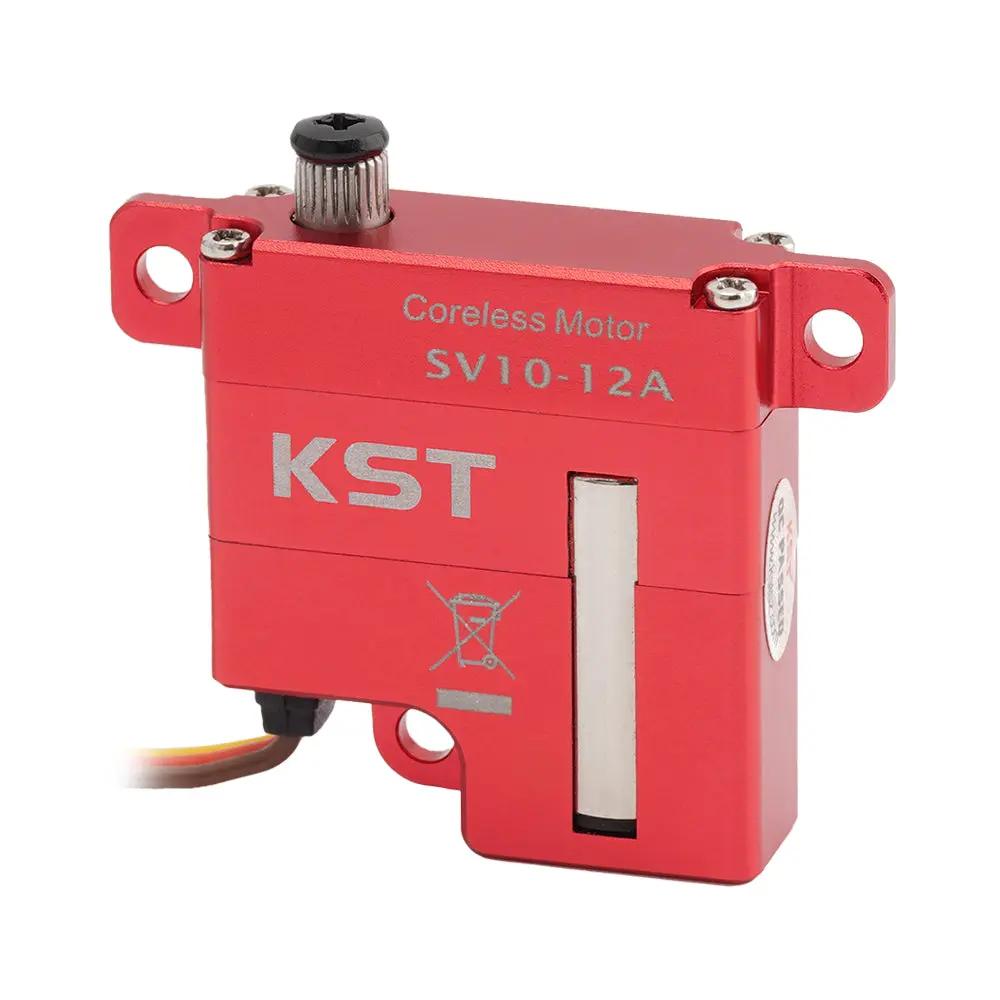

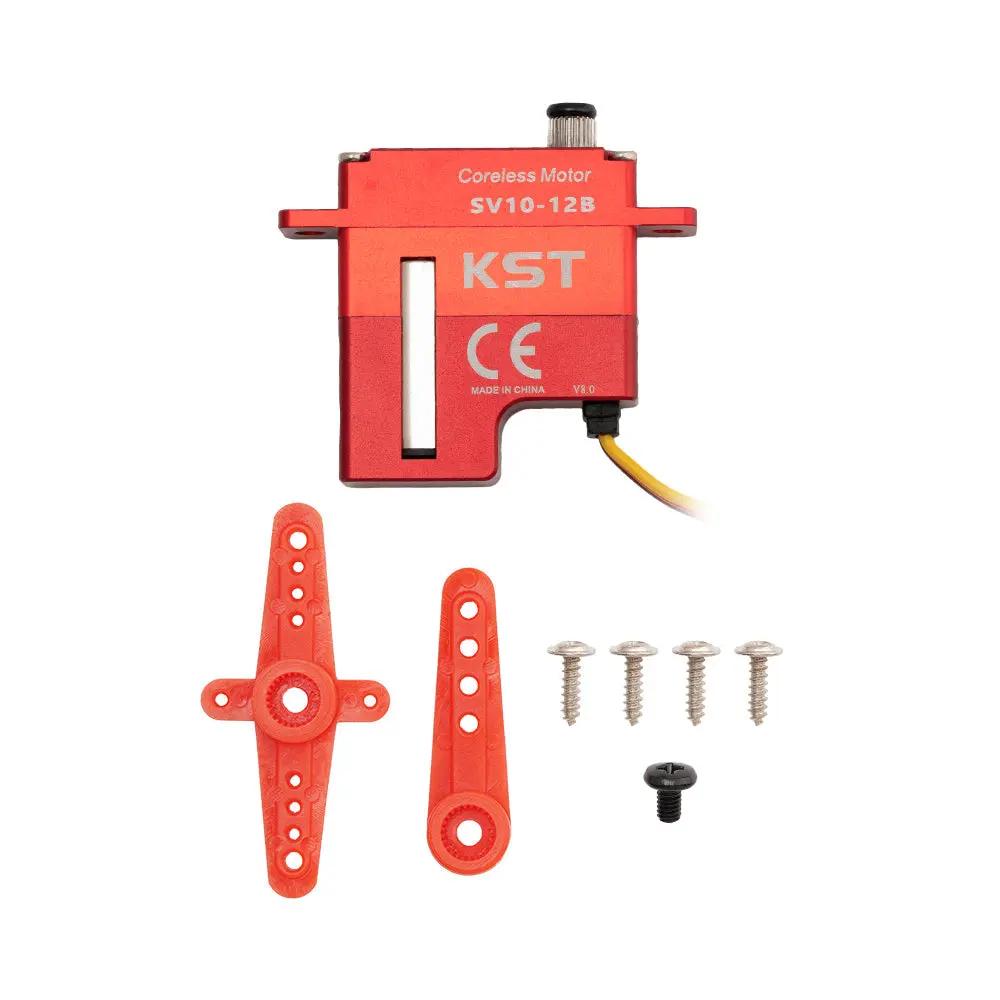

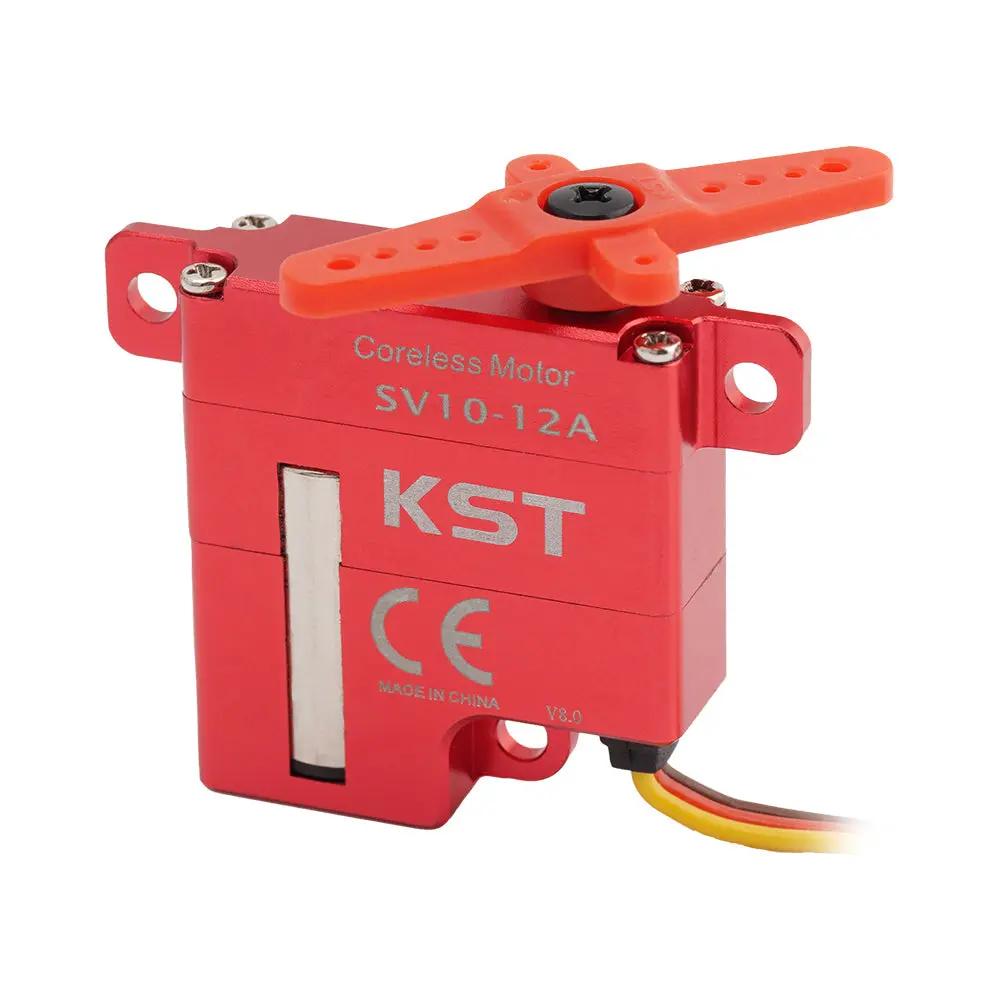

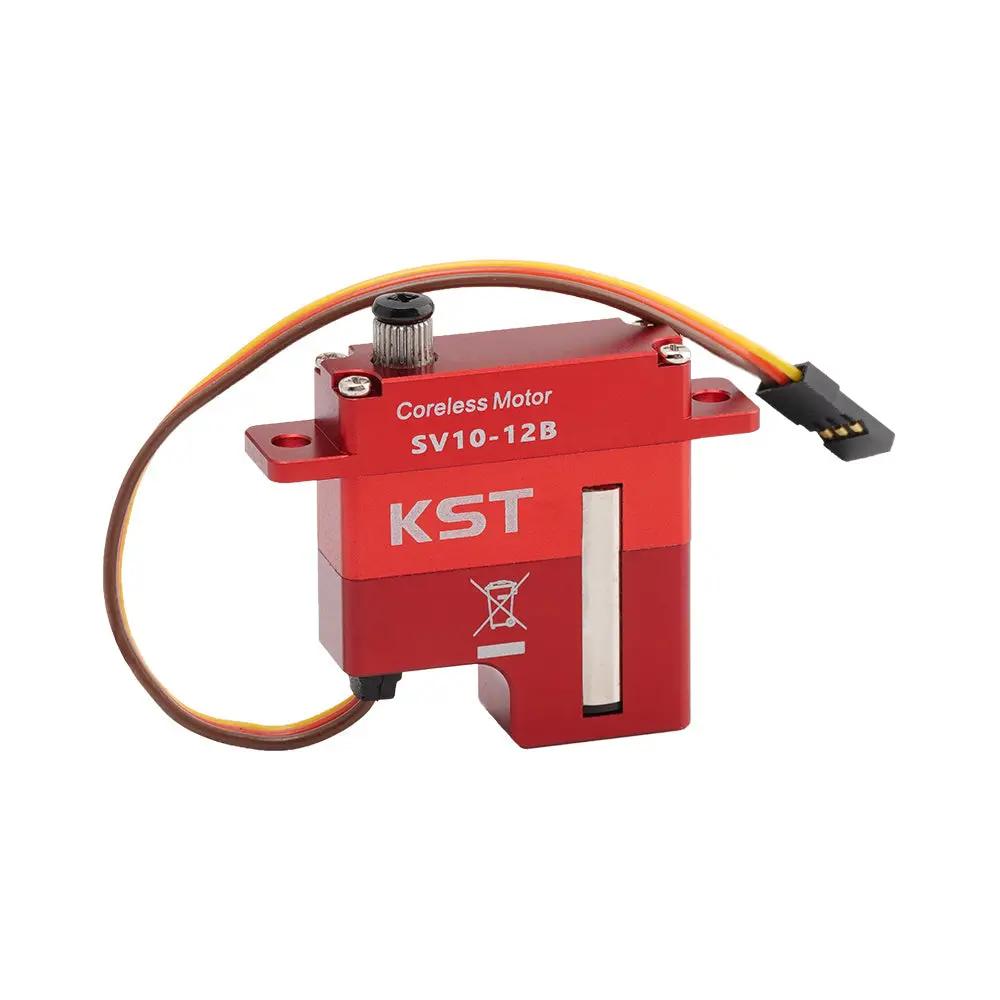

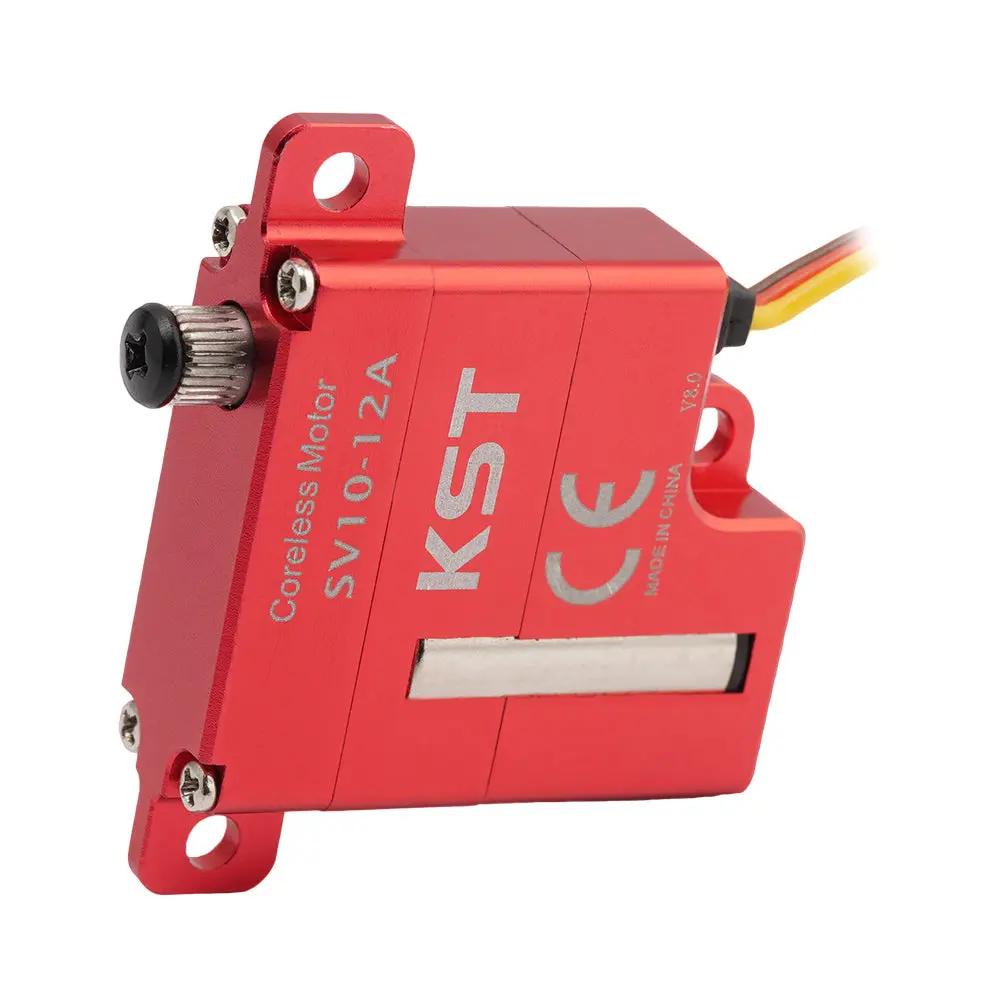

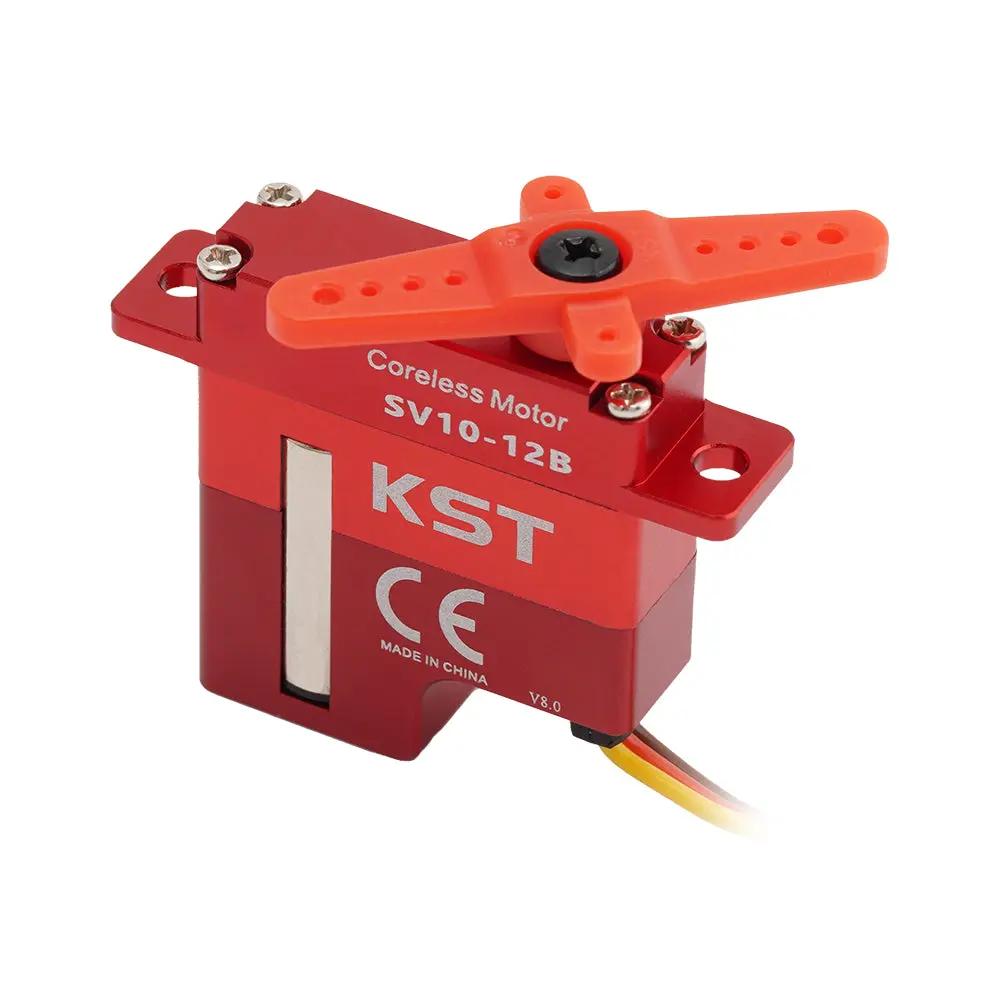

The KST SV10-12A & SV10-12B are high-performance SHV coreless servos designed for RC gliders and industrial UAVs. At 13V, they deliver up to 14.0Kgf.cm torque with a fast 0.10s/60° response. Featuring hardened steel gears, an aluminum alloy case, and programmable soft start, they are available in Horizontal (SV10-12A) and Standard (SV10-12B) mounting configurations.

Features

SHV (Super High Voltage) DC 12V or Up to 3S LiPo Direct Drive
Supports 8.4–13.0V High Voltage
High Torque & Exceptional Speed
Programmable
Large Default Travel Angle (Programmable)
High Performance Coreless DC Motor
Hardened Steel Gear
Ideal for RC Gliders and Industrial UAVs

Specification

Parameter	Value
Item	SV10-12 Servo
Rated Voltage	DC12.0V
Voltage Range	DC8.4V–13.0V
Torque	11.0Kgf.cm@8.4V / 13.0Kgf.cm@12.0V / 14.0Kgf.cm@13.0V
Speed	0.15sec/60°@8.4V / 0.11sec/60°@12.0V / 0.10sec/60°@13.0V
Working Frequency	1520μs/333Hz

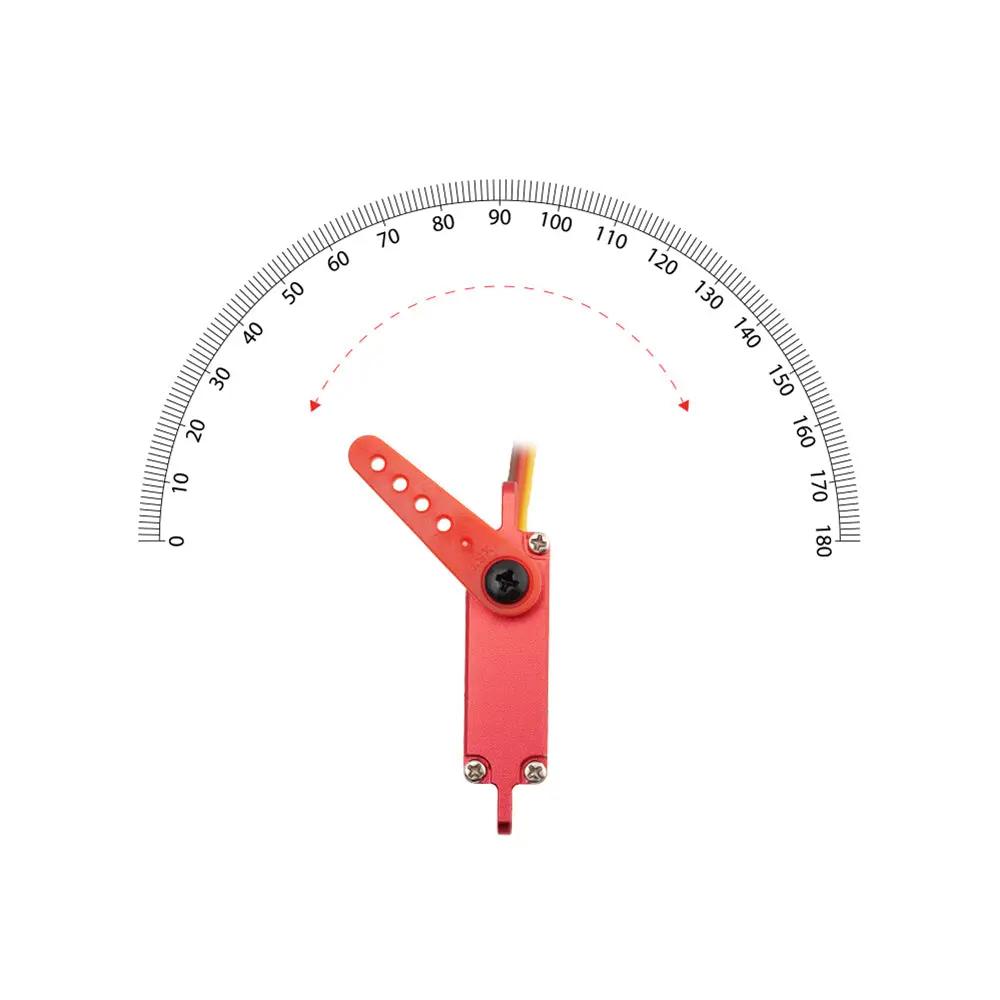

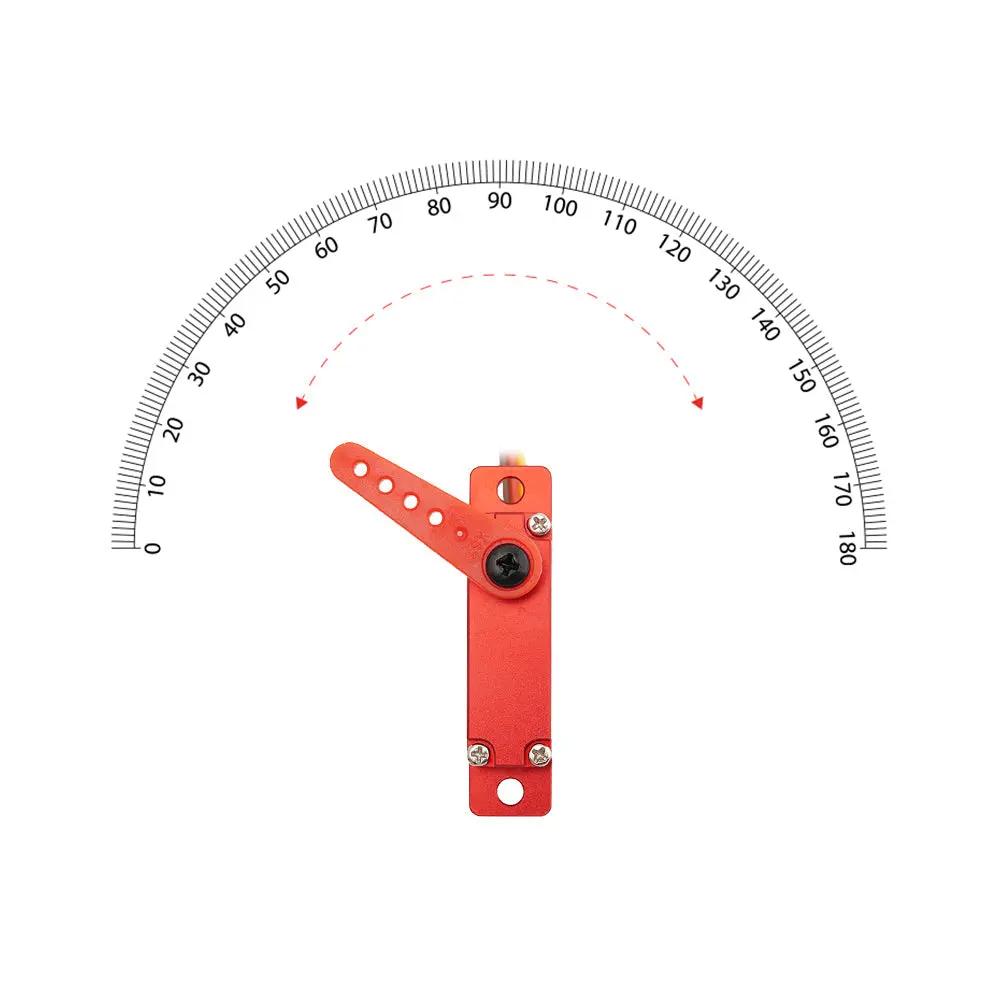

Travel Angle	±60° = 120° Total
Operating Temperature	-10℃ ~ +65℃
Soft Start	Programmable
Programmable	Yes
Case Material	Aluminium Alloy
Motor Type	Coreless DC Motor
Gear Set Material	Hardened Steel
Position Sensor	Potentiometer

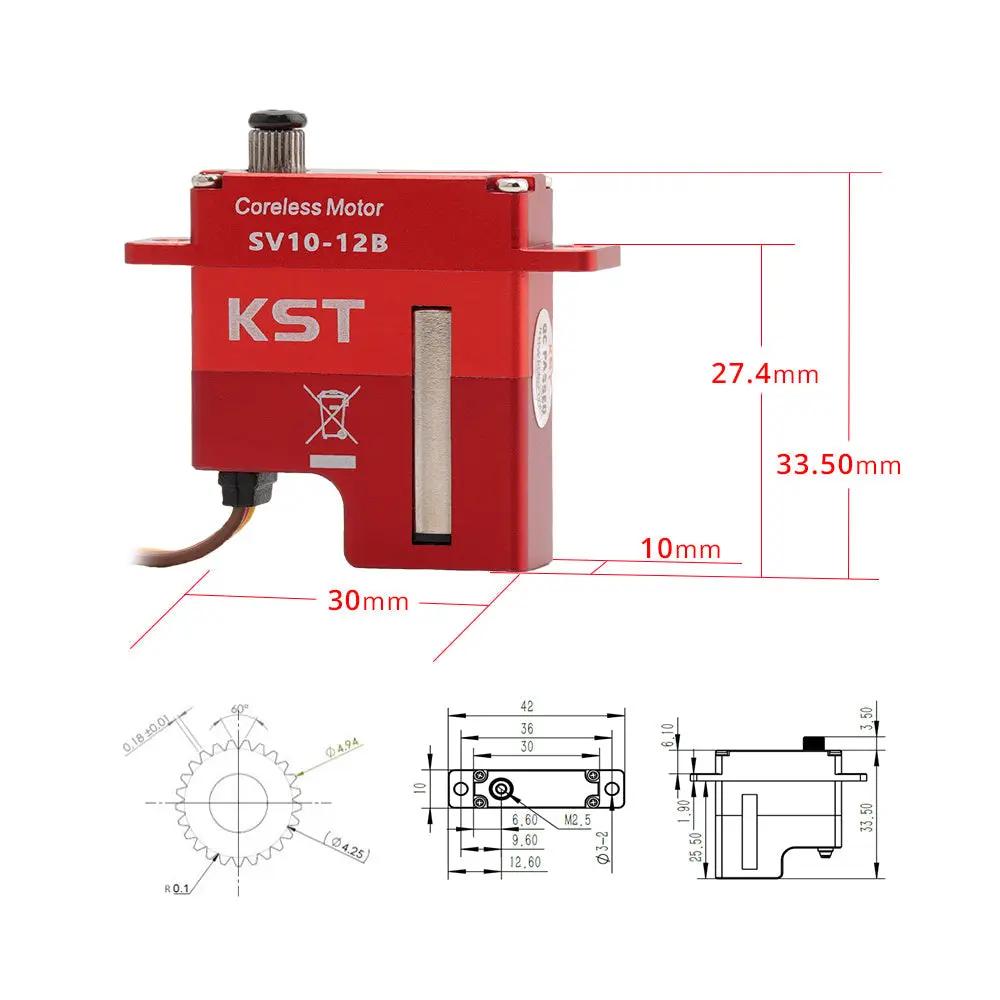

Case Dimensions	30mm × 10mm × 33.5mm ±0.2mm
Weight	25g ±10%
