SV7012-12 SHV Contactless 4 Pole Brushless Digital Servo 75.0Kgf.cm 0.10sec/60° 6BB for Large Scale RC Planes, Industrial UAVs & Robotics
$179.99
Skip to product information
SV7012-12 SHV Contactless 4 Pole Brushless Digital Servo 75.0Kgf.cm 0.10sec/60° 6BB for Large Scale RC Planes, Industrial UAVs & Robotics
BR0023.0247
$179.99
Features
- SHV (Super High Voltage) DC 12V / Up to 3S LiPo Battery Direct Drive
- Supports 8.4–13.0V High Voltage
- High Torque & Exceptional Speed
- 4 Pole Brushless Motor
- Large Default Travel Angle (Programmable)
- 6 Ball Bearings
- Contactless Hall Sensor
- Hardened Steel Gear
- Programmable
- Ideal for Large Scale RC Planes, Industrial UAVs & Robotics
Specification
| Parameter | Value |
| Item | SV7012-12 Servo |
| Rated Voltage | DC12.0V |
| Voltage Range | DC8.4V–13.0V |
| Stalling Torque | 55.0Kgf.cm@8.4V / 70.0Kgf.cm@12.0V / 75.0Kgf.cm@13.0V |
| No-Load Speed | 0.16sec/60°@8.4V / 0.12sec/60°@12.0V / 0.10sec/60°@13.0V |
| Working Frequency | 1520μs/333Hz |

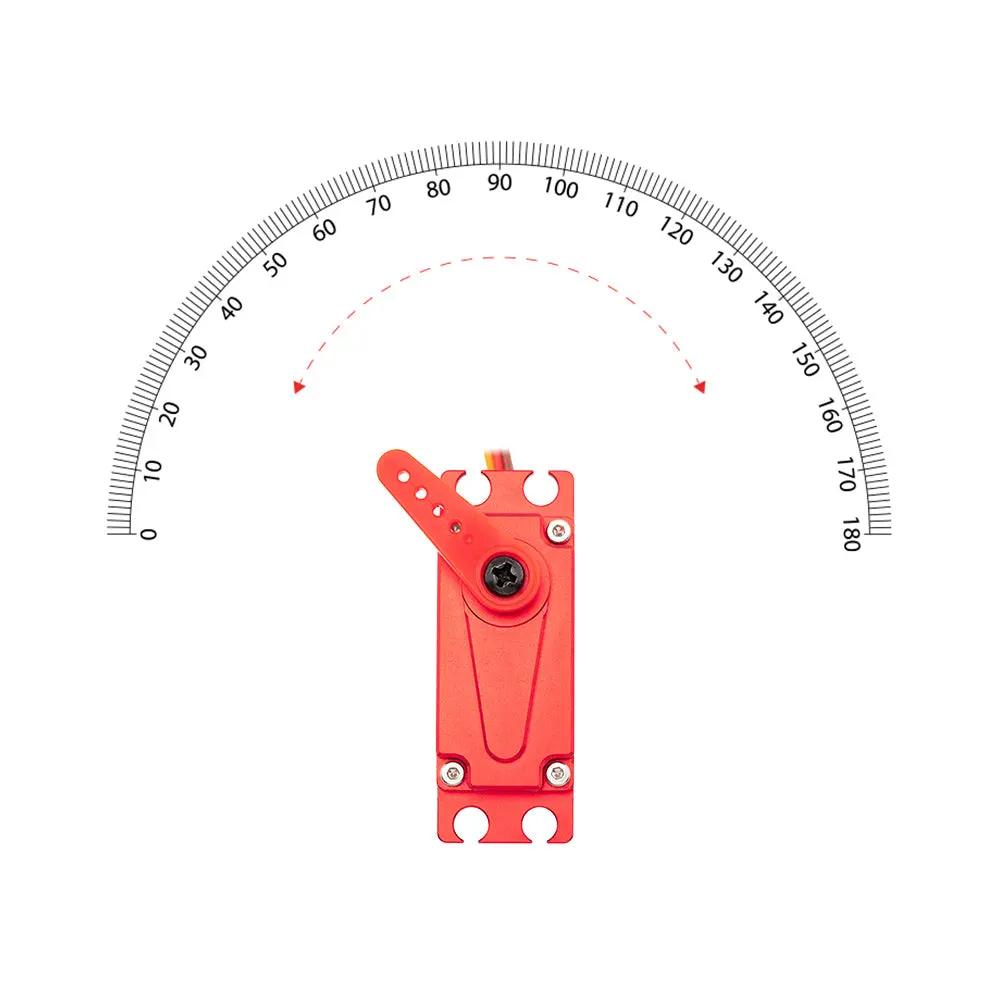

| Travel Angle | ±100° = 200° Total |
| Operating Temperature | -10℃ ~ +65℃ |
| Soft Start | Programmable |
| Programmable | Yes |
| Case Material | Aluminium Alloy |
| Motor Type | 4 Pole Brushless Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Contactless Hall Sensor |
| Ball Bearing | 6BB |

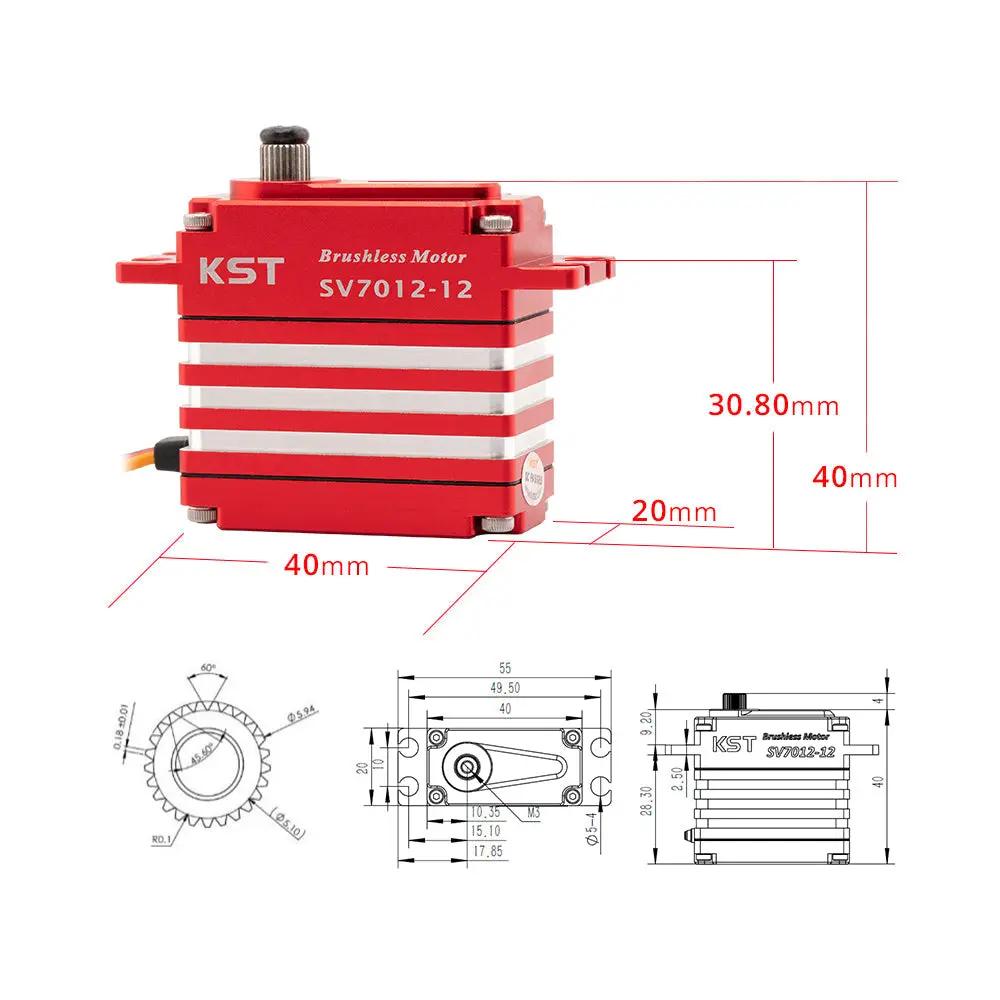

| Case Dimensions | 40mm × 20mm × 40mm ±0.2mm |
| Weight | 75g ±10% |

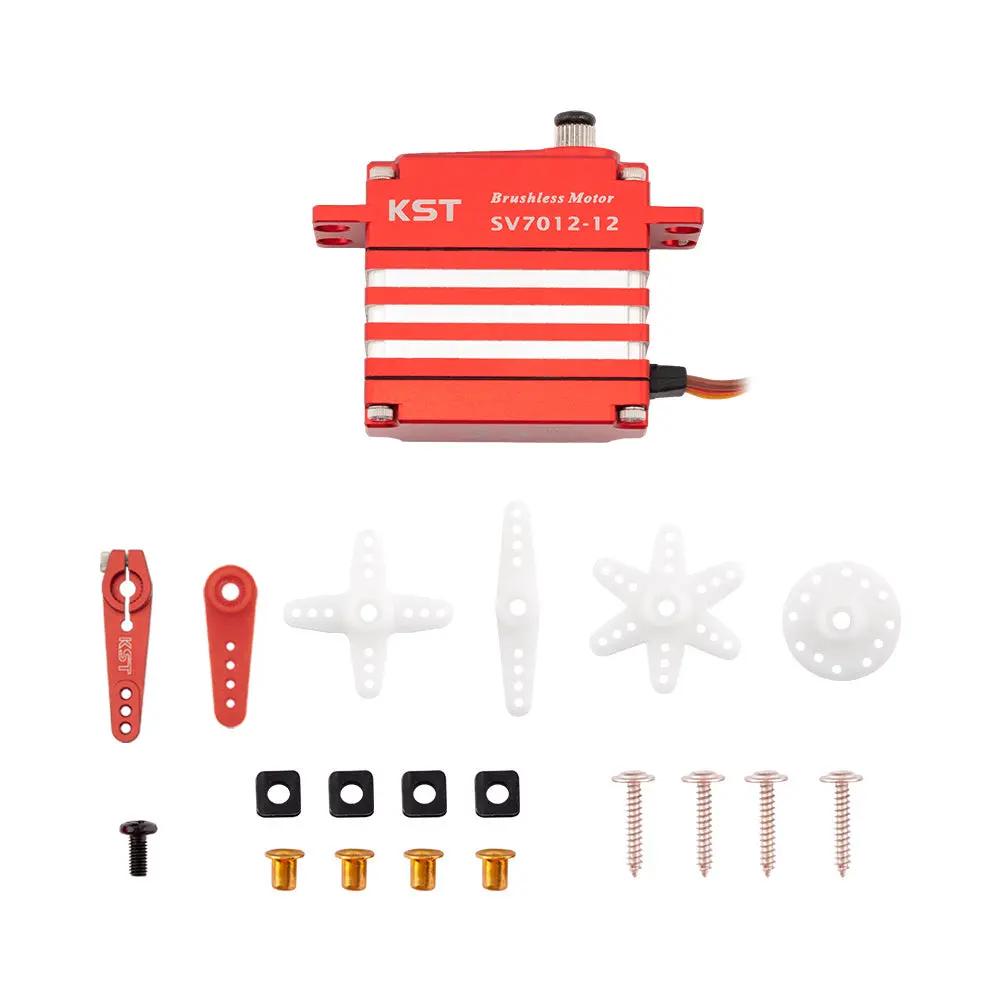

Package Includes
- 1 * SV7012-12 Servo
- 1 * CNC Servo Horn
- 5 * Plastic Servo Horn
- 1 * Servo Horn Screw
- 4 * Mounting Screw
- 4 * Rubber Grommet
- 4 * Eyelet
