X06N V6.0 servo is without mounting tabs. Perfect for installations where the servos are glued to the model.

KST delivers once again with the X06 series competition servos for glider pilots and soaring enthusiasts who demand the best! The all new X06 are super compact and ideal for F3K and F5K gliders. Featuring a slim 7mm wide casing crafted from 6061 Alloy and sporting the famous KST red midsection not only do these servos look fantastic but they also offer the competition winning performance you would expect from KST.

Features

• Compact and Lightweight Design

• Excellent Torque and Speed

• Designed for High Performance RC Gliders

• Excellent Heat Dissipation

• Ultra-slim 7mm Body

Specification

• Item: X06N HV Micro Servo
• Rated Voltage: DC3.8V-8.4V

• Voltage Range: DC6.0V

• Stall Torque: 0.8Kgf.cm@3.8V, 1.5Kgf.cm@6.0V, 1.8Kgf.cm@8.4V

• Rated Torque: 4N.cm @ 6.0V

• Stalling Current: 0.58A @ 6.0V

• Rated Current: 0.22A @ 6.0V

• No-load Speed: 0.12sec/60°@3.8V, 0.08sec/60°@6.0V, 0.07sec/60°@8.4V
• Rated Speed: 0.20sec/60° @ 6.0V

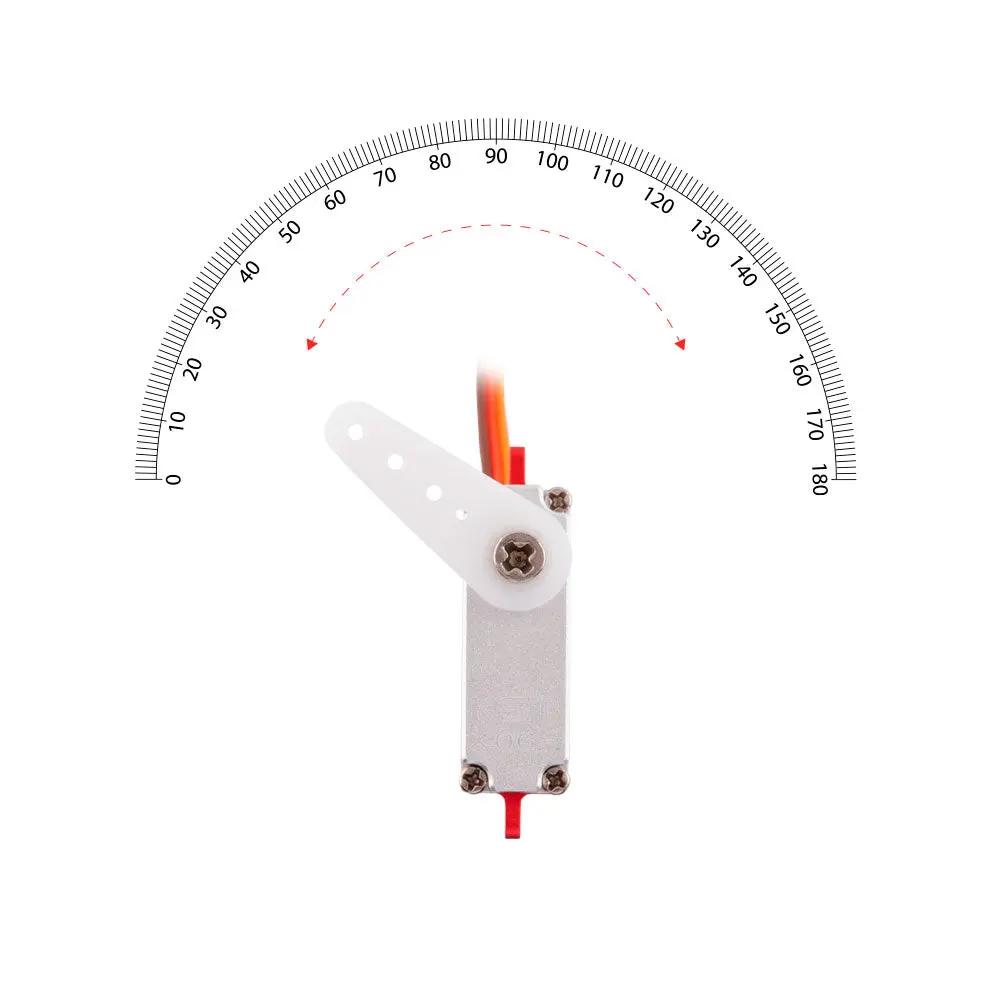

• Default Travel Angle: ±60° = 120° total travel

• Operating Temperature Range: -10℃……+65℃

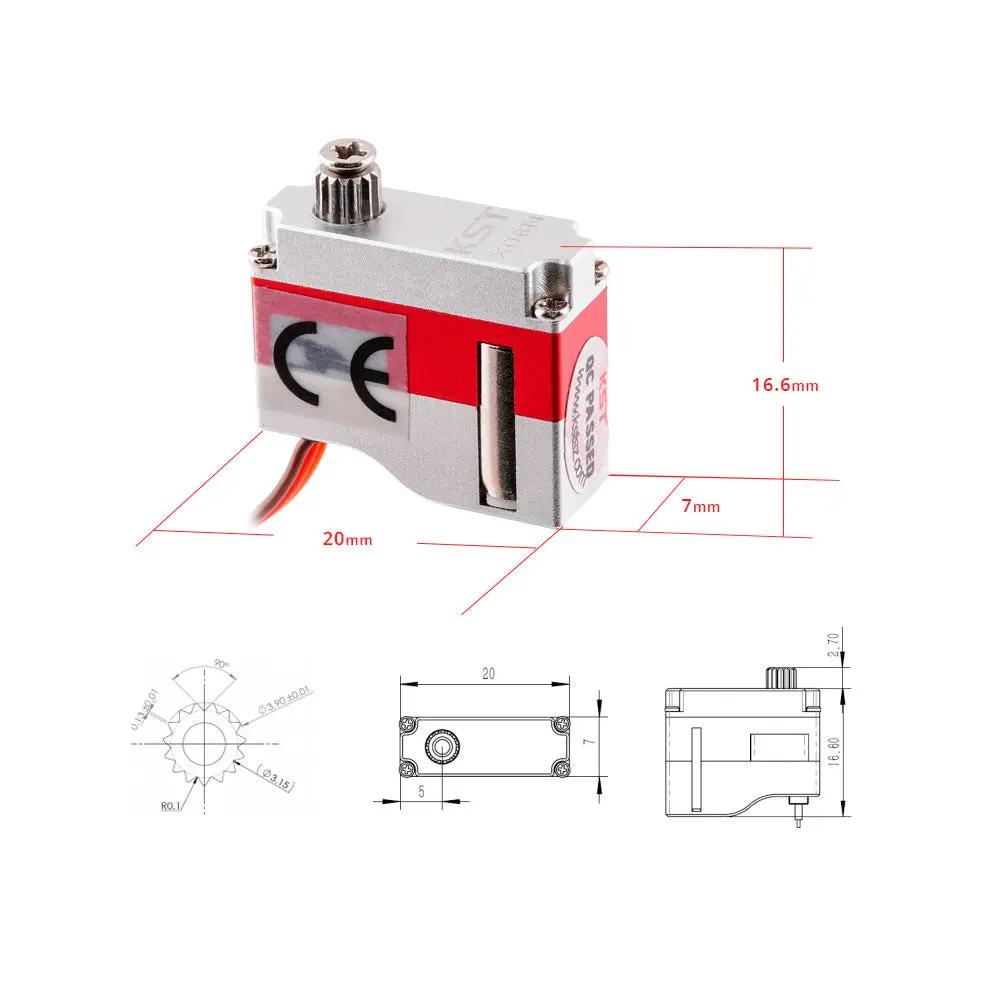

• Case Dimensions: 20mm*7mm*16.6mm±0.2mm

• Weight: 6g±10%

• Motor: Coreless motor

• Ball Bearing: 1BB

Related Products

• X06 Servos
• X06H Servos

Size

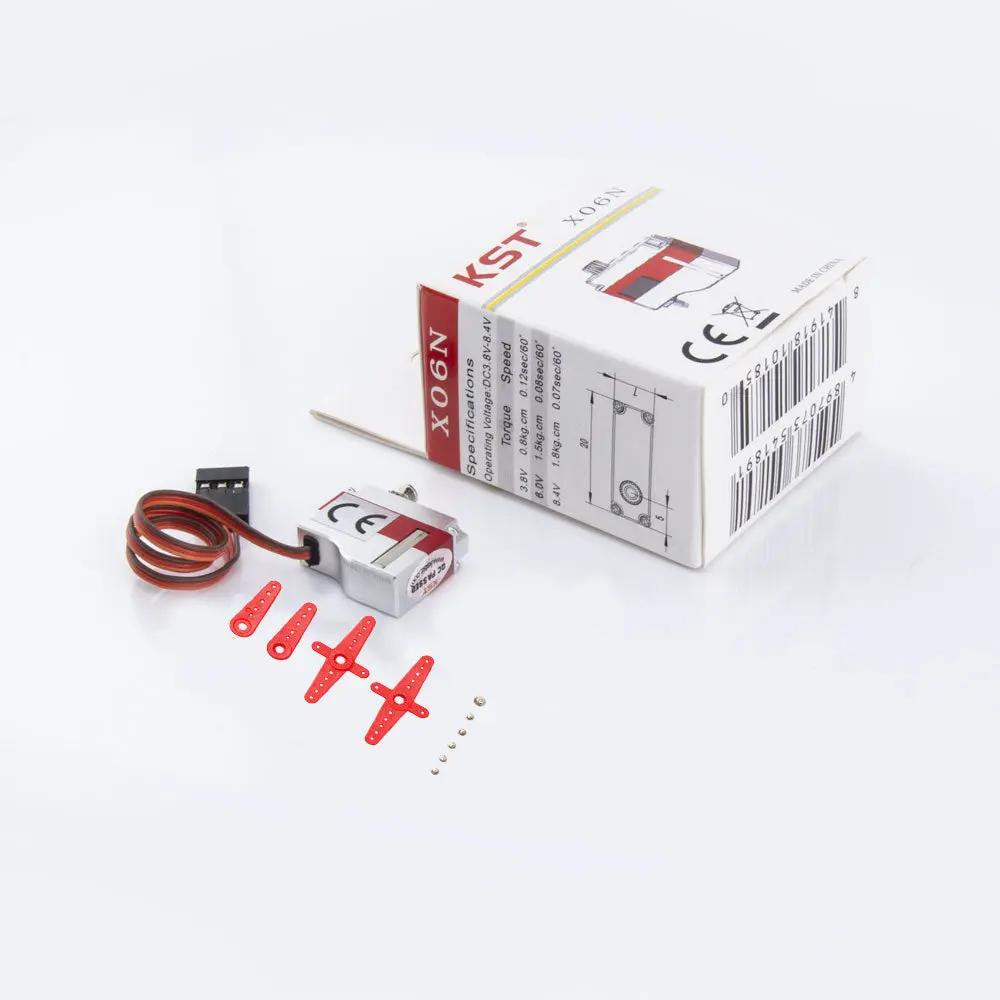

Package Including

• 1 * X06N Micro Servo
• 4 * Plastic Servo Horn
• 1 * Servo Horn Screw
• 4 * Mounting Screw

Download

• X06N Servo Technical Specification
