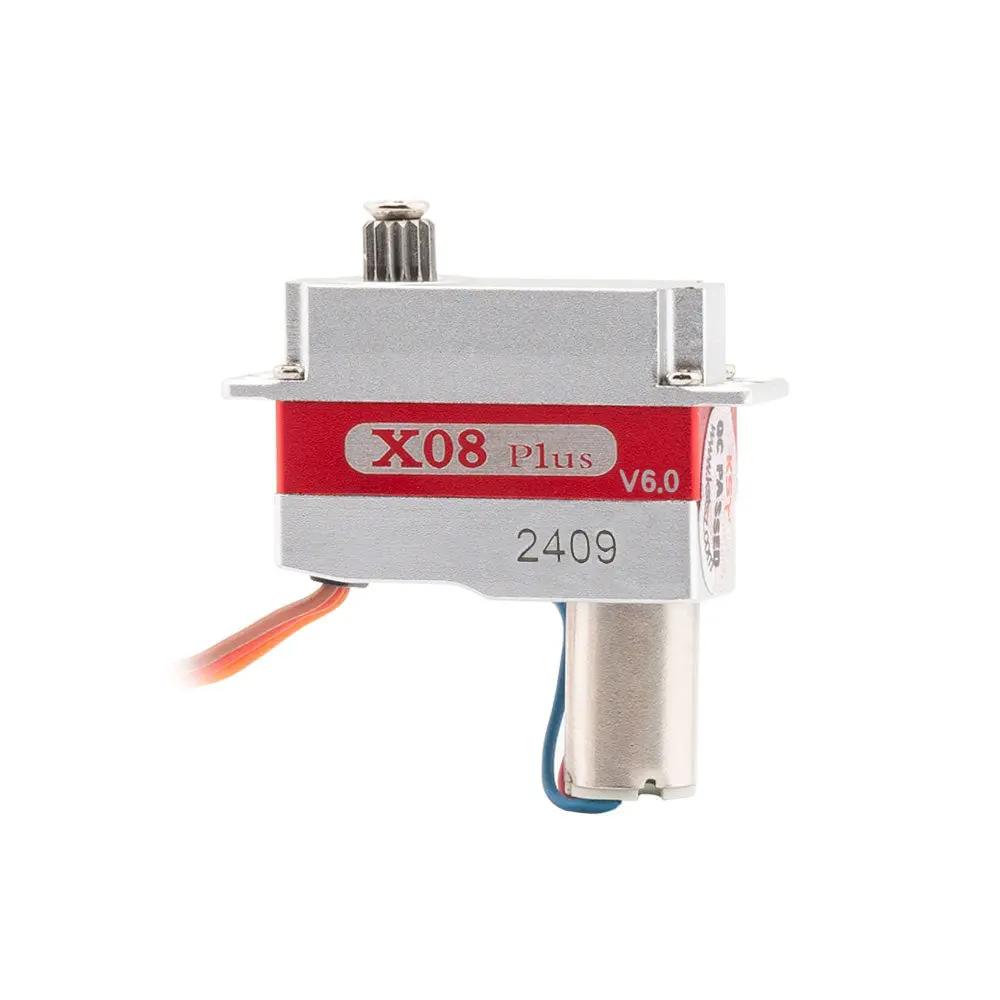

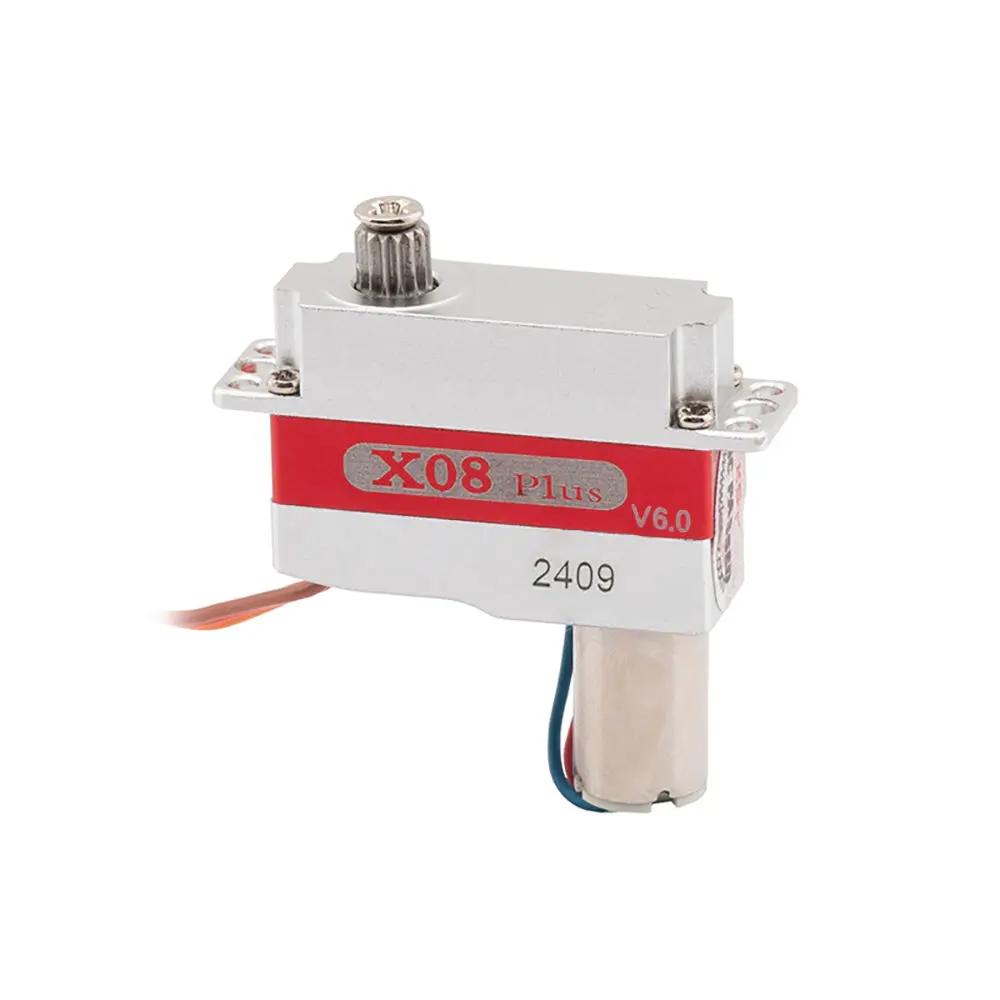

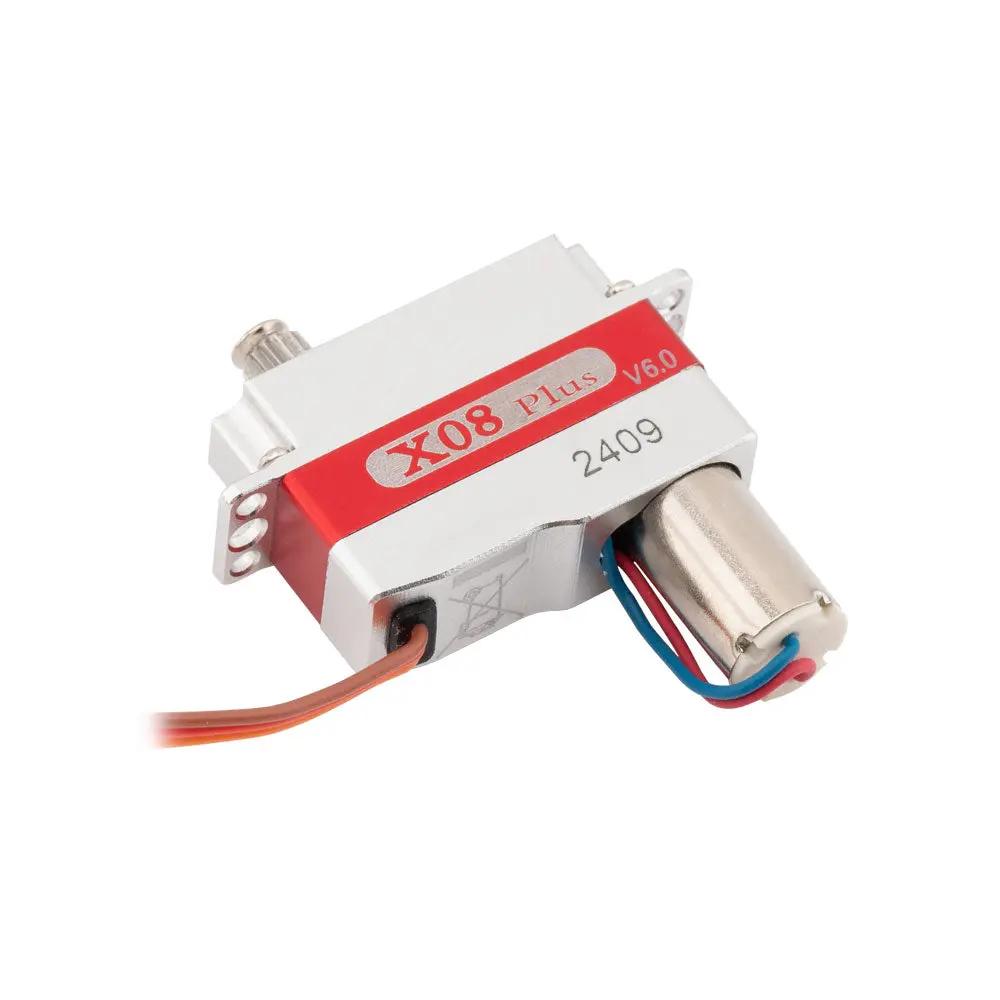

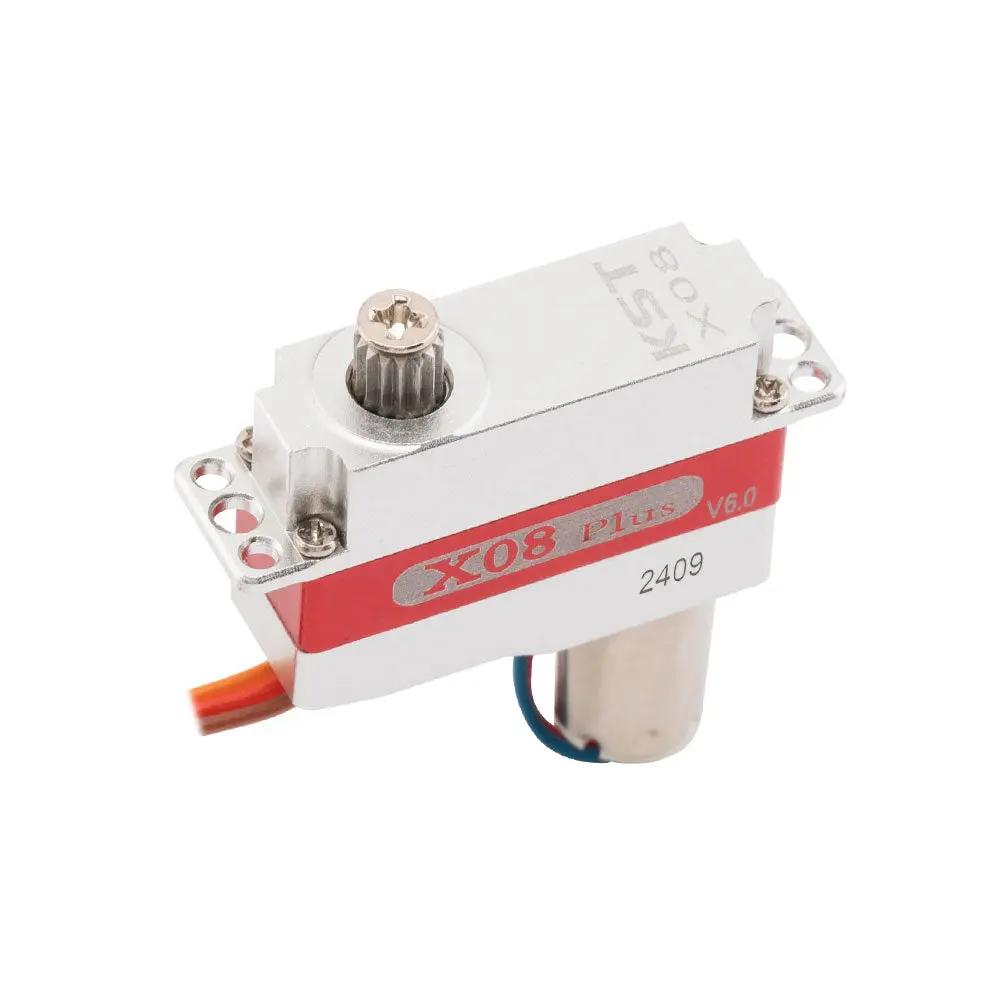

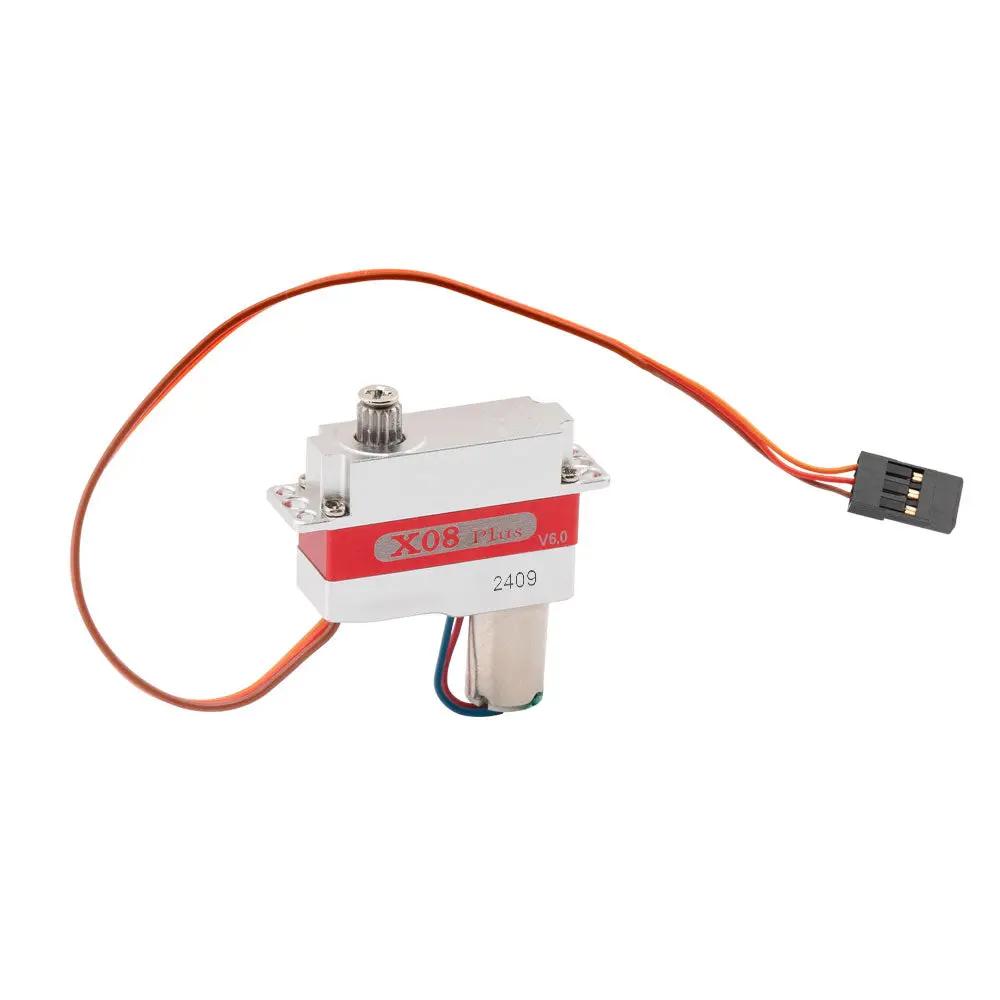

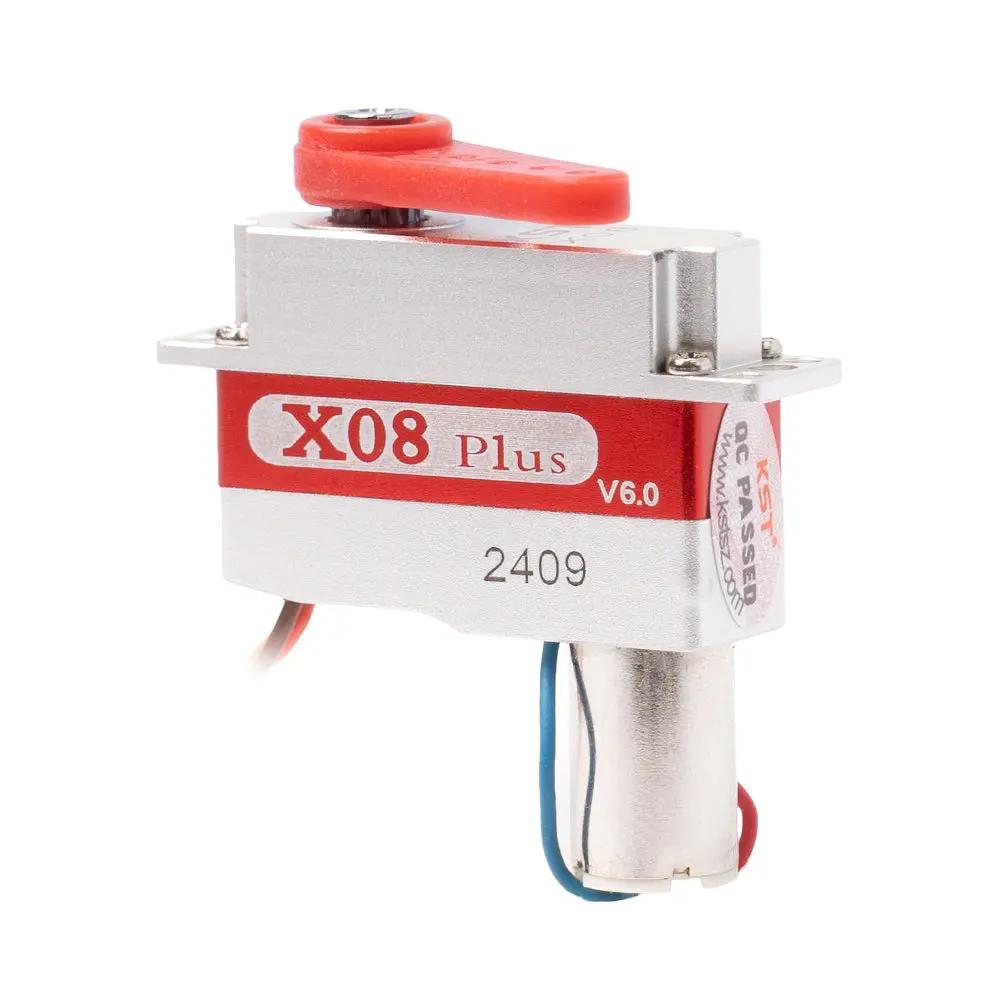

KST X08 Plus HV Digital Servo
The KST X08 Plus is a lightweight, high-performance metal-case servo designed for thin-wing applications. At just 8mm thick and 9g, it combines a compact design with a powerful coreless motor and precision metal gearing.
Supporting 3.8–8.4V (1S–2S LiPo) operation, the X08 Plus delivers up to 5.3kgf·cm of torque with fast and precise control. Its low-backlash geartrain provides reliable positioning under demanding flight conditions.
Ideal for F5J, F3J, F5D gliders, electric racers, pylon racers, and EDF models, especially for aileron and other thin-wing installations.
Features
- Compact and lightweight design
- Excellent torque and speed
- Designed for high performance RC Gliders
- Excellent heat dissipation
Specification
| Parameter | Value |
| Item | X08 Plus Micro Servo |
| Rated Voltage | DC7.4V |
| Voltage Range | DC3.8V–8.4V |
| Torque | 2.4Kgf.cm@3.8V / 3.85Kgf.cm@6.0V / 4.85Kgf.cm@7.4V / 5.3Kgf.cm@8.4V |
| Speed | 0.18sec/60°@3.8V / 0.15sec/60°@6.0V / 0.12sec/60°@7.4V / 0.09sec/60°@8.4V |
| Working Frequency | 1520μs/333Hz |

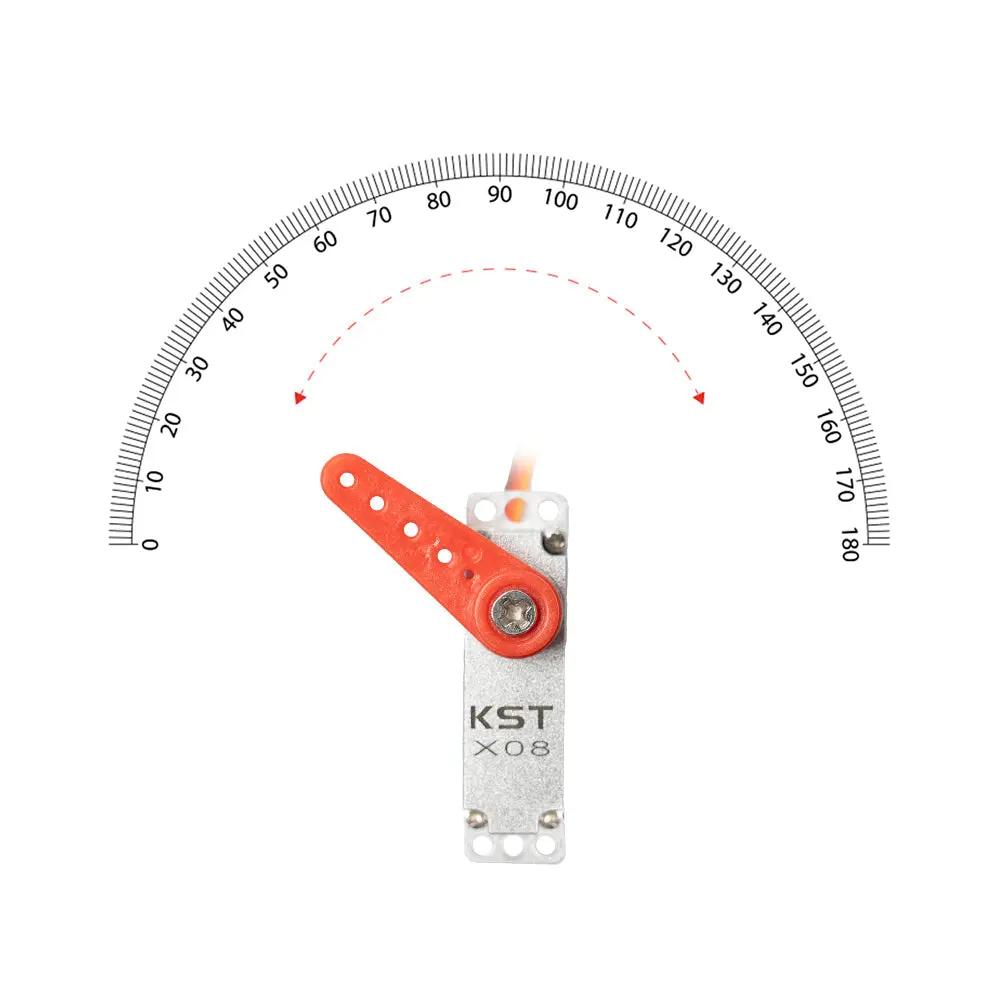

| Travel Angle | ±60° = 120° Total |
| Operating Temperature | -10℃ ~ +65℃ |
| Case Material | Aluminium Alloy |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |

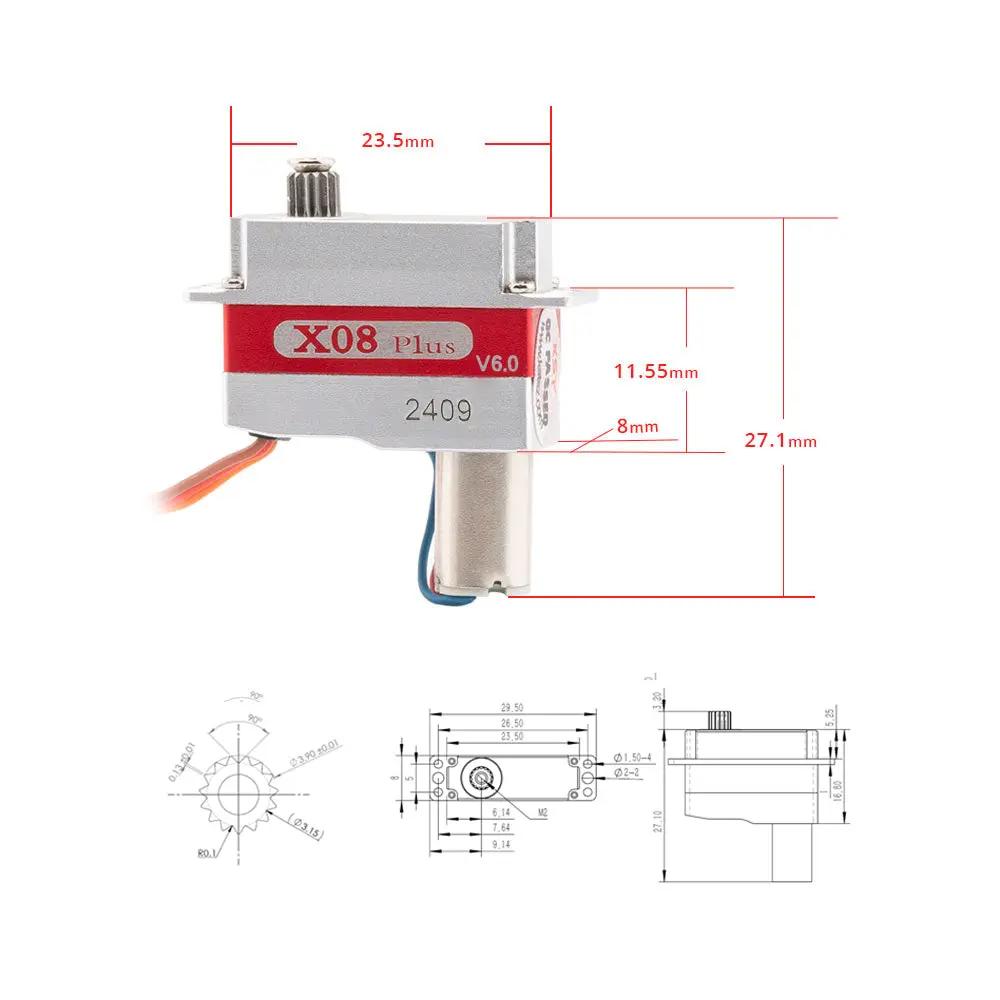

| Case Dimensions | 23.5 × 8 × 16.8mm ±0.2mm |
| Weight | 9g ±10% |

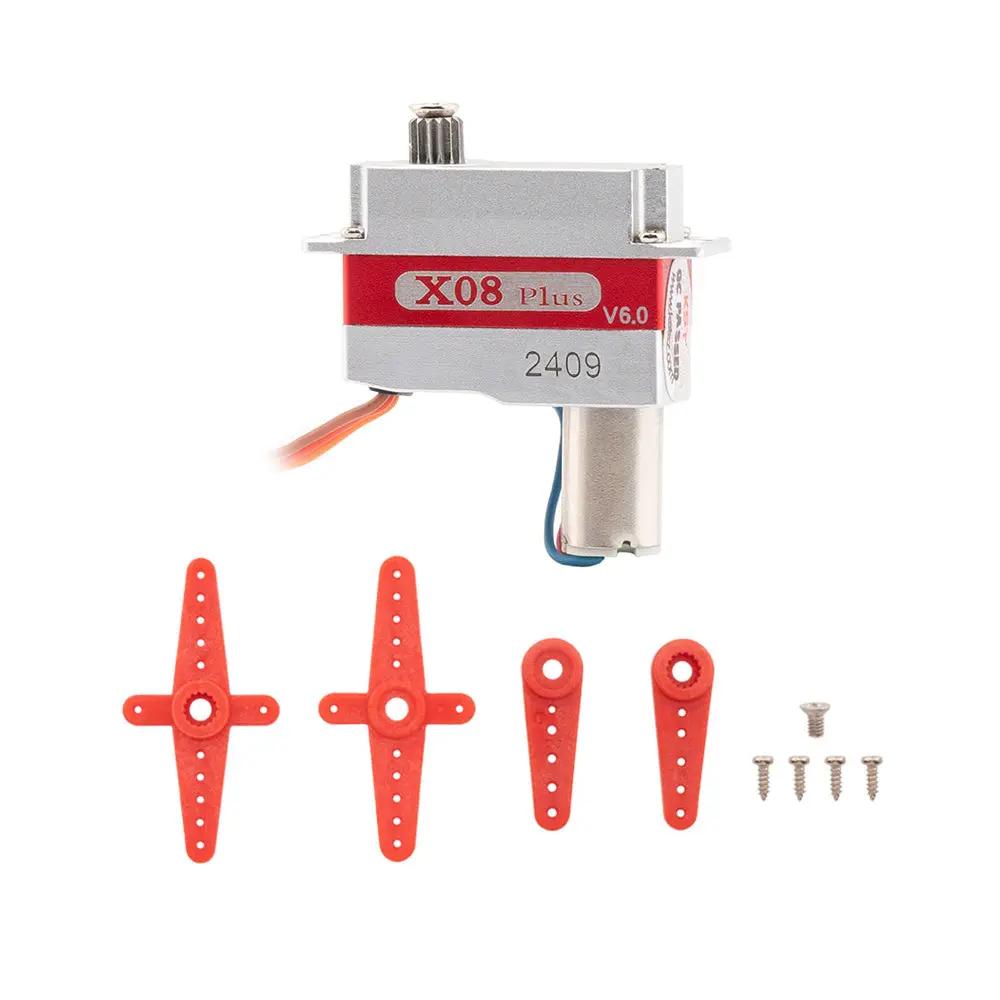

Package Includes
- 1 * X08 Plus V6.0 Micro Servo
- 4 * Plastic Servo Horn
- 4 * Mounting Screw
- 1 * Servo Horn Screw
