X08N V6.0 Metal Gear Digital Micro Servo 2.8Kgf.cm 0.09sec for RC Gliders
X08N V6.0 Metal Gear Digital Micro Servo 2.8Kgf.cm 0.09sec for RC Gliders

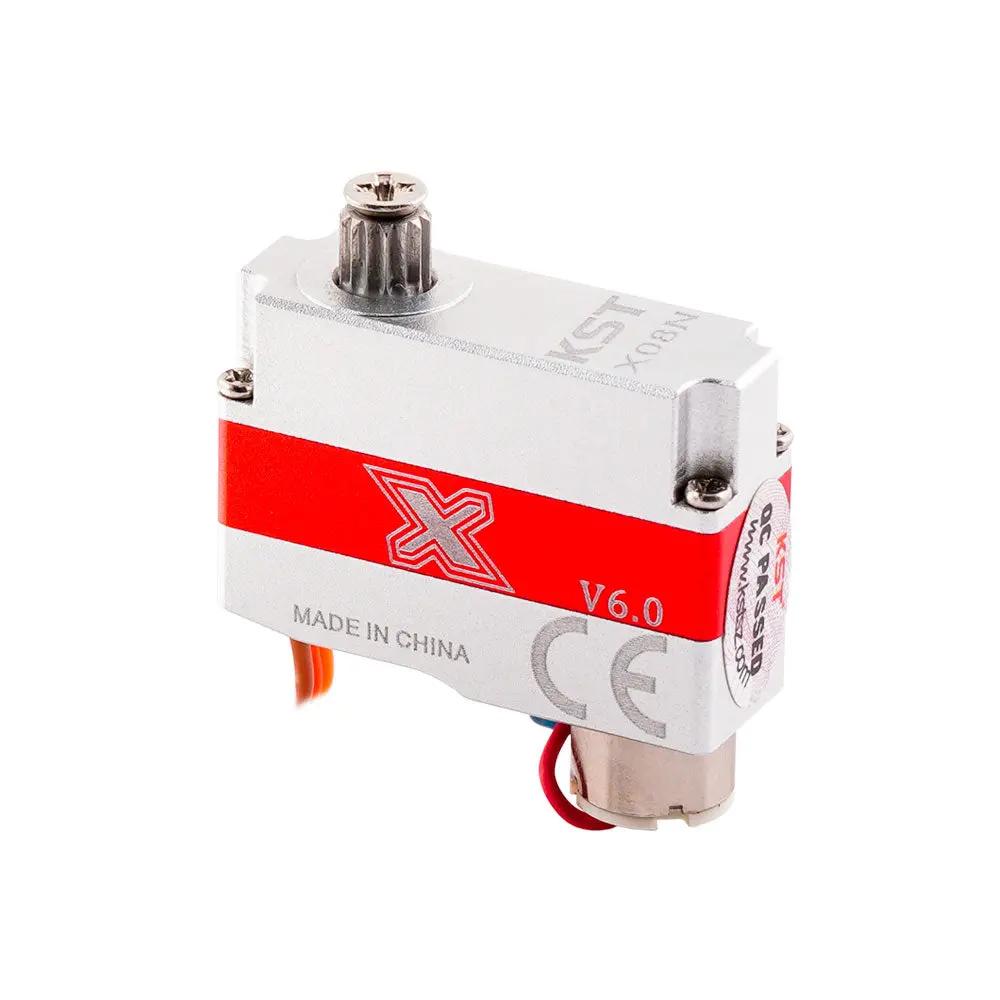

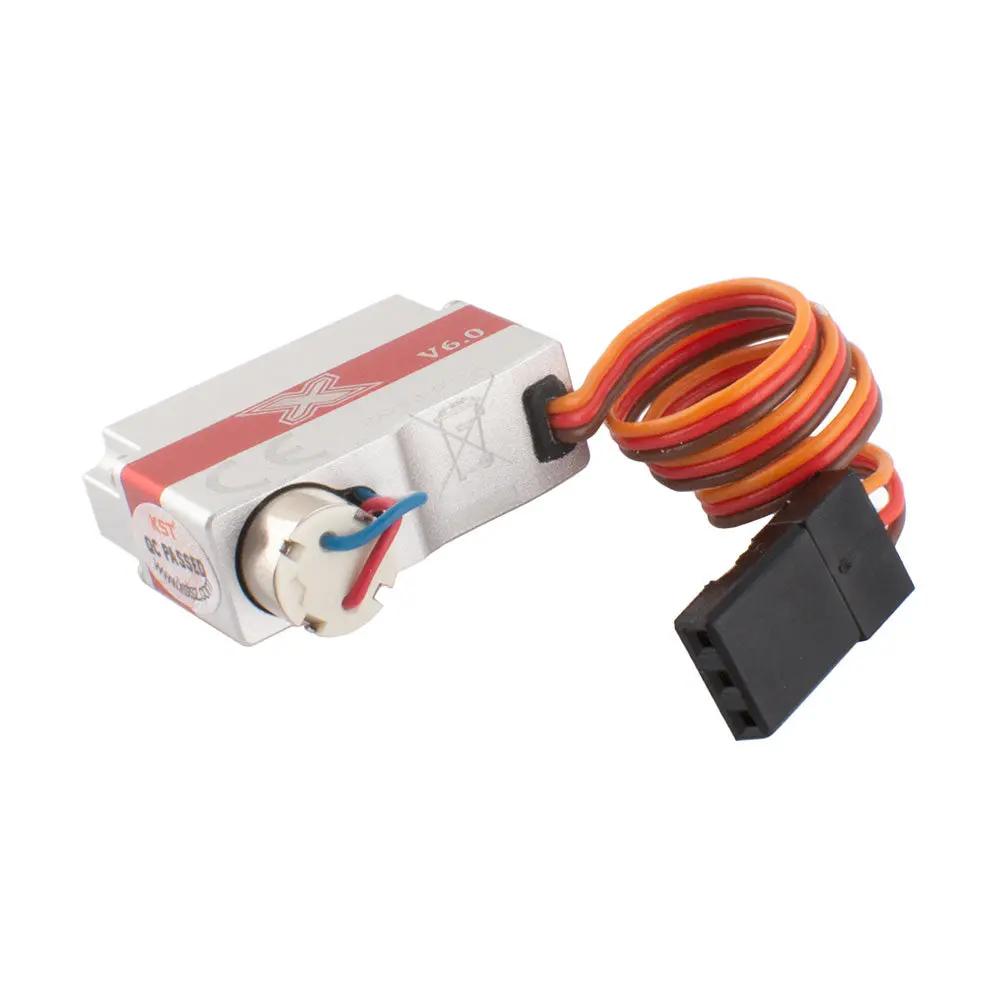

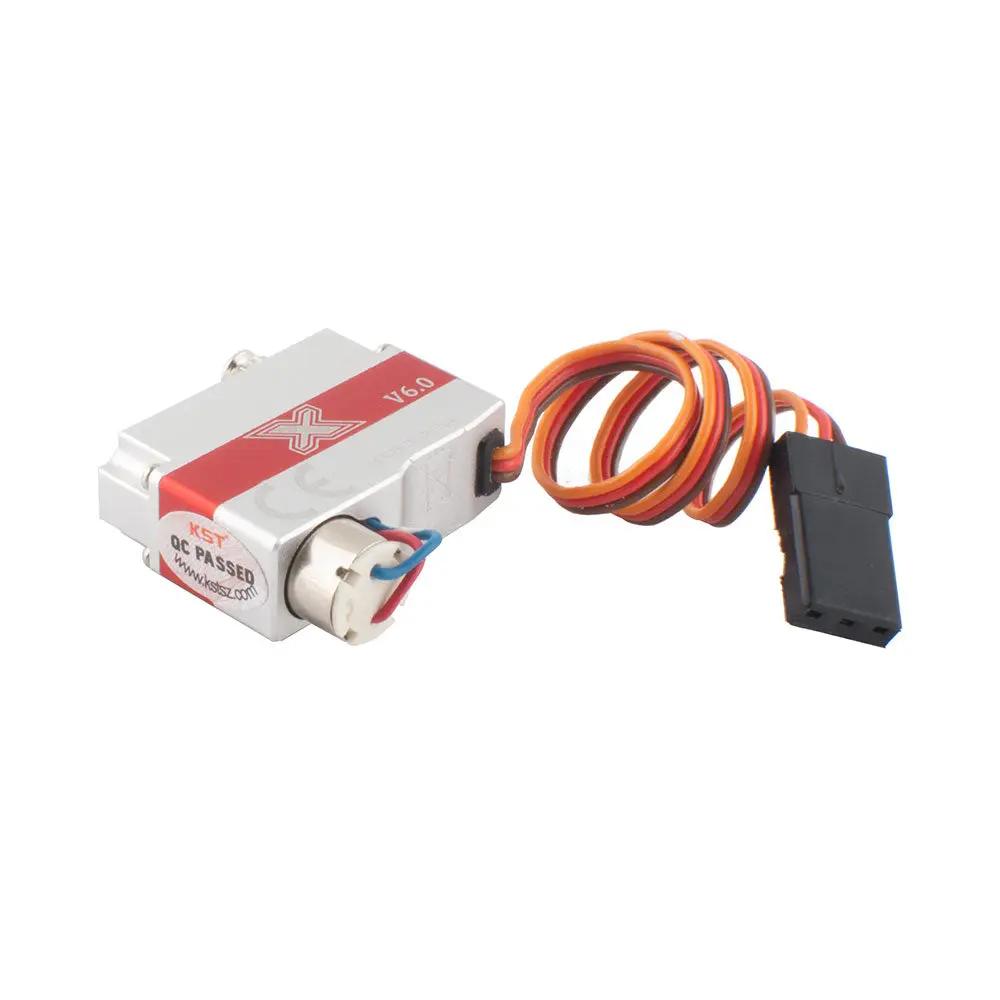

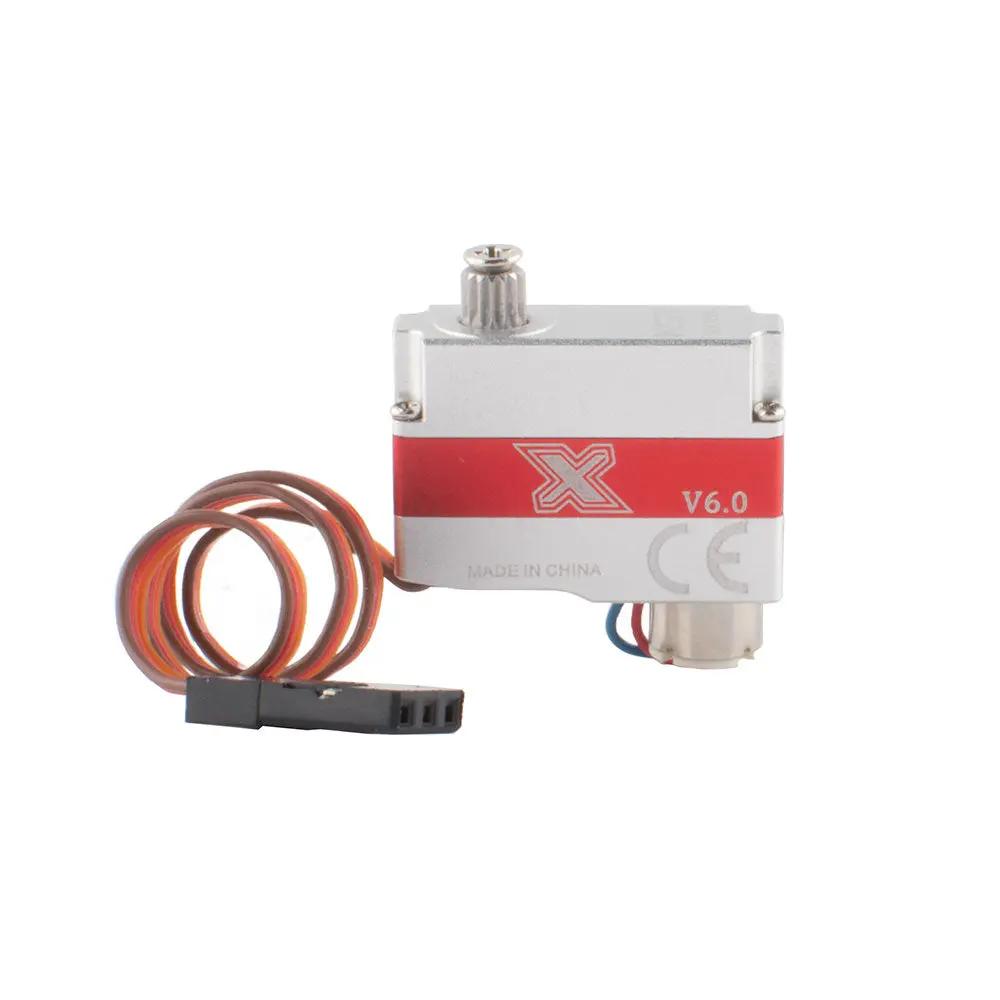

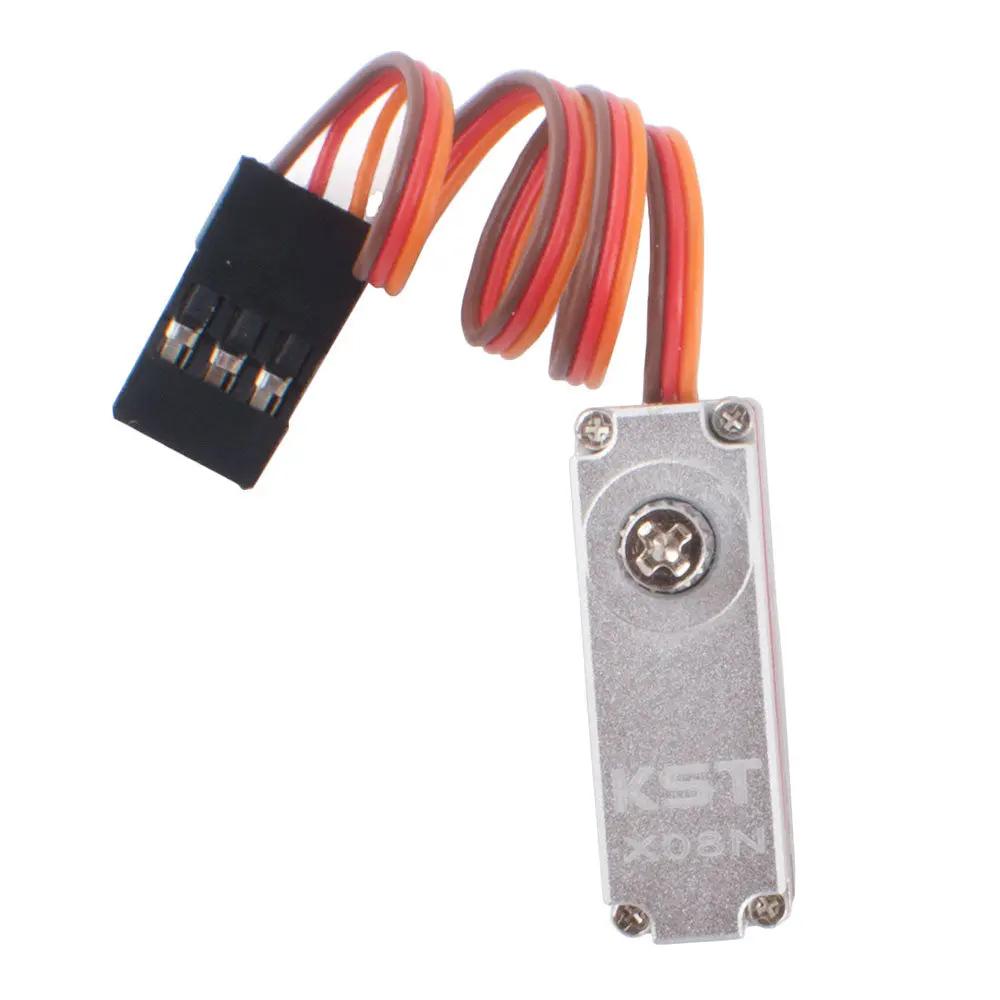

KST X08N V6.0 Tabless Digital Servo
The KST X08N V6.0 is the tabless version of the X08 V6.0, designed for installations where space is extremely limited. Its tabless design allows the servo to be mounted directly with glue, eliminating the need to remove mounting tabs manually.
The X08 series has long been a popular choice for DLG (Discus Launch Glider) applications, offering precise and reliable performance. The V6.0 features an improved gear set that reduces slop, while maintaining accurate control with 1μs resolution and deadband.
With an ultra-slim 8mm thickness and compatibility with 1S/2S LiPo batteries, the X08N is ideal for tight fuselage installations. It can also be programmed for endpoint, center, and direction adjustment using the KST Tool Card #5 (sold separately).
Features
- Compact and Lightweight Design (8mm thickness)
- Excellent Torque and Speed
- Designed for High-performance RC Gliders
- Excellent Heat Dissipation
- Programmable (KST Tool Card #5)
- Soft Start Support
- 1S & 2S LiPo Compatible
- Tabless (N) Version — Glue-in Installation
Specification
| Parameter | Value |
| Item | X08N V6.0 Micro Servo |
| Rated Voltage | DC7.4V |
| Voltage Range | DC3.8V–8.4V |
| Torque | 1.4Kgf.cm@3.8V / 2.2Kgf.cm@6.0V / 2.8Kgf.cm@8.4V |
| Speed | 0.18sec/60°@3.8V / 0.15sec/60°@6.0V / 0.09sec/60°@8.4V |
| Working Frequency | 1520μs/333Hz |
| Travel Angle | ±60° = 120° Total |
| Operating Temperature | -10℃ ~ +65℃ |
| Soft Start | Yes |
| Programmable | Yes |
| Case Material | Aluminum Alloy |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |

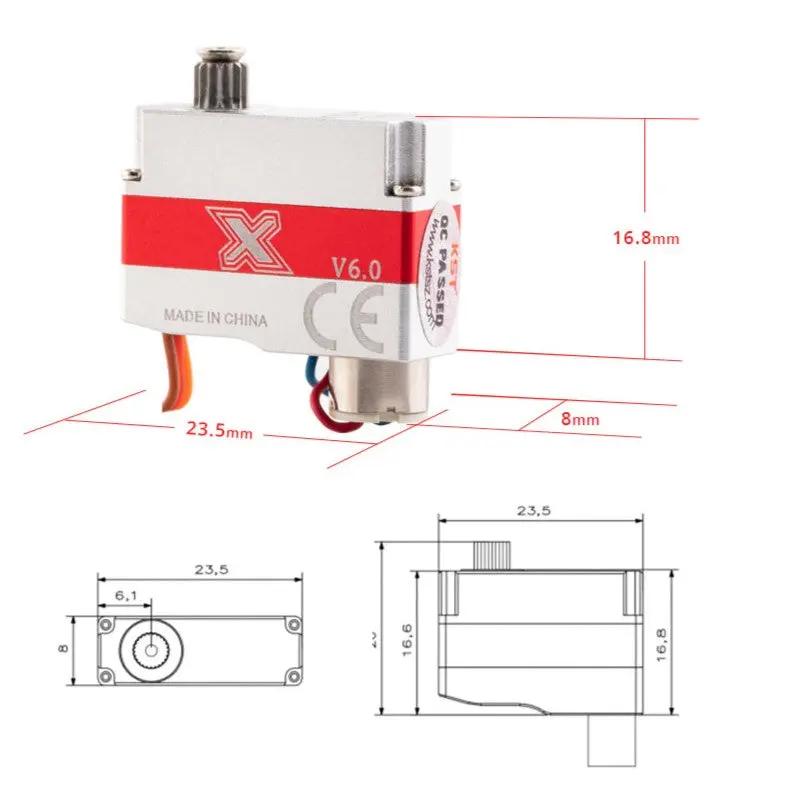

| Case Dimensions | 23.5mm × 8mm × 16.8mm ±0.2mm |
| Weight | 8g ±10% |

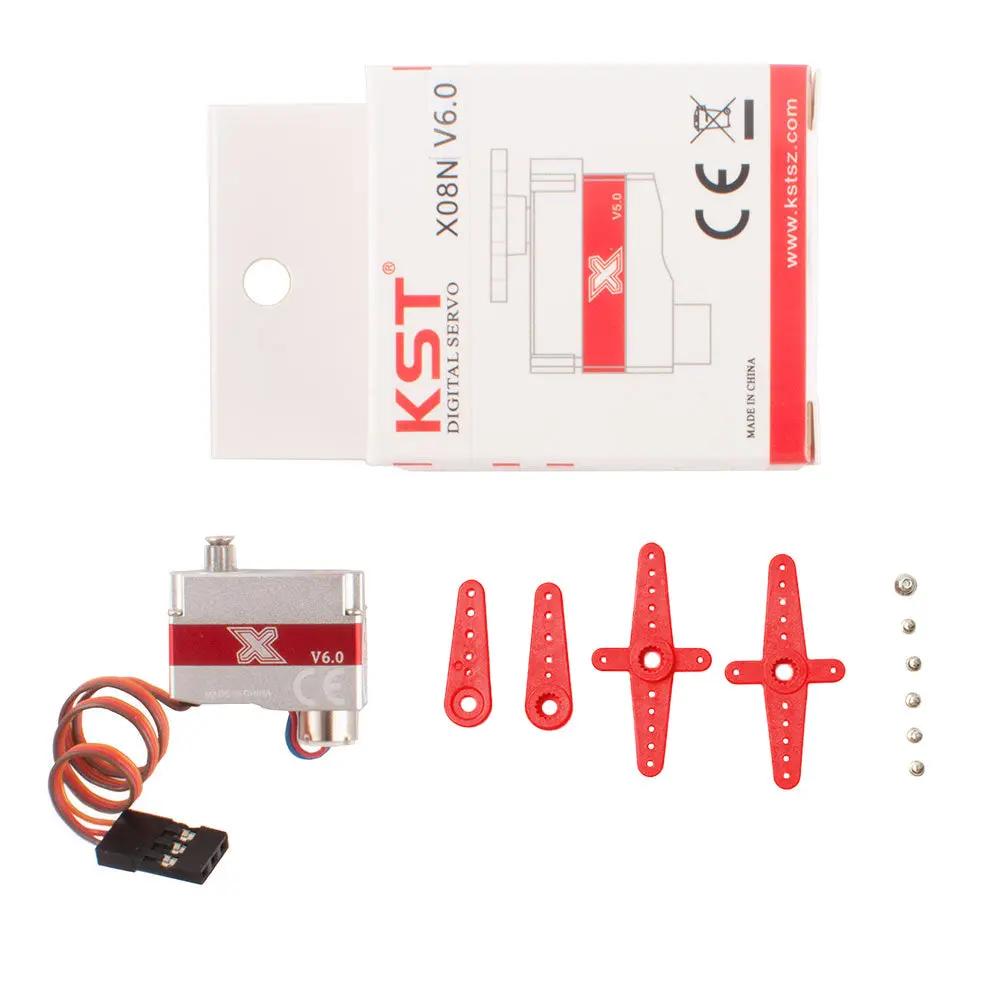

Package Includes
- 1 * X08N V6.0 Micro Servo
- 3 * Plastic Servo Horn
- 4 * Mounting Screw
- 1 * Servo Horn Screw
