X12-708 Brushless Micro Servo 9.3Kgf.cm 0.07sec for 380/420/450 Size Helicopter
BR0023.0213
$59.99

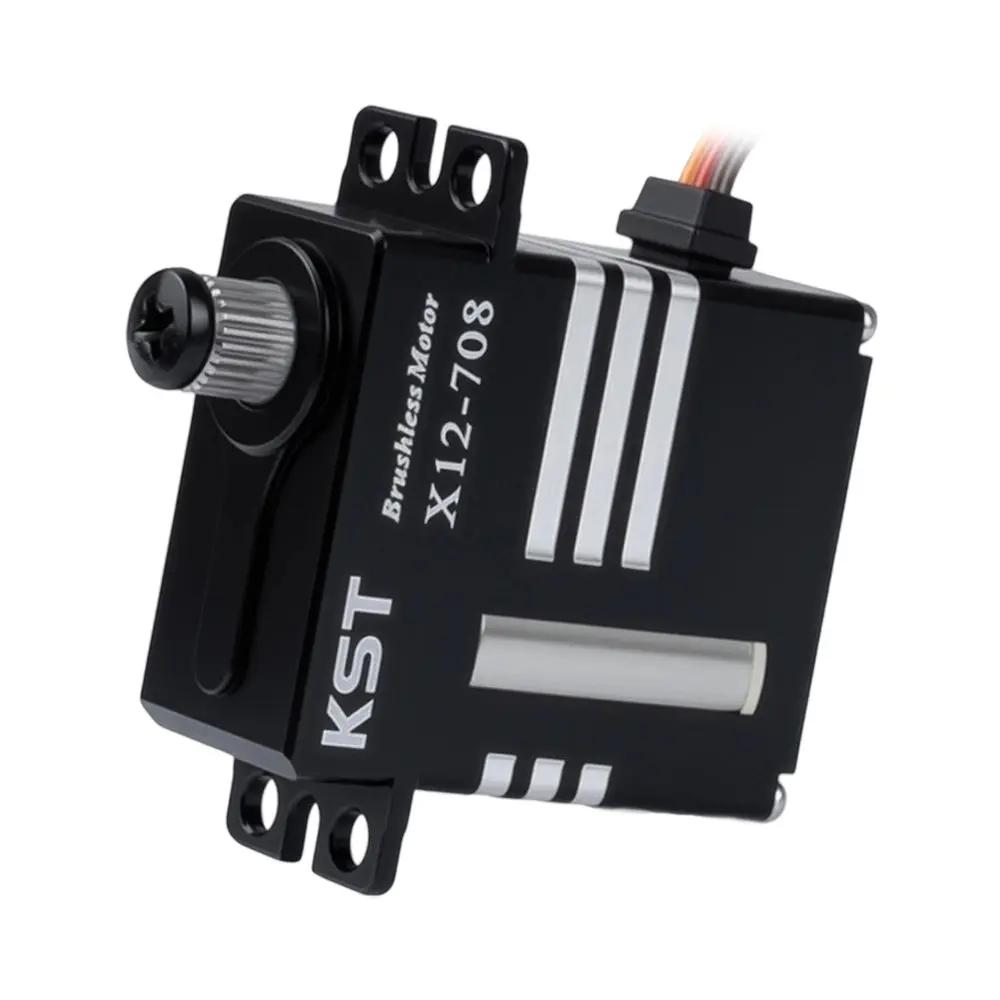

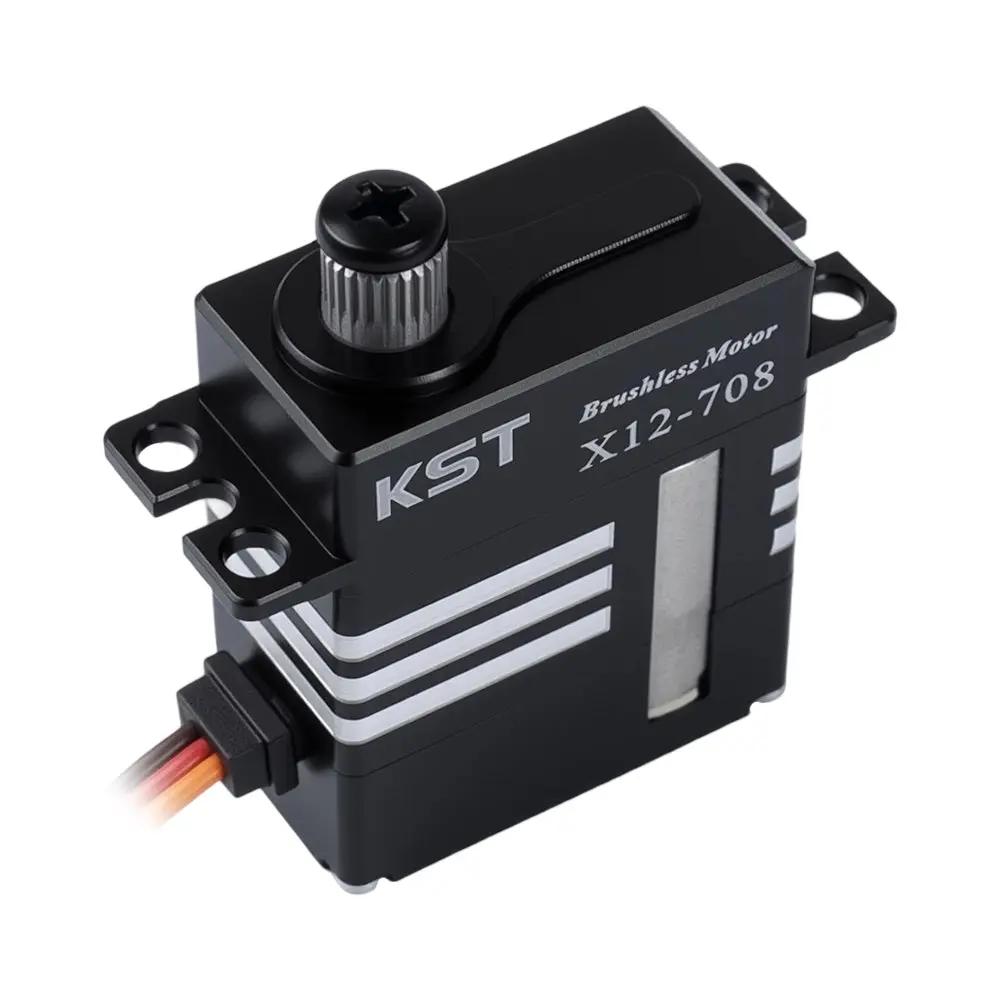

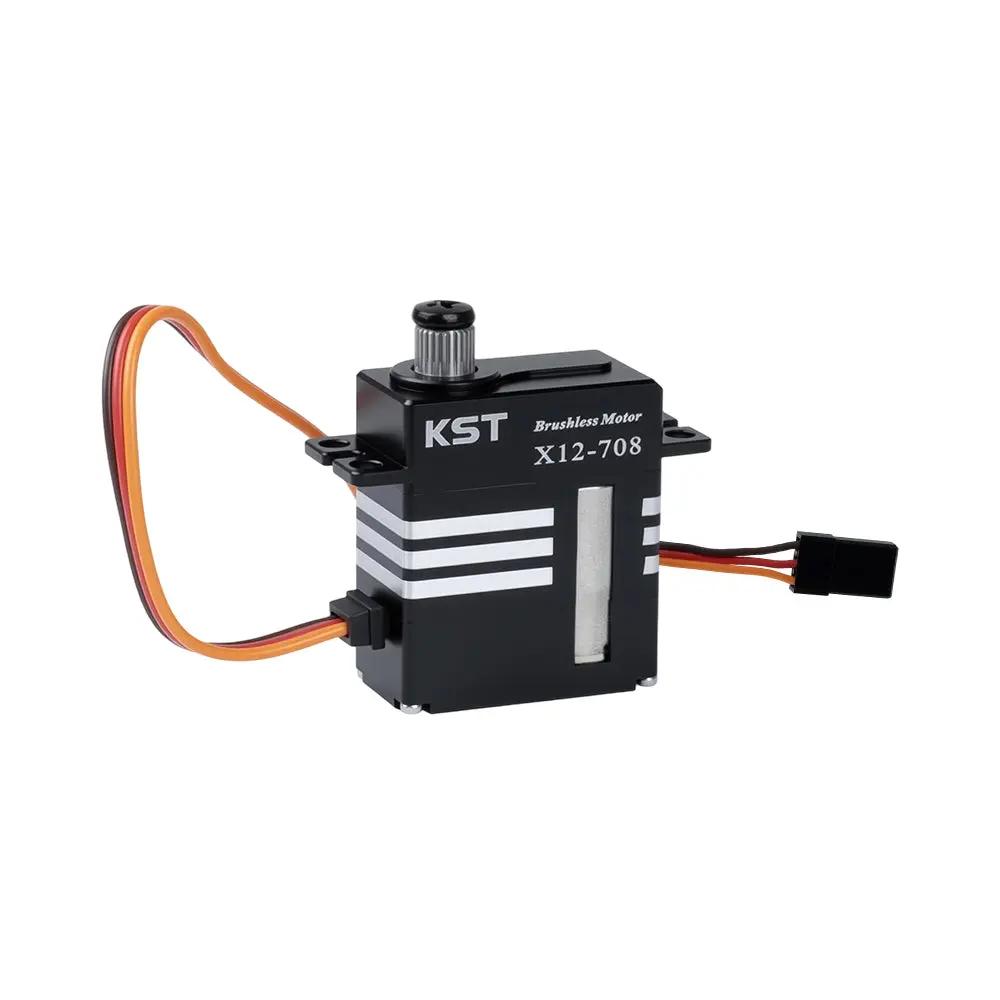

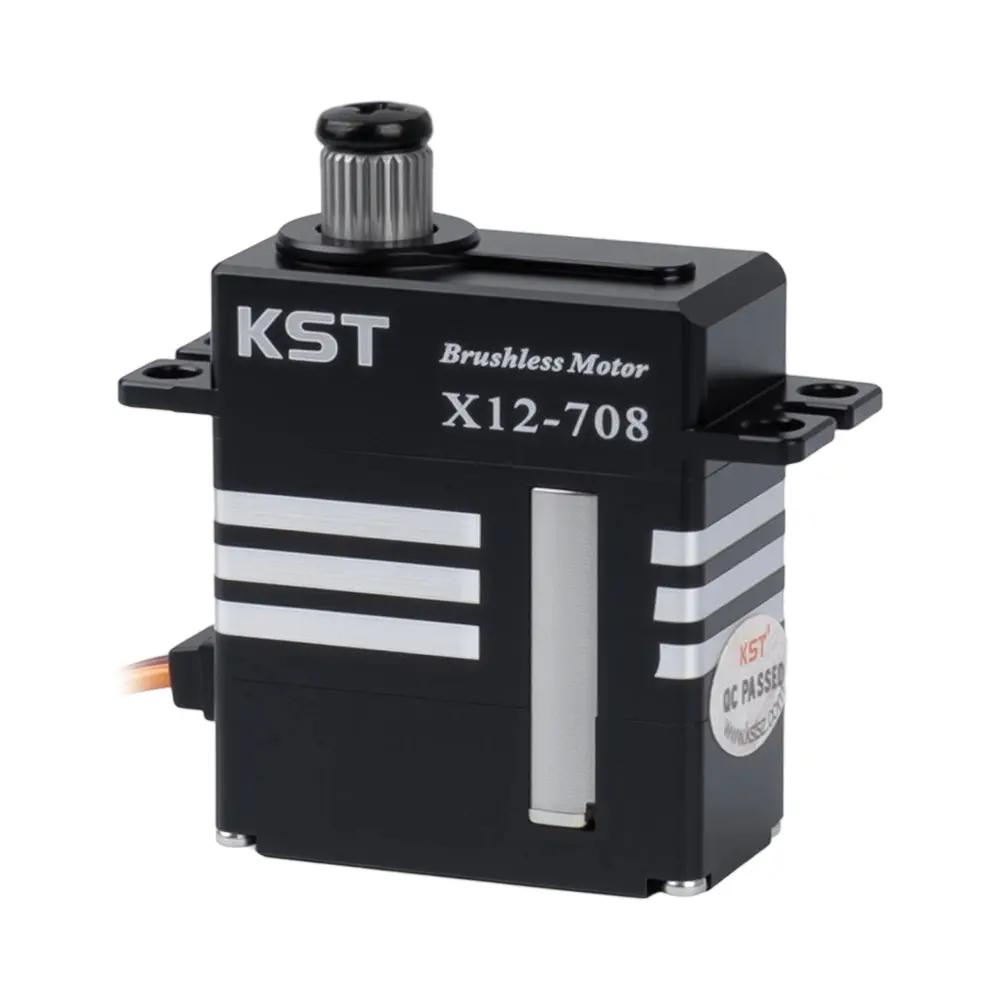

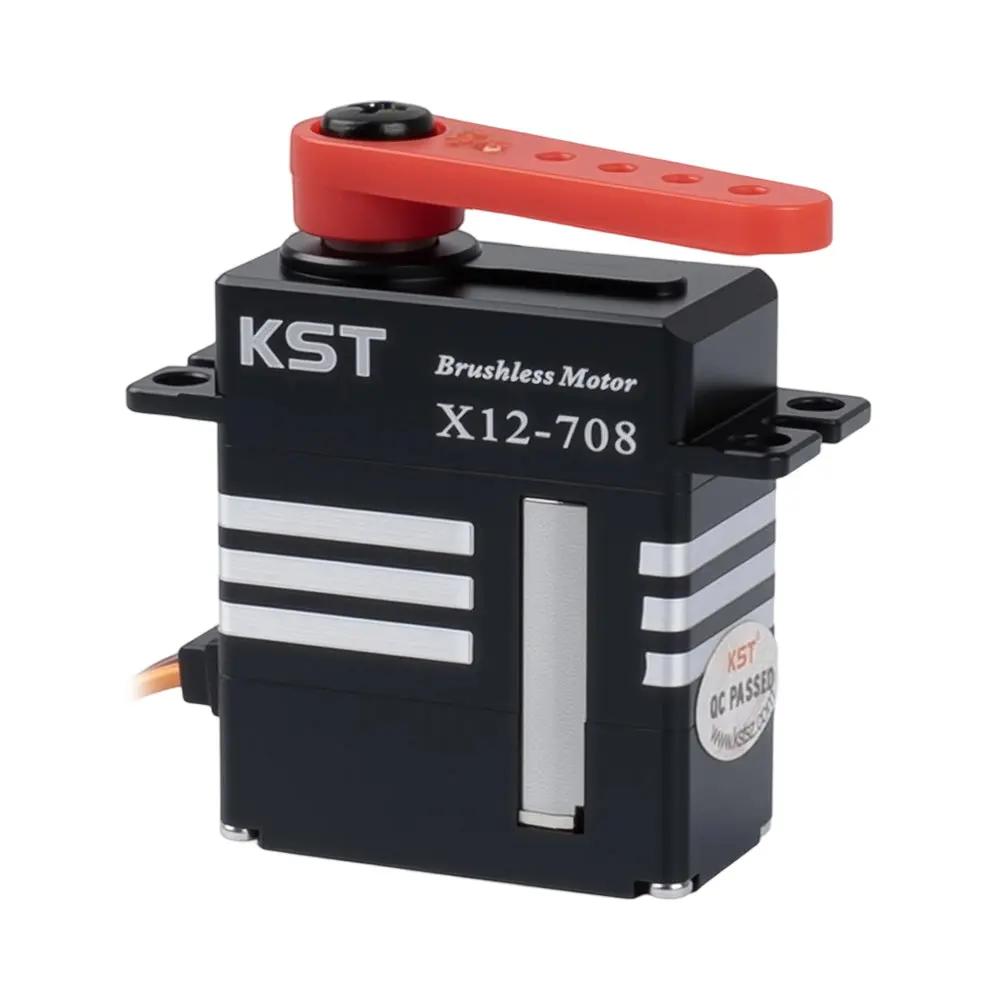

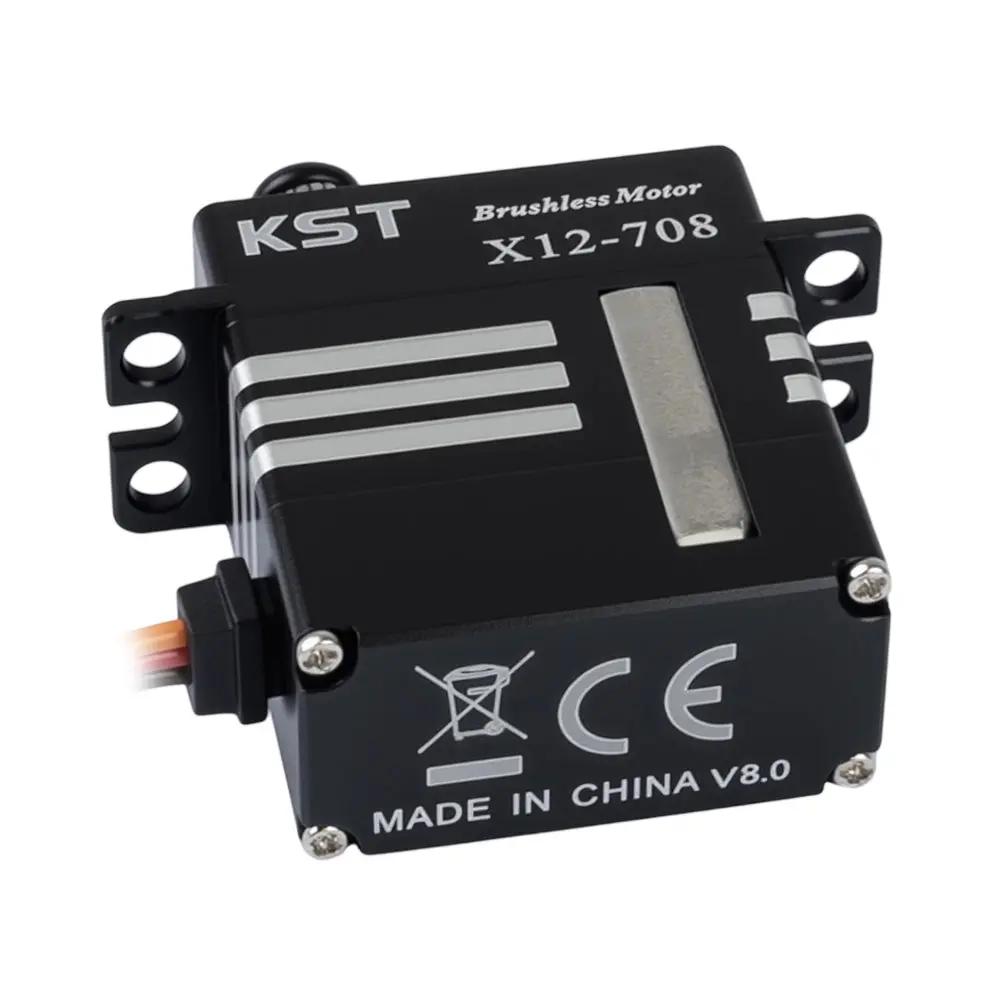

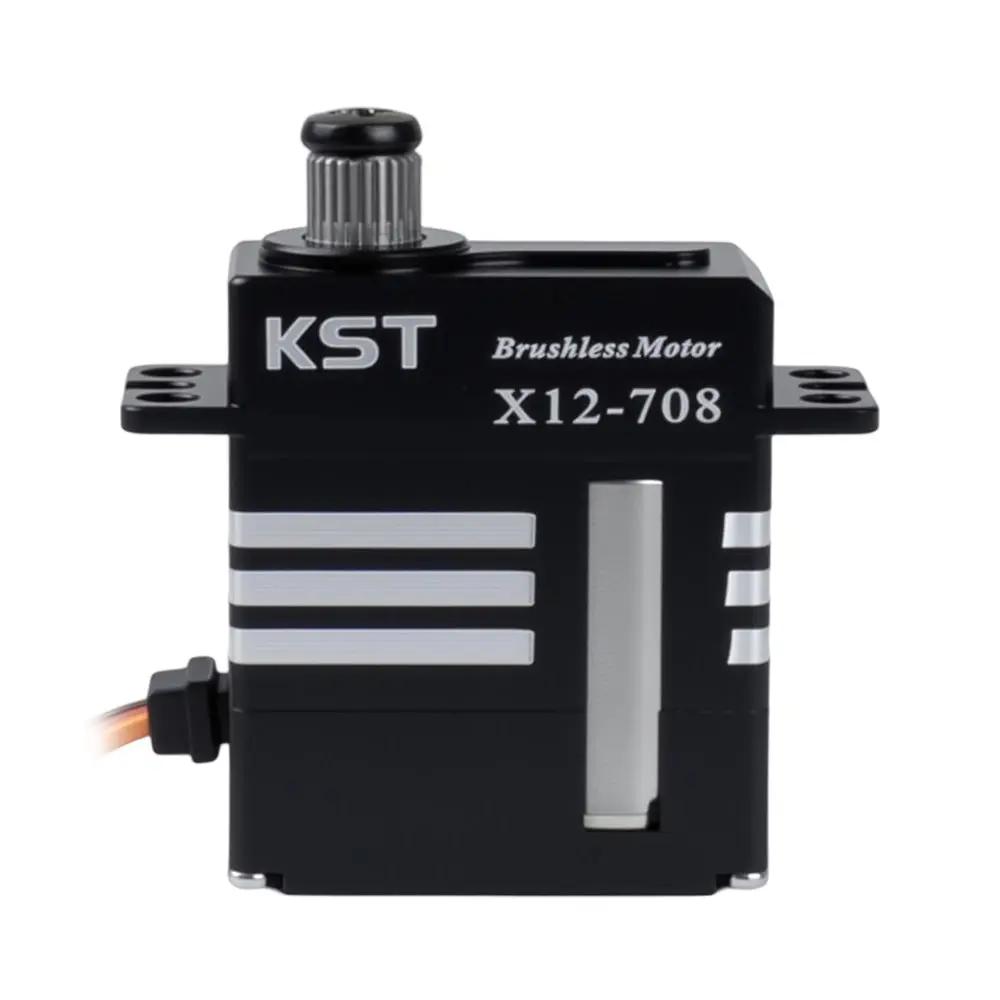

KST X12-708 Micro DC Brushless Servo
The KST X12-708 Micro DC Brushless Servo combines compact size with impressive torque, speed, and programmability, making it a versatile choice for demanding RC applications.
Its upgraded design delivers up to 9.3Kgf.cm of torque with a fast 0.07 sec/60° speed, providing strong and responsive control in a compact package. The servo can also be programmed and tuned to suit different model setups and flight requirements.
Ideal for F3J, F3F, and F3B sailplane fuselage installations, the X12-708 also works exceptionally well as a cyclic servo for 380–420 class RC helicopters.
Features
- Brushless DC Motor
- Programmable
- Monster Torque of 9.3Kgf.cm
- Speed down to 0.07sec/60°
- Hardened Steel Gear
- Black CNC Aluminum Case
- Cyclic Servo for 450-size Helicopter
Specification
| Parameter | Value |
| Item | X12-708 Brushless Micro Servo |
| Rated Voltage | DC7.4V |
| Voltage Range | DC6.0V–8.4V |
| Torque | 6.3Kgf.cm@6.0V / 8.6Kgf.cm@7.4V / 9.3Kgf.cm@8.4V |
| Speed | 0.09sec/60°@6.0V / 0.08sec/60°@7.4V / 0.07sec/60°@8.4V |
| Working Frequency | 1520μs/333Hz (Default) / 760μs/560Hz (Programming Tool Required) |

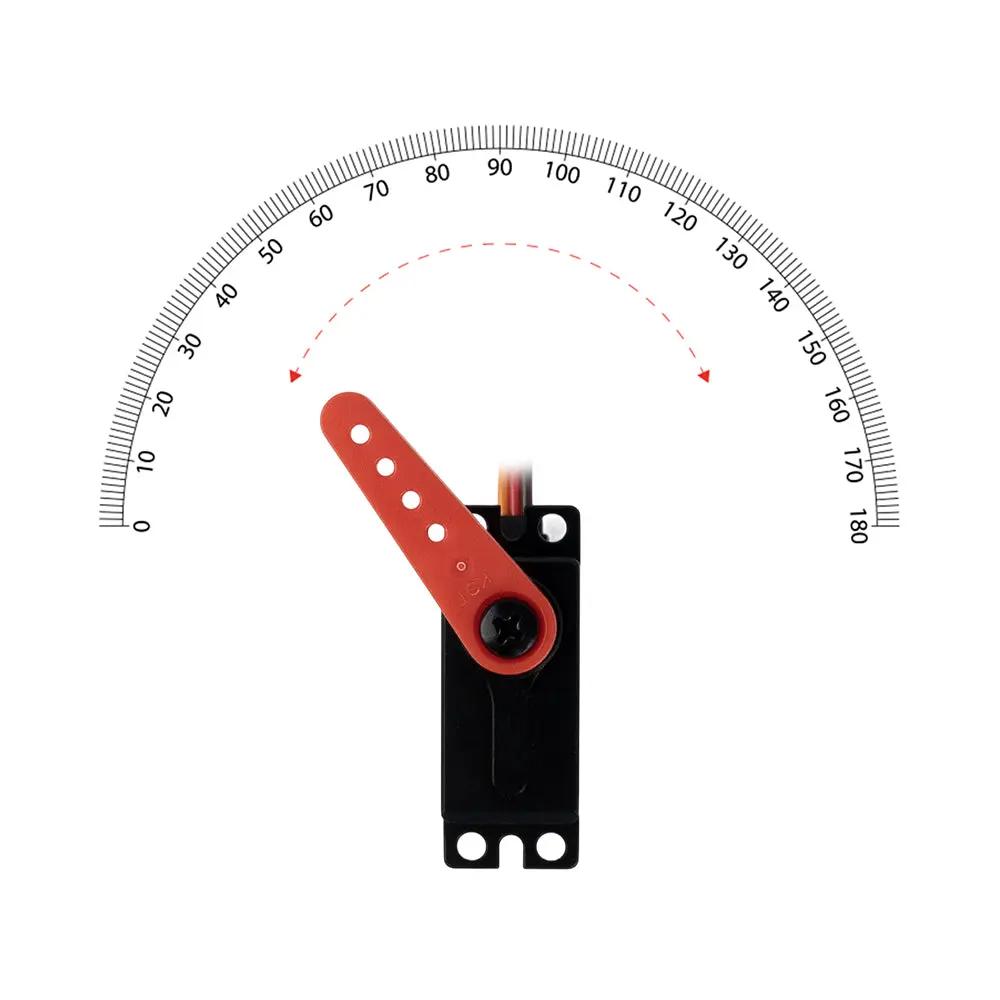

| Travel Angle | ±50° = 100° Total |
| Operating Temperature | -20℃ ~ +65℃ |
| Soft Start | Programmable |
| Programmable | Yes |
| Case Material | Aluminum Alloy |
| Motor Type | Brushless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |

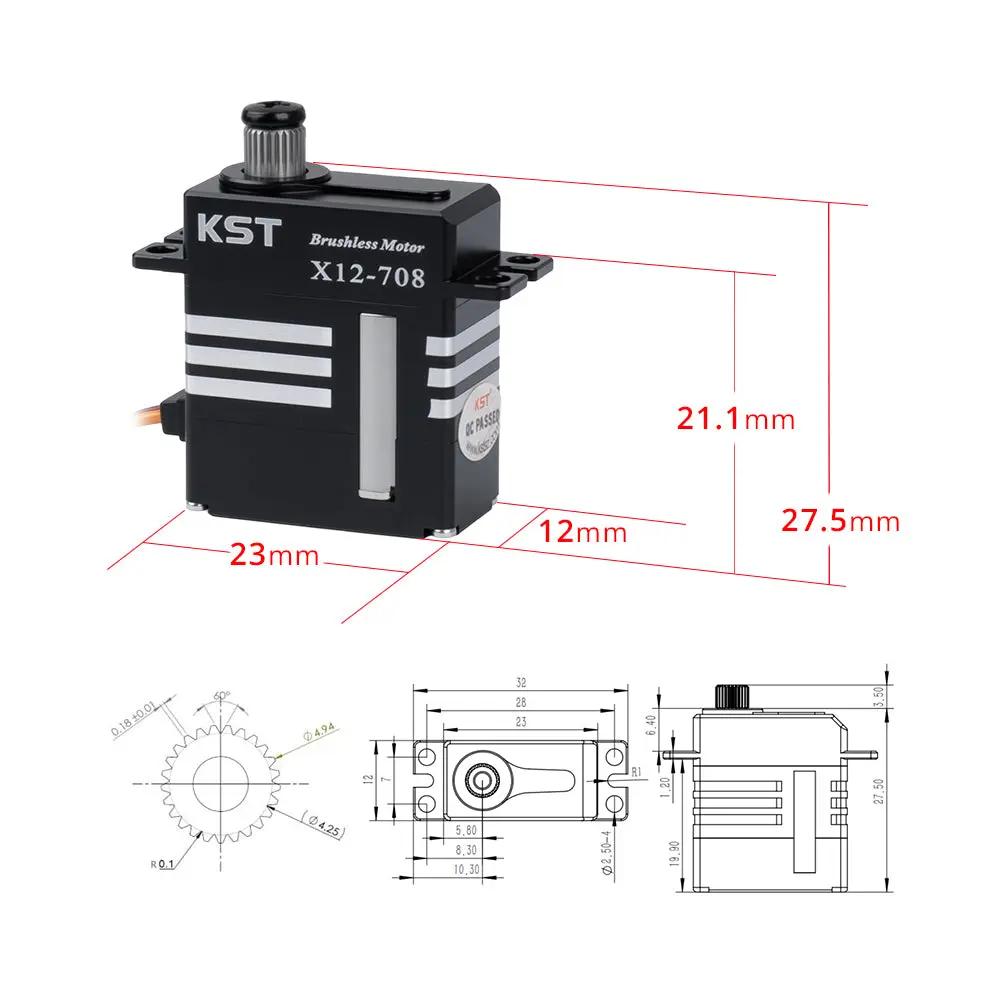

| Case Dimensions | 23mm × 12mm × 27.5mm ±0.2mm |
| Weight | 20g ±10% |

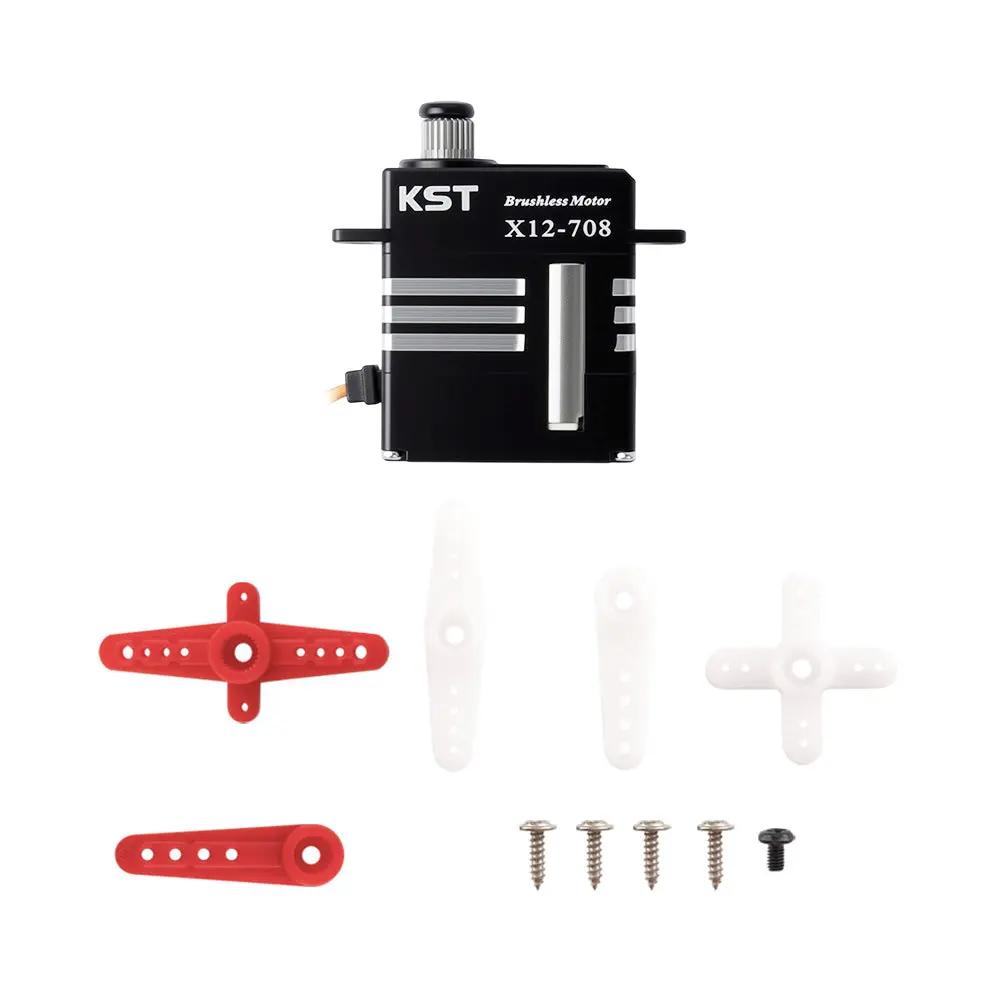

Package Including
- 1 * X12-708 Brushless Micro Servo
- 1 * Pack of Accessories
