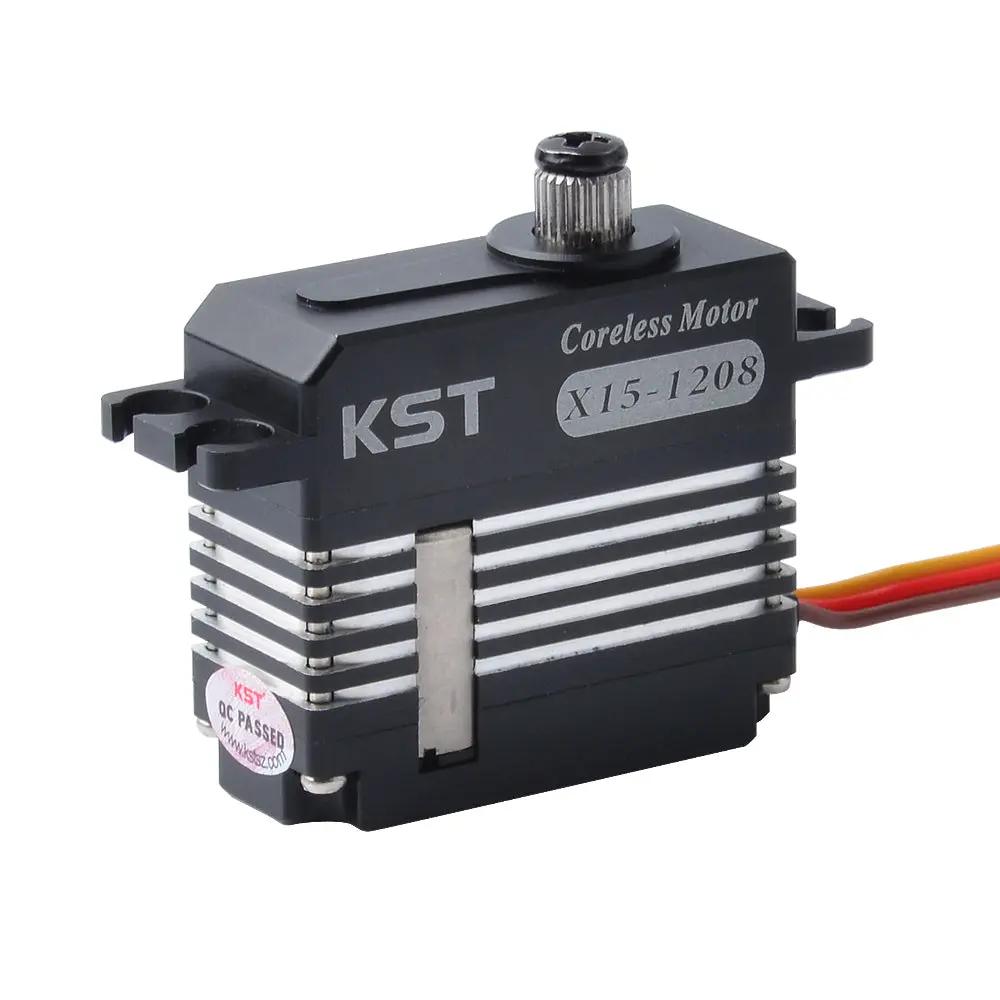

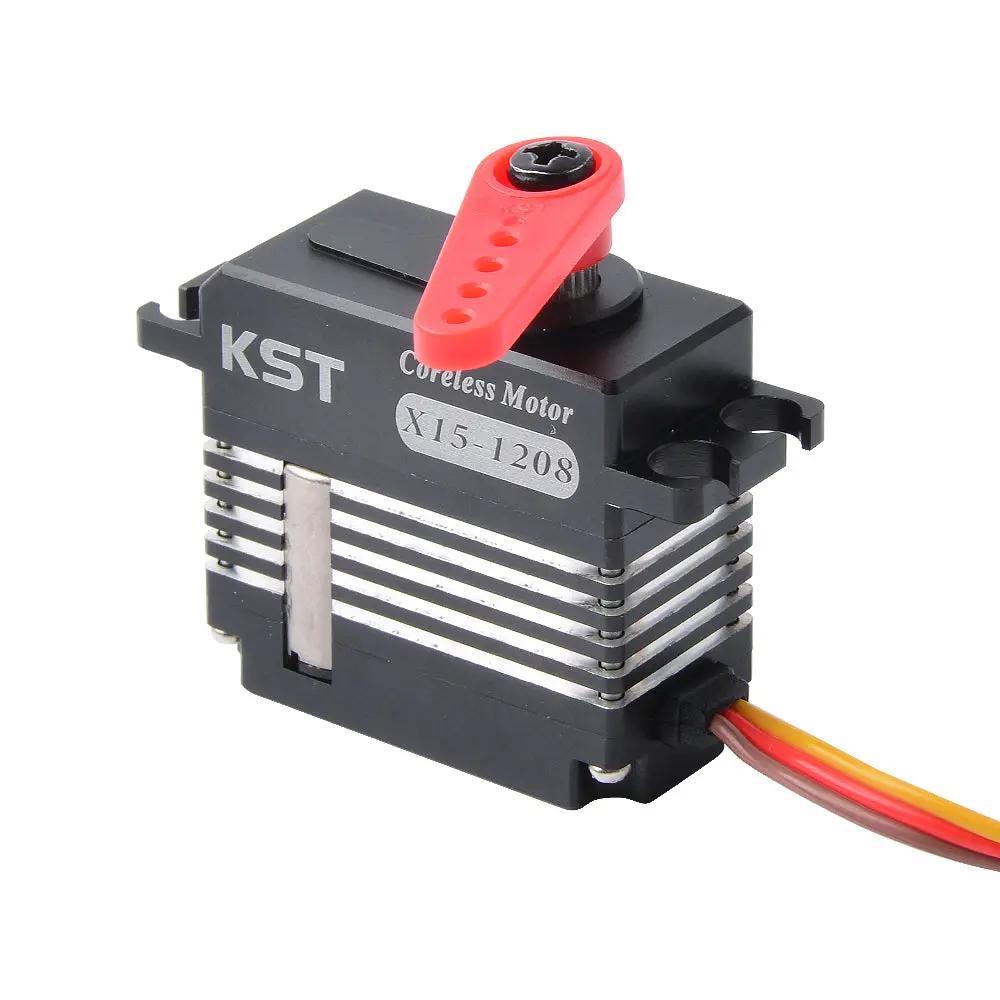

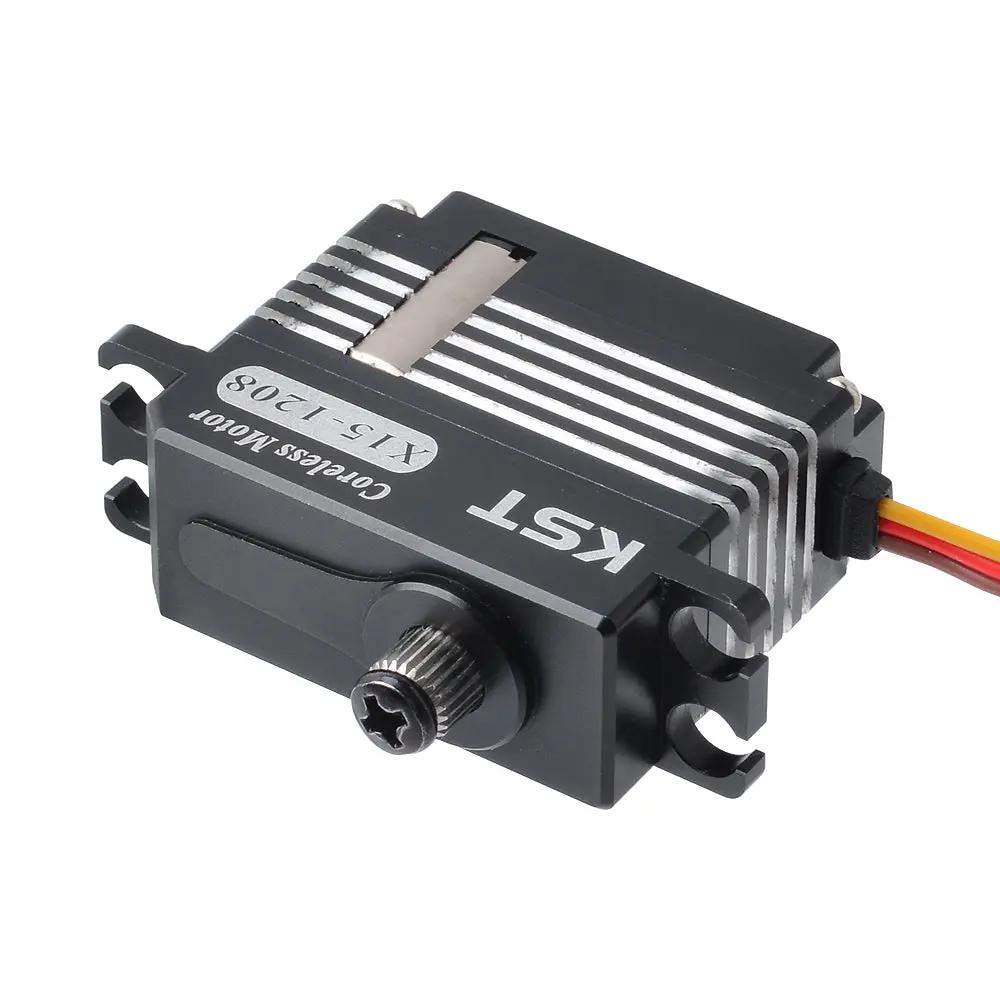

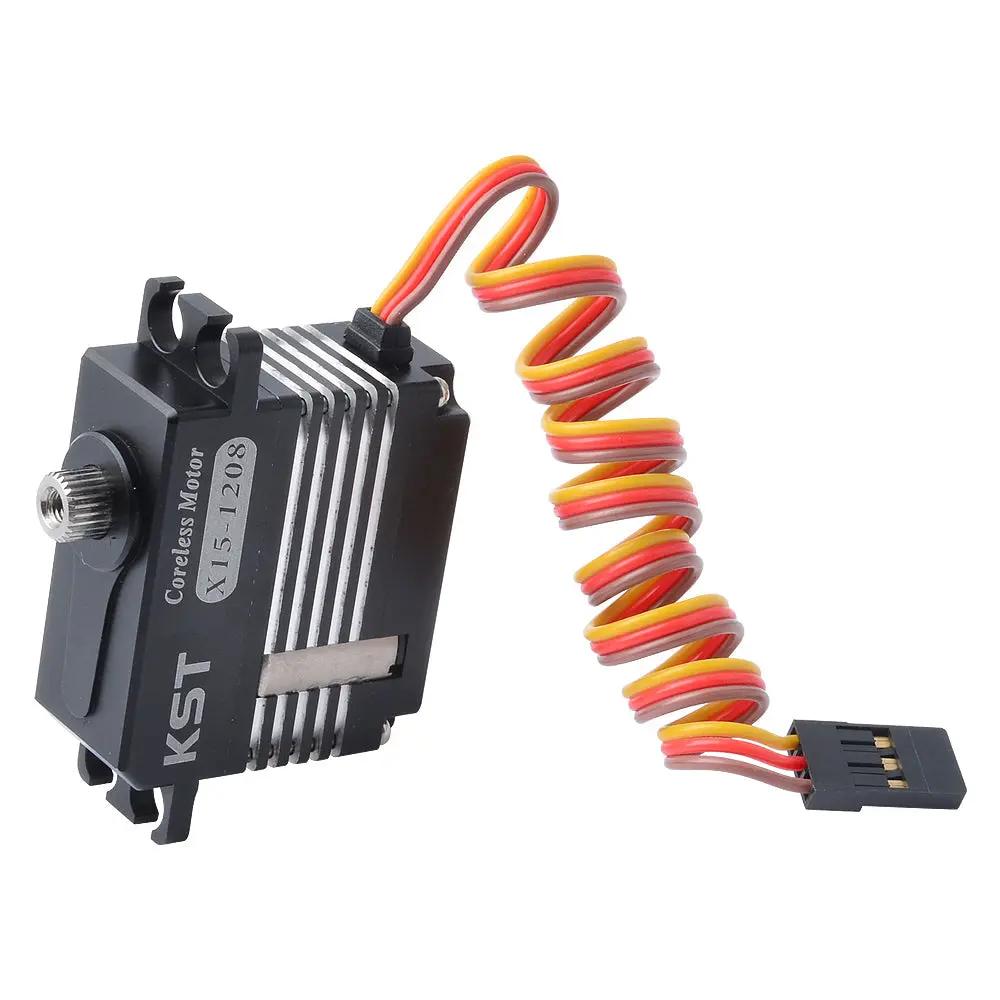

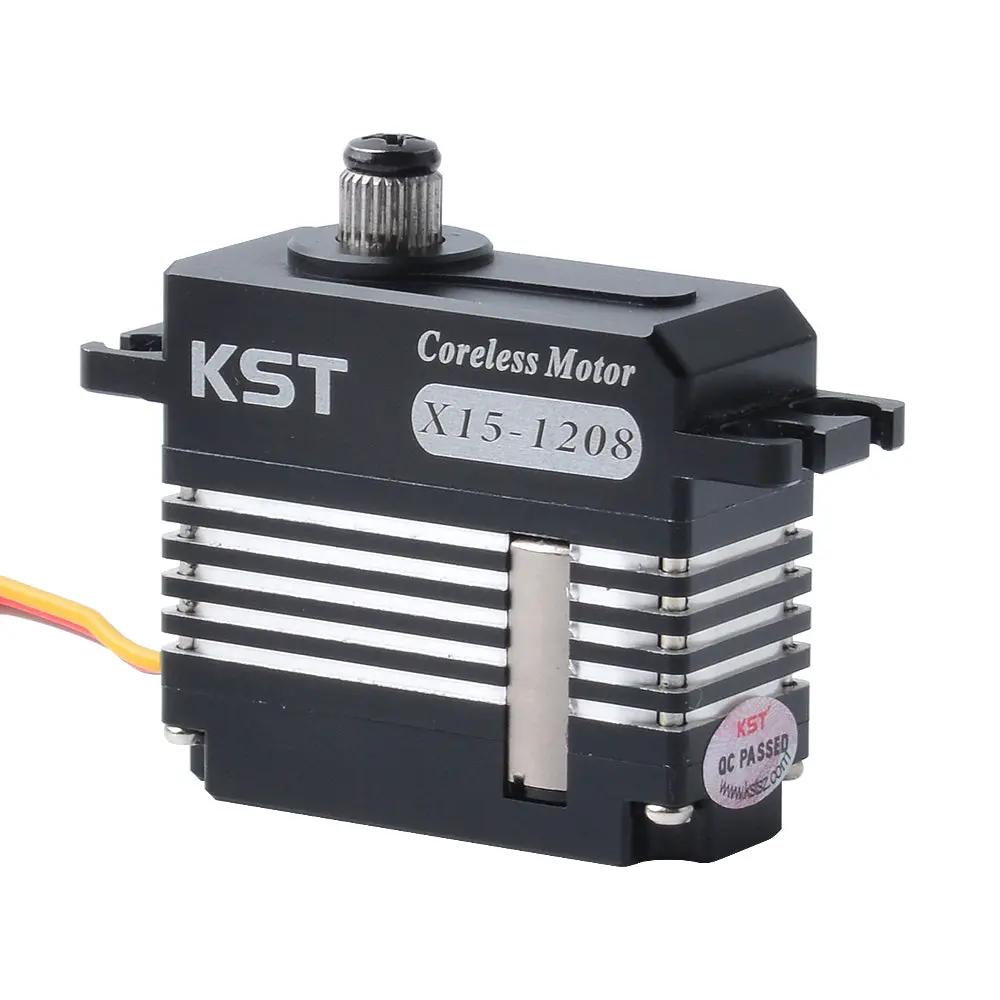

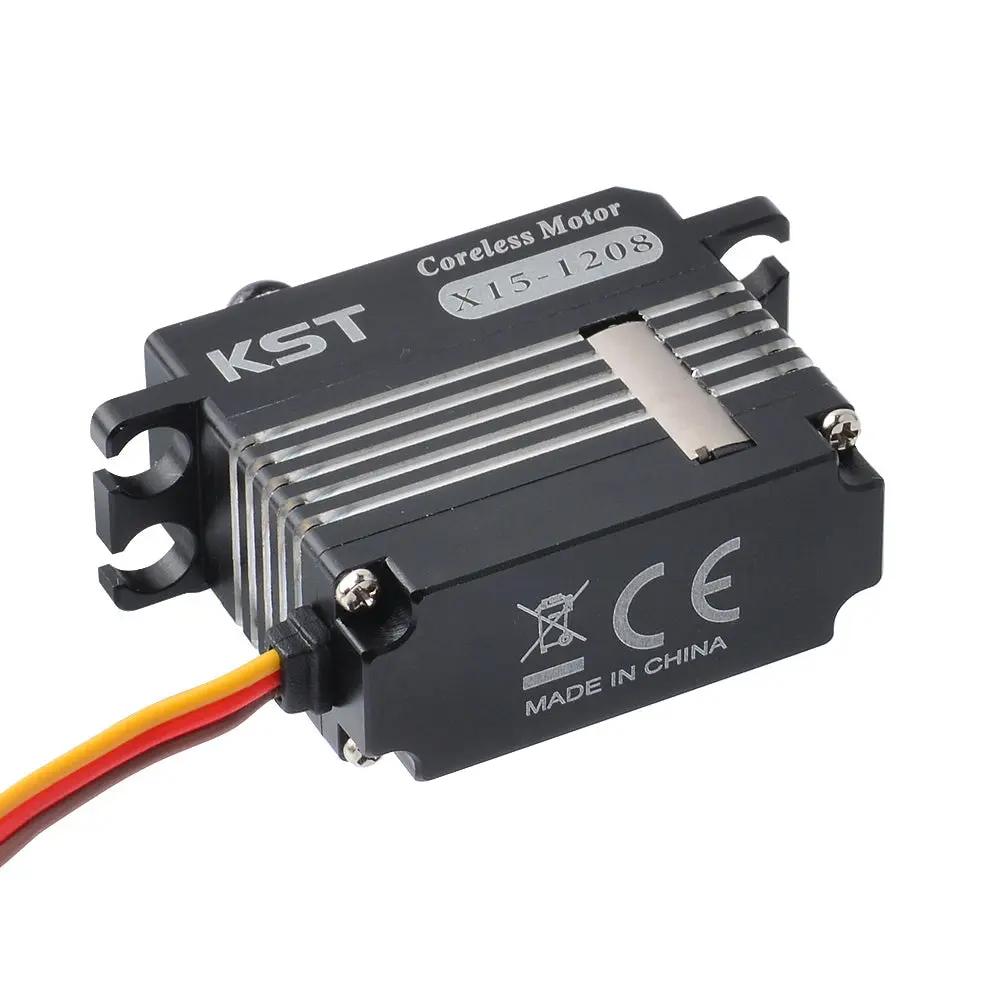

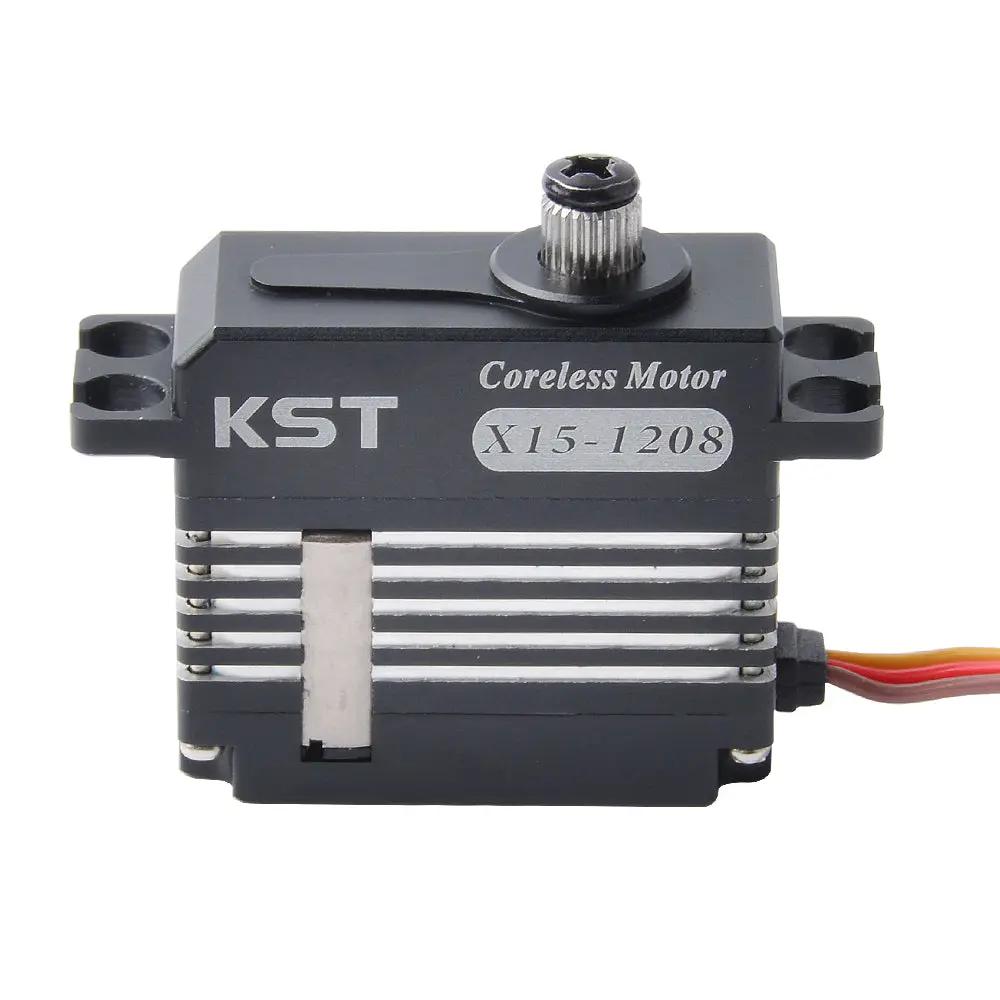

KST X15-1208 Mini Size Digital Servo is a great choice for helicopters ranging from 430mm-570mm rotor blade size requiring mini servos such as the Align T-Rex 500, Mikado Logo 480, MSH Protos 500, and SAB Goblin 570. Additionally these servos can be used in other RC applications where the physical dimensions, and torque/speed ratings suit the need of the RC application.

Features

• Hardened Steel Gears
• Extreme Torque and Excellent Speed
• CNC Aluminium Case
• Two Ball Bearings

Specification

• Rated Voltage: DC7.4V
• Voltage Range: DC6.0V-8.4V
• Torque:

• Speed:

• Working Frequency: 1520us/333Hz
• Default Travel Angle: ±50° = 100° Total
• Temperature Range: -10℃……+65℃
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Case Dimensions: 35.5mm*15mm*32.5mm±0.2mm
• Weight: 40g±10%

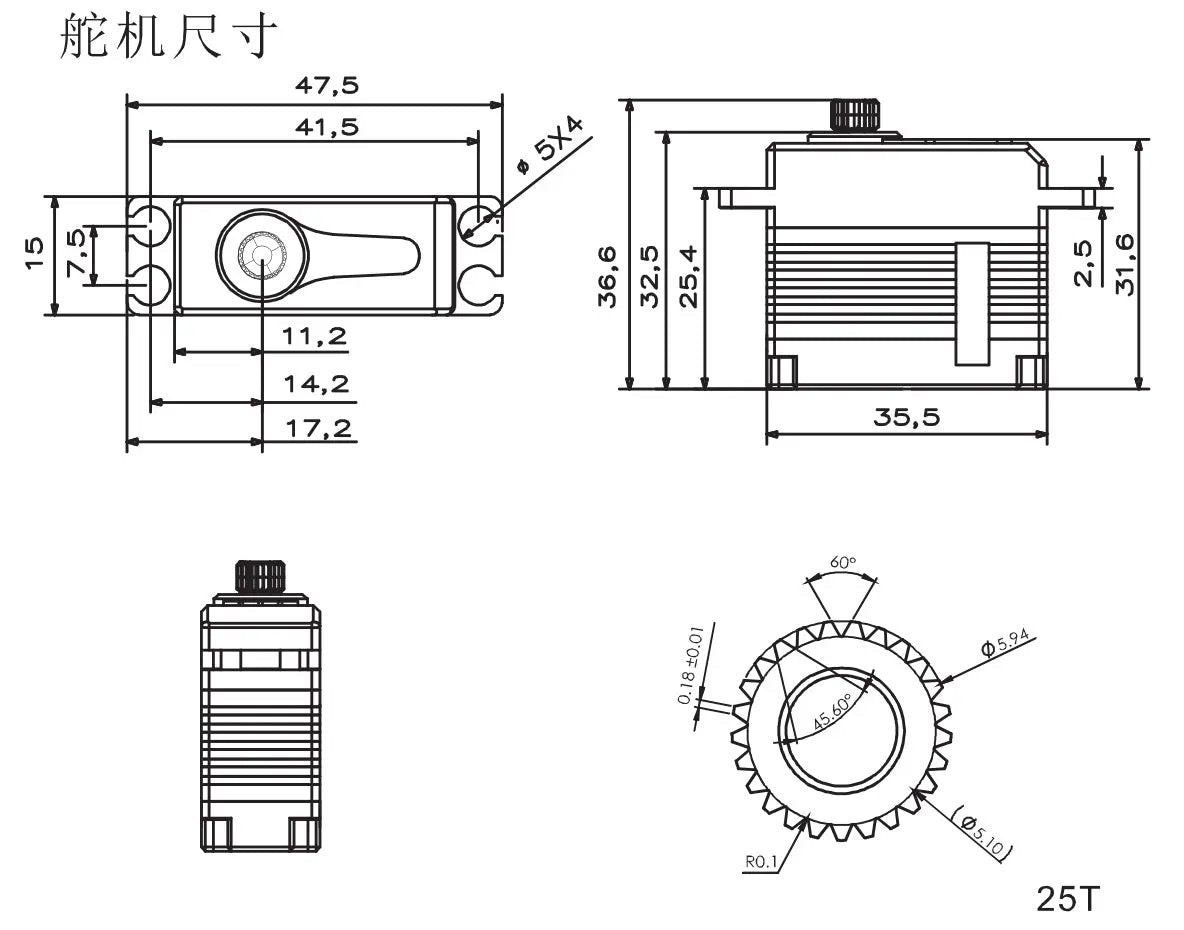

Size

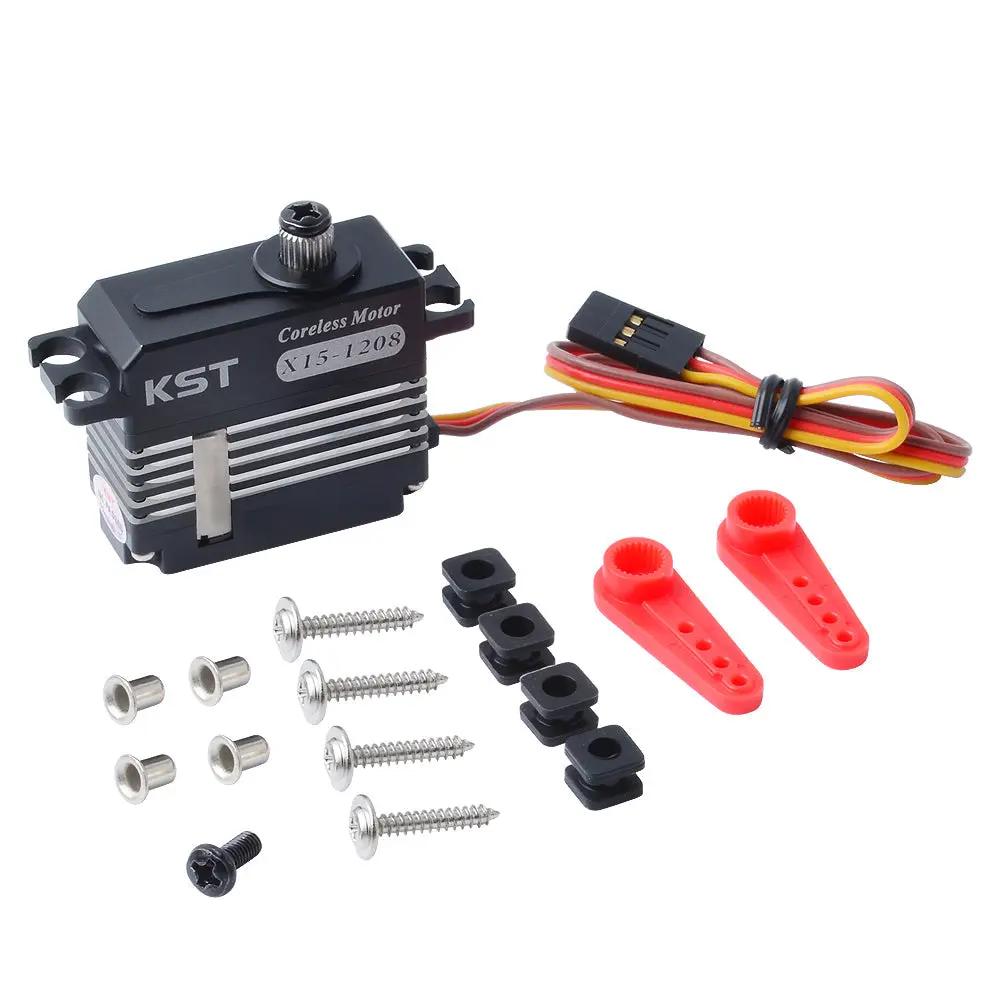

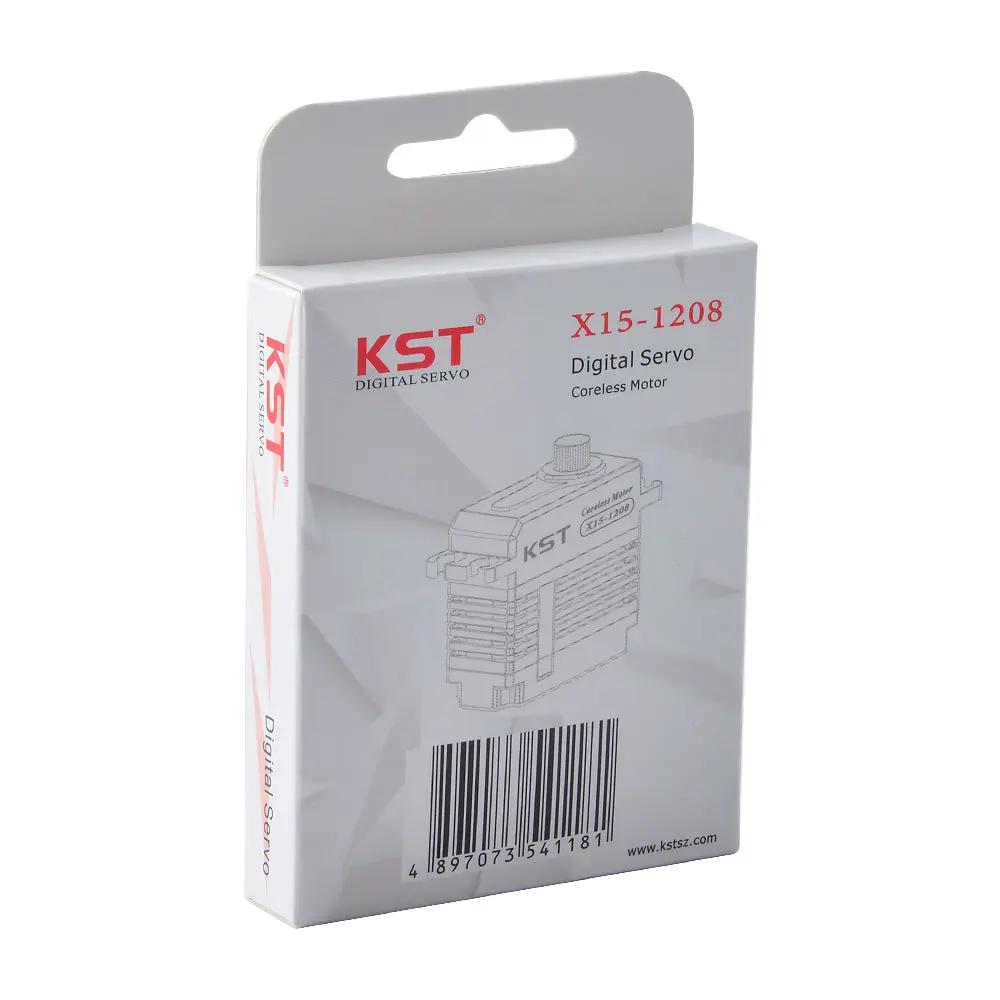

Package Including

• 1 * X15-1208 Digital Servo
• 1 * Pack of Accessories

Download

• X15-1208 Servo Technical Specification
