X20-3005 Brushless Standard Servo 32Kgf.cm 0.047sec for 1:8 & 1:10 Scale On-road or Off-road RC Race Cars, Aerobatic Airplanes and Jets
$119.99
Skip to product information
X20-3005 Brushless Standard Servo 32Kgf.cm 0.047sec for 1:8 & 1:10 Scale On-road or Off-road RC Race Cars, Aerobatic Airplanes and Jets
BR0023.0214
$119.99
The KST X20-3005 Track Series is designed specifically for competitive RC racing, delivering high torque and ultra-fast response for precise vehicle control. With up to 32Kgf.cm of torque and an exceptional 0.047sec/60° speed, the X20-3005 provides powerful, rapid, and accurate steering for 1:8 & 1:10 scale race cars. Its high-performance design also makes it suitable for aerobatic airplanes, jets, and scale models.
Features
- 4 Pole Brushless DC Motor — Fast Response & High Efficiency
- Extreme Torque & Excellent Speed
- CNC Aluminium Case
- IP65 Splash-proof
- Programmable (Programming Box/USB Link Compatible)
- Ideal for 1:8 & 1:10 Scale On-road or Off-road RC Race Cars, Aerobatic Airplanes and Jets
Specification
| Parameter | Value |
| Item | X20-3005 Brushless Servo |
| Rated Voltage | DC7.4V |
| Voltage Range | DC6.0V–8.4V |
| Torque | 24Kgf.cm@6.0V / 30Kgf.cm@7.4V / 32Kgf.cm@8.4V |
| Speed | 0.067sec/60°@6.0V / 0.052sec/60°@7.4V / 0.047sec/60°@8.4V |
| Stalling Current | 8.80A@6.0V / 10.8A@7.4V / 12.3A@8.4V |
| Working Frequency | 1520μs/333Hz |

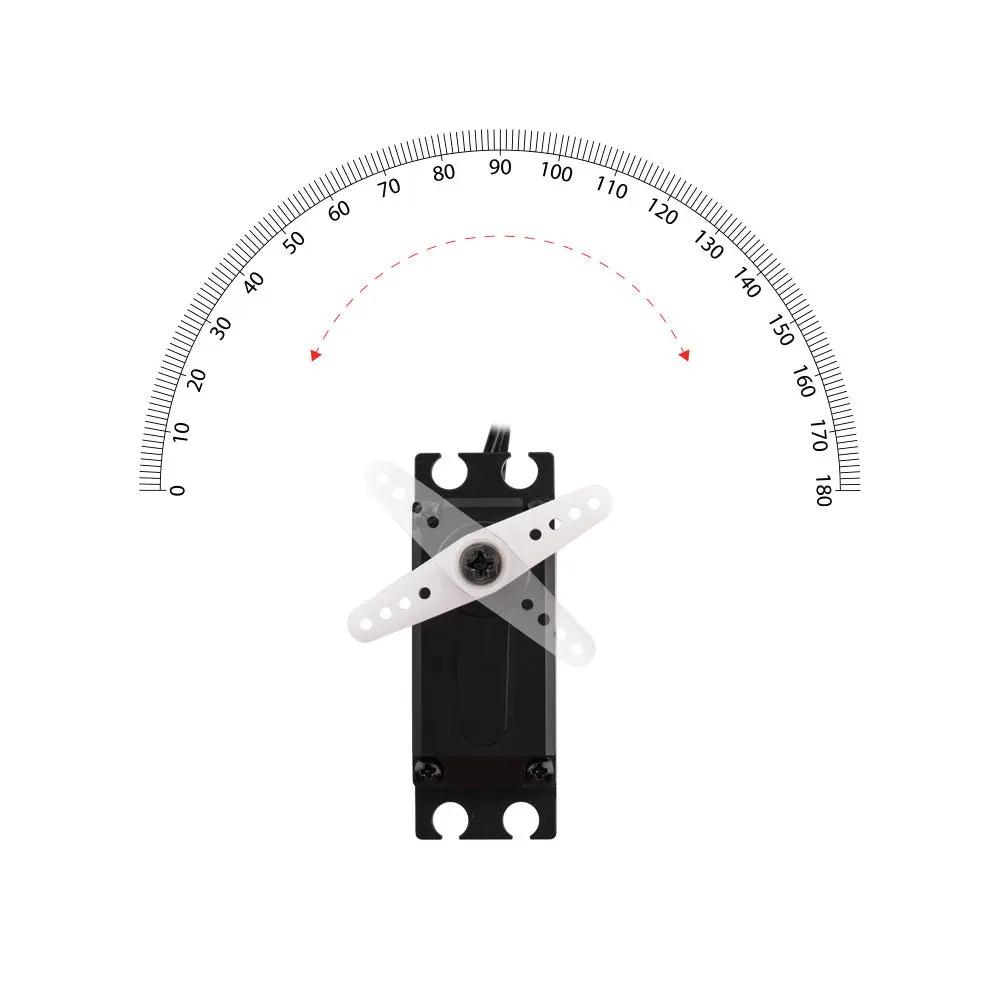

| Travel Angle | ±60° = 120° Total |
| Operating Temperature | -20℃ ~ +65℃ |
| Programmable | Yes |
| Case Material | Aluminum Alloy |
| Motor Type | 4 Pole Brushless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |
| Ball Bearing | 2BB |
| Waterproof | IP65 |

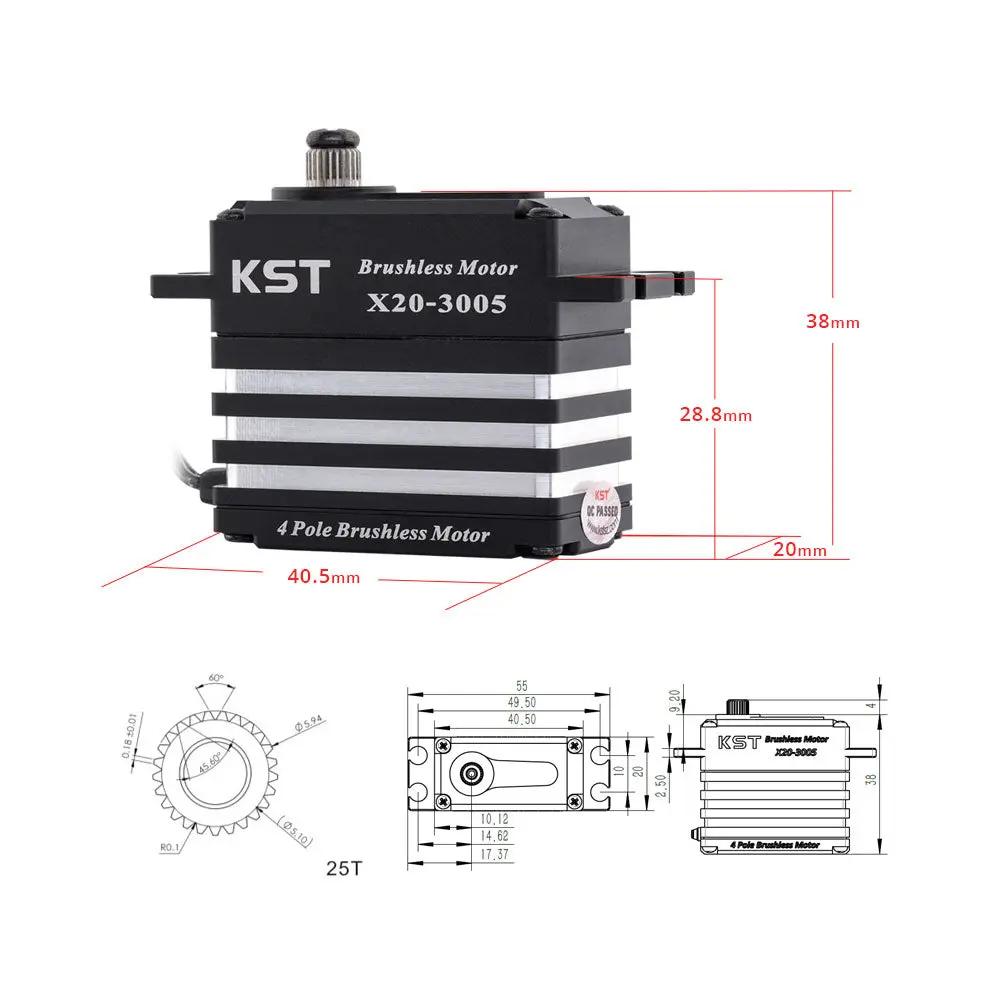

| Case Dimensions | 40.5mm × 20mm × 38mm ±0.2mm |
| Weight | 70g ±10% |
Package Including
- 1 * X20-3005 Brushless Servo
- 1 * Pack of Accessories
