KST X20-3012 HV brushless servo features with ultra high torque of 35Kgf.cm and an amazing 0.11sec fast speed. It is one of the most perfect choice for RC cars, aerobatic airplanes, and jets.

Features

• Ultra High Torque & Excellent Speed
• Brushless DC Motor
• Dual Ball Bearings
• CNC aluminium case
• Ideal for RC cars, aerobatic airplanes and jets

Specification

• Item: X20-3012 HV Brushless Servo
• Rated Voltage: DC7.4V
• Operating Voltage: DC6.0V-8.4V

• Torque:  35Kgf.cm@8.4V / 30Kgf.cm@7.4V / 25Kgf.cm@6.0V

• Speed:  0.11sec/60°@8.4V / 0.12sec/60°@7.4V / 0.15sec/60°@6.0V
• Working Frequency: 1520μs/333Hz

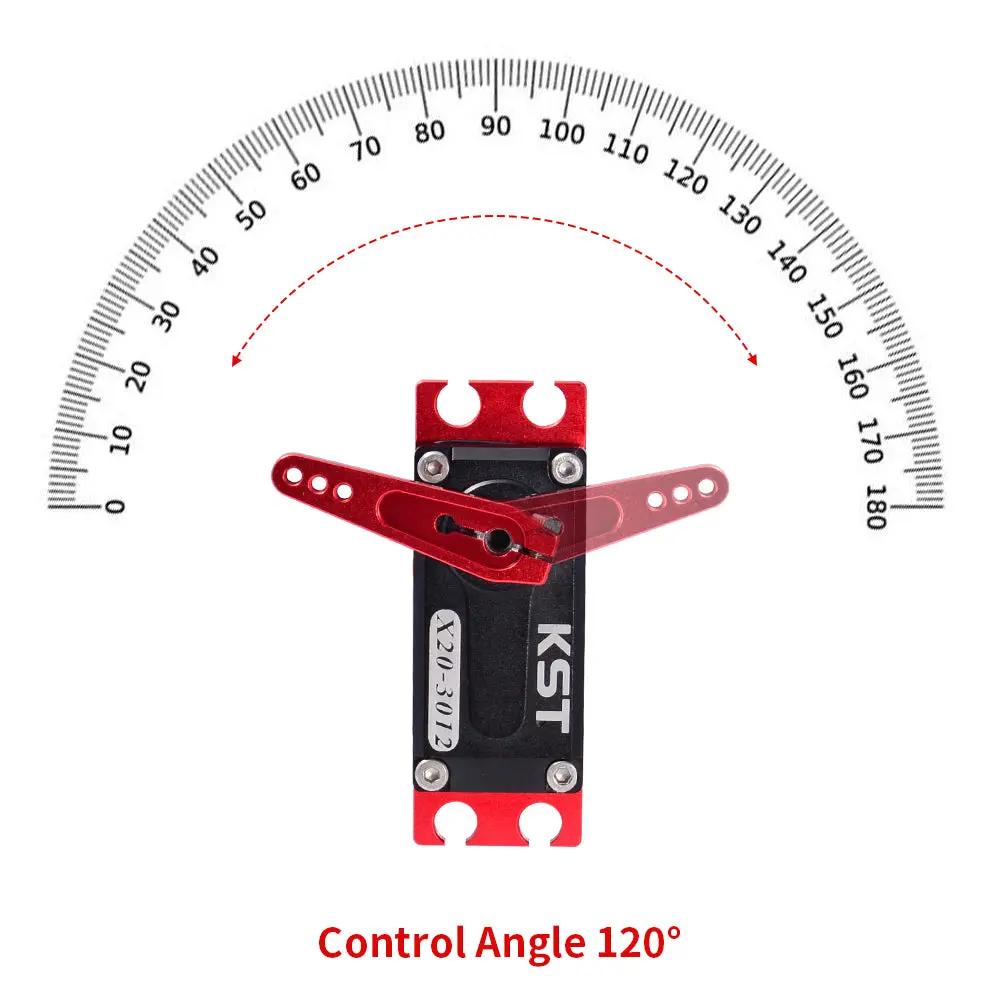

• Default Travel Angle: ±50° =100° Total
• Temperature Range: -10℃.......+65℃
• Case Material: Aluminum Alloy
• Position Sensor: Potentiometer
• Motor: Brushless DC Motor
• Gear Set Material: Hardened Steel
• Size: 40.5mm*20mm*38mm±0.2mm
• Weight: 72g±10%
• Ball Bearing: 2BB

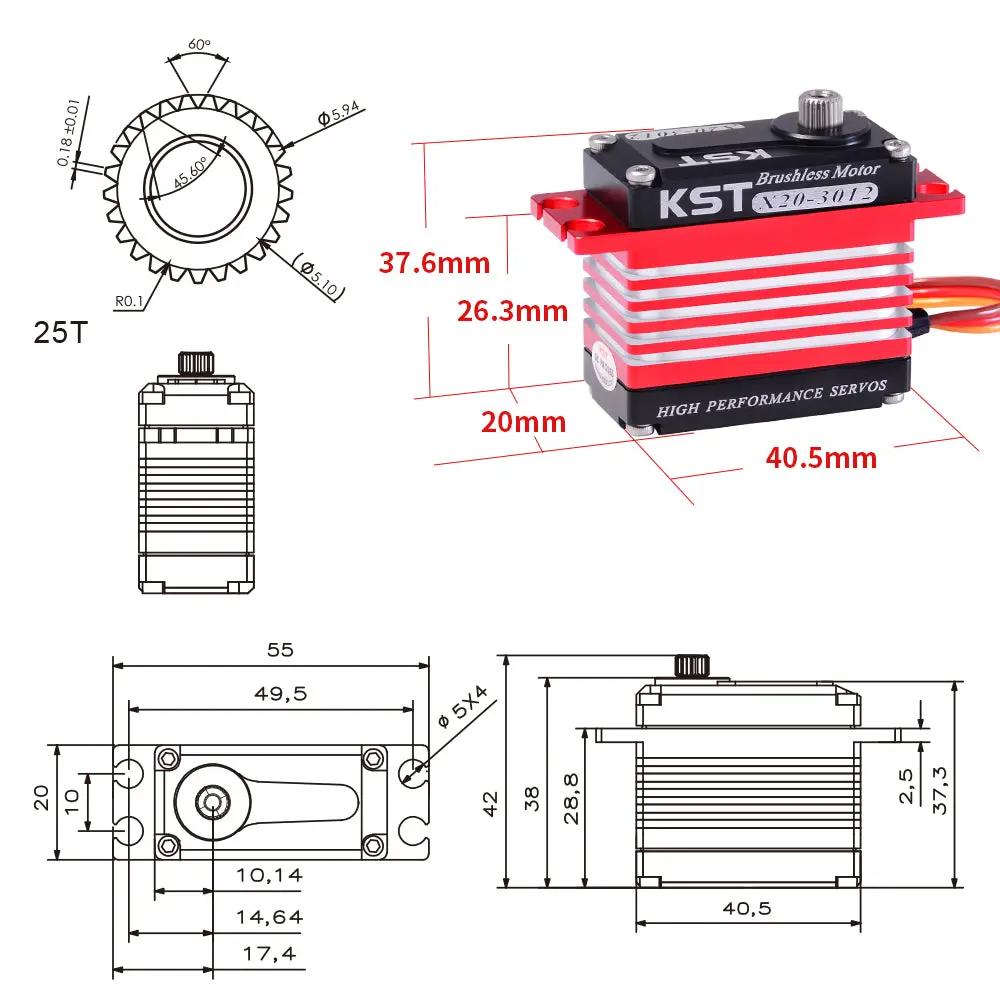

Size

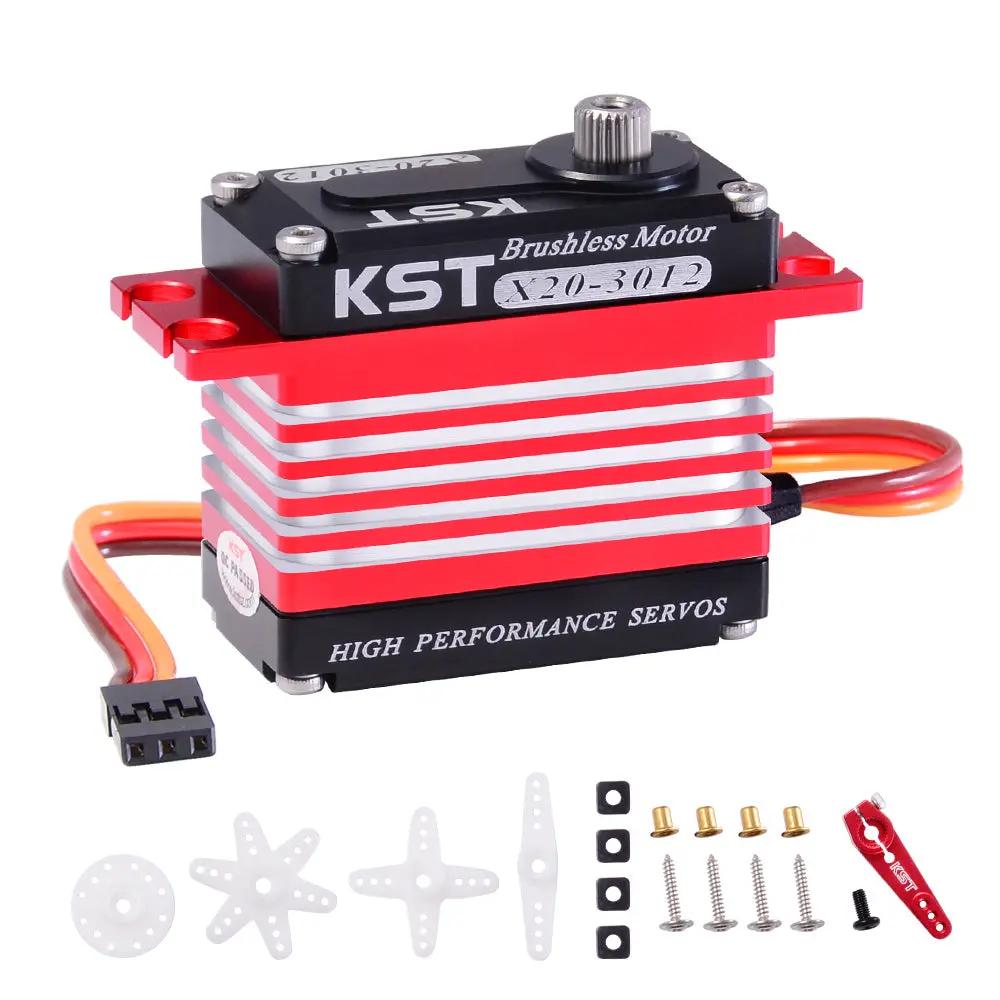

Package Contents

• 1 * X20-3012 HV Brushless Servo
• 1 * Pack of Accessories

Download

• Technical Specification of X20-3012 Servo
