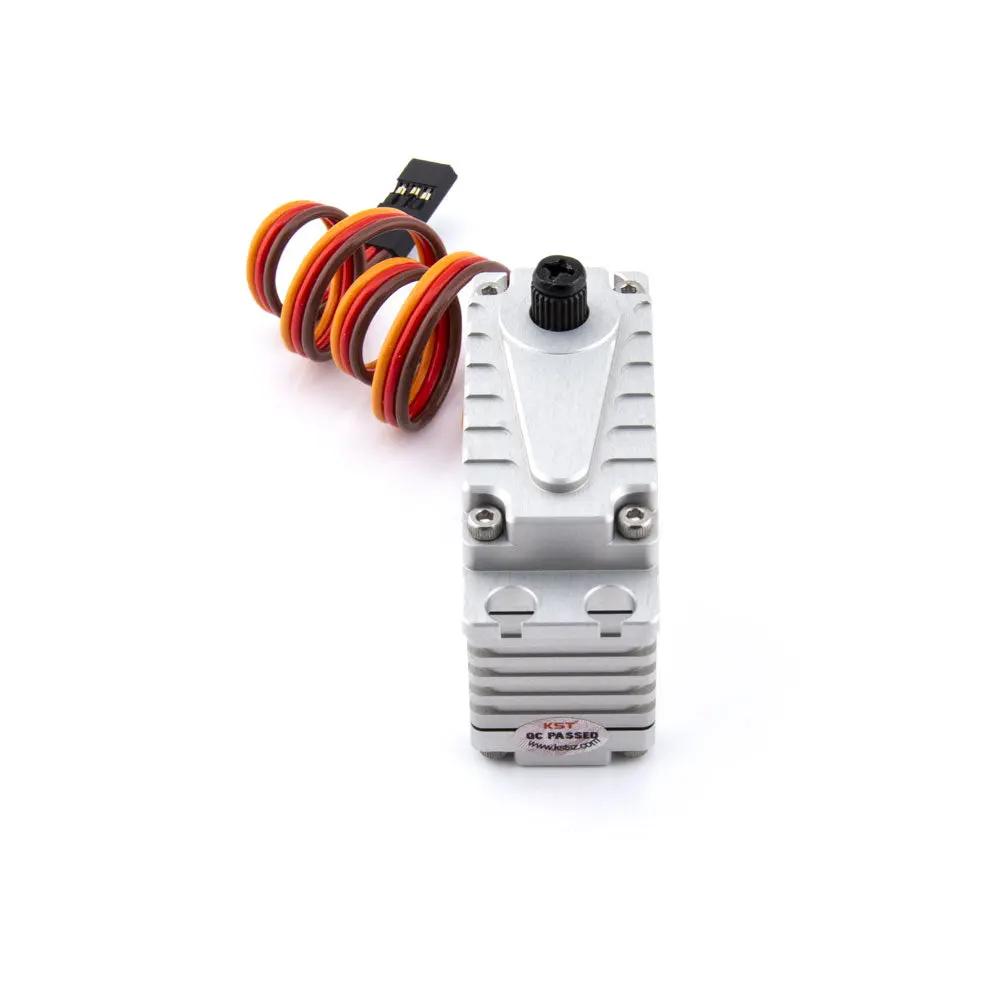

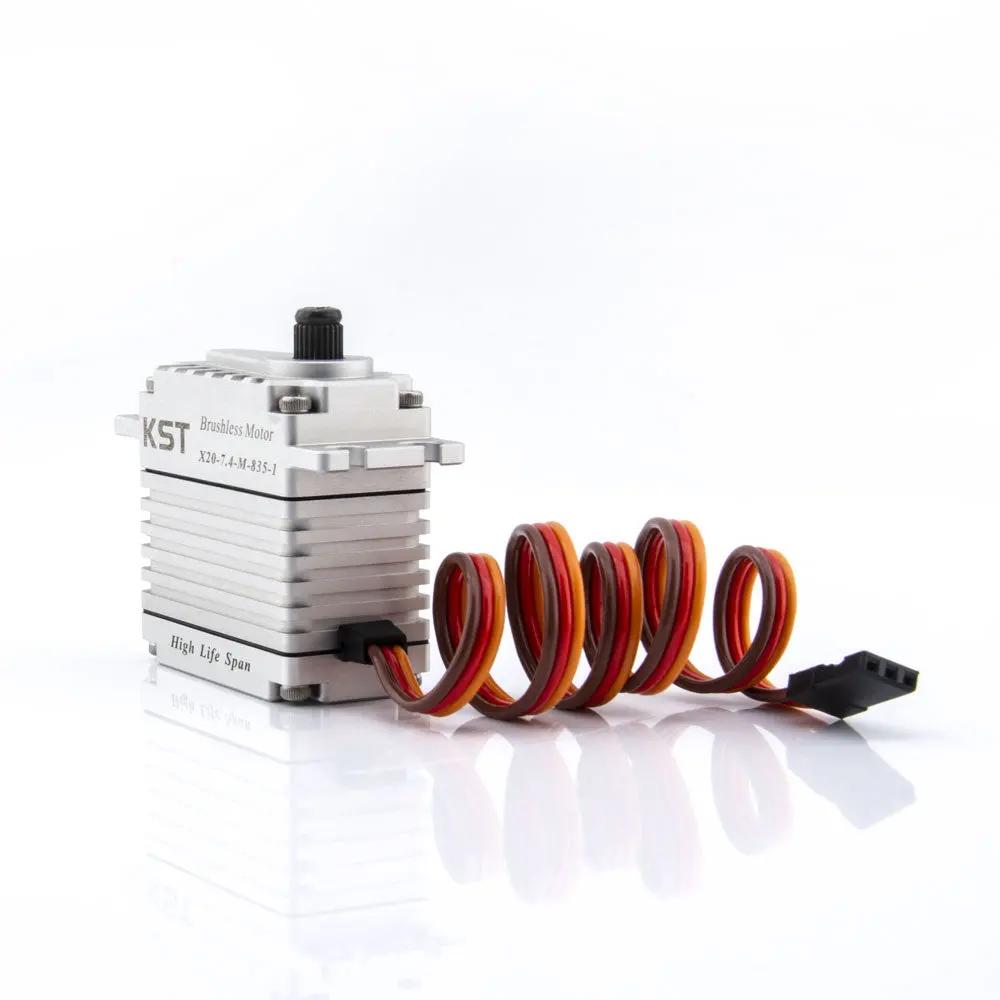

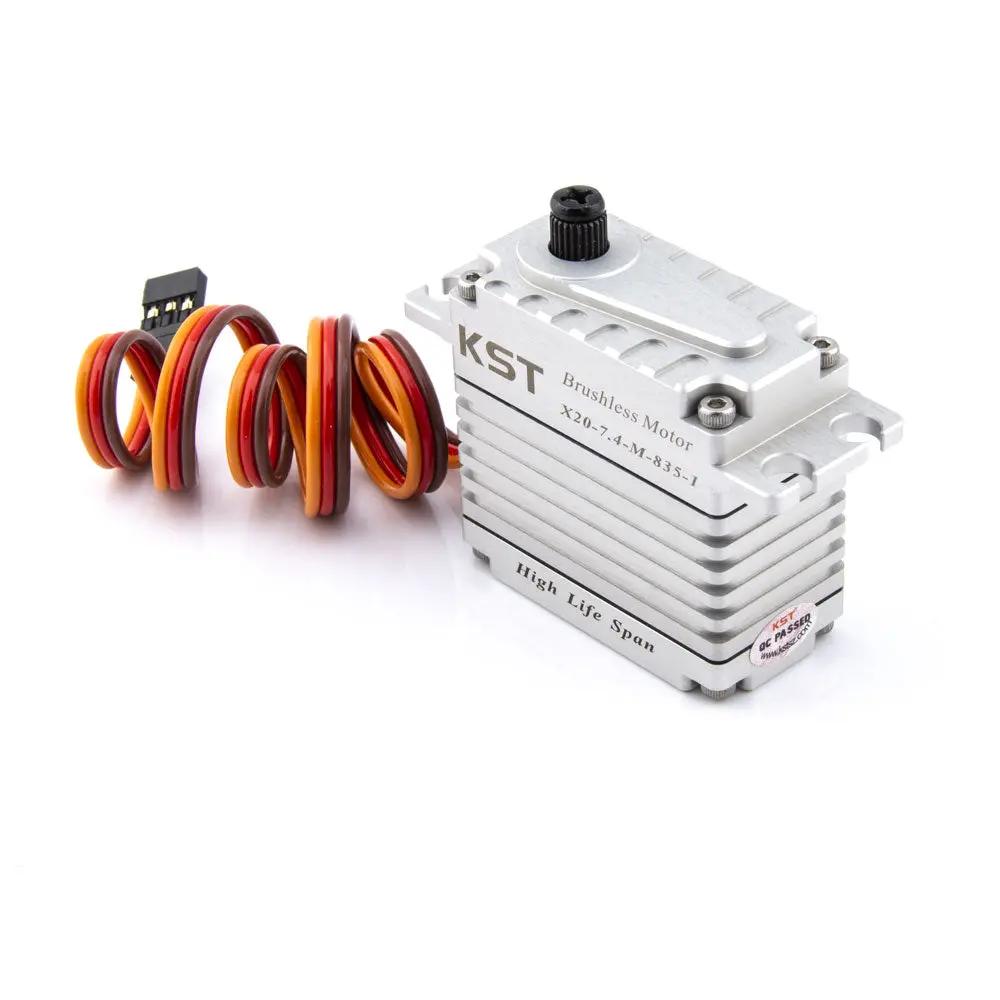

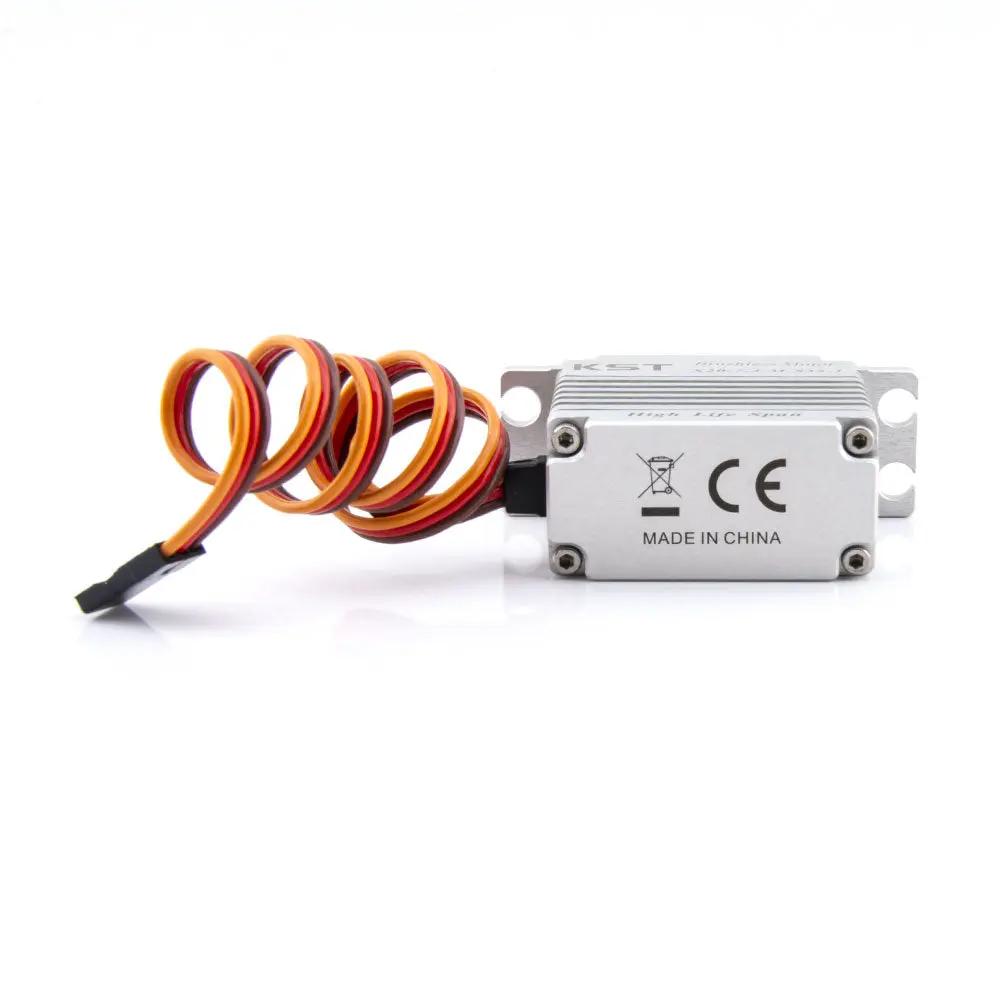

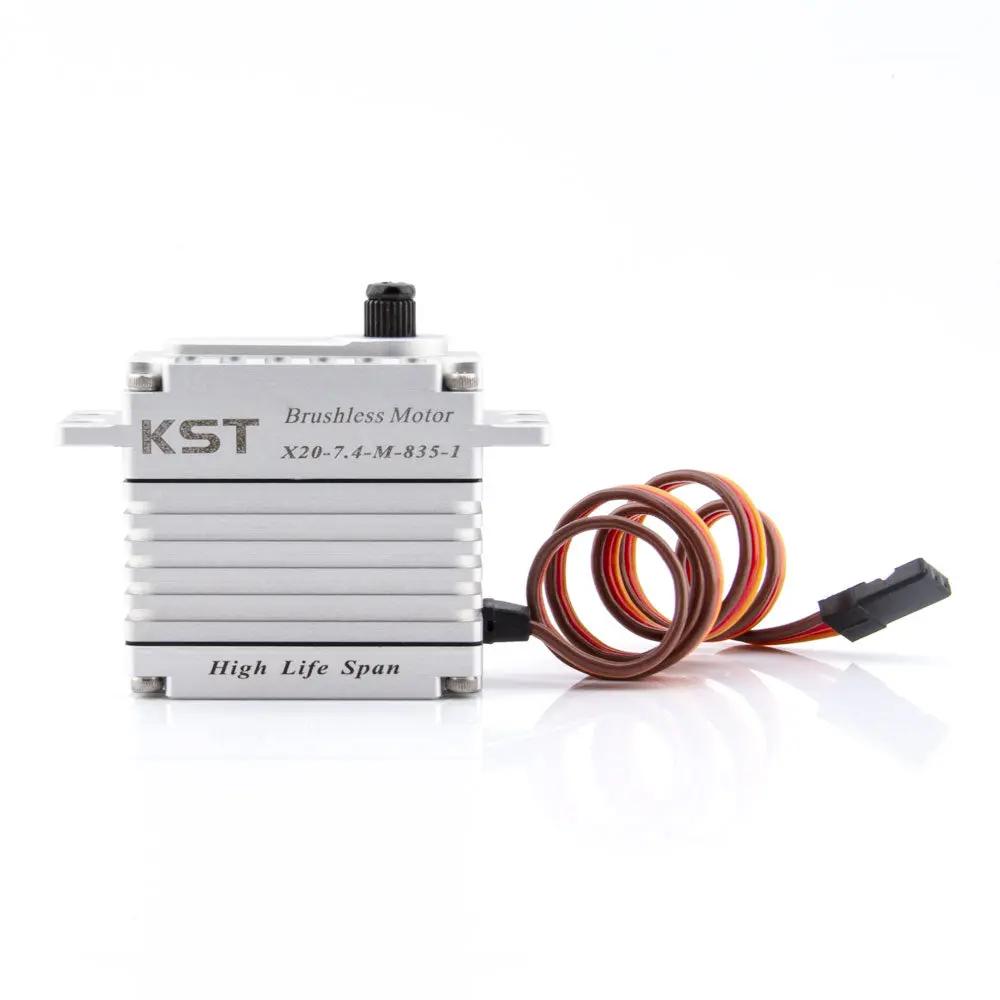

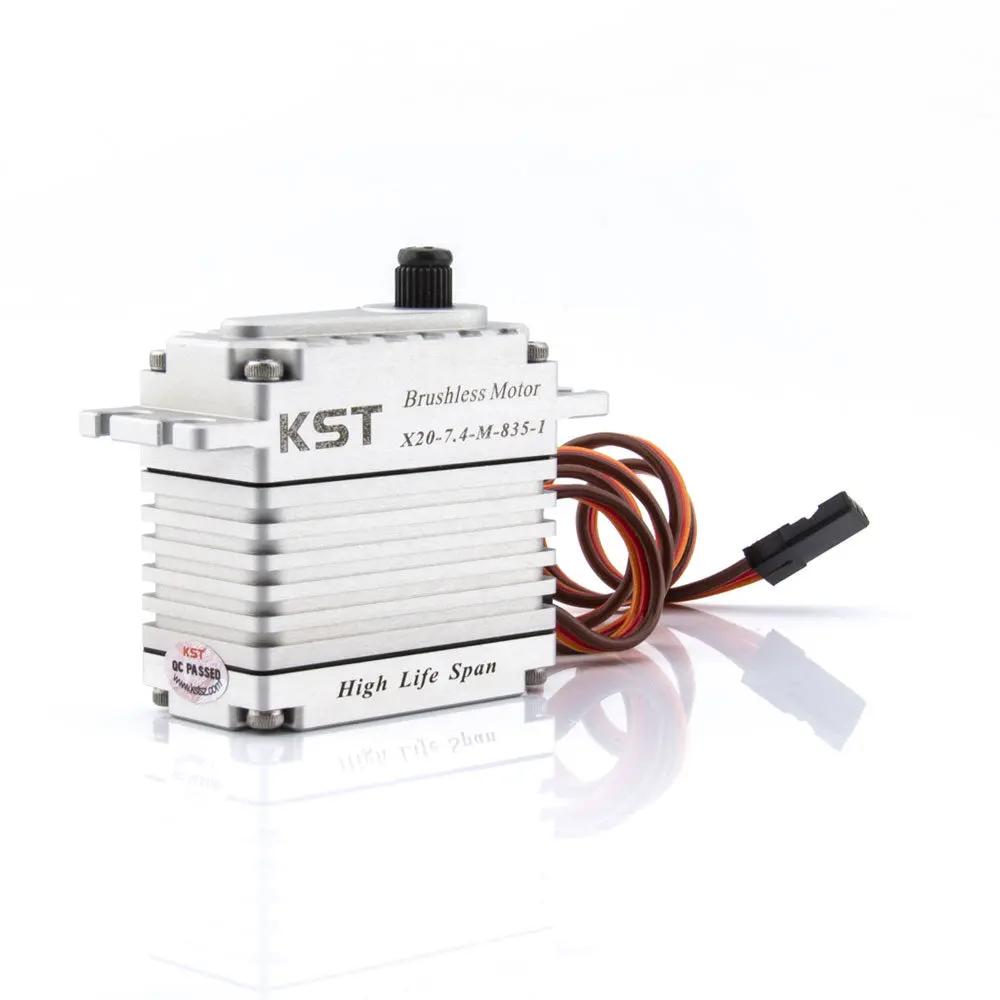

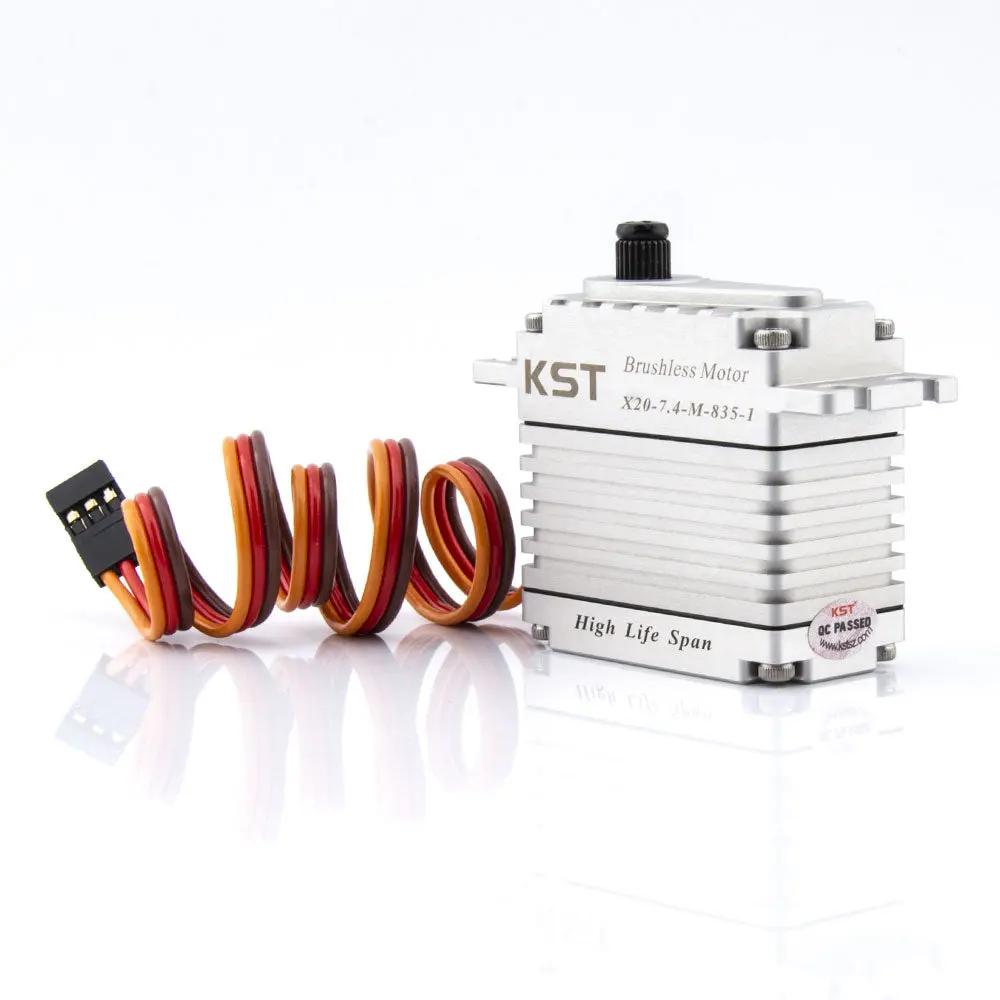

The X20-7.4-M-835 Servos features a brushless motor, a full CNC aluminum case, and a complete set of hardened steel gears throughout each servo. The servo boasts an incredible 40Kgf.cm of torque at 7.4V and a crisp 0.13 second speed.

Launch Video

Features

• Hardened Steel Gears
• Extreme Torque and Excellent Speed
• Contactless Sensor

• 6 Ball Bearings
• Brushless DC Motor
• CNC Aluminium Case

Specification

• Item: X20-7.4-M-835 Servo
• Rated Voltage: DC7.4V
• Operating Voltage: DC6.0V-8.4V
• Stalling Torque: 40Kgf.cm@7.4V

• Rated Torque: 10Kgf.cm@7.4V
• Stalling Current: 4.95A
• Rated Current: 1.25A
• No-load Speed: 0.13sec/60°@7.4V
• Rated Speed: 0.24sec/60°@7.4V
• Working Frequency: 1520μs/333Hz
• Default Travel Angle: ± 100°=200°Total, When 500μs-2500μs
• Temperature Range: -10℃……+65℃
• Case Material: Aluminum Alloy
• Motor Type: Brushless DC Motor

• Gear Set Material: Hardened Steel
• Position Sensor: Contactless
• Ball Bearing: 6BB
• Weight: 80g±10%

• Case Dimensions: 40mm*20mm*40mm±0.2mm

Related Items

• X20-7.4-M-820 HV Brushless HLS Servo
• X20-7.4-M-830 HV Brushless HLS Servo
• X20-7.4-M-835 HV Brushless HLS Servo

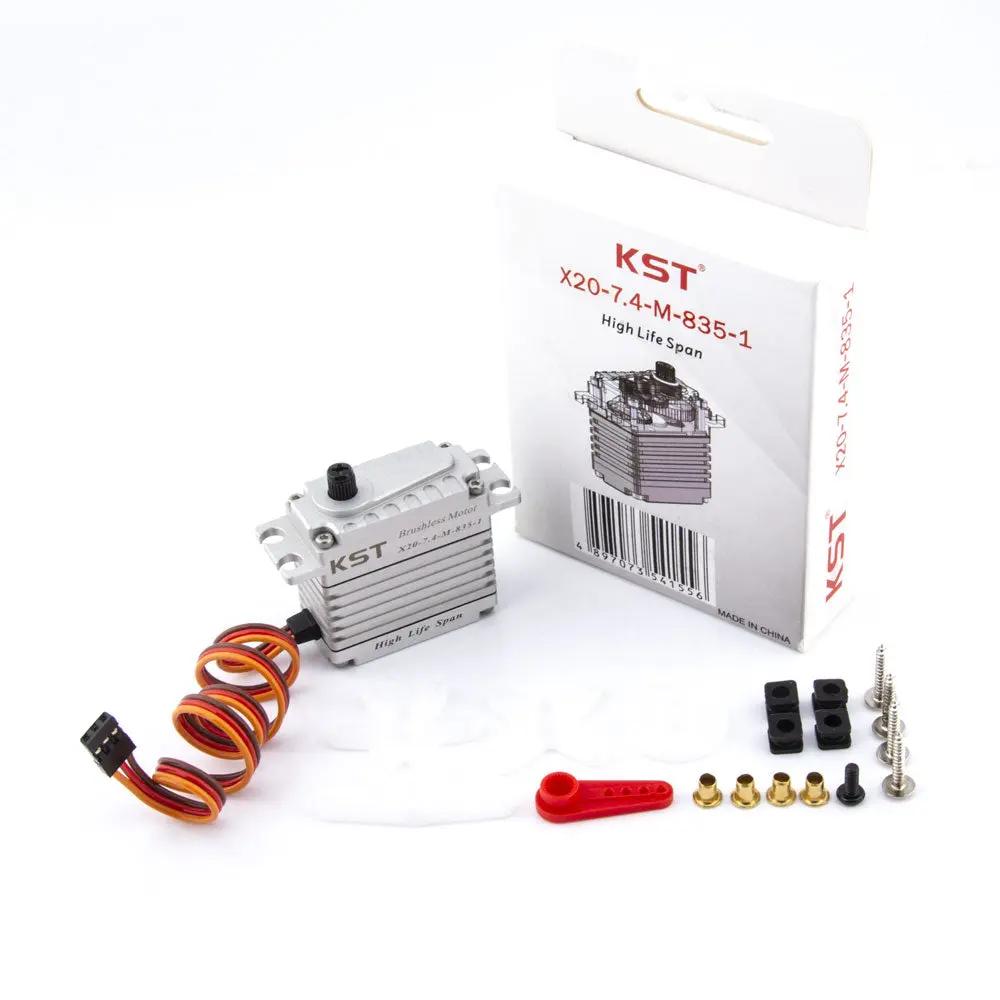

Package Including

• 1 * X20-7.4-M-835 HV Brushless Servo
• 1 * Pack of Accessories

Download

• X20-7.4-M-835 Servo Technical Specification
